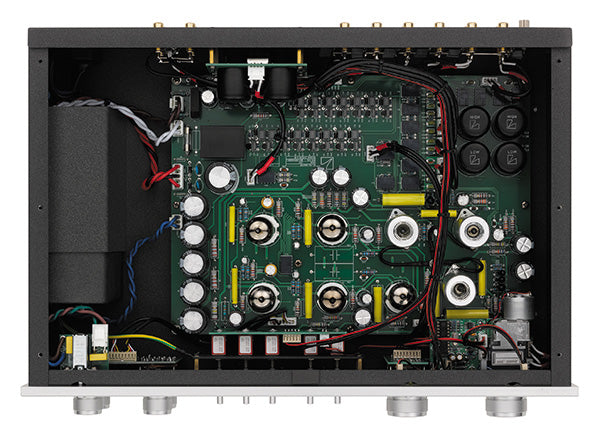

Luxman CL38uC
A SRPP (Shunt Regulated Push Pull) Stereo tube preamplifier with a genuine phono equaliser.
Specifications
Input sensitivity/
input impedance |
PHONO (MM): 2.0mV/47kΩ
PHONO (MC high): 0.3mV/100Ω
PHONO (MC low): 0.08mV/30Ω
LINE: 190mV/50kΩ
BAL.LINE: 190mV/20kΩ *2 |
| Output/output impedance |
Rated 1V/300Ω |
| Frequency response |
PHONO: 20Hz to 20kHz (±0.5dB)
LINE/BAL.LINE: 10Hz to 70kHz (within -3.0dB) |
| Total harmonic distortion |
0.006% or less (1kHz)
0.06% or less (20Hz to 20kHz) |
| S/N ratio (IHF-A) |
PHONO (MM): 68dB or more
PHONO (MC high): 63dB or more
PHONO (MC low): 60dB or more
LINE/BAL.LINE: 100dB or more |
| Tone control |
±8dB, selectable frequency range
BASS: 150/300/600Hz,
TREBLE: 1.5k/3k/6kHz |
| Low cut |
30Hz(-6dB/oct.) |
| Circuit |
SRPP |
| Vacuum tubes |
ECC83S×3, ECC82×5 |
| Power supply |
230V~(50Hz)/115V~(60Hz) |
| Power consumption |
35W |
| External dimensions |
440(W) x 169(H) x 307(D) mm
19mm front panel knob of and 12mm rear panel
terminals are included in the depth measurement |
| Net weight |
13.3kg (main unit) |
| Accessories |
Remote control (RA-19), Power cable |
