Description

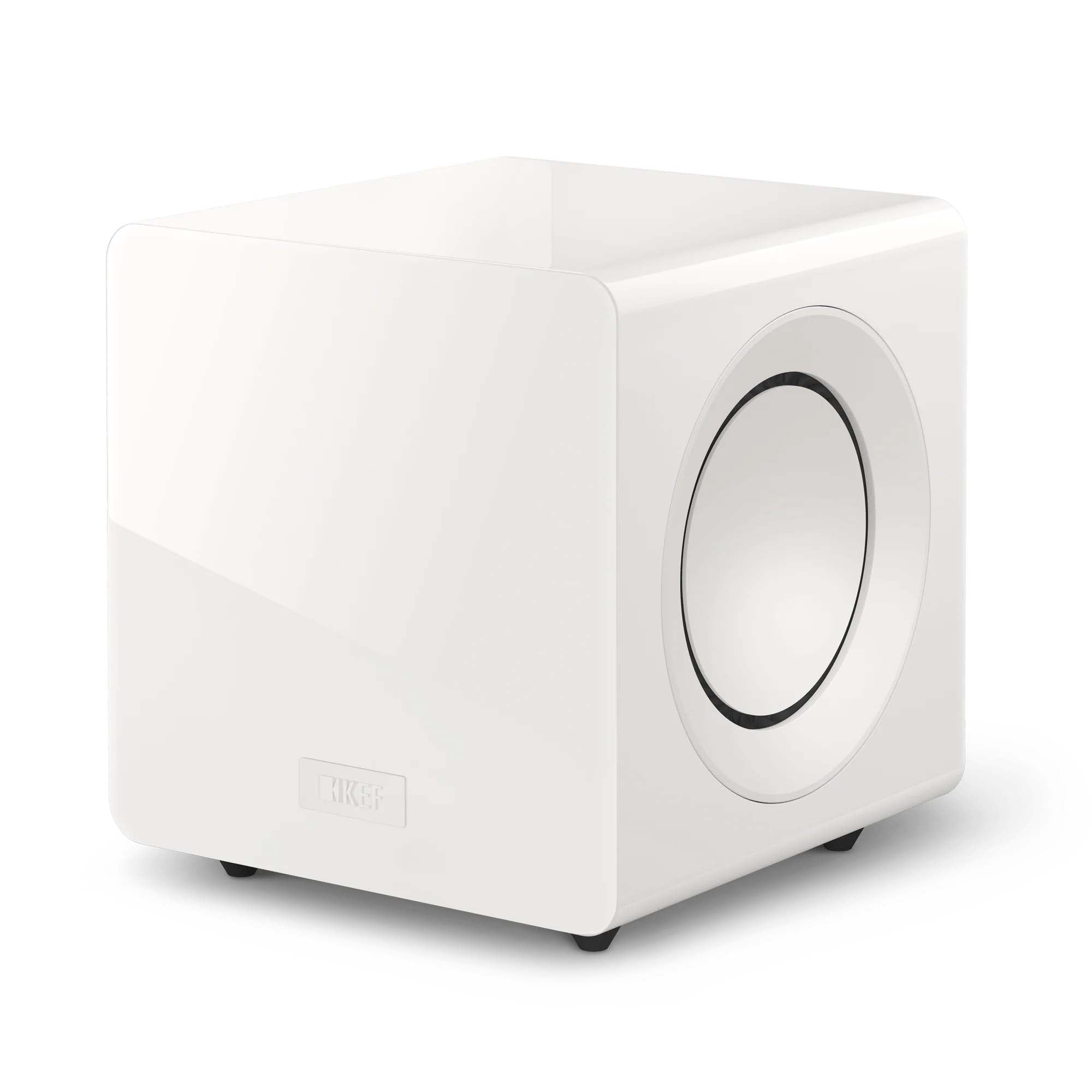

KEF KC92 Dual 9-Inch Active Subwoofer
Deep, controlled bass from a compact force-cancelling design
The KEF KC92 combines two 9-inch bass drivers, 1000W RMS of Class D amplification and KEF's Music Integrity Engine processing in a compact sealed cabinet. It adds low-frequency weight to a stereo system and impact to movie soundtracks, with the connections and adjustment options needed to blend into a wide range of systems.
Available in White Gloss and Black Gloss, the KC92 offers the same acoustic performance in either finish. Choose your colour from the variant selector. Each purchase includes one subwoofer.
Key Features
- Twin 9-inch drivers: Opposed drivers use a force-cancelling arrangement to reduce mechanical reaction forces in the cabinet.
- 1000W RMS amplification: Two 500W RMS Class D amplifier channels drive the bass units.
- Extended bass response: KEF specifies an 11Hz–200Hz frequency response (±3dB) and maximum output of 110dB at 1m.
- Music Integrity Engine: Dedicated DSP coordinates the drivers and amplification, including iBX Intelligent Bass Extension.
- P-Flex surrounds: Designed to resist internal cabinet pressure and support controlled cone movement.
- Five room EQ settings: Room, Wall, Corner, Cabinet and Apartment presets help adapt bass output to placement.
- Flexible connectivity: RCA line/LFE and speaker-level inputs, plus line outputs with high-pass filtering.
- Optional wireless connection: Compatible with the separately sold KEF KW1 Wireless Subwoofer Adapter Kit.
- Practical power control: Signal-sensing automatic wake-up, Always On and 12V trigger operation.
- Two gloss finishes: White Gloss and Black Gloss.
Two drivers working together
Powerful bass drivers create mechanical forces as their cones move. The KC92 positions its drivers on opposite sides of the cabinet so those reaction forces oppose one another. This helps reduce cabinet vibration while allowing both drivers to contribute to the acoustic output.
Hybrid aluminium/paper cones, oversized motor systems and vented voice coils support precise driver movement. KEF's P-Flex surrounds are engineered to resist the pressure inside the sealed enclosure, helping the cones move accurately as demands increase.
Amplification and processing designed as one system
The KC92's two 500W RMS amplifier channels provide a total of 1000W RMS. Music Integrity Engine processing manages how the amplification and drivers work together, while iBX Intelligent Bass Extension adapts the bass response to the listening level.
That combination makes the KC92 a versatile choice for the texture of bass instruments, the scale of orchestral recordings and the low-frequency effects in a film soundtrack. The published frequency-extension and maximum-output figures describe different aspects of performance; maximum output is not a promise of 110dB at every frequency.
Blend it with your stereo or home theatre system
Use the RCA LFE connection with an AV receiver or processor, or connect a compatible stereo system through the RCA line inputs. Speaker-level inputs provide another option for amplifiers without a dedicated subwoofer output. KEF SmartConnect accommodates mono or stereo line-level connections, and the filtered line outputs provide additional integration options in a suitable system.
Adjust the low-pass filter from 40Hz to 140Hz when setting the blend at the subwoofer. Select LFE mode when your receiver, processor or compatible active speakers handle bass management. Level and phase controls let you refine the balance with your main speakers.
Placement flexibility with five EQ presets
Placement has a major effect on bass. The Room, Wall, Corner and Cabinet presets offer starting points for common positions, while Apartment mode reduces very low-frequency output below 40Hz. These settings help with integration, but careful positioning and level adjustment still matter.

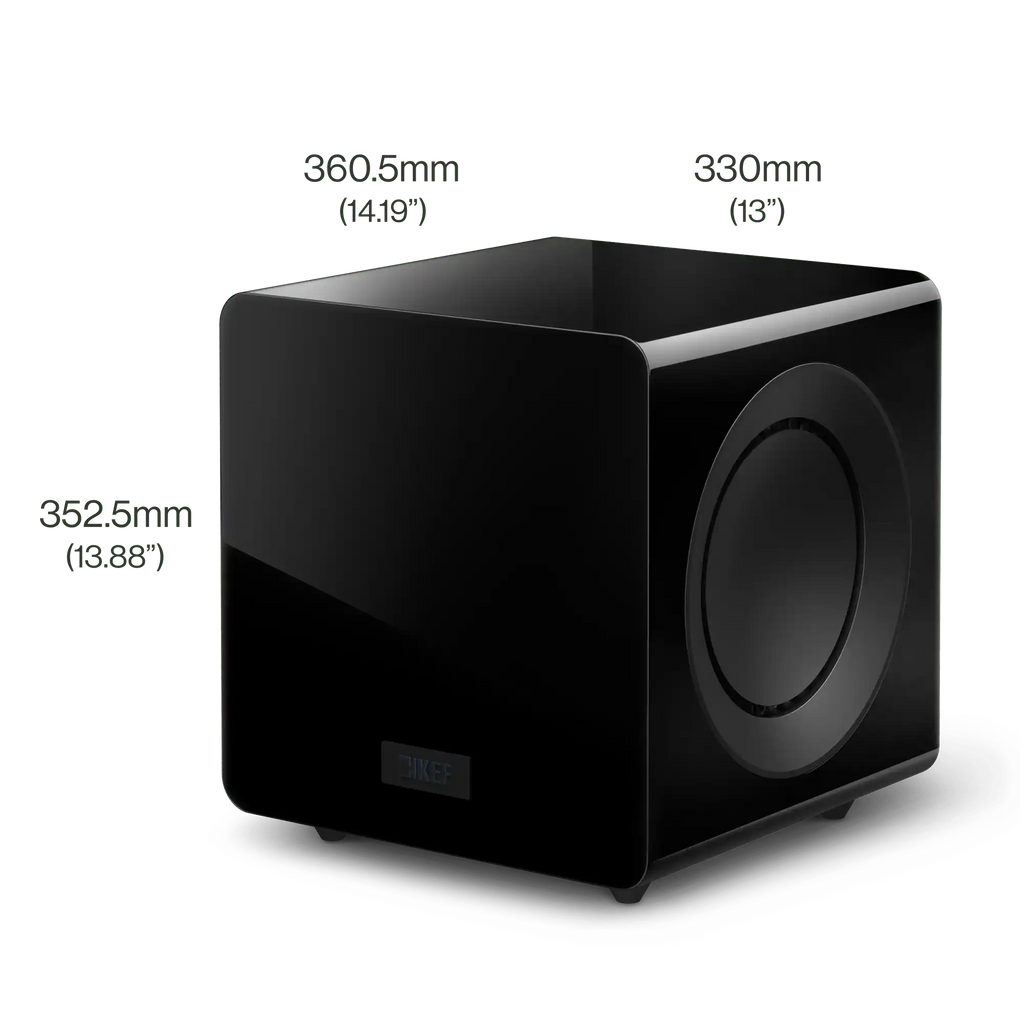

The drivers fire sideways, so leave at least 77mm of clearance between each driver and a wall. The cabinet measures 352.5mm high, 330mm wide and 360.5mm deep including the rear panel and feet, making it easier to accommodate than many larger subwoofer designs.
Optional wireless placement and future expansion
The optional KEF KW1 kit carries the audio signal wirelessly, giving you more freedom to position the KC92 without running a long subwoofer cable. The subwoofer still needs mains power. For a larger installation, the separately sold KSK92 stacking kit allows up to three KC92 units to be stacked.

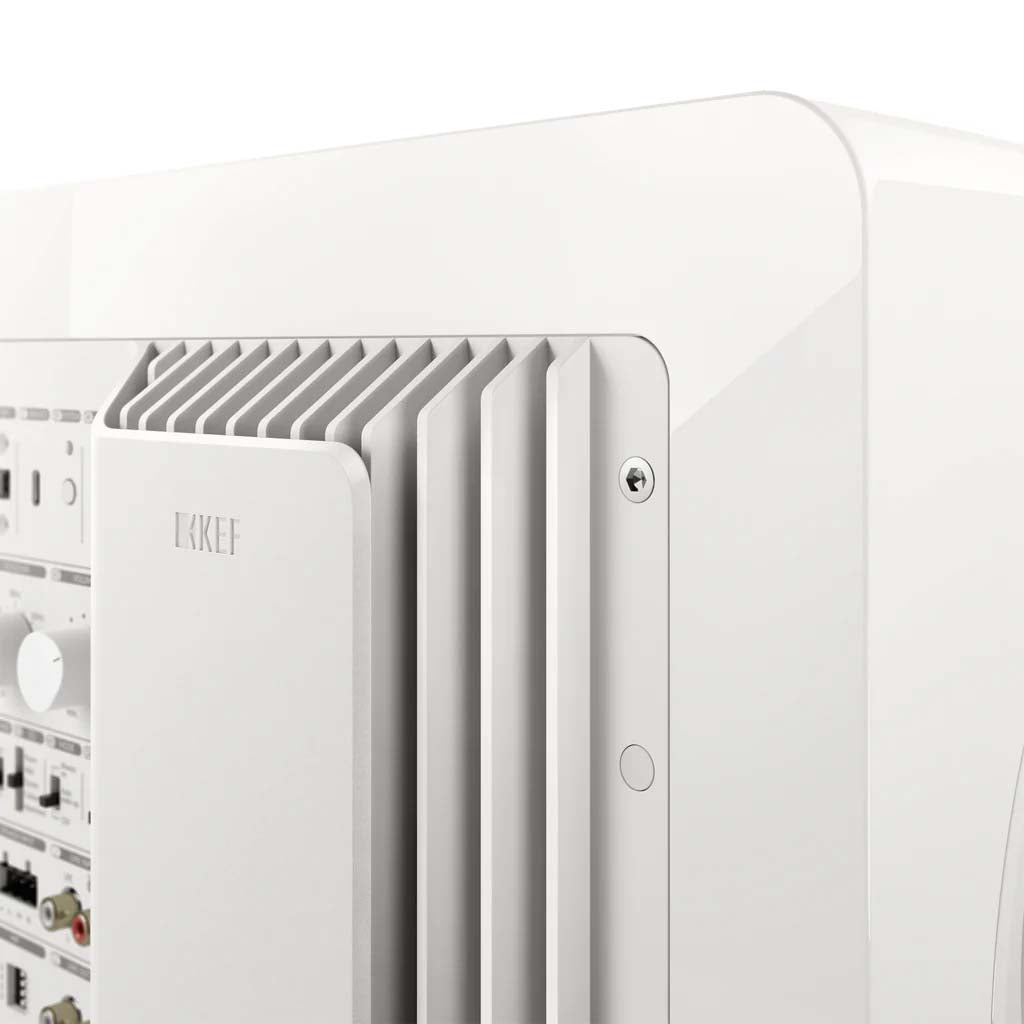

Automatic wake-up, Always On and 12V trigger modes let you choose how the subwoofer powers up with your system. A low-profile heatsink manages cooling, and the USB-C service port supports firmware updates.
Colour Options

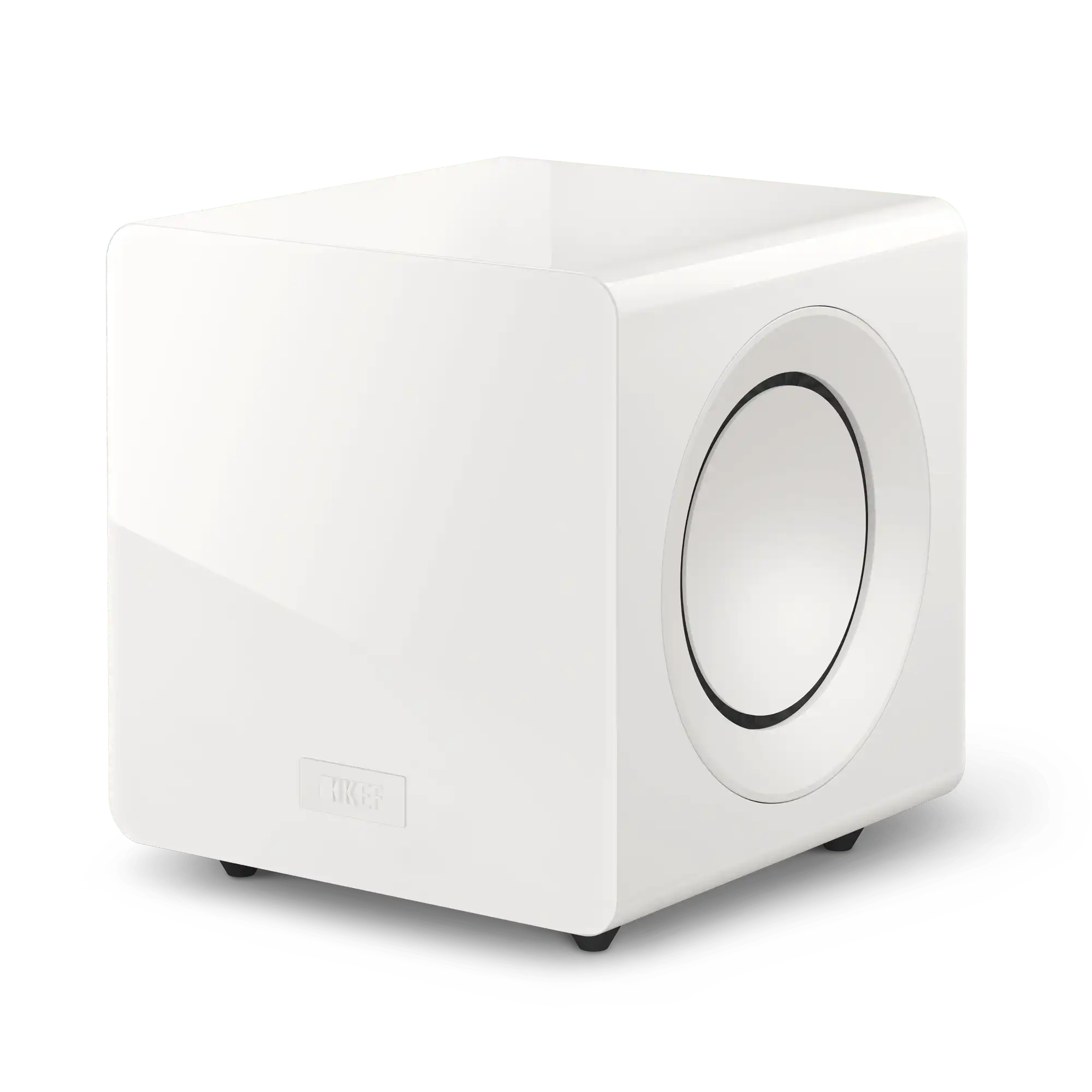

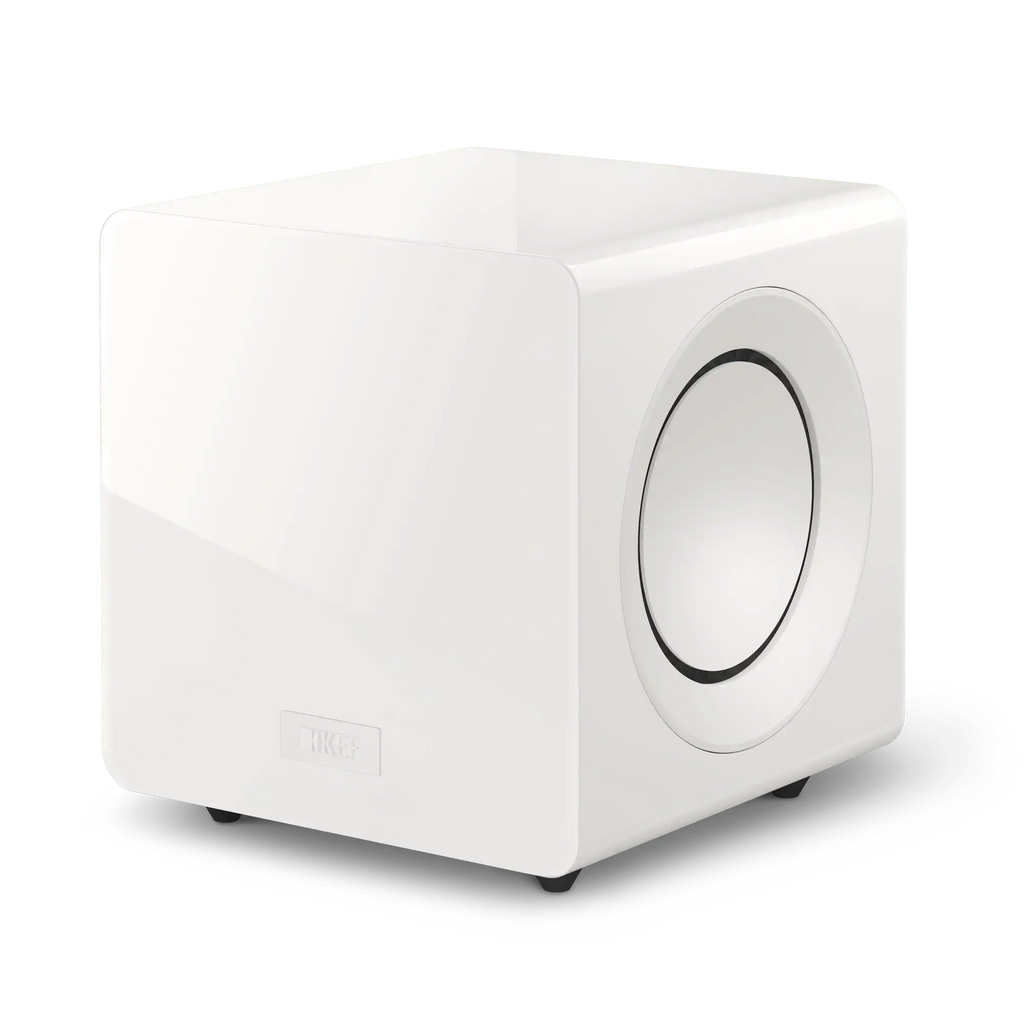

- White Gloss: A bright finish for lighter interiors and white speaker systems.
- Black Gloss: A classic finish for darker interiors and black speaker systems.
Specifications
| Specification | Details |
|---|---|
| Design | Sealed, force-cancelling active subwoofer |
| Drivers | 2 × 9-inch bass drivers |
| Amplification | 1000W RMS total; 2 × 500W RMS Class D |
| Frequency response | 11Hz–200Hz (±3dB) |
| Maximum output | 110dB SPL at 1m |
| Low-pass filter | Variable 40Hz–140Hz, plus LFE mode |
| Room EQ | Room, Wall, Corner, Cabinet and Apartment |
| Inputs | RCA line/LFE, speaker-level, KW1 expansion port and 12V trigger |
| Output | RCA line output with high-pass filtering |
| Australian mains operation | 230V AC, 50Hz |
| Power consumption | 1000W operating; less than 0.5W standby |
| Dimensions (H × W × D) | 352.5 × 330 × 360.5mm, including rear panel and feet |
| Weight | 20kg |
| Finishes | White Gloss and Black Gloss |
The Audio Experts Take
The KC92 is a compelling option when you want substantial bass capability without giving a large part of the room over to a subwoofer. Its appeal goes beyond amplifier power: the opposed drivers, useful placement presets and flexible connections make it adaptable to both music and home theatre systems. We would spend time on positioning and crossover setup to get the best blend with your speakers. White Gloss and Black Gloss let you choose the finish that suits the room without changing the performance.
Detailed Technical Specifications
-
Design and acoustic performance
- Model: KEF KC92.
- Enclosure: compact sealed cabinet with opposed, side-firing drivers in a force-cancelling arrangement.
- Drive units: 2 × 9-inch bass drivers.
- Driver construction: hybrid aluminium/paper cones, oversized motor systems and vented voice-coil design.
- Surround technology: KEF P-Flex.
- Frequency response: 11Hz–200Hz (±3dB), as specified on KEF's product page.
- Maximum output: 110dB SPL measured at 1m.
- Processing: Music Integrity Engine (MIE) DSP, including iBX Intelligent Bass Extension.
- Cooling: low-profile heatsink.
- Minimum clearance: allow at least 77mm between each side-firing driver and a wall.
-
Amplification, filters and controls
- Amplifier type: built-in Class D.
- Total amplifier power: 1000W RMS, comprising 2 × 500W RMS.
- Variable low-pass filter: 40Hz–140Hz.
- Low-pass filter slope: 24dB per octave.
- LFE mode: for systems using upstream bass management.
- Volume: rear-panel level control.
- Phase: switchable 0° or 180°.
- Room-position EQ presets: Room, Wall, Corner, Cabinet and Apartment.
- Apartment mode: reduces very low-frequency output below 40Hz.
- Line output: high-pass filter adjustment for compatible system integration.
- Power modes: automatic signal-sensing wake-up, Always On and 12V trigger operation.
- Ground-lift switch: provided.
- System button and mains indicator: provided.
-

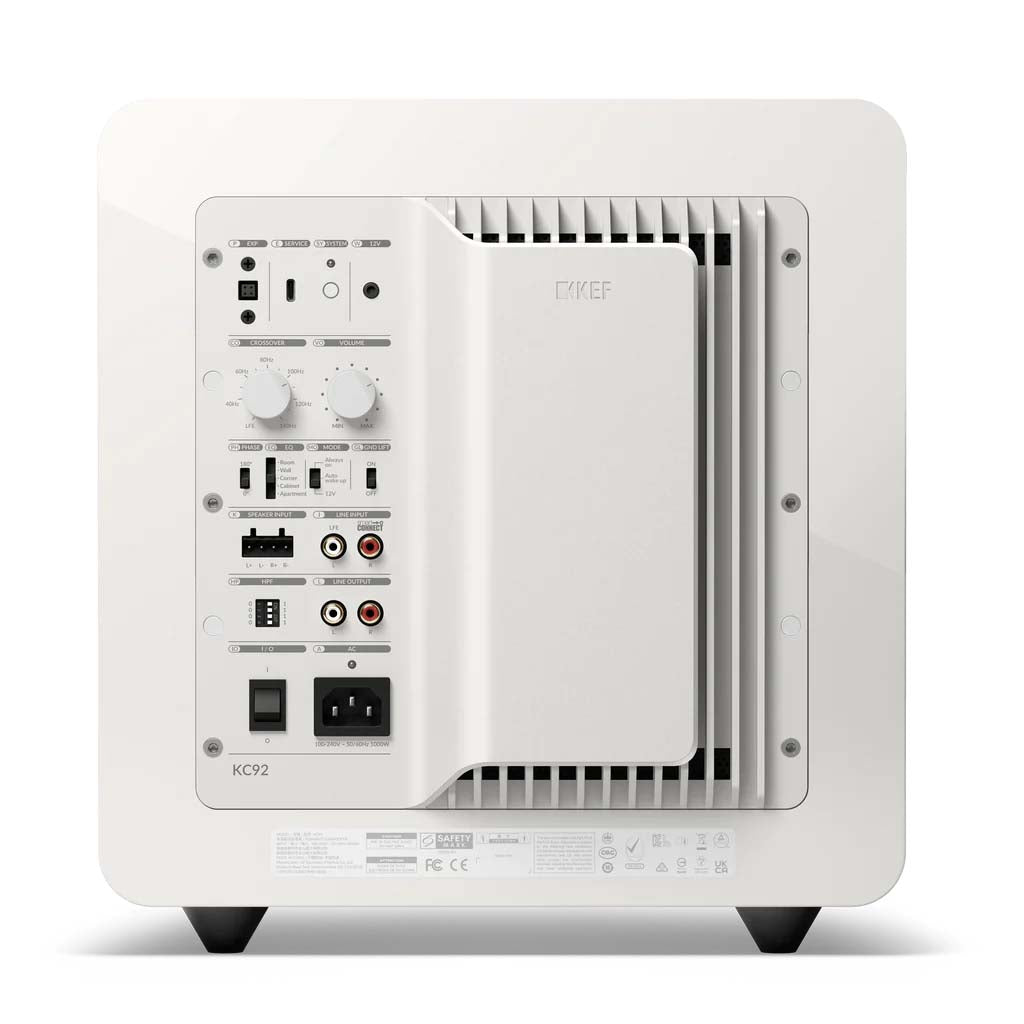

Connections and expansion
- Line-level inputs: RCA phono sockets with KEF SmartConnect for mono or stereo connection.
- Home theatre input: RCA LFE connection.
- High-level inputs: speaker-level connection via the supplied Euroblock connector.
- Line-level outputs: RCA, with high-pass filtering.
- Wireless expansion: dedicated port for the optional KEF KW1 Wireless Subwoofer Adapter Kit.
- Trigger input: 12V.
- USB-C: service connection for firmware updates.
- Wireless kit requires separate purchase; an AC power connection is still required.
- Optional KSK92 stacking kit: supports a stack of up to three KC92 subwoofers; kit and additional subwoofers sold separately.
-
Power, size, finishes and supplied accessories
- Australian mains operation: 230V AC, 50Hz.
- Operating power consumption: 1000W.
- Standby power consumption: less than 0.5W.
- Dimensions including rear panel and feet: 352.5mm high × 330mm wide × 360.5mm deep.
- Weight: 20kg.
- Colour variants: White Gloss and Black Gloss.
- Included: KC92 subwoofer, power cord, Euroblock speaker-level connector, user manual and warranty information.
- Sold individually.
