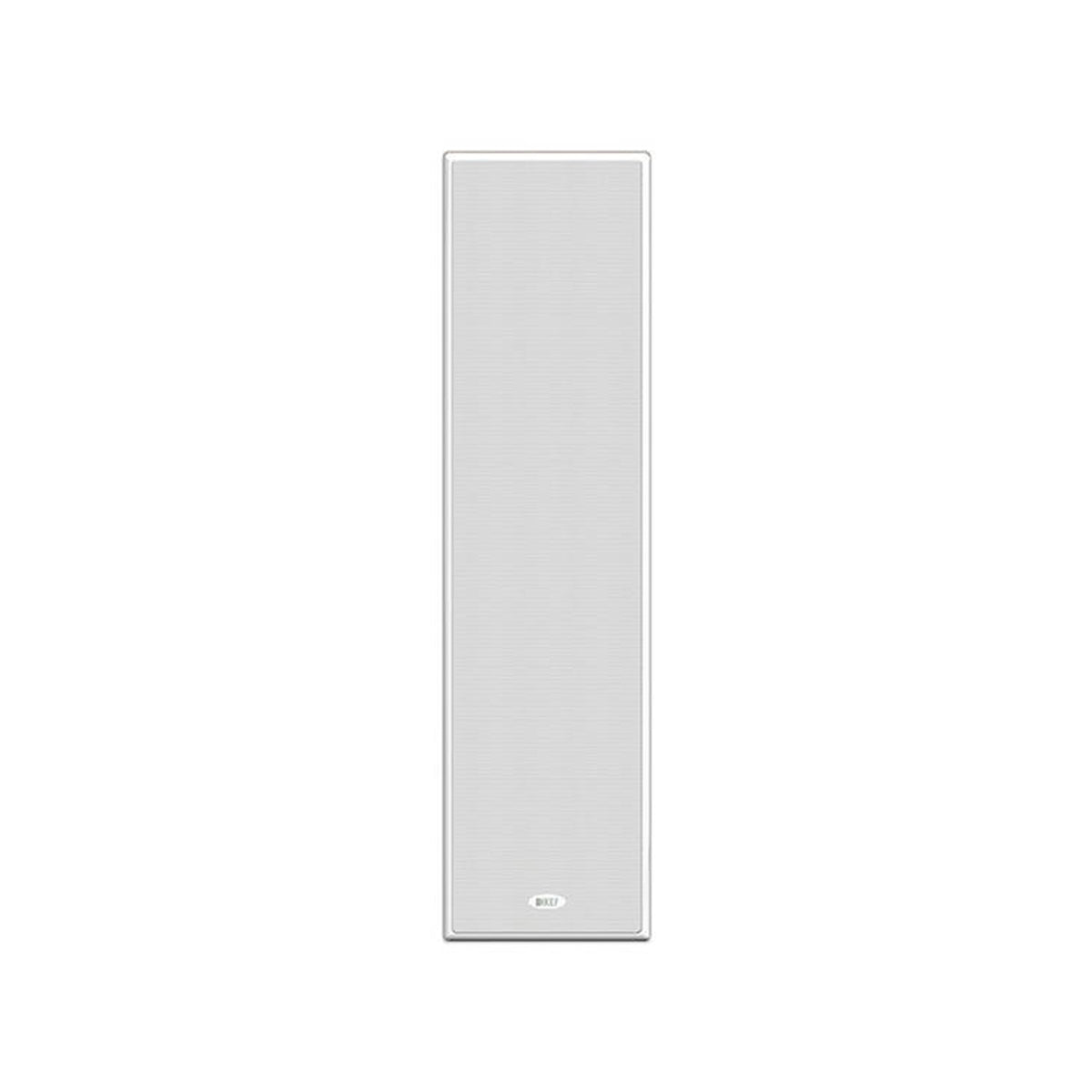

Ci4100QL-THX is an in-wall speaker certified to THX SELECT2 standard. A deep understanding of the filmmaking process and surround sound is at the very heart of every THX certified 2.1, 5.1 and 7.1 speaker system.
Featuring KEF’s sophisticated ’sit anywhere’ Uni-Q driver array, which places the tweeter in the acoustic centre of the bass/midrange cone, this allows both the tweeter and woofer to act as a single point source that disperses the sound widely and evenly throughout the room. Together with the discreet Ultra Thin Bezel (UTB) design, offering the slimmest possible visible rim around the speaker, the Ci Q Series range gives you tremendous freedom to position the speakers where you please.
NOMINAL IMPEDANCE
4 Ohm
SENSITIVITY
89dB (2.83V/ 1m)
CROSSOVER FREQUENCIES
2.2kHz
FREQUENCY RESPONSE
55Hz - 28kHz (±6dB) open backed
DRIVE UNITS
LF: 3 x 100mm (4 in.)
MF: 100mm (4 in.)
HF: 19mm (0.75 in.) Uni-Q
RECOMMENDED AMPLIFIER POWER
10 - 150W
PRODUCT EXTERNAL DIMENSION (H X W X D)
490 x 128 x 81 mm
CUT-OUT DIMENSIONS (H X W)
476 x 114mm
MOUNTING THICKNESS
Ceiling Thickness (Maximum): 24mm
Ceiling Thickness (Minimum): 6mm
MOUNTING DEPTH FROM SURFACE
76mm
OPTIONAL ROUGH IN FRAME
RIF4100L
