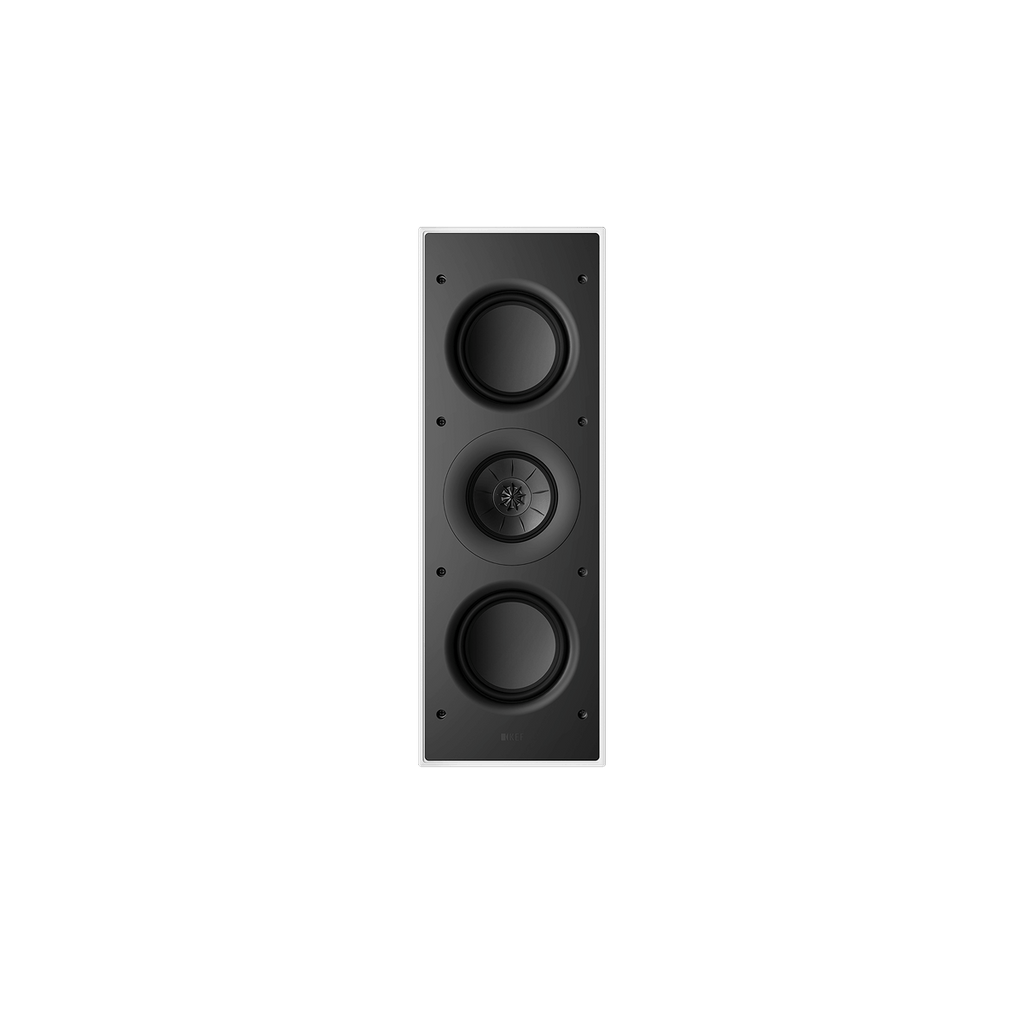

KEF Ci3120QLM-THX In-Wall Architectural Speaker

KEF Ci3120QLM-THX In-Wall Architectural Speaker

The KEF Ci3120QLM-THX is a premium in-wall architectural speaker designed for customers who want a serious cinema experience without placing traditional loudspeaker cabinets around the room. It is built for modern home theatre and multipurpose spaces where the speakers need to disappear visually, but the sound still needs to feel powerful, precise and properly cinematic.

As part of KEF’s Q Series architectural range, the Ci3120QLM-THX combines THX Certified Select performance with KEF’s 12th generation Uni-Q driver array and Metamaterial Absorption Technology. That makes it a very strong option for customers who want a clean in-wall installation but do not want to compromise on dialogue clarity, front-stage focus or overall immersion.

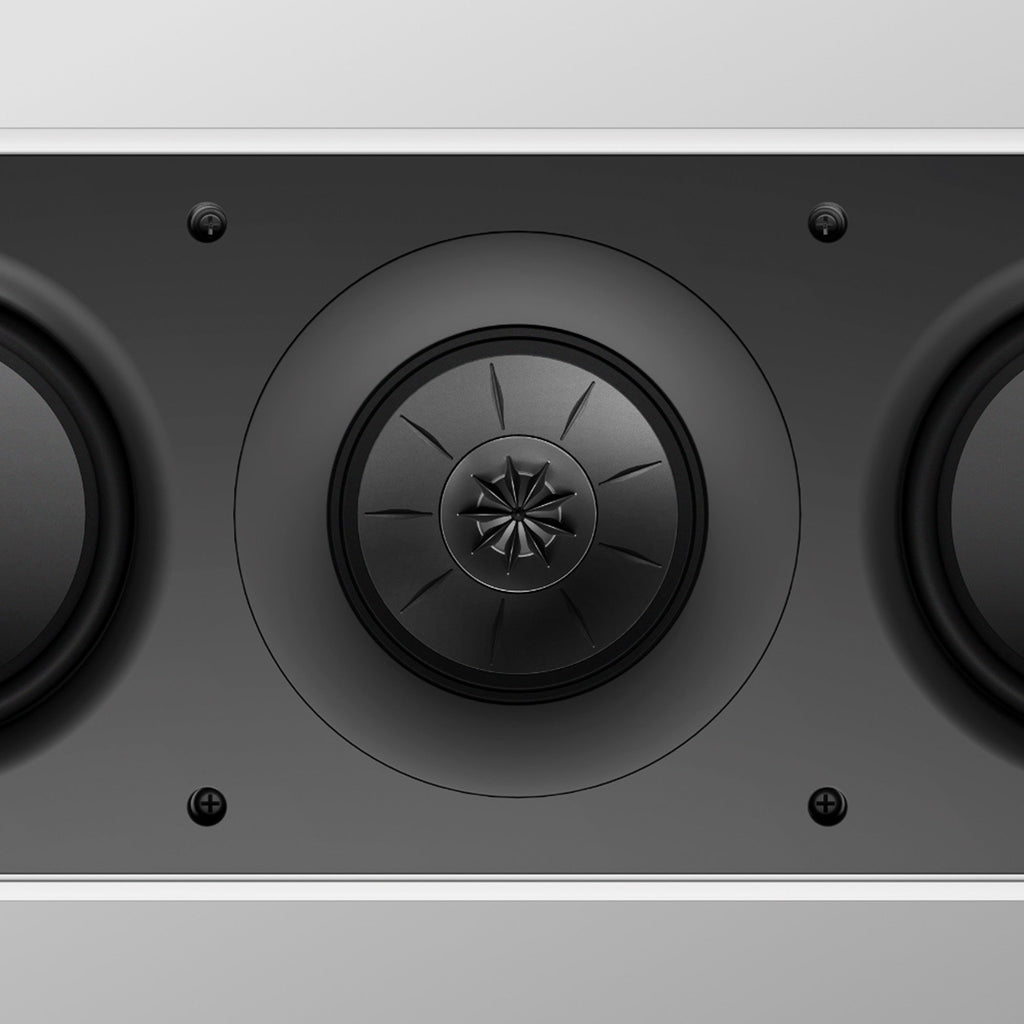

The speaker uses a 3-way driver layout with dual 120mm bass drivers, a 100mm Uni-Q midrange driver and a 19mm vented aluminium dome tweeter with MAT. In practical terms, this gives the speaker the control and output needed for movie soundtracks, while the Uni-Q array helps spread sound more evenly across the listening area rather than locking the best experience to one narrow seat.

Key Features

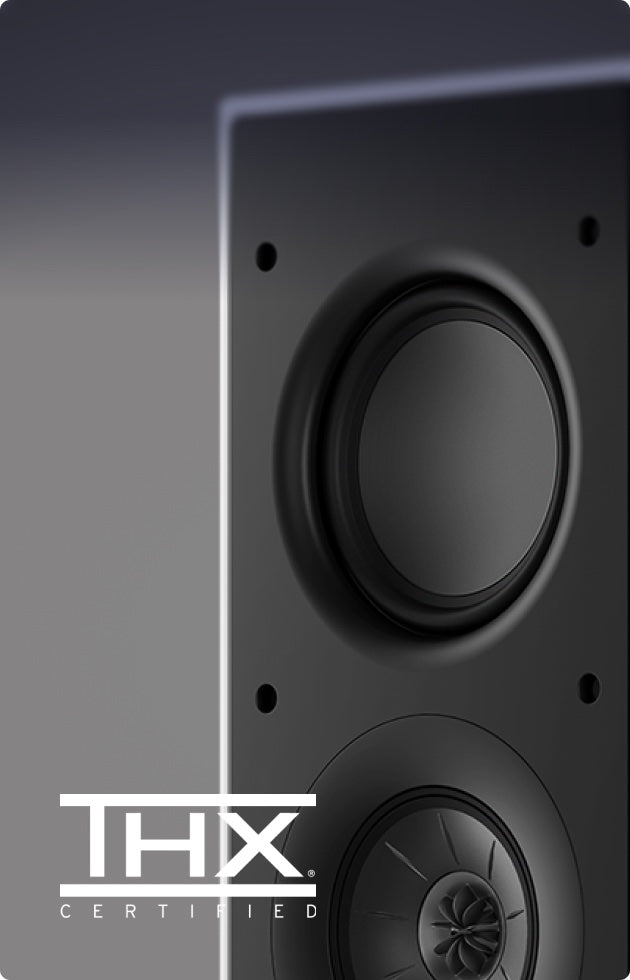

• THX Certified Select in-wall architectural speaker
• 12th generation Uni-Q driver array for wide, even dispersion
• Metamaterial Absorption Technology for cleaner high-frequency performance
• 3-way design for balanced driver integration
• Dual 120mm bass drivers for clean, controlled low-frequency output
• 100mm Uni-Q midrange for focused dialogue and natural vocal reproduction
• 19mm vented aluminium dome tweeter with MAT
• 150° nominal coverage for a wider listening area
• 105dB maximum SPL measured at 1m

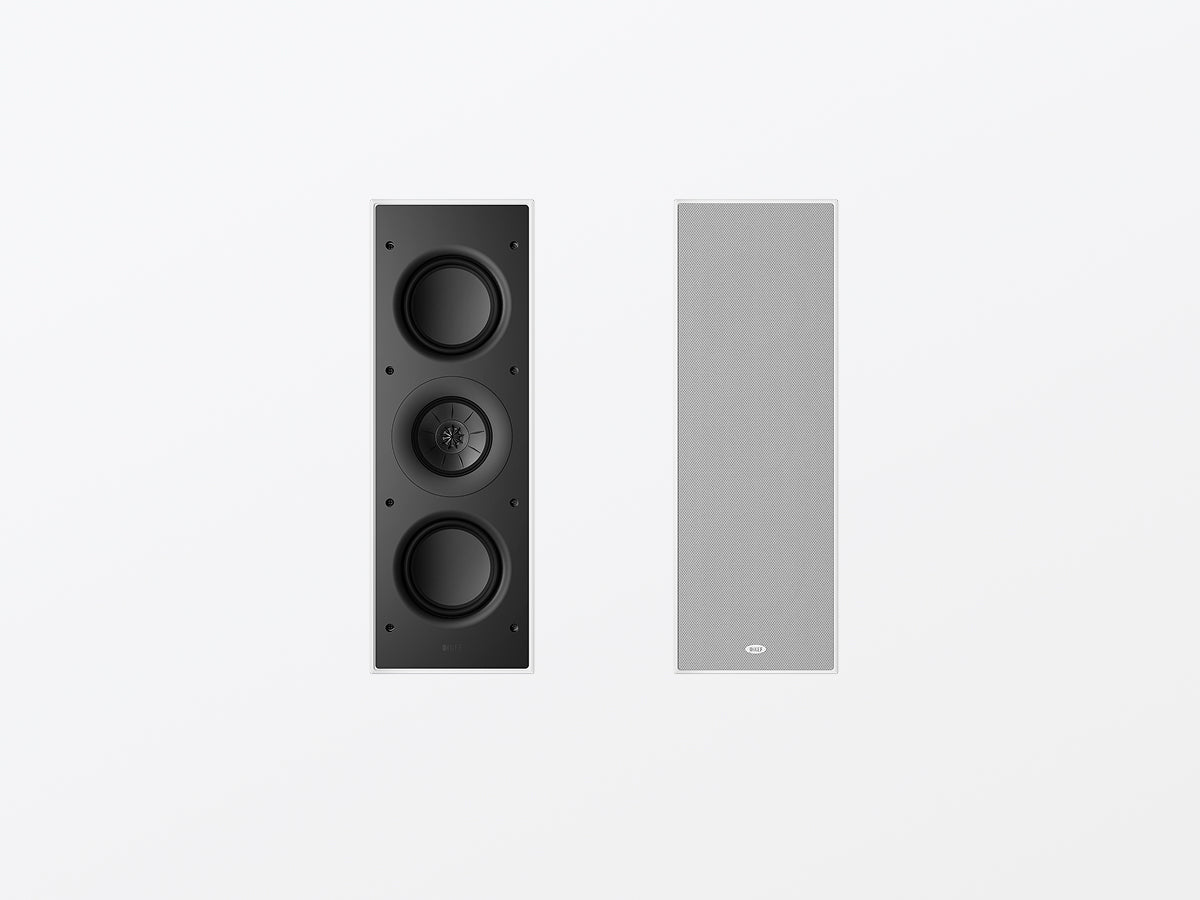

• Paintable magnetic metal grille with KEF Ultra-Thin Bezel design
• IP64 safety and regulatory compliance

Why Choose the KEF Ci3120QLM-THX?

The Ci3120QLM-THX is aimed at customers who want the clean look of an architectural speaker but the performance attitude of a proper cinema speaker. This is not a basic background-music in-wall model. It is designed for high-impact movie playback, clear centre-channel dialogue, dynamic front-stage effects and immersive system layouts where consistent sound across the room matters.

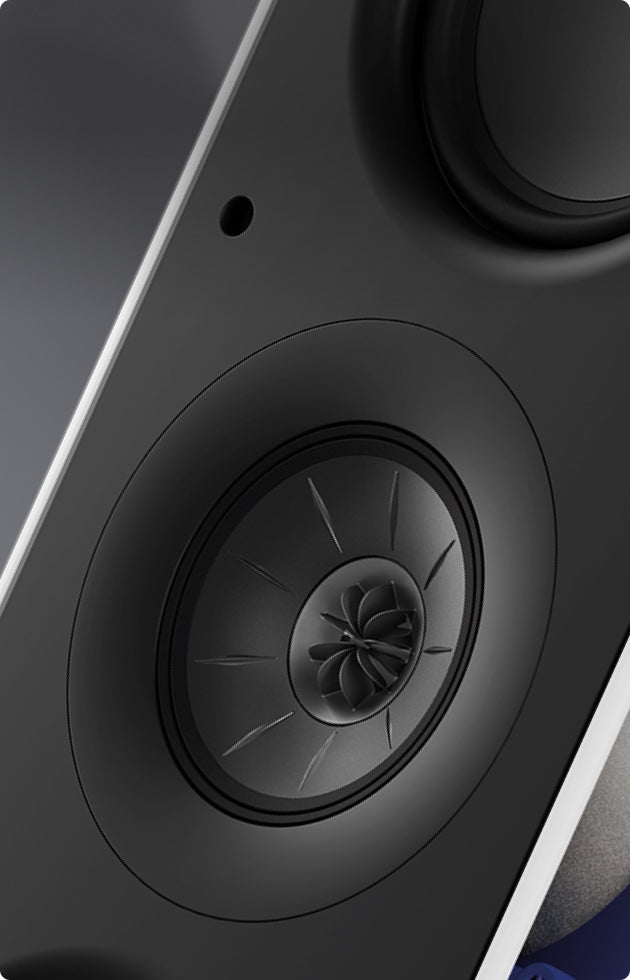

One of the key advantages is KEF’s Uni-Q design. By placing the tweeter at the acoustic centre of the midrange driver, Uni-Q behaves more like a single point source. In a real room, that helps create a broader sweet spot, so more seats get a coherent and believable soundstage. That is especially useful in media rooms and family rooms where viewers may not always be sitting in one perfect reference position.

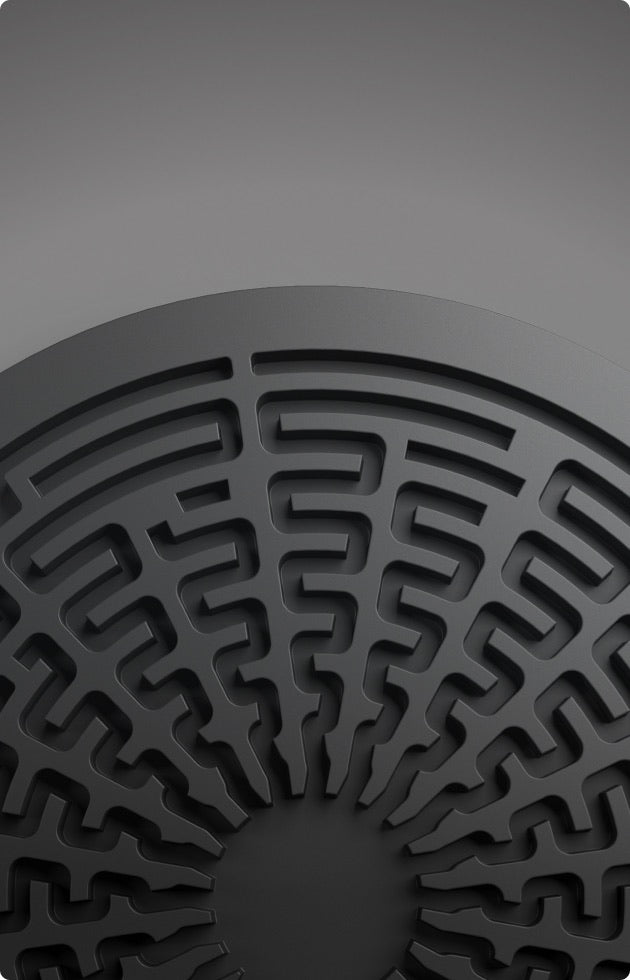

The inclusion of Metamaterial Absorption Technology is also important. MAT is designed to absorb unwanted sound from behind the tweeter, helping reduce distortion and improve perceived detail. For customers, that translates into cleaner treble, better dialogue intelligibility and a less harsh presentation when the system is being pushed during action scenes or complex soundtracks.

Performance & System Matching

The Ci3120QLM-THX has a 4 ohm nominal impedance and a recommended amplifier power range of 25–250 watts. For best results, it should be partnered with a capable AV receiver or power amplifier that is comfortable driving 4 ohm speakers. This is particularly important if the speaker is being used across the front stage or in a system played at higher cinema levels.

Although the Ci3120QLM-THX offers strong in-wall performance, it should still be treated like a serious home theatre speaker rather than a full-range tower replacement. KEF lists a recommended high-pass filter range of 35Hz–100Hz, so in most cinema systems it will perform best when crossed over to a properly matched subwoofer. That approach lets the speaker focus on clean dialogue, effects and midbass while the subwoofer handles the deepest low-frequency impact.

The speaker is also designed with installation in mind. Its paintable magnetic metal grille and Ultra-Thin Bezel help it blend into the room once installed, while the published cut-out and mounting depth figures make it easier for installers to confirm fitment before the wall is opened up.

Ideal Applications

• Medium-sized home theatre rooms where THX Certified Select performance is required
• Media rooms and multipurpose spaces where speakers need to be hidden in-wall
• Front left, centre or right channel use in a discreet cinema system
• Premium surround layouts where tonal consistency and wide dispersion matter
• Architectural AV projects where sound quality and interior design both matter

Installation Considerations

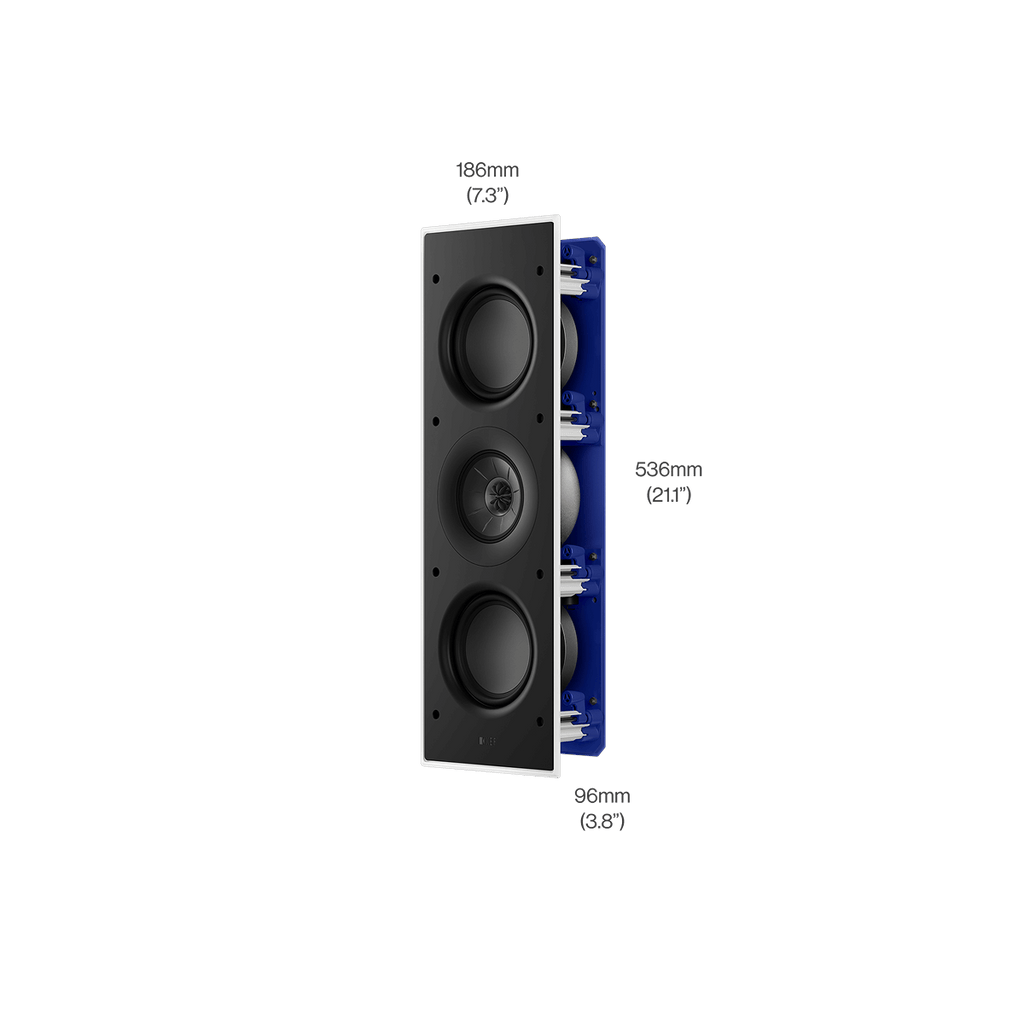

Before installation, it is important to confirm wall depth, cut-out dimensions and available rear cavity volume. KEF lists the product external dimensions as 536mm x 186mm x 96mm, with a cut-out size of 513mm x 163mm and a mounting depth from surface of 90mm. KEF also specifies an ideal rear volume of 40 litres and a minimum rear volume of 20 litres, which should be considered when planning the cavity or enclosure behind the speaker.

For best results, the Ci3120QLM-THX should be installed and calibrated as part of a complete system, with levels, crossover points and room correction set correctly. A professional installation is strongly recommended, particularly when this speaker is being used in a high-performance theatre or custom AV project.

Full Specifications

In the Box

• KEF Ci3120QLM-THX speaker x 1
• Metal grille x 1
• Cut-out template x 1
• Warranty booklet
• Manual

Important Notes

• This is a passive in-wall speaker and requires an AV receiver or amplifier.
• Use amplification suitable for a 4 ohm nominal load.
• A dedicated subwoofer is recommended for full home theatre impact.
• Confirm cut-out, mounting depth and rear cavity volume before installation.
• Professional installation is recommended for best performance and finish.

Final Word

The KEF Ci3120QLM-THX is a serious architectural speaker for customers who want in-wall discretion without giving up the scale and clarity of a proper cinema system. With THX Certified Select performance, KEF’s Uni-Q driver array, MAT technology and a clean paintable grille design, it is an excellent option for high-quality home theatre rooms, media spaces and custom installations where the speakers need to be heard, not seen.
