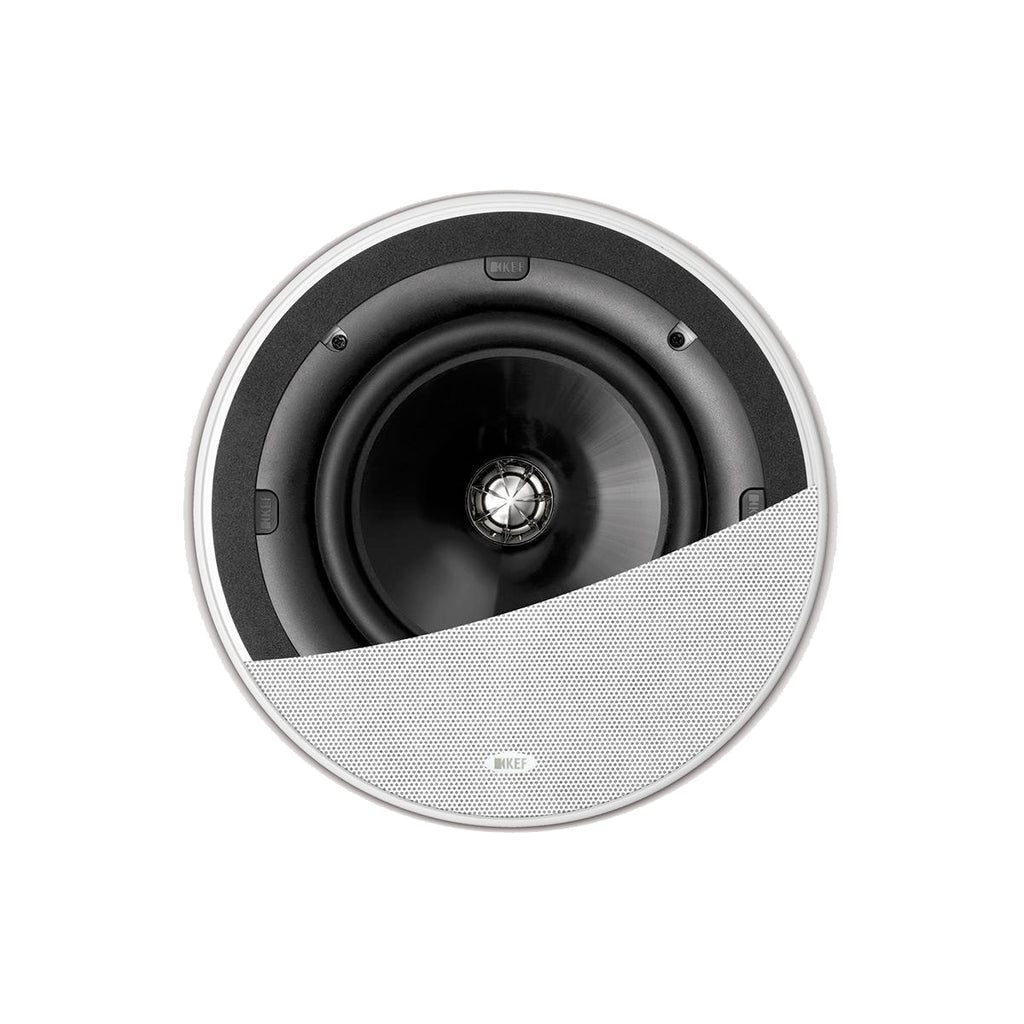

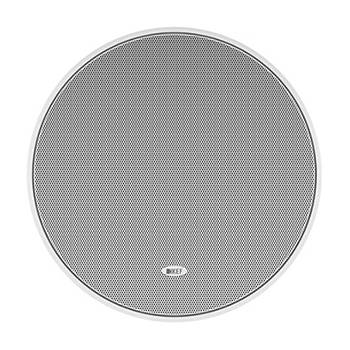

KEF Ci200QR In-Ceiling Speaker (EACH)
Thin bezel and narrow rim allow for flawless integration
The stylish Ci200QR's thin bezel and narrow rim allow for flawless integration into your ceiling and KEF's new Uni-Q driver, which spreads sound over a wider area enabling you to use less speakers. These two features alone combine to make the Ci200QR perfect for any space.

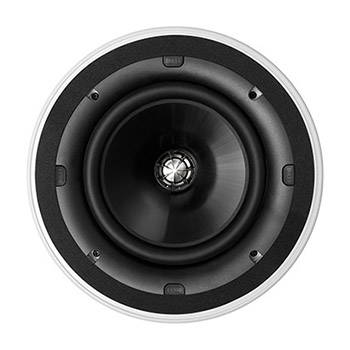

Featuring KEF's sophisticated 'sit anywhere' Uni-Q driver array, which places the tweeter in the acoustic centre of the bass/midrange cone, this allows both the tweeter and woofer to act as a single point source that disperses the sound widely and evenly throughout the room. Together with the discreet Ultra Thin Bezel (UTB) design, offering the slimmest possible visible rim around the speaker, the Ci-Q Series range gives you tremendous freedom to position the speakers where you please.
Features
- UTB™ Ultra Thin Bezel
- 200mm (8.0in.) Uni-Q driver array
- 25mm (1.0in.) Aluminium dome tweeter and 'tangerine' waveguide
- Gold plated spring loaded binding posts
NOMINAL IMPEDANCE
8 Ohms
SENSITIVITY
90dB (2.83V/ 1m)
FREQUENCY RESPONSE
35Hz-34kHz (+/-6dB) open-backed
CROSSOVER RESPONSE
2.5kHz
DRIVE UNITS
LF: 200mm (8.0in.)
HF: 25mm (1.0in.)
RECOMMENDED AMPLIFIER POWER
10-150W
PRODUCT EXTERNAL DIMENSIONS (H X W X D)
Diameter : 289.6mm (11.4in.)
Depth : 109.8mm (4.33in.)
CUT-OUT DIMENSIONS (H X W)
Diameter : 240mm (9.45in.)
MOUNTING THICKNESS
Ceiling Thickness (Maximum): 37mm (1.46 in.)
Ceiling Thickness (Minimum): 6mm (0.24 in.)
MOUNTING DEPTH FROM SURFACE
Product only : 103.3mm (4.07in.)
OPTIONAL ROUGH IN FRAME
RIF200R
NET WEIGHT
2.4 kg (5.28 lbs)
UNIT MEASUREMENT
Piece
