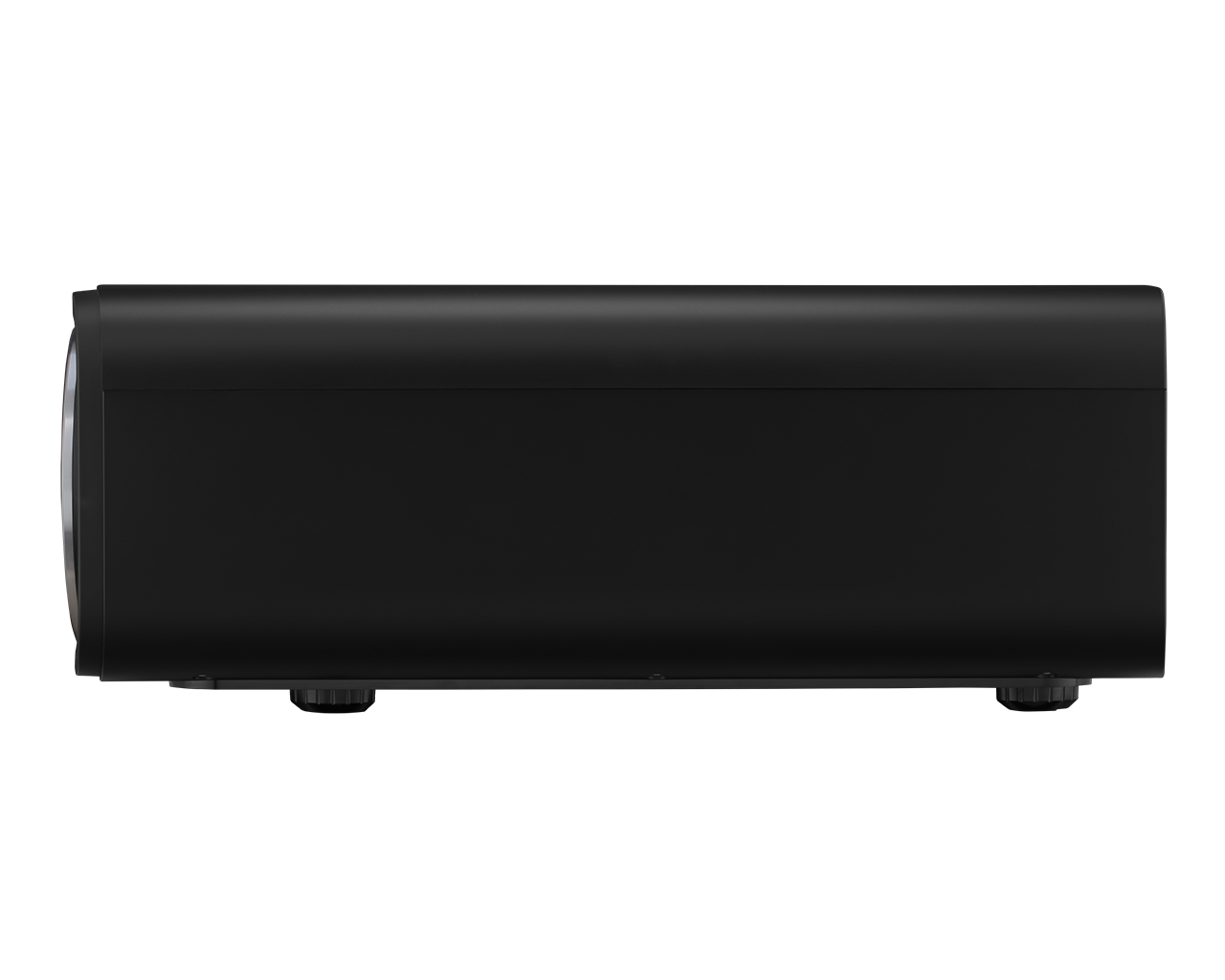

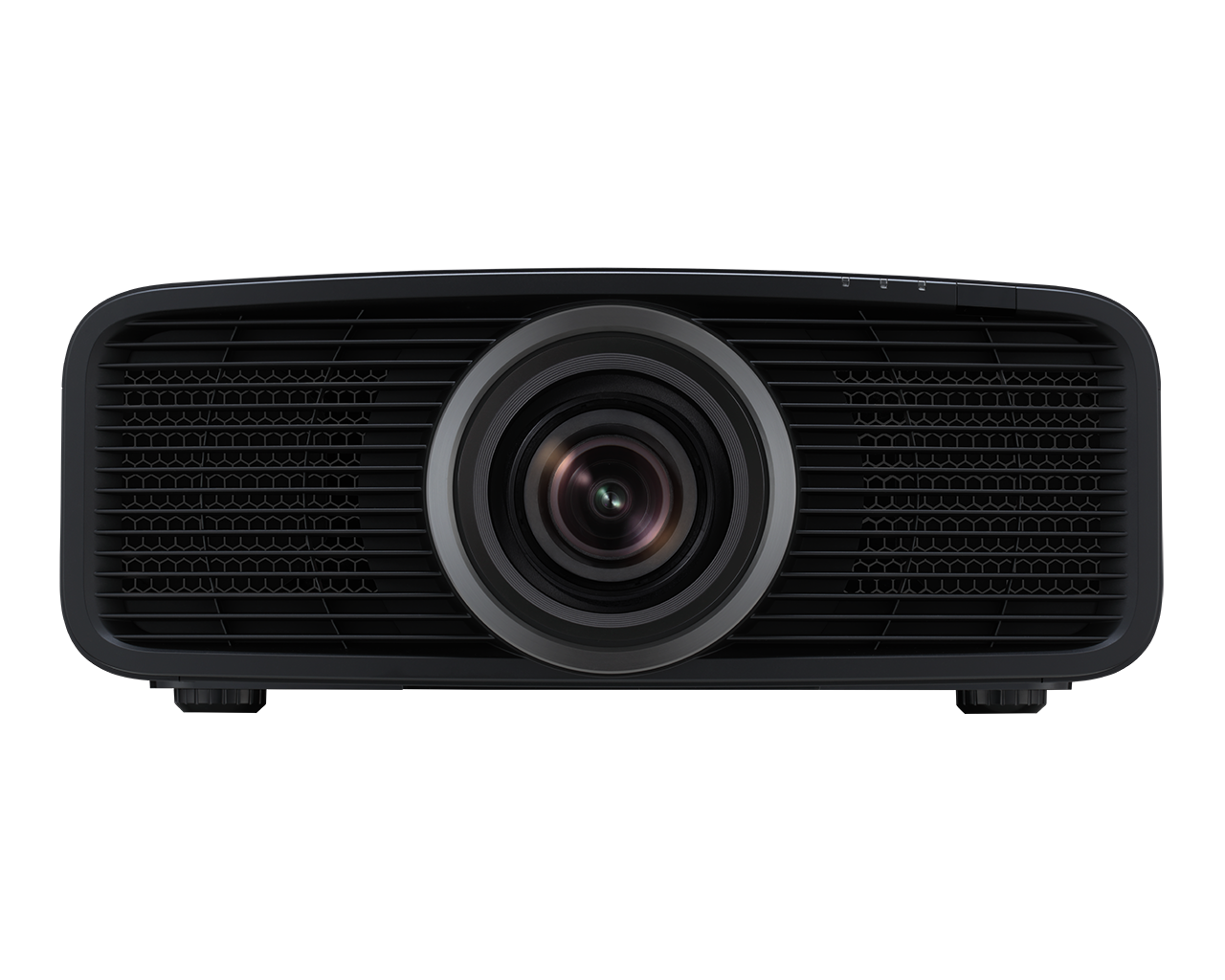

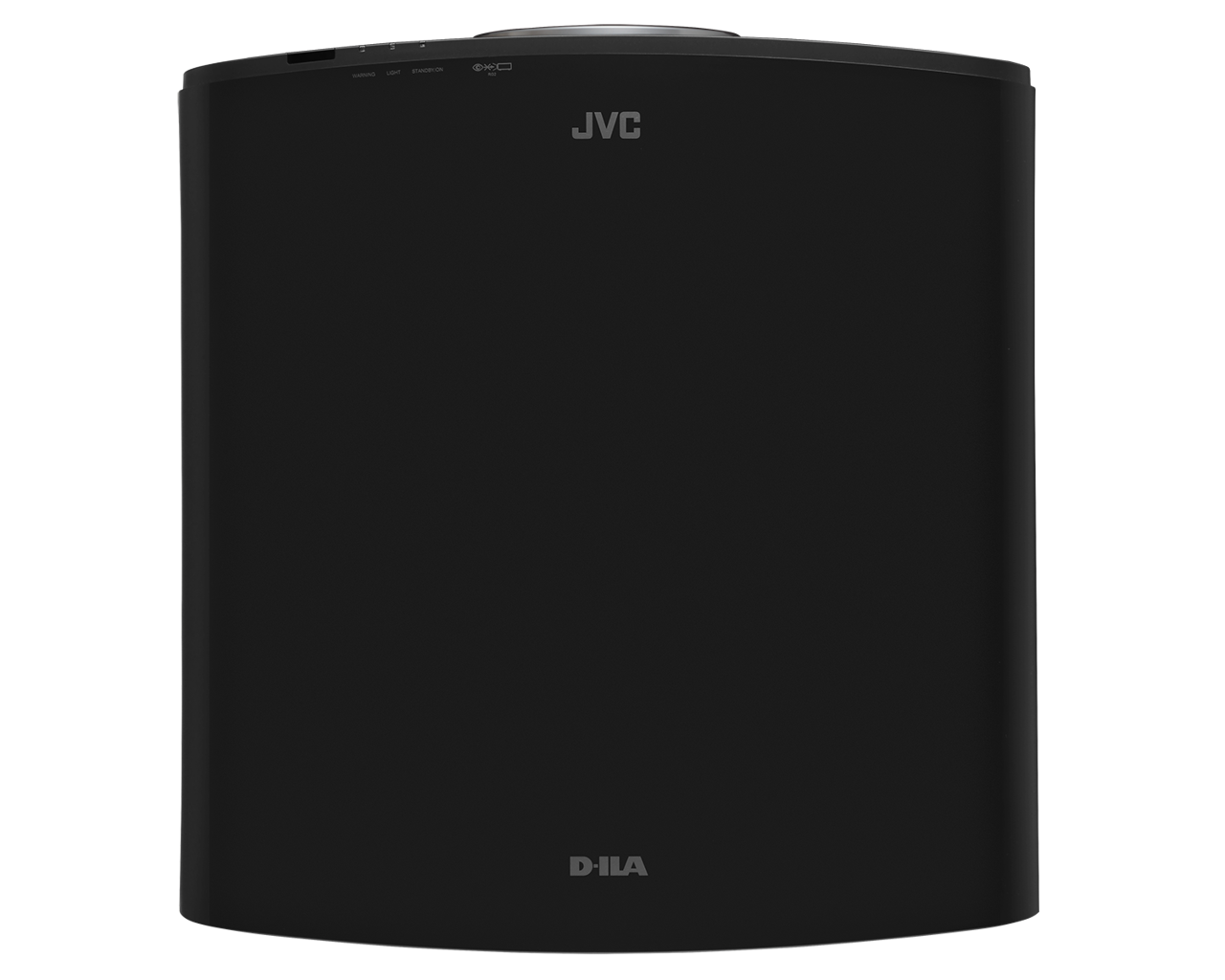

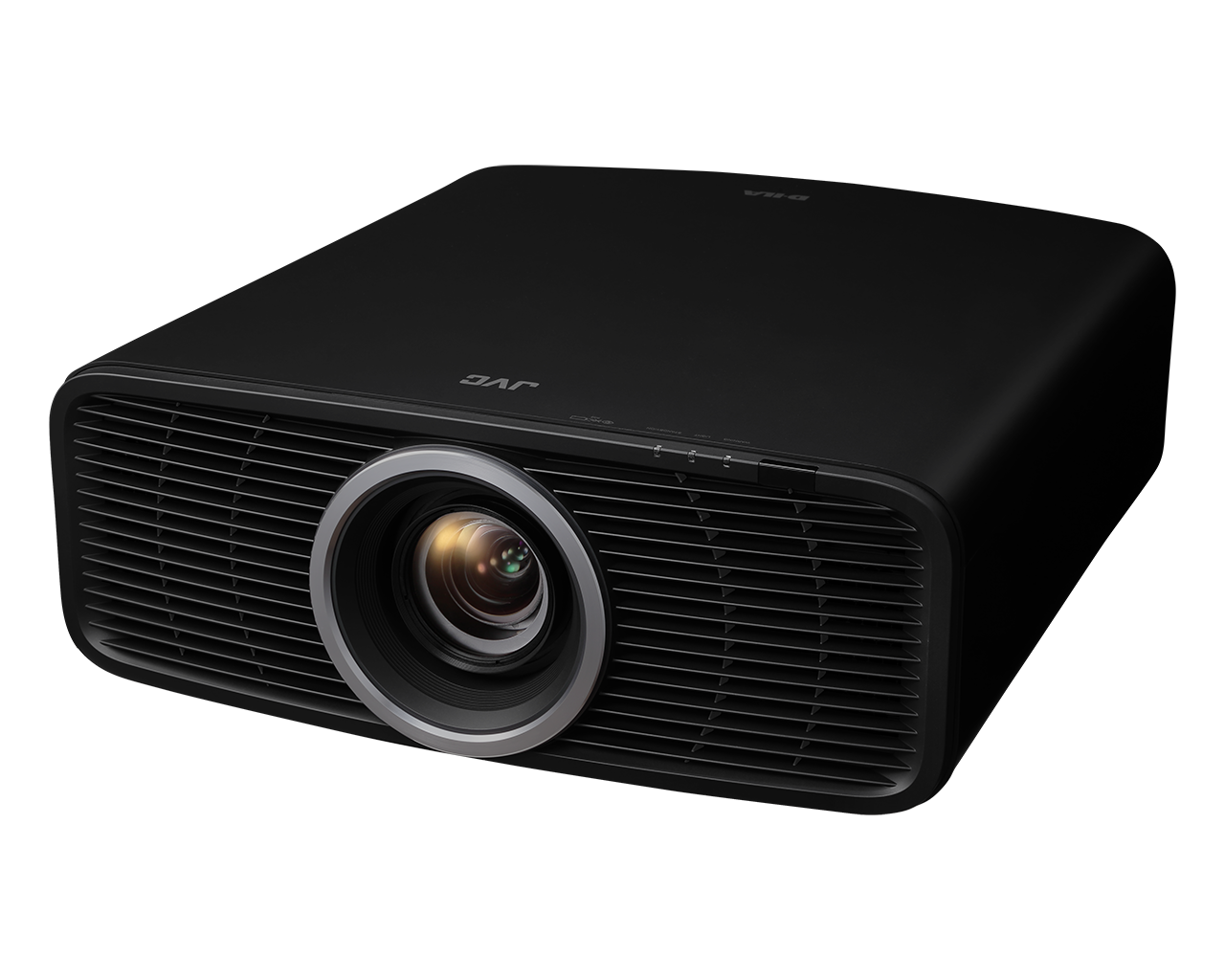

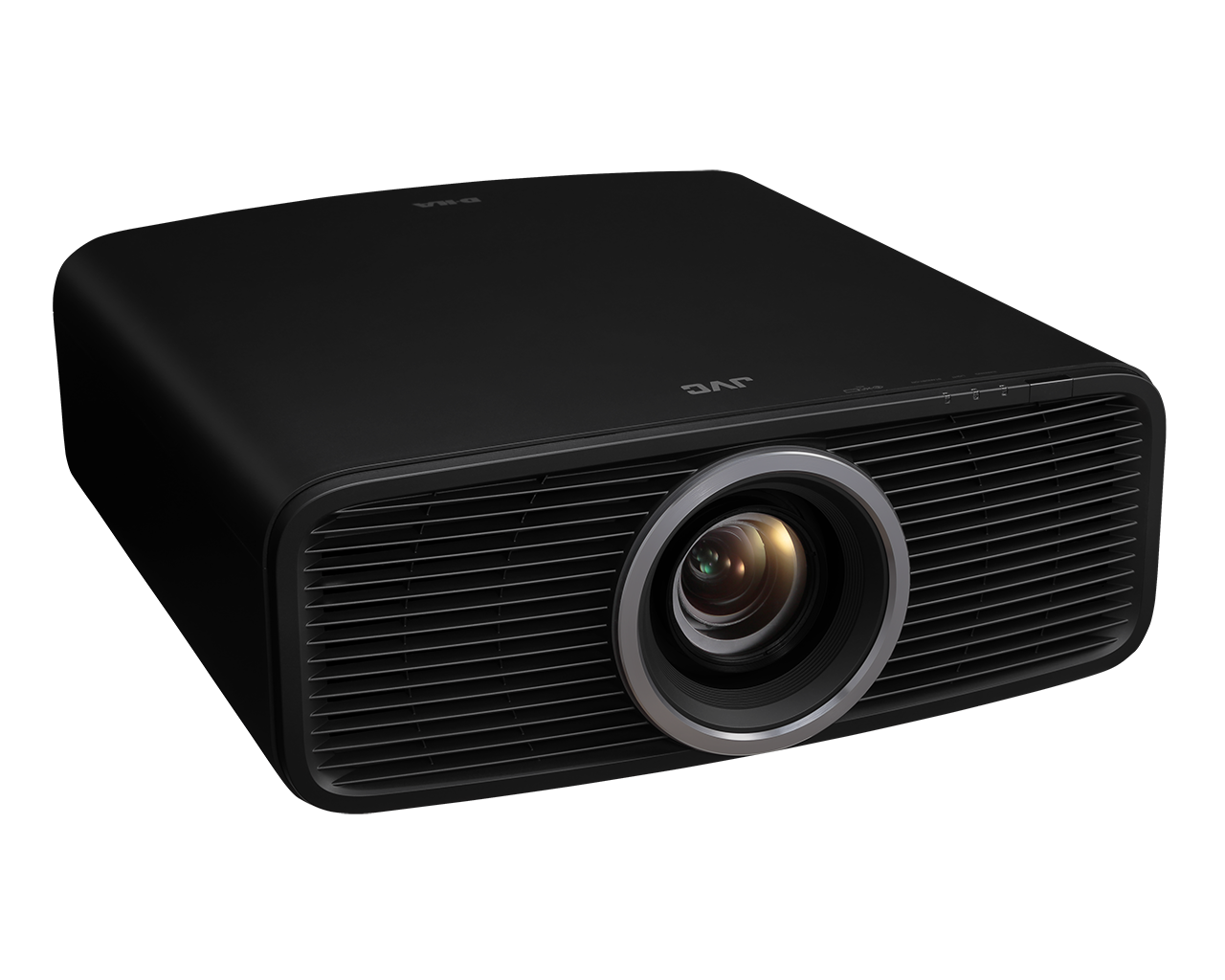

JVC DLA-NZ500 Native 4K D-ILA Laser Projector

JVC DLA-NZ500 Native 4K D-ILA Laser Projector

The JVC DLA-NZ500 is a premium native 4K D-ILA laser projector built for customers who want a true cinema image at home. It is designed for dedicated theatre rooms, high-quality media rooms and serious projection systems where black level, contrast, HDR tone mapping and natural film reproduction are more important than simply chasing the brightest possible image.

At the heart of the NZ500 are three 0.69-inch native 4K D-ILA devices, delivering a true 4096 x 2160 image without pixel shifting. This matters in a proper cinema room because native 4K projection gives fine detail, texture and depth a more natural look, especially on larger screens where image structure becomes easier to see.

The projector also uses JVC’s BLU-Escent laser light source, rated at 2,000 lumens with an expected life of approximately 20,000 hours. Compared with lamp-based projectors, laser gives a more stable long-term light source, faster daily usability and less maintenance over the life of the projector.

Key Features

• Native 4K D-ILA projection with three 0.69-inch native 4K devices
• 4096 x 2160 native resolution for genuine cinema-grade detail
• BLU-Escent laser light source with approx. 20,000-hour life
• 2,000 lumens brightness for premium home cinema use
• 40,000:1 native contrast for deep blacks and strong image depth
• Gen2 Frame Adapt HDR for real-time HDR tone mapping
• Deep Black Tone Control for richer dark-scene gradation
• HDR10, HDR10+ and HLG support
• DML and MaxCLL metadata support for improved HDR handling
• New 80mm motorised 4K lens with 15 elements in 11 groups
• 1.6x motorised zoom with motorised focus and lens shift
• ±70% vertical and ±28% horizontal lens shift for installation flexibility
• Filmmaker Mode for more faithful movie reproduction
• ISFccc certification for professional calibration control
• 6-axis colour management and Auto Calibration support
• Compact redesigned chassis compared with previous JVC laser models

Why Choose the JVC DLA-NZ500?

The DLA-NZ500 is for customers who want a projector that behaves like a proper cinema display rather than a bright presentation projector. JVC has built its reputation around black level and contrast, and that is exactly where the NZ500 makes sense. Its 40,000:1 native contrast gives dark scenes more depth, more shadow detail and a more convincing cinematic feel than projectors that rely mainly on brightness.

The other major strength is HDR handling. Projection is naturally more challenging for HDR than a television because a projector cannot hit the same peak brightness as a modern flat panel. JVC’s Gen2 Frame Adapt HDR helps solve this by analysing HDR10 content scene-by-scene or frame-by-frame and applying real-time tone mapping. For customers, that means HDR movies look more balanced, with better highlight control, stronger colour and less crushed shadow detail.

The NZ500 is also a very sensible choice when the room or cabinetry requires a more compact projector. JVC redesigned the optical unit, lens and circuit board to create a smaller native 4K laser chassis, with the NZ500/NZ700 generation reducing dimensions by around 35% compared with the previous DLA-NZ7 generation. That makes installation easier while still retaining native 4K D-ILA and laser light performance.

Picture Performance

The DLA-NZ500 is built around a cinema-first image. Its strengths are black level, natural colour, smooth gradation and controlled HDR rather than exaggerated sharpness or showroom-style brightness. With good source material, it delivers a film-like image with excellent depth, especially when used in a light-controlled theatre room with a suitable projection screen.

JVC’s Deep Black Tone Control adds further refinement in darker HDR scenes. This is particularly valuable for movie content with night scenes, space scenes, dark interiors or high-contrast lighting, where weaker projectors can either wash out the black floor or lose subtle detail.

The NZ500 also includes Filmmaker Mode, ISFccc calibration support, a 6-axis colour management system and Auto Calibration capability. For customers building a proper cinema room, this gives an installer or calibrator the tools needed to tune the projector to the screen, room and source equipment.

Installation & System Matching

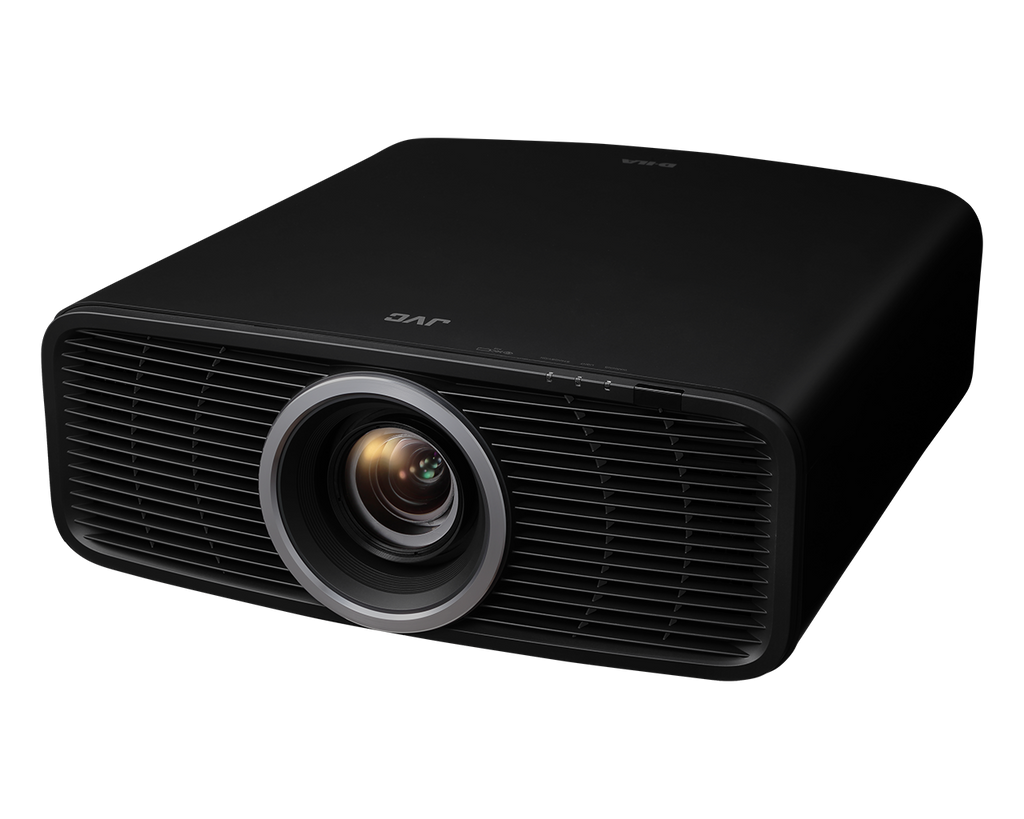

The newly designed 80mm motorised 4K lens is a major part of the NZ500’s real-world appeal. With motorised zoom, focus and lens shift, it can be installed neatly in a dedicated theatre, media room or projector cavity while still allowing precise screen alignment. The generous ±70% vertical and ±28% horizontal lens shift also makes placement easier than with many fixed or limited-shift projectors.

The projector includes five installation memory modes, which is useful for customers using a cinemascope screen, multiple aspect ratios or an anamorphic lens. Installation memories can store lens control, pixel adjustment, masking, anamorphic mode, screen settings, installation style, keystone and aspect settings.

For best results, the DLA-NZ500 should be paired with a quality fixed-frame or tensioned projection screen, a properly controlled lighting environment, and a serious AV processor or receiver. It is also important to select the correct screen size and gain for the room, because projector brightness, seating distance and HDR performance are all linked.

Ideal Applications

• Dedicated home theatre rooms
• High-quality media rooms with controlled lighting
• Customers wanting true native 4K projection
• Movie lovers prioritising black level, contrast and HDR tone mapping
• Cinemascope screen installations using lens memories
• Systems using UHD Blu-ray, Kaleidescape, Apple TV 4K or premium streaming sources
• Professional calibration projects using ISF controls and Auto Calibration

Full Specifications

Important Notes

• The DLA-NZ500 is a native 4K home cinema projector and should be installed with careful attention to throw distance, screen size, lens shift and room light control.
• For best HDR performance, pair with a suitable projection screen and high-quality 4K HDR sources.
• Professional installation and calibration are strongly recommended for serious theatre rooms.
• Auto Calibration requires a compatible optical sensor and JVC software.
• HDMI input is designed for up to 4K/60p signals, not 4K/120 gaming use.

Final Word

The JVC DLA-NZ500 is a serious native 4K laser projector for customers who value true cinema performance. Its combination of native 4K D-ILA panels, BLU-Escent laser light, high native contrast, Gen2 Frame Adapt HDR and a motorised 4K lens makes it an excellent choice for dedicated theatres and high-quality media rooms where picture depth, black level and HDR control matter most.
