Description
Fathom® IWSv2-SYS-213
A 13.5" dual in-wall sealed-enclosure powered subwoofer System.
- 2 x IWEv2-113A enclosures
- 2 x IWD-13TW5H 13.5 inch woofers
- 2 x IWGv2-213 speaker grilles
-
1 x SAv2-2KWS213 2,000W amplifier
Fathom® IWSv2-SYS-213
In-Wall Subwoofer System with 2 x 13.5-inch Subwoofer & 1 x 2000 watts amplifier.
The same minds that engineered JL Audio’s reference-grade Fathom® and Gotham® powered subwoofers have created an amazing in-wall subwoofer solution, centered on an innovative, thin-line driver with groundbreaking technologies.
Housing these exotic driver are 1 critically engineered enclosures with a unique floating mount design to minimise wall excitation. The enclosures feature extensive architectural features aimed at improving rigidity while keeping a very low profile and minimal wall thickness.

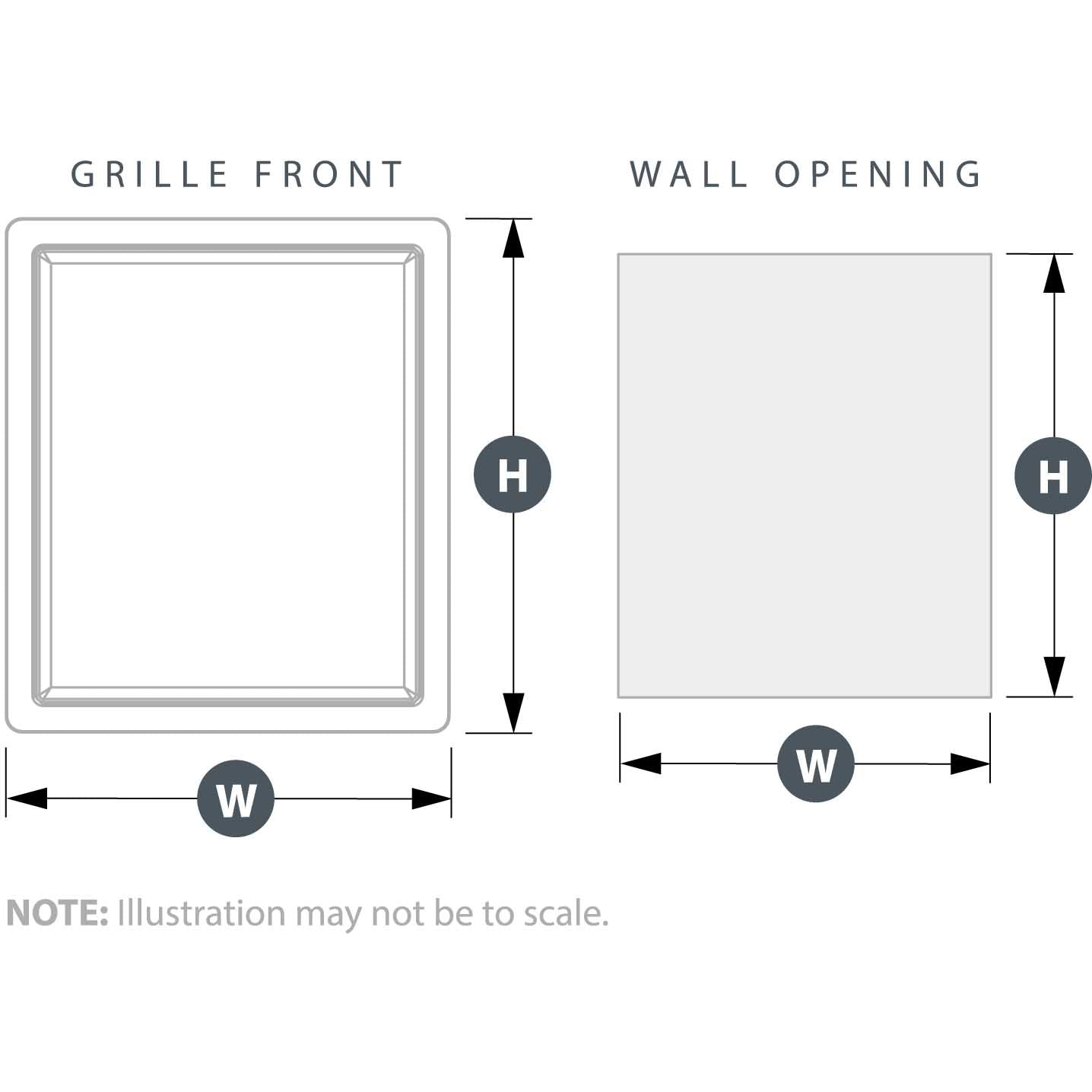

A paintable, fine steel-mesh grille, also designed to control vibration, is included for each enclosure in a system.
The IWSv2-SYS-213 is driven by a rack-mountable, purpose-tuned amplifier, capable of delivering up to 2 kW of clean power, and armed with serious processing features, including JL's acclaimed Digital Automatic Room Optimisation system.
There is no need to lower your expectations when selecting this remarkable in-wall solution... it's a real Fathom®.

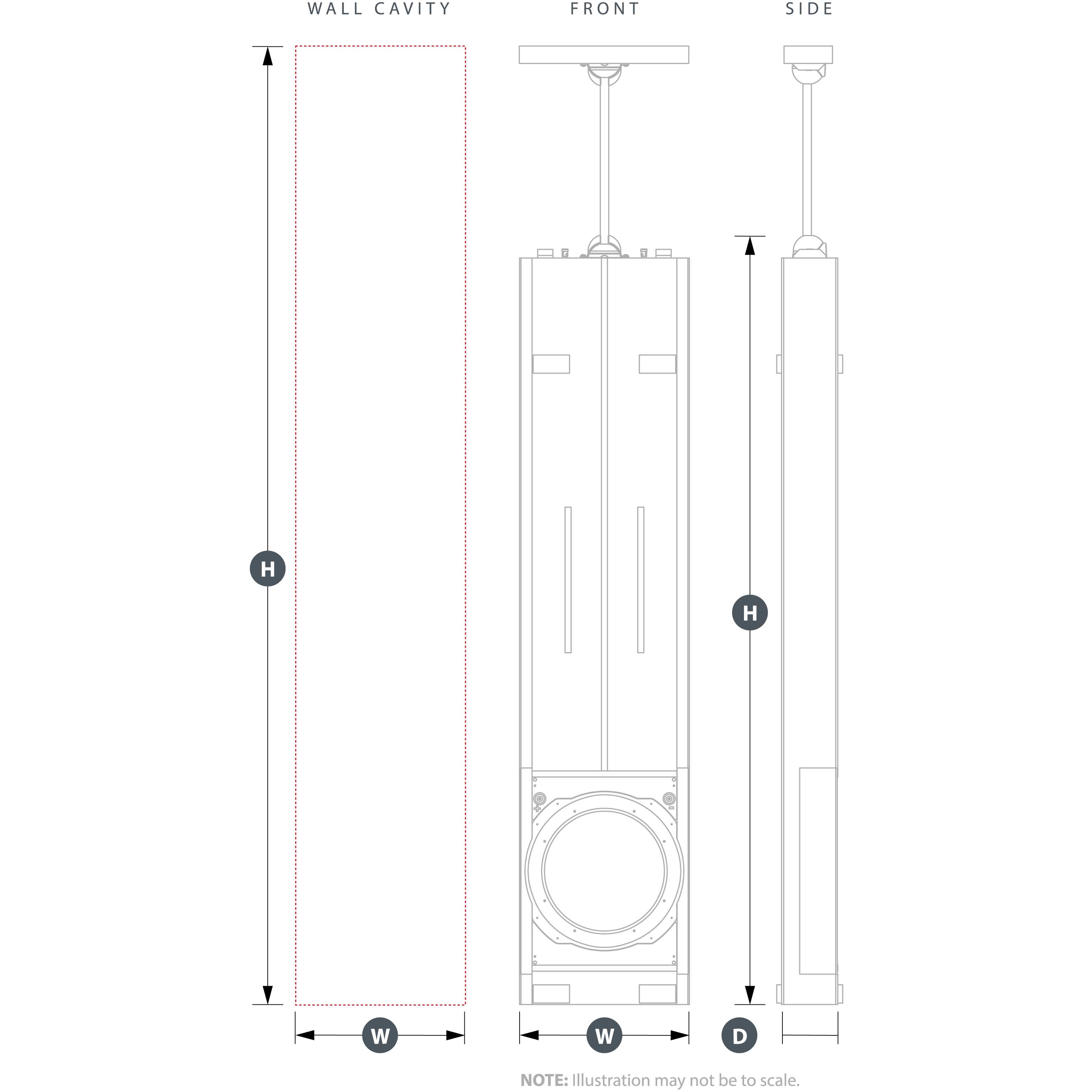

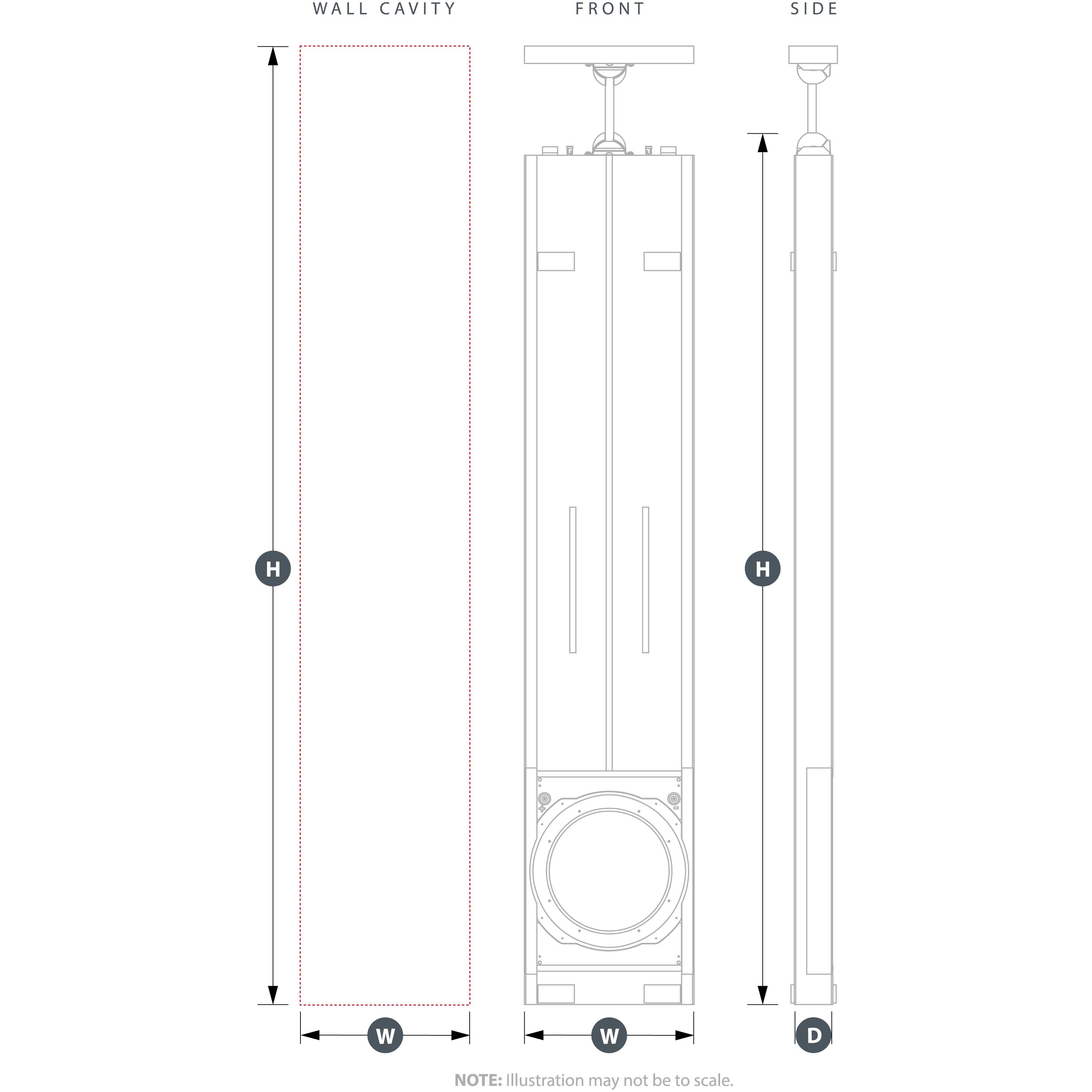

The IWSv2-SYS-213 is available to fit a variety of 2" x 4" and 2" x 6" wall studs. Consult your Authorized JL Audio Dealer for specific application information.
Enclosure Finish: Flat Black (hidden from view when installed)
Grille finish: Primer White (paintable)
Enclosure Construction: CNC-Cut Birch Plywood
**(price is per pair)**
SPECIFICATIONS
General
| Enclosure Type | Sealed |
| Enclosure Finish | Black Texture-Coated |
| Frequency Response (Anechoic) | 26 Hz - 101 Hz (± 1.5 dB) -3dB at 25 Hz / 112 Hz -10dB at 22 Hz / 150 Hz |
| Effective Piston Area (Sd) | 0.1268 sq m |
| Effective Displacement | 4.82L |
| Amplifier Power | 2000 W RMS short-term |
| Power Mode(s) | Off, On or Automatic (Signal-Sensing) |
| Light Modes | Off, On or Dim |
Signal Processing
| Unbalanced Inputs | Stereo or Mono (two RCA jacks) |
| Balanced Inputs | Stereo or Mono (two female XLR jacks) |
| Speaker/High-Level Inputs | N/A |
| Input Grounding | Isolated or Grounded |
| Input Modes | Master or Slave |
| Level Control | Reference (fixed gain) or Variable, from full mute to +15dB over reference gain |
| Filter Mode(s) | Low-Pass |
| Filter Slope(s) | 12/24 dB/octave |
| Filter Frequency Range | 30 Hz - 130 Hz |
| Filter Defeat Function | Yes |
| Polarity | 0 or 180 degrees |
| Phase | Variable, 0- 270 degrees, referenced to 80 Hz |
| Extreme Low Frequency (E.L.F.) Trim | Variable, -12 dB to +3 dB at 23 Hz |
| Line Outputs | N/A |
| Output to Slave | Balanced (one male XLR jack) |
| Calibration Mode | Digital Automatic Room Optimization (D.A.R.O.), includes laboratory-grade microphone |
Amplifier Physical Specifications
| Width (W) | 17.4 in / 442 mm |
| Height (H) | 3.5 in / 89 mm |
| Depth (D) | 17.9 in / 455 mm |
| Net Weight | 43 lb / 19.5 kg |
| Note: Amplifier Height Dimensions do not include feet. | |
