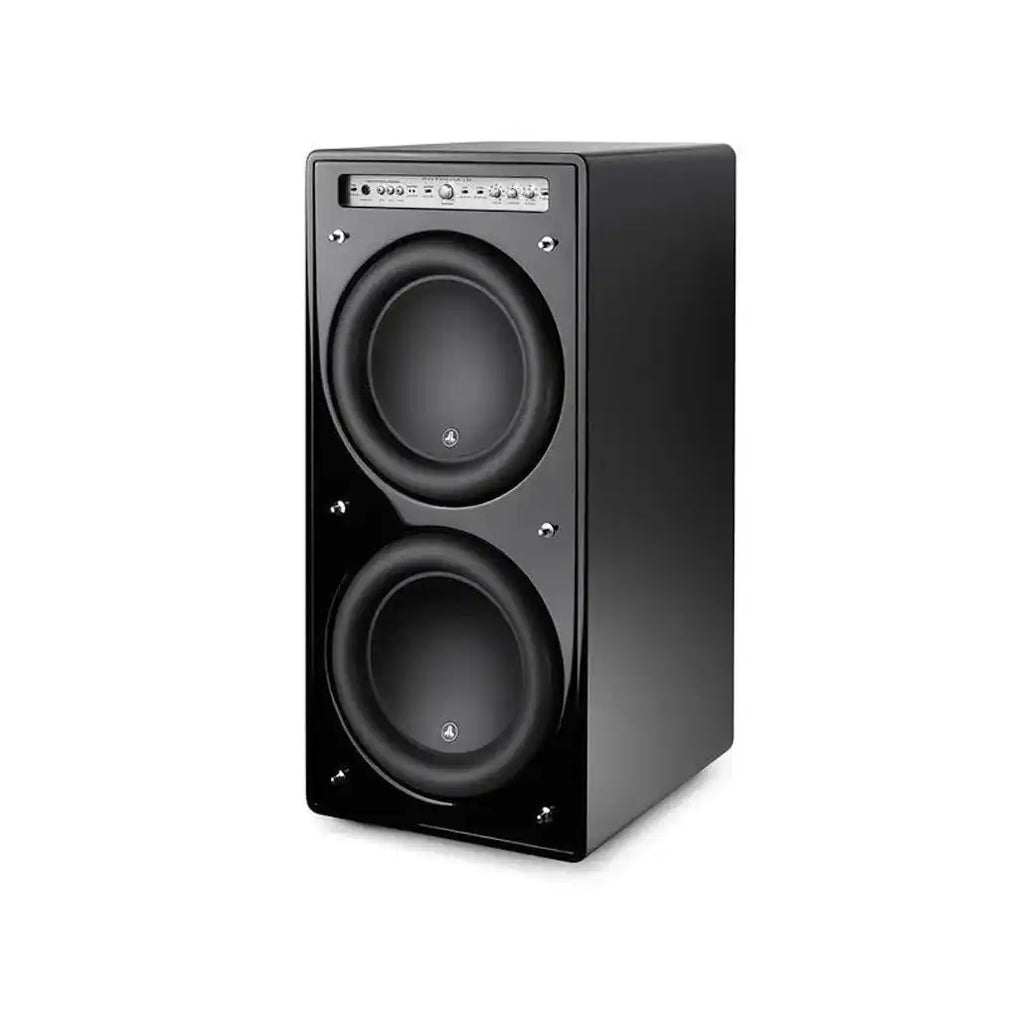

JL Audio Fathom F212v2 3600w Powered Subwoofer
The
JL Audio Fathom F212v2 is a high efficiency and high power output subwoofer. The combination of dual ultra-long throw 12-inch drivers and a very powerful switching amplifier give it jaw-dropping performance capabilities at any listening level.
The F212v2 has the same technology as the flagship Gotham®. It offers Low distortion, excellent dynamic capabilities and shockingly deep bass extension performance. It allows you to experience all the excitement of the most demanding cinematic material, while also being able to reproduce all the nuance and texture of your most delicate musical material.
In terms of features, the F212v2 has a powerful Digital Automatic Room Optimization (D.A.R.O.) system. A calibrated microphone is included for the D.A.R.O. system. Input connections are made via unbalanced RCA connections or balanced Neutrik® combo XLR/TRS jacks. Also included is an XLR output to connect a second Fathom® as a slave unit.
General Specifications
| Enclosure Type |
Sealed |
| Enclosure Finish |
Black Gloss |
| Frequency Response (Anechoic) |
20 - 97 Hz (±1.5dB)
-3 dB at 19 Hz / 110 Hz
-10 dB at 15 Hz / 157 Hz |
| Effective Piston Area (Sd) |
168 sq in / 0.1084 sq m |
| Effective Displacement |
574 cu in / 9.4 L |
| Amplifier Power |
3.6 KW RMS short-term |
| Power Mode |
Off, on or Automatic (Signal-Sensing) |
| Light Modes |
Off, On or Dim |
Signal Processing & Physical Specifications
| Unbalanced Inputs |
Stereo or Mono (two RCA jacks) |
| Balanced Inputs |
Stereo or Mono (2 x female XLR jacks) |
| Input Modes |
Master or Slave |
| Input Grounding |
Isolated or Grounded |
| Calibration Modes |
Digital Automatic room optimisation, includes laboratory-grade microphone |
| Level Control |
Reference (fixed gain) or Variable, from full mute to +15dB over reference gain |
| Filter Mode(s) |
Low-Pass |
| Filter Slope(s) |
12/24 dB/octave |
| Filter Frequency Range |
30 Hz - 130 Hz |
| Filter Defeat Function |
Yes |
| Polarity |
0 or 180 degrees |
| Phase |
Variable, 0- 280 degrees |
| Extreme Low Frequency (E.L.F.) Trim |
Variable, -12 dB to +3 dB at 25 Hz |
| Out to Slave |
Balanced (one make XLR jack) |
| Weight (kg) |
102 |
| Dimensions (wxhxd) (mm) |
379 x 812 x 518 |
Note: Height dimensions include feet. Depth dimensions include grilles.
