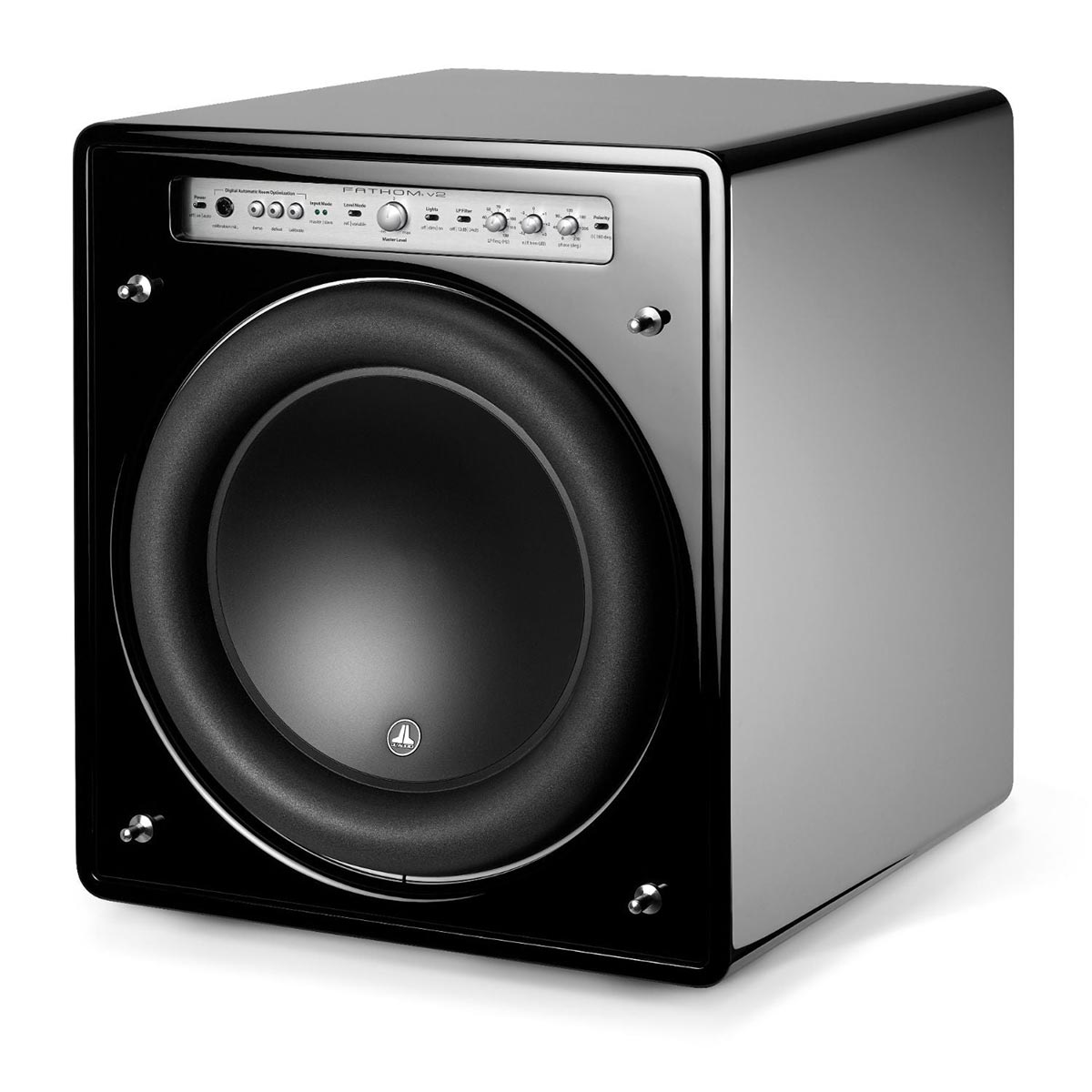

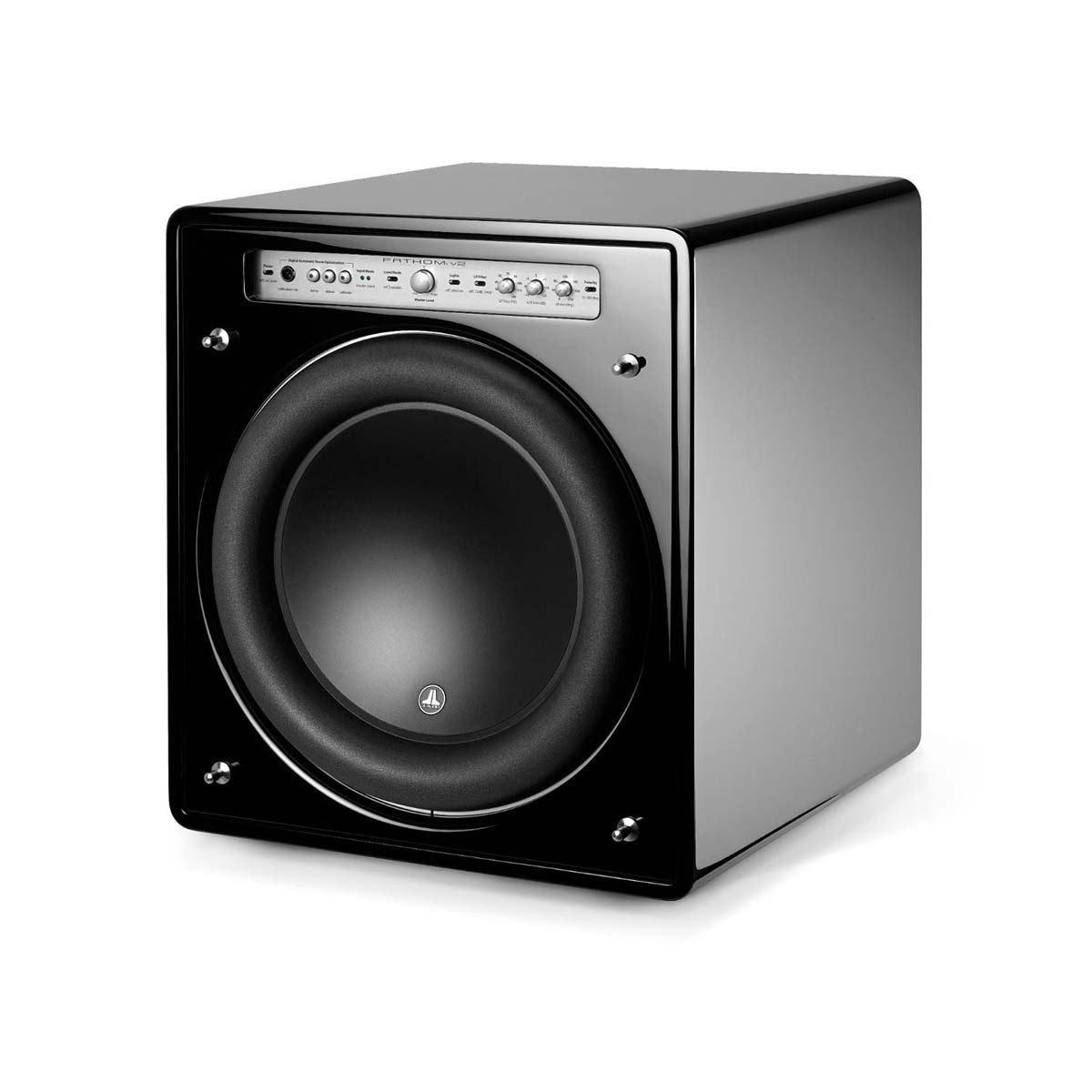

JL Audio F113v2 13.5" 3000W Subwoofer
JL Audio F113v2 13.5" 3000W Subwoofer

JL Audio F113v2 13.5" 3000W Subwoofer

Vendor

JL Audio

Type

Subwoofer

Categories
This product is available.
Quantity must be 1 or more
Regular price
$8,995.00
Sale price
$8,995.00

JL Audio F113v2


The JL Audio f113v2 is their Fanthom series with seal-enclosured design. It is a heavyweight subwoofer capable of filling the most demanding rooms with powerful low-frequency output and reference-class sound quality. The combination of an ultra-long throw W7 13.5-inch driver and a very powerful switching amplifier give it the kind of output normally associated with far larger subwoofer systems.



Review



General Specifications



Enclosure Type Sealed
Enclosure Finish Black Gloss
Frequency Response (Anechoic) 20 - 86 Hz (±1.5dB)
-3 dB at 18 Hz / 127 Hz
-10 dB at 16 Hz / 154 Hz
Effective Piston Area (Sd) 107.35 sq in / 0.0693 sq m
Effective Displacement 386 cu in / 6.3 L
Amplifier Power 3KW RMS short-term
Power Mode Off, on or Automatic (Signal-Sensing)
Light Modes Off, On or Dim


Signal Processing & Physical Specifications



Unbalanced Inputs Stereo or Mono (two RCA jacks)
Balanced Inputs Stereo or Mono (2 x female XLR jacks)
Input Modes Master or Slave
Input Grounding Isolated or Grounded
Calibration Modes Digital Automatic room optimisation, includes laboratory-grade microphone
Level Control Reference (fixed gain) or Variable, from full mute to +15dB over reference gain
Filter Mode(s) Low-Pass
Filter Slope(s) 12/24 dB/octave
Filter Frequency Range 30 Hz - 130 Hz
Filter Defeat Function Yes
Polarity 0 or 180 degrees
Phase Variable, 0- 280 degrees
Extreme Low Frequency (E.L.F.) Trim Variable, -12 d to +3 dB at 25 Hz
Out to Slave Balanced (one make XLR jack)
Weight (kg) 53
Dimensions (wxhxd) (mm) 384 x 470 x 461





Note: Height dimensions include feet. Depth dimensions include grilles.
