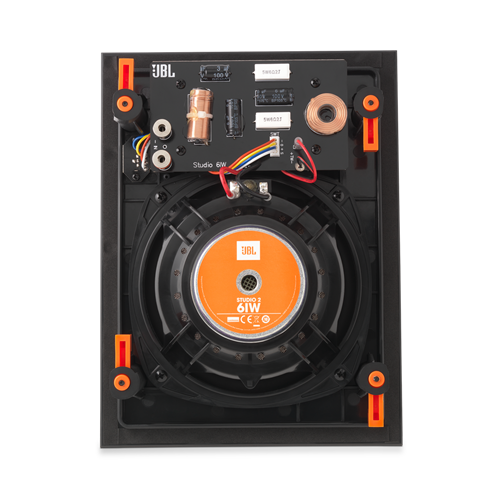

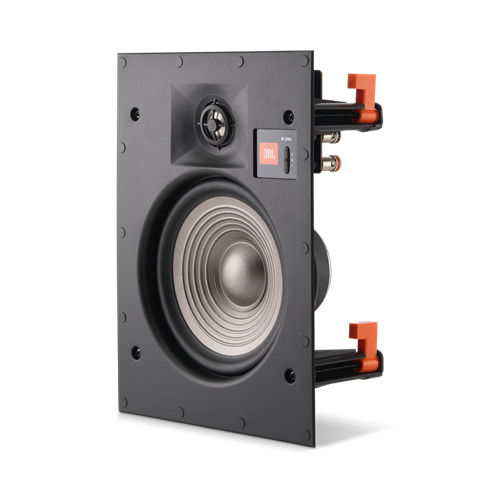

JBL STUDIO2 61IW In-Wall Speakers
JBL STUDIO2 61IW
6.5-INCH IN-WALL LOUDSPEAKER
The JBL Studio2 61IW fills your room with signature JBL sound without taking up valuable space. A 1-inch CMMD® Lite tweeter is mated with a High-Deifnition Imaging waveguide for wide coverage, low-distrotion, and accurate sound reproduction. A 6.5-inch PolyPlas cone woofer provides powerful bass response. Installtion is quick and easy with the XL-2 mounting mechanism and the zero-bezel grille allows the loudspeaker to blend into any environment.
- Sound Inspired by JBL's legendary M2 Master Reference Monitor.
- Paintable, nearly invisible zero-bezel magnetic grill.
- Superior XL-2 installation bracket.
- Pivoting tweeter with audio level adjustment.
SPECIFICATIONS
- Impedance: 8 ohms
- Recommended Amplifier Power: 80W
- Frequency Response: 38Hz - 20kHz
- Crossover Frequency: 3.0kHz
- Sensitivity: 86dB 2.83V @ 1m
- Low Frequency Driver Size and Material: 6-1/2" (165mm) Polyplas® Woofer
- High Frequency Driver Size and Material: 1" (25mm) Pivoting CMMD® Lite Tweeter
- High Frequency Control: +/- 3dB
- Cutout Dimensions:(H x W) 249mm x 185mm
- Grille Finished Dimensions:(H x W) 276mm x 212mm
- Mounting Depth: 91mm
- Compatible Wall Material Thickness: 12mm – 51mm
- Shipping Units of Measure: EACH
