Description

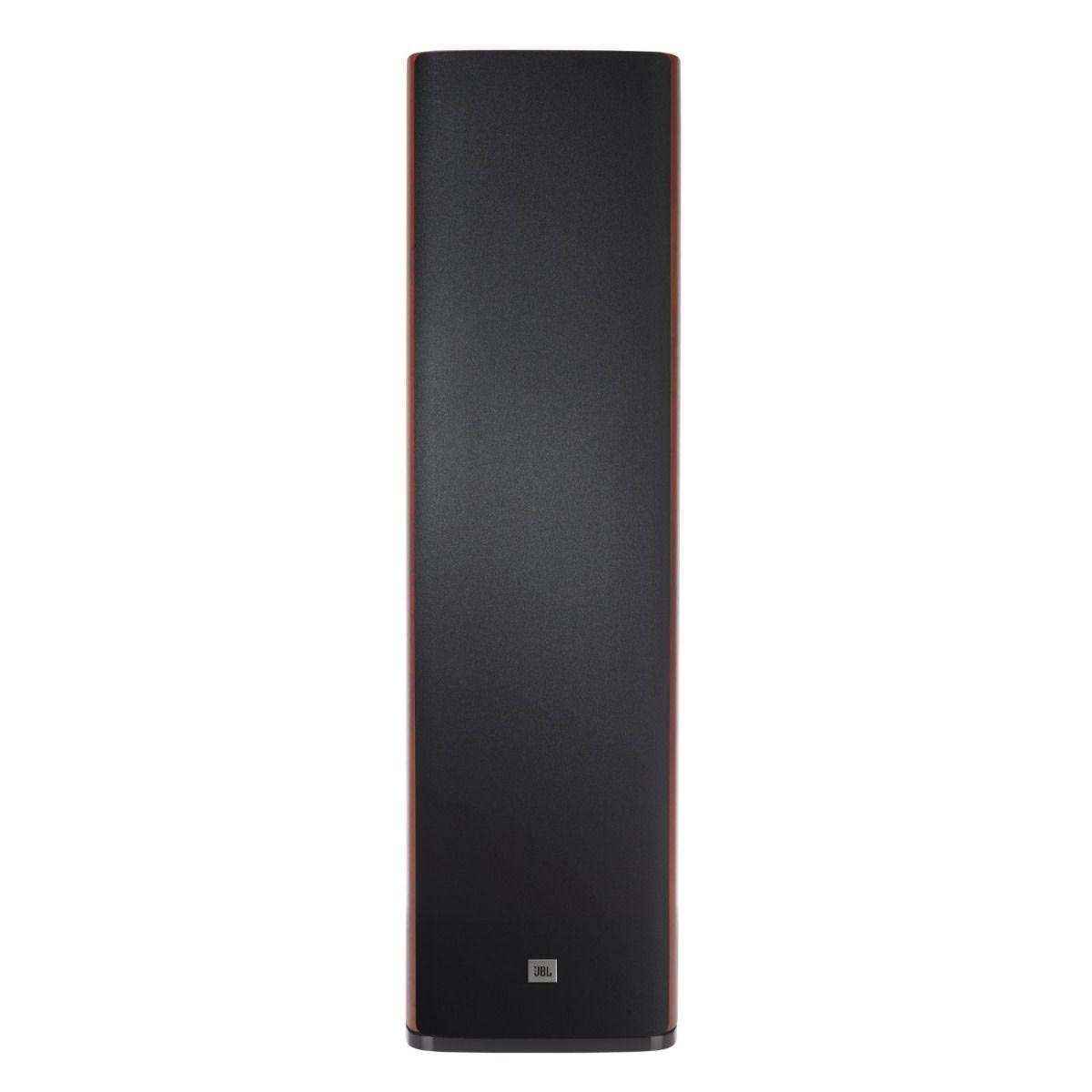

The JBL Studio 690 is a high-performance floorstanding loudspeaker utilizing JBL's 2414H-1 1-inch compression driver mated to a High-Definition Imaging horn complemented with dual 8-inch PolyPlas cone woofers. The elegant cabinet design includes a magnetically attached grille and brings an element of sophistication to any room. The Studio 6 Series delivers big dynamics, detailed sound, and powerful bass for true high-fidelity sound.
STUDIO 690 Highlights
Top-graded PolyPlas cone
High-quality sounding compression drivers
New, appealing form factor
High-Definition Imaging Waveguide with High-Frequency Compression Driver
Specifications
Dual 8" (203mm) PolyPlas cone
Low-Frequency Transducer High Definition Imaging (HDI) Waveguide with 1" (25mm)
High Frequency Compression Driver
Recommended Amplifier Power: Max 250W
Frequency Response: 36Hz – 40kHz
Sensitivity: 90dB @ 1M, 2.83V
Nominal Impedance: 6 Ohms
Crossover Frequencies: 600 Hz, 1.7kHz
Enclosure Type:Bass-Reflex via Rear-Firing Tuned Port
Dimensions (W x D x H): 300 x 350 x 1058mm
Weight: 29.38kg
