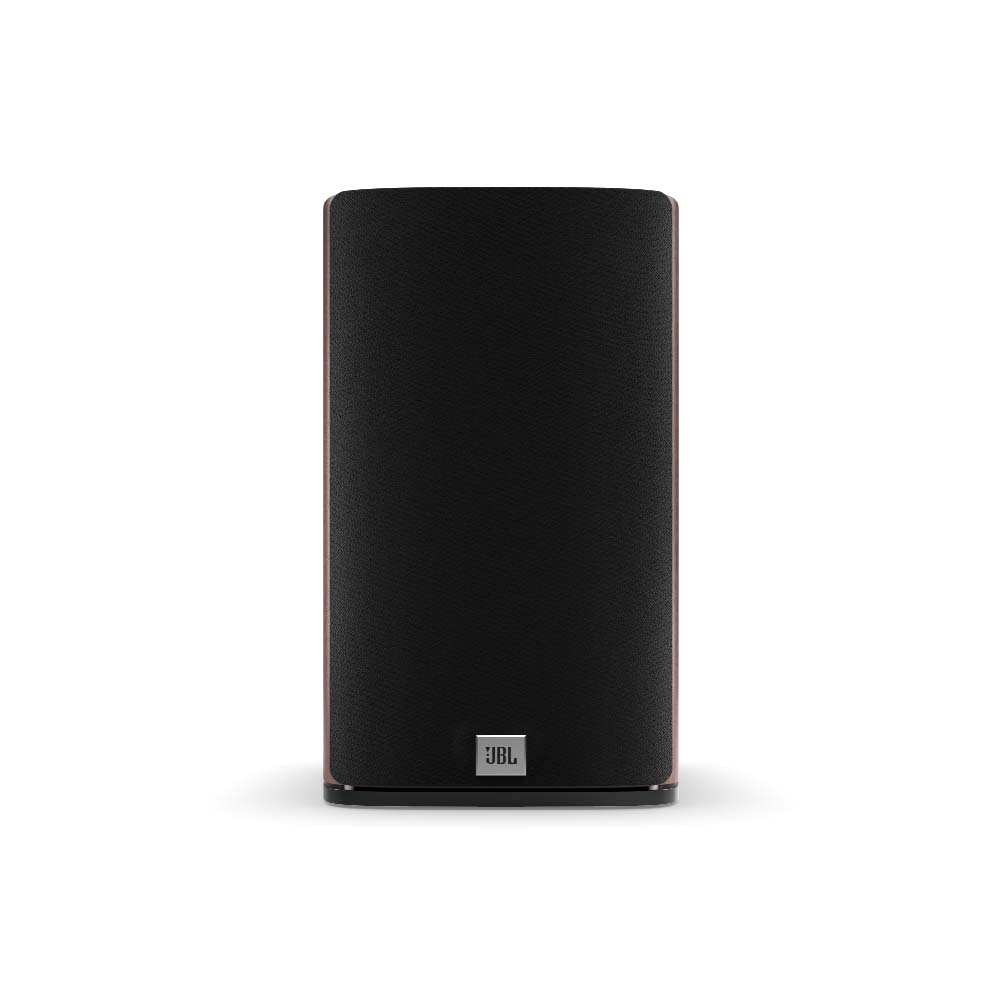

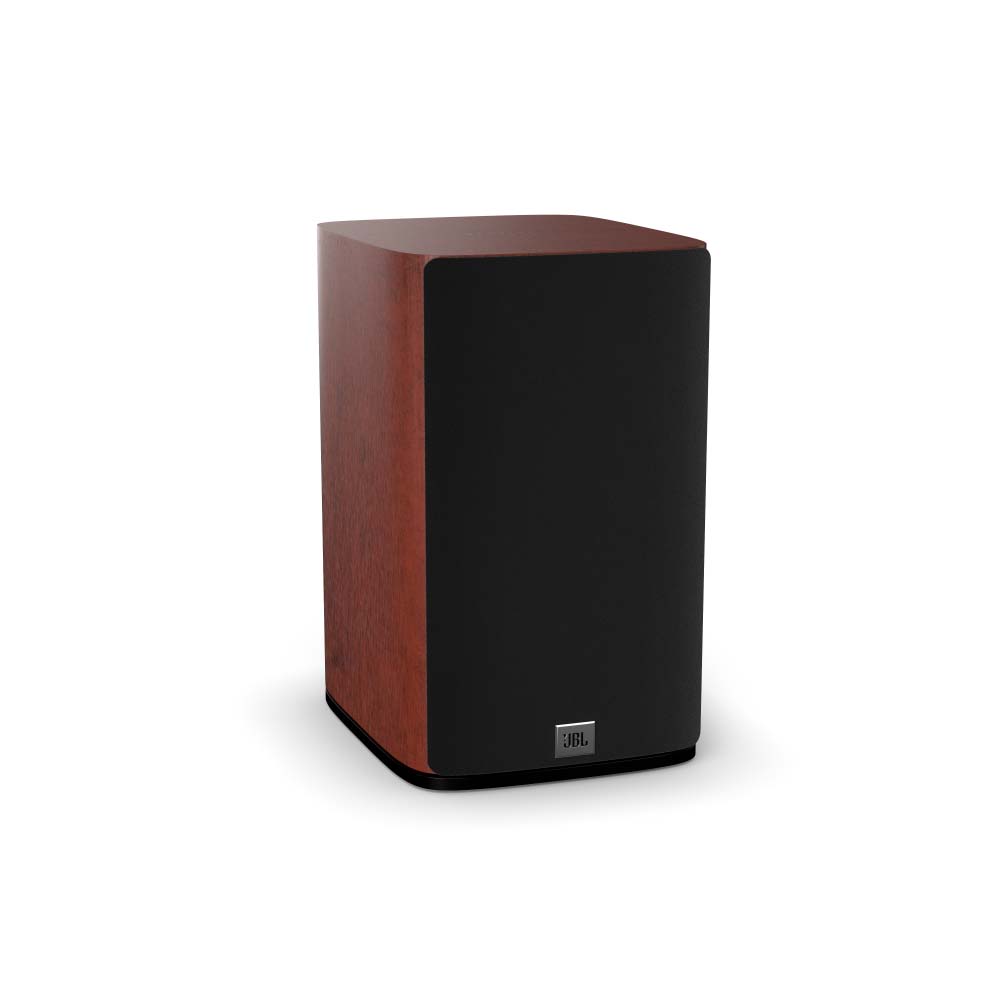

JBL STUDIO 630
6.5-INCH 2-WAY BOOKSHELF SPEAKERS
The JBL Studio 630 is a high-performance bookshelf loudspeaker utilizing JBL’s 2414H-1 1-inch compression driver mated to a High-Definition Imaging horn complemented with a 6.5-inch PolyPlas cone woofer. The elegant cabinet design includes a magnitically attached grille and brings an element of sophistication to any room. The Studio 6 Series delivers big dynamics, detailed sound, and powerful bass for true high-fidelity sound.
FEATURES
- Top-graded PolyPlass cones.
- High-quality sounding compression drivers.
- New, appealing form factor.
- High-definition imaging Waveguide with high-frequency compression driver.
SPECIFICATIONS
- Single 6.5″, 2-way compression driver bookshelf loudspeaker
- 6.5″ (165mm) PolyPlas Low-Frequency Woofer
- High Definition Imaging (HDI) Waveguide with 1” (25mm) High Frequency Compression Driver
- Recommended Amplifier Power Max 150W
- Frequency Response 45Hz – 40kHz
- Sensitivity 85dB @ 1M, 2.83V
- Nominal Impedance 6 Ohms
- Crossover Frequencies 1.9 kHz
- Enclosure Type Bass-Reflex via Rear-Firing Tuned Port
- Dimensions (W x D x H) 230 x 280 x 372mm
