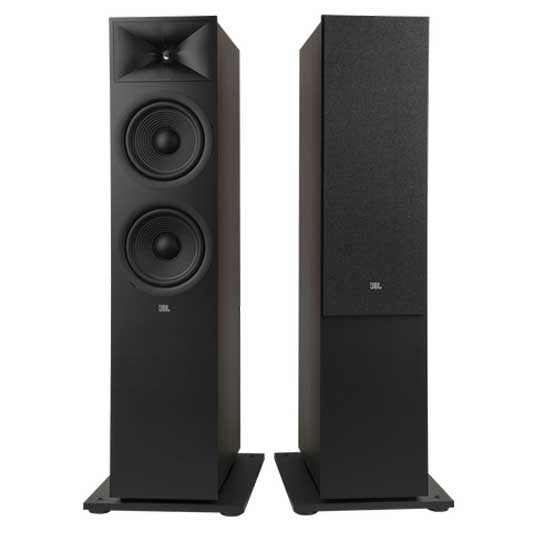

2.5-Way Dual 8-inch (200mm) Floor-standing Loudspeaker
Designed and engineered at our world-famous Acoustic Engineering Center of Excellence in Northridge, California, the Stage 280F is the flagship of the JBL Stage Series. This floor-standing loudspeaker features a 2.5-way design with Next Generation patented High-Definition Imaging (HDI™) waveguide geometry, 1-inch (25mm) Anodised Aluminium dome tweeter, and dual 8-inch (200mm) Poly-cellulose ribbed cone woofers that provide deep, signature JBL bass.
Highlights
- Dual 8" (200mm) Poly-cellulose Ribbed Cone Woofers
- Precision 2.5-Way Crossover
- Next Generation HDI™ Horn
- 1" (25mm) Anodised Aluminium Tweeter

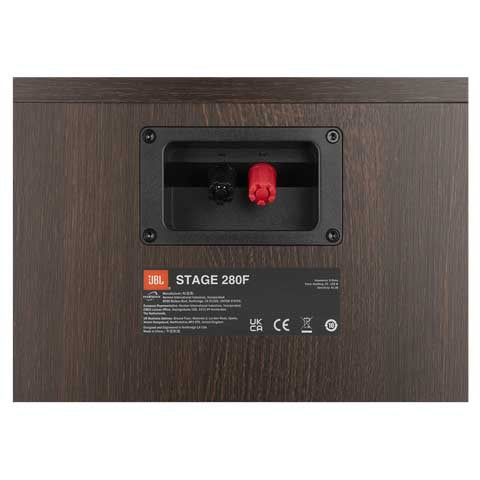

- 5-Way Binding Posts

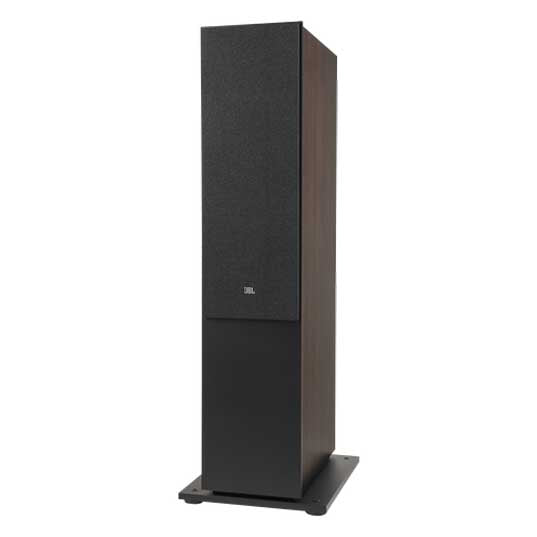

- Magnetically Attached Grille
- Dedicated ATMOS 5-Way Binding Posts with Integrated Wire Management

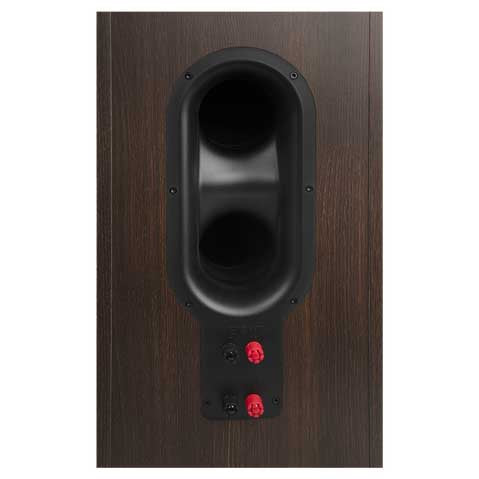

- Dual Flared Racetrack Rear-Firing Tuned Ports

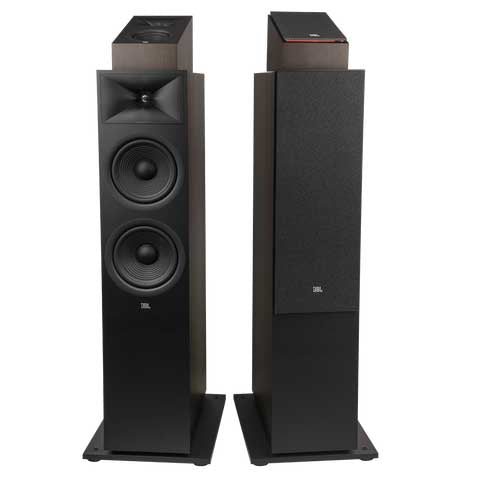

- Compatible with 240H ATMOS Height Module
Specification

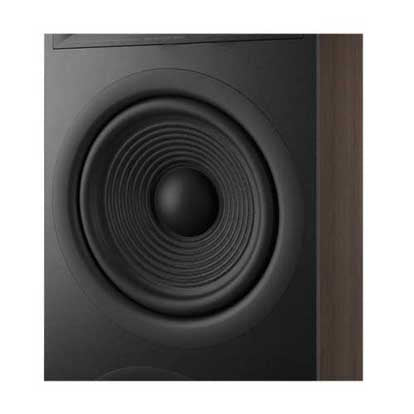

- Low Frequency Driver: Dual 8-inch (200mm)Poly-cellulose Ribbed Cone
- High Frequency Driver: 1-inch (25mm) Anodized Aluminum
- Waveguide: Next Generation HDI™
- Recommended Amplifier Power: 20-225W
- Frequency Response ±6dB: 33Hz-25kHz
- Sensitivity @ 1M, 2.83V: 91dB
- Nominal Impedance: 6 Ohms
- Crossover Frequencies: 1.1kHz/2.1Khz
- Enclosure Tuning: Bass Reflex via Dual Flared Racetrack Rear-Firing Tuned Ports
- Finish: Espresso or Latte
-
Dimensions & Weights
- Dimensions (HxWxD): 1113mm x 357mm x 420mm
-
Dimensions/ without Base (HxWxD): 1113mm x 241mm x 409mm
- Product Weight: 25.1 kg ea.
- Gross Weight: 30.6kg ea.
- Shipping Units of Measure: Each
OPTIONS:
Added ATMOS Speakers 260F to be amounted via internal connections
