Description
Product Description

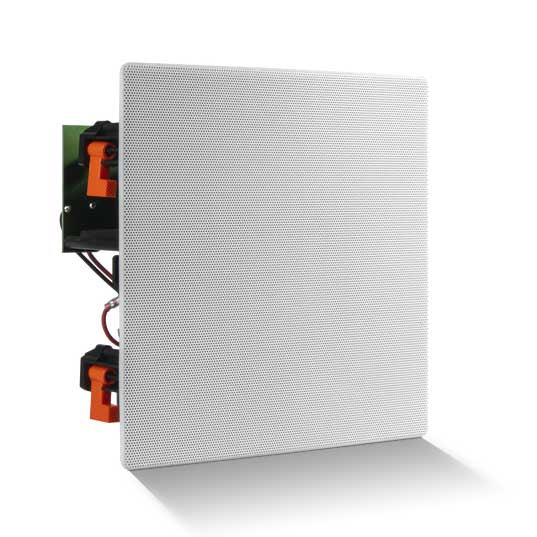

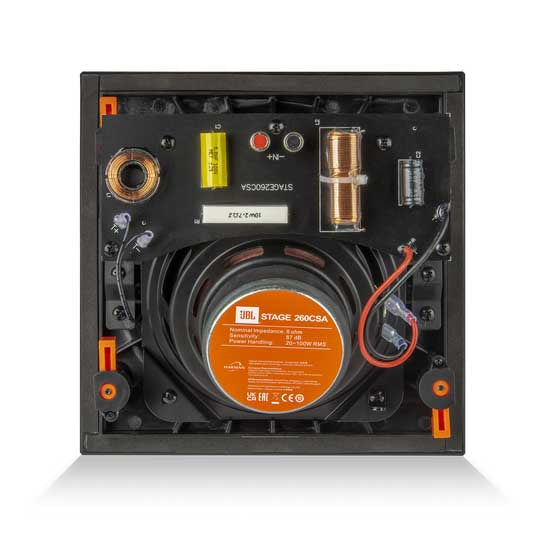

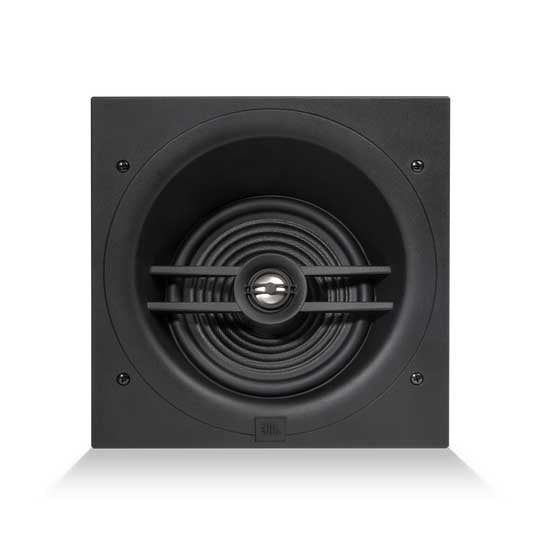

Stage 260CSA
Product Overview
Highlights The Stage Architectural Series was designed to deliver iconic JBL sound that blends into the environment so that the music stands out. All models are crafted to be visually discrete with zero bezel grilles and easy installation allowing these speakers to be heard and not seen. Elements including baffles with acoustic smoothing, acoustic lens tweeters, and some models with patented High-Definition Imaging (HDI) horns have been incorporated into the design to ensure that the sound is clear and accurate. A range of eight models are available in various configurations for In-Wall and In-Ceiling installation.
Highlights
- Rigid Baffle design with acoustic smoothing for improved transducer integration
- Aluminium Dome Tweeters with Acoustic Lens for smooth on and off axis frequency response
- Harman target curve acoustic performance for smooth accurate sound over a large listening area
- Zero bezel metal grille installs flush to wall or ceiling for clean inconspicuous appearance
- XL-2 installation system compatible with up to 2” (50mm) thick wall/ceiling material
Specifications
- High Frequency Transducer: 1" (25mm) Aluminium dome w/ Acoustic Lens
- Low Frequency Transducer: 6.5" (165mm) Polycellulose cone woofer
- Recommended Amplifier Power: 20-100W RMS
- Frequency Response: 50Hz-25kHz (-6dB on-axis)
- Sensitivity (2.83V@1m): 87dB
- Nominal Impedance: 8ohm
- Crossover Frequency: 2800Hz
- Inputs: Nickel-plated spring-loaded connectors
· Cutout Dimensions: 219mm x 219mm
· Mounting Depth: 127mm
- Grille Dimensions Dia: 248mm x 248mm
- Product Weight (Kg): 2.2Kg
- Shipping Carton Dimensions: 306mm x W: 306mm x D: 158mm
- Shipping Carton Weight: 3.02Kg
