Product Description
Stage 250WL

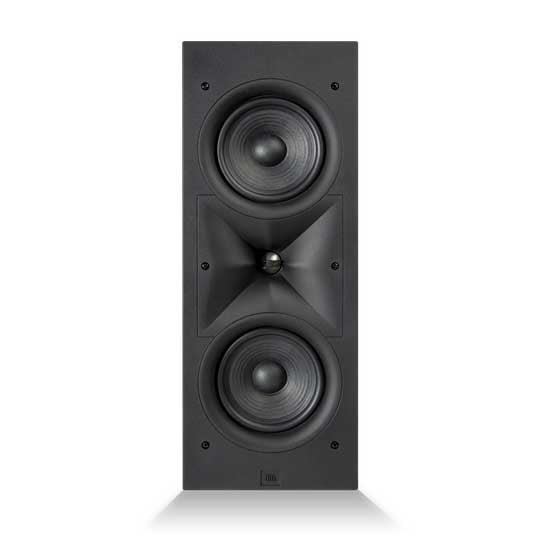

Featuring Dual 5.25" (130mm) woofers and a 1” (25mm) Aluminum tweeter with an acoustic lens and HDI™ waveguide, the Stage 250WL in-wall speaker is right at home as the main channels in a home theater. A visually discrete zero bezel grille and easy installation allow these speakers to be heard and not seen. Elements including baffles with acoustic smoothing, acoustic lens tweeters, and patented High-Definition Imaging (HDItm) waveguide geometry have been incorporated into the design to ensure that the sound is clear and accurate.
Highlights
-
Rigid Baffle design with acoustic smoothing for improved transducer integration
-
Aluminium Dome Tweeters with Acoustic Lens for smooth on and off axis frequency response
-
Harman target curve acoustic performance for smooth accurate sound over a large listening area
-

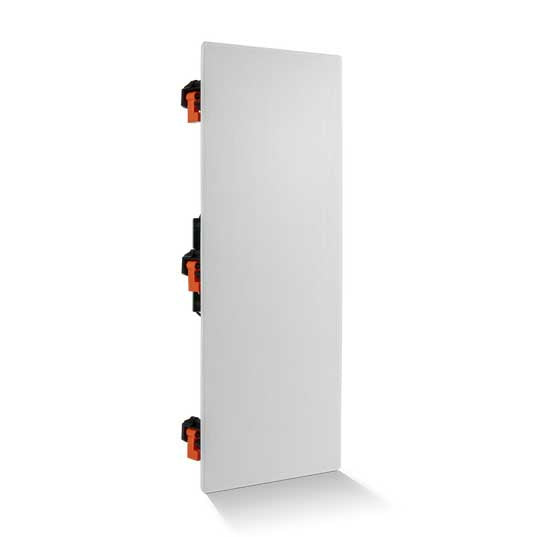

Zero bezel metal grille installs flush to wall or ceiling for clean inconspicuous appearance
-
XL-2 installation system compatible with up to 2” (50mm) thick wall/ceiling material
Specifications
-
High Frequency Transducer: 1" (25mm) Aluminium dome w/ Hi-Def Imaging Waveguide
-
Low Frequency Transducer: Dual 5.5" (139mm) Polycellulose cone woofer
-
Recommended Amplifier Power: 20-120W RMS
-
Frequency Response: 52Hz-25kHz (-6dB on-axis)
-
Sensitivity (2.83V@1m): 90dB
-
Nominal Impedance: 8ohm
-
Crossover Frequency: 2,100Hz
-
Inputs: Nickel-plated spring-loaded connectors
· Cutout Dimensions: 460mm x 162mm
· Mounting Depth: 96mm
-
Grille Dimensions Dia: 496mm x 194mm
-
Product Weight (Kg): 3.5Kg
-
Shipping Carton Dimensions: L: 552mmmm x W: 252mm x D: 120mm
-
Shipping Carton Weight: 4.36Kg
