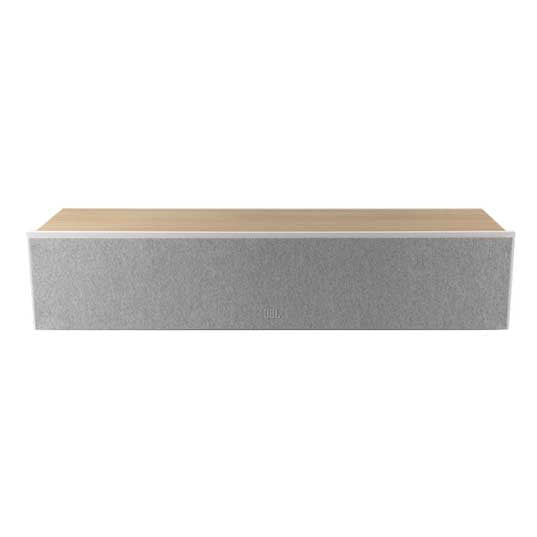

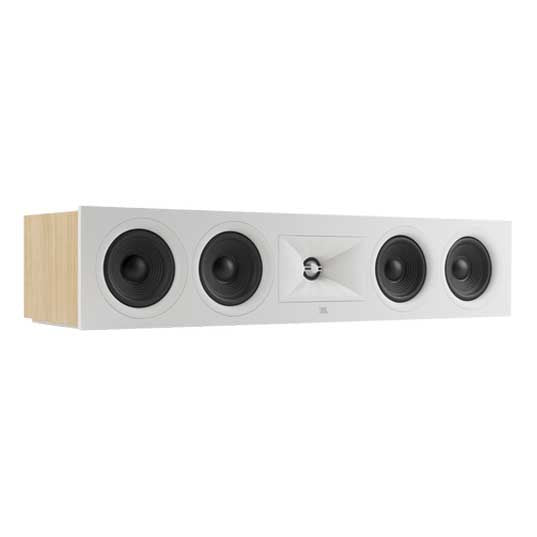

Designed and engineered in our world-famous Acoustic Engineering Center of Excellence in Northridge, California, Stage 245C is a center channel loudspeaker perfectly matched with the entire Stage series. This loudspeaker features a 2.5-way design with Next Generation patented High-Definition Imaging (HD) waveguide geometry, 1-inch (25mm) Anodised Aluminium dome tweeter, and quad 4.5-inch (114mm) Poly-cellulose cone woofers that provides deep, signature JBL bass.
Highlights
- Quad 4.5-inch (114mm) Poly-cellulose Ribbed Cone Woofers
- Precision 2-Way Crossover
- Next Generation HDI™ Horn
- 1-inch (25mm) Anodised Aluminum Tweeter

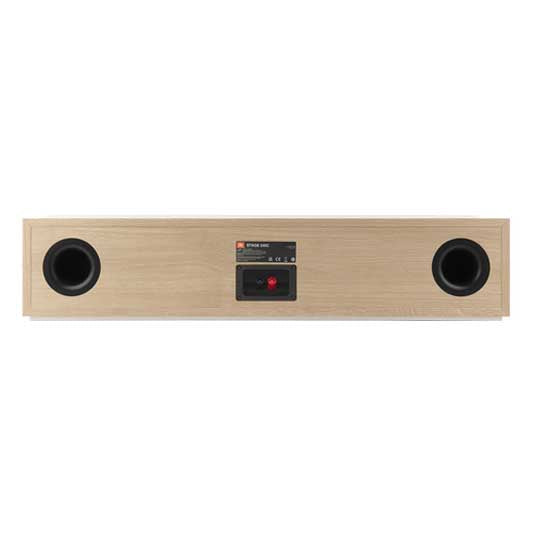

- Dual Rear-Firing Tuned Ports

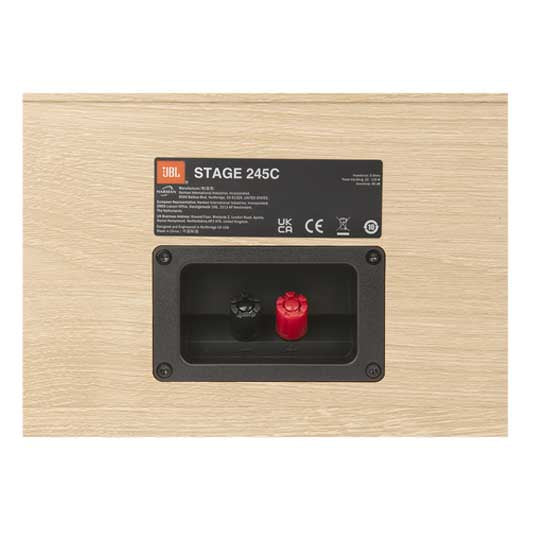

- 5-Way Binding Posts
Specification
- Low Frequency Driver: Quad 4.5-inch (114mm) Poly-cellulose Ribbed Cone
- High Frequency Driver: 1-inch (25mm) Anodized Aluminum
- Waveguide: Next Generation HDI™
- Recommended Amplifier Power: 20-150W
- Frequency Response ±6dB: 55Hz-25kHz
- Sensitivity @ 1M, 2.83V: 91dB
- Nominal Impedance: 6 Ohms
- Crossover Frequencies: 1.3kHz/2.0kHz
- Enclosure Tuning: Bass Reflex via Dual Rear-Flared Tuned Ports
- Finish: Espresso or Latte
-
Dimensions & Weights
- Dimensions (HxWxD): 156mm x 740mm x 2171mm
- Product Weight: 12.0 kg ea.
-
Gross Weight: 14.7kg ea.
