Description
Product Overview
12-inch 500W Powered Subwoofer
Designed and engineered in our world-famous Acoustic Engineering Center of Excellence in Northridge, California, Stage 220P is 500W and is the most powerful subwoofer in the Stage series. This subwoofer features a high excursion 12-inch (300mm) Polycellulose low-frequency woofer with dual rear firing tuned ports that provides deep, powerful, signature JBL bass. A full complement of controls provides for easy system integration.
Highlights
- 12-inch (300mm) Poly cellulose Ribbed Cone Low-Frequency Woofer
- 250W RMS (500W Dynamic)

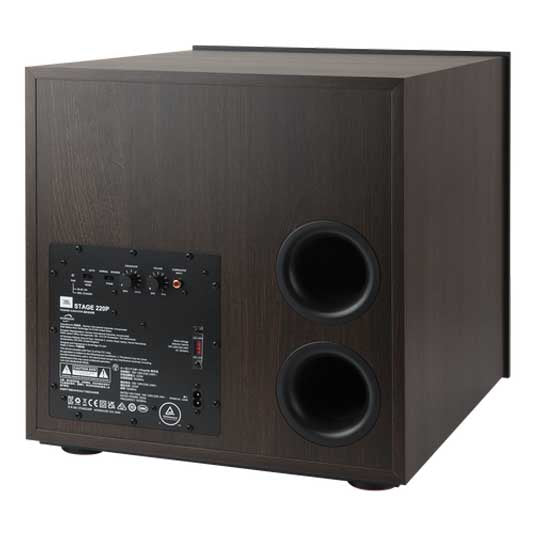

- Dual Rear-Firing Tuned Ports
- Crossover, Level and Phase Control
Specifications
- Low Frequency Driver: 12-inch (300mm) Poly-cellulose Ribbed High Excursion
- Amplifier Power: 250W RMS (500W Dynamic)
-
Frequency Response ± 6dB: 26Hz-150Hz
- Crossover Frequencies: 50Hz-150Hz (variable) 24dB/octave
- Controls: 35Hz-150Hz

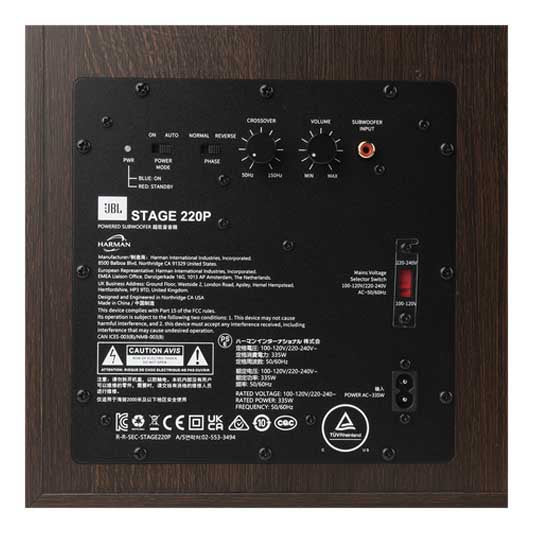

- Controls: Auto Power, Crossover, Level, Phase
- Inputs: One (1) Line-Level LFE Input
- Enclosure Tuning: Bass-Reflex via Dual Rear-Firing Tuned Ports
- Power Requirements: 220-230V, 50/60Hz (EU)
- Power Consumption: <0.5W (standby) / 205W/1.6A (max – 230V
- Finish: Espresso or Latte
- Dimensions (HxWxD): 416mm x 405mm x 444mm
- Product Weight: 18.7 kg
- Shipping Weight: 23.3kg
