2.5-way floorstanding speaker with dual 6.5-inch (165 mm) drivers.
Engineered and developed at our world-renowned acoustic research center in Northbridge, California, the Stage 260F is the mid-size floorstanding speaker in the JBL Stage series. It features a 2.5-way design with patented High-Definition Imaging (HDI™) technology, a 1” (25 mm) anodized aluminum dome tweeter, and dual 6.5” (165 mm) grooved polycellulose woofers that deliver signature JBL deep bass.
Highlights
- Dual 6.5-inch (165mm) Polycellulose Ribbed Cone Woofers
- Precision 2.5-Way Crossover
- Next Generation HDI™ Horn
- 1-inch (25mm) Anodized Aluminum Tweeter
- 5-Way Binding Posts
- Magnetically Attached Grilles
- Dedicated ATMOS 5-Way Binding Posts with Integrated Wire Management

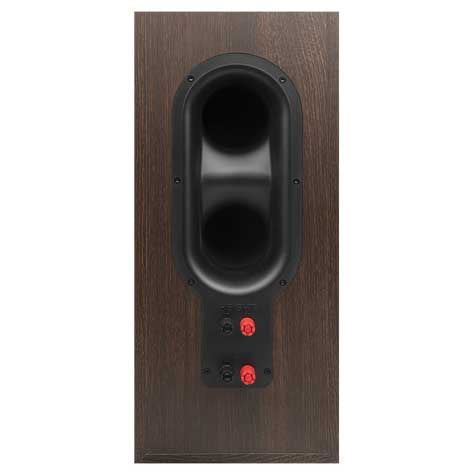

- Dual Flared Racetrack Rear-Firing Tuned Ports

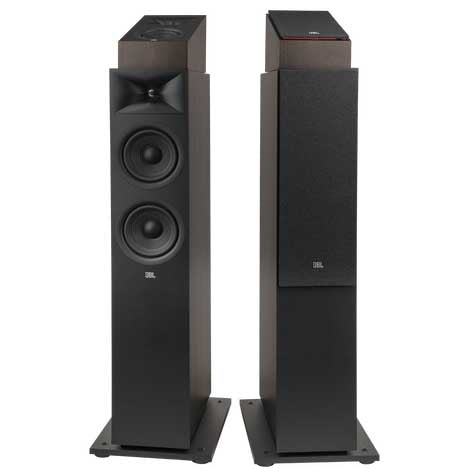

- Compatible with 240H ATMOS Height Module
Specification
- Type: Floorstanding Loudspeaker System
- Low Frequency Driver: Dual 6.5-inch (165mm) Polycellulose Ribbed Cone
- High Frequency Driver: 1-inch (25mm) Anodized Aluminum
- Waveguide: Next Generation HDI™
- Recommended Amplifier Power: 20-225W
- Frequency Response ±6dB: 40Hz-25kHz
- Sensitivity @ 1M, 2.83V: 90dB
- Nominal Impedance: 6 Ohms
- Crossover Frequencies: 1.3kHz/1.7kHz
- Enclosure Tuning: Bass Reflex via Dual Flared Racetrack Rear-Firing Tuned Ports
- Finish: Espresso or Latte
- Dimensions & Weights
-
- Dimensions (HxWxD): 1036mm x 310mm x 362mm
- Dimensions (HxWxD) without Base: 1036mm x 200mm x 354mm
- Product Weight: 19.5 kg ea.
- Gross Weight: 24.1kg ea.
- Shipping Units of Measure: Each
