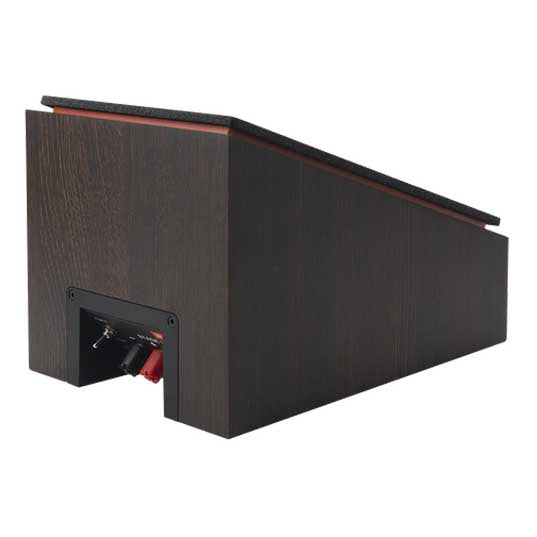

Designed and engineered in our world-famous Acoustic Engineering Center of Excellence in Northridge, California, Stage 240H is a compact multi-purpose loudspeaker suitable for surround or elevation channel use. With the flip of a switch, it is a Dolby Atmos enabled add-on, or a wall mounted elevation or surround loudspeaker. The 240H features a 2-way way design with Next Generation patented High-Definition Imaging (HDI) waveguide geometry, 1-inch (25mm) Anodized Aluminium dome tweeter, and a 4.5-inch (114mm) Polycellulose cone woofer that provides deep, signature JBL bass.
Highlights
- 4.5-inch (114mm) Poly-cellulose Ribbed Cone Woofers
- Precision 2-Way Crossover
- Next Generation HDI™ Horn
- 1-inch (25mm) Anodized Aluminum Tweeter

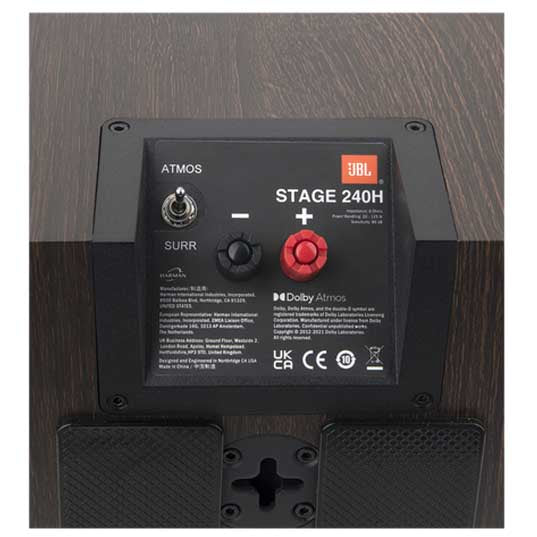

- Switchable Modes (Dolby Atmos® or Surround/Height)

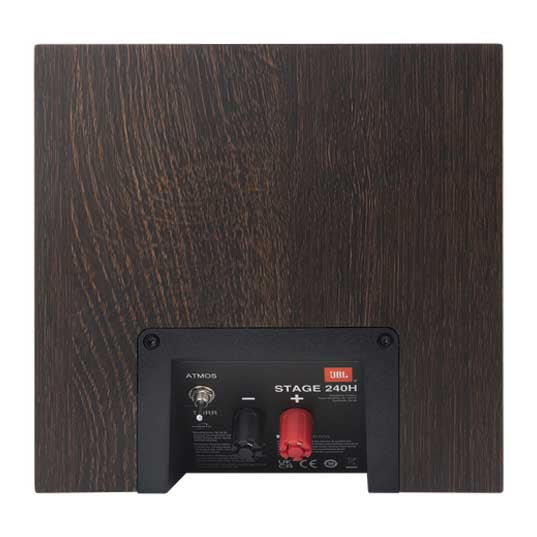

- 5-Way Binding Posts

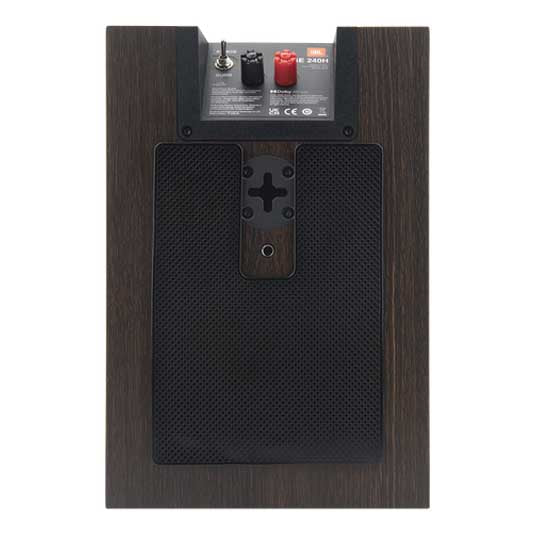

- Integrated Wall Mount Bracket
- 1/4-20 Insert for Aftermarket Mounts
- Anti-Slip Pads
Specification
- Low Frequency Driver: 4.5-inch (114mm) Polycellulose Ribbed Cone
- High Frequency Driver: 1-inch (25mm) Anodized Aluminum
- Waveguide: Next Generation HDI™
- Recommended Amplifier Power: 20-125W
- Frequency Response ±6dB: 85Hz-25kHz
- Sensitivity @ 1M, 2.83V: 87dB
- Nominal Impedance: 6 Ohms
- Crossover Frequencies: 1.6kHz
- Enclosure Tuning: Sealed
- Finish: Espresso or Latte
-
Dimensions & Weights
- Dimensions (HxWxD): 176mm x 180mm x 270mm
- Product Weight: 3.5 kg ea.
- Gross Weight: 8.5kg ea.
- Shipping Units of Measure: Pair
