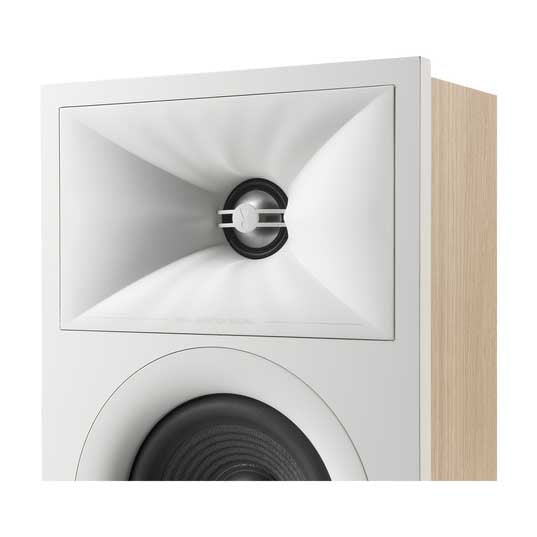

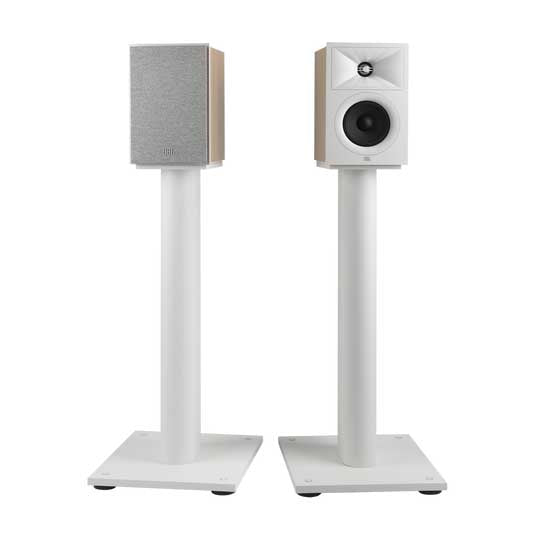

Designed and engineered in our world-famous Acoustic Engineering Centre of Excellence in Northridge, California, Stage 240B is the smallest bookshelf loudspeaker of the new JBL Stage Series. This loudspeaker features a 2-way design with Next Generation patented High-Definition Imaging (HDI) waveguide geometry, 1-inch (25mm) Anodised Aluminium dome tweeter, and a 4.5-inch (114mm) Poly-cellulose cone woofer that provides deep, signature JBL bass.
Highlights
- 4.5-inch (114mm) Poly-cellulose Ribbed Cone Woofers
- Precision 2-Way Crossover
- Next Generation HDI™ Horn
- 1-inch (25mm) Anodized Aluminum Tweeter
- 5-Way Binding Posts
- Integrated Wall Mount Bracket
- 1/4-20 Insert for Aftermarket Mounts
- Anti-Slip Pads
Specification
- Low Frequency Driver: 4.5-inch (114mm) Polycellulose Ribbed Cone
- High Frequency Driver: 1-inch (25mm) Anodized Aluminum
- Waveguide: Next Generation HDI™
- Recommended Amplifier Power: 20-125W
- Frequency Response ±6dB: 53Hz-25kHz
- Sensitivity @ 1M, 2.83V: 85dB
- Nominal Impedance: 6 Ohms
- Crossover Frequencies: 1.4kHz
- Enclosure Tuning: Bass Reflex via Rear-Firing Tuned Ports
- Finish: Espresso or Latte
-
Dimensions & Weights
- Dimensions (HxWxD): 272mm x 175mm x 217mm
- Product Weight: 4.6 kg ea.
- Gross Weight: 10.4kg ea.
- Shipping Units of Measure: Pair
