Description
Product Overview

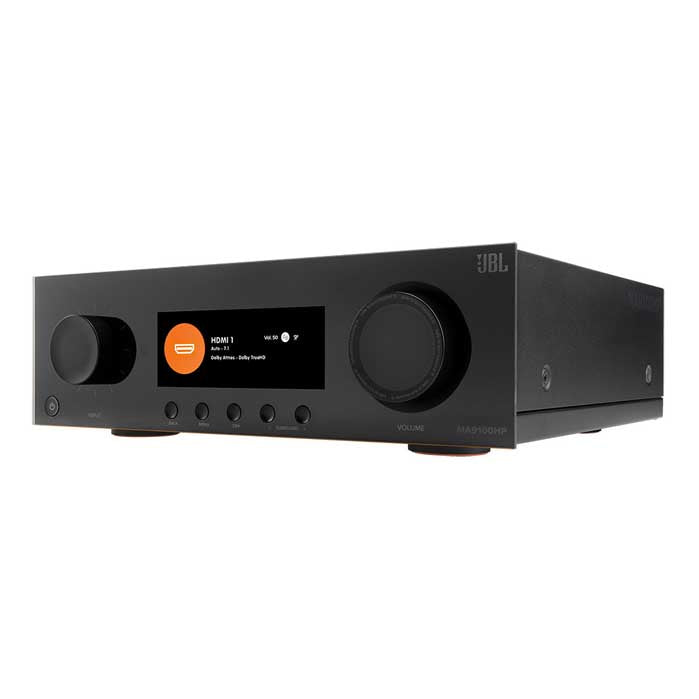

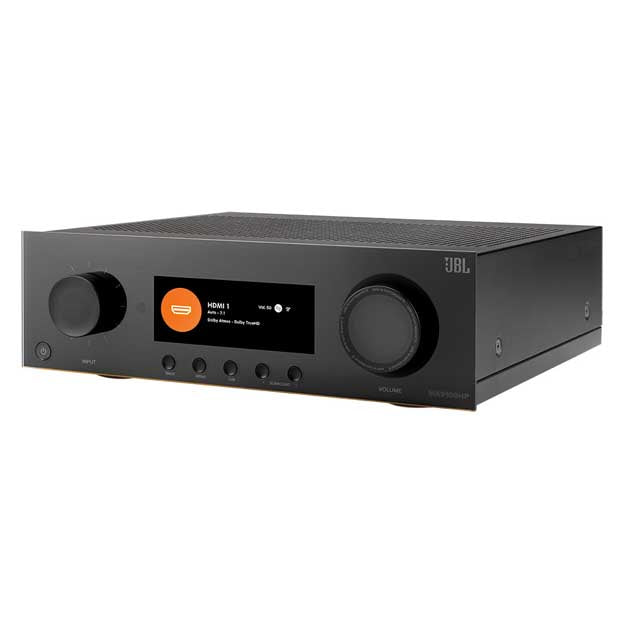

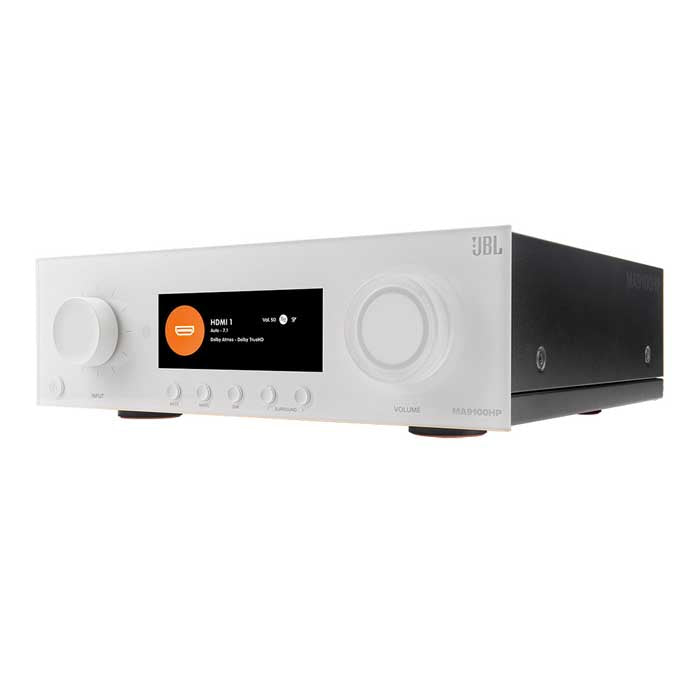

The JBL MA9100HP is a high-performance AV Receiver that delivers stunning realism with the latest 8K HDMI specifications and native 9-channel decoding of immersive audio from Dolby Atmos and DTS:X for the ultimate home cinema experience. Seamlessly integrate your smart TV or projector with 6 HDMI inputs and 2 outputs, plus eARC. It is designed with a passion for music and movies, bringing both to life with true high fidelity. The MA9100HP features nine channels of low noise Class D amplification for real world power to all channels. In addition to the onboard Moving Magnet phono input for connecting a turntable, additional music content can be accessed immediately with integrated streaming using Apple Airplay2, Google Chromecast, and Bluetooth AptX Adaptive.
Highlights
-
High-performance 9.2-channel AV receiver that delivers stunning realism with the latest 8K video for the ultimate home cinema experience
-
Seamless integration with smart TVs, gaming consoles, streaming, cable boxes and more with 6 HDMI inputs and 2 outputs, plus eARC
-
Dolby Atmos and DTS:X decoding, supports up to 9.1 or 5.1.4 channel configurations
-
Stream music wirelessly via Bluetooth and network streaming (Apple Airplay 2, Google Chromecast)
-
Seven channels of powerful low noise
-
Class D amplification for real world power to all channels
-
EZ Set EQ provides easy-to-use room equalisation for optimised sound quality
- Comes Dirac Live Ready, fully prepared to run Dirac Live – the worlds most advanced room correction software
Specifications:
- Channels: 9.2
- Rated Power @ 8Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max): 140 W RMS
- Rated Power @ 4Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max): 240 W RMS
- Video Features: HDMI eARC
- HDMI Audio Return Channel
- 8K HDMI input connectors (HDMI 2.1, HDCP 2.3 up to 8K/60Hz, 4K/120Hz): 3
- HDMI 2.1 enhanced gaming features: Gaming-VRR, ALLM, QFT, HFR (4K@120Hz)
- HDR 10+
- Dolby Vision
- Dirac Live Ready*: License purchased separately
- Front channel bi-amp
- DA converter: 192kHz/24-bit

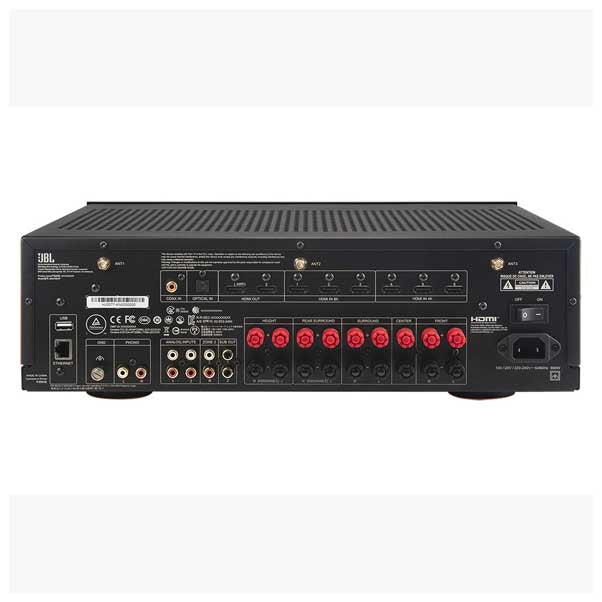

Connectivity
- HDMI Input/Output: 6 / 2
- Wi-Fi: (2.4 / 5GHz)
- Bluetooth receive: (v5.3, Low Energy, APTX HD, APTX Adaptive)
- Bluetooth transmit
- Digital Audio Input: 1 Coax, 1 Optical
- Stereo analogue input: 2 single-ended RCA
- Pre-Out (single ended RCA): Stereo Zone 2, Subwoofer 1, Subwoofer 2
General
- Mains voltage: 240V, 50Hz
- Max. power consumption: 900W
- Standby power consumption: <0.5W
- Dimensions incl. feet and speaker terminals (HxWxD mm): 135x 432x 396.4mm
-
Weight: 7.6kg
