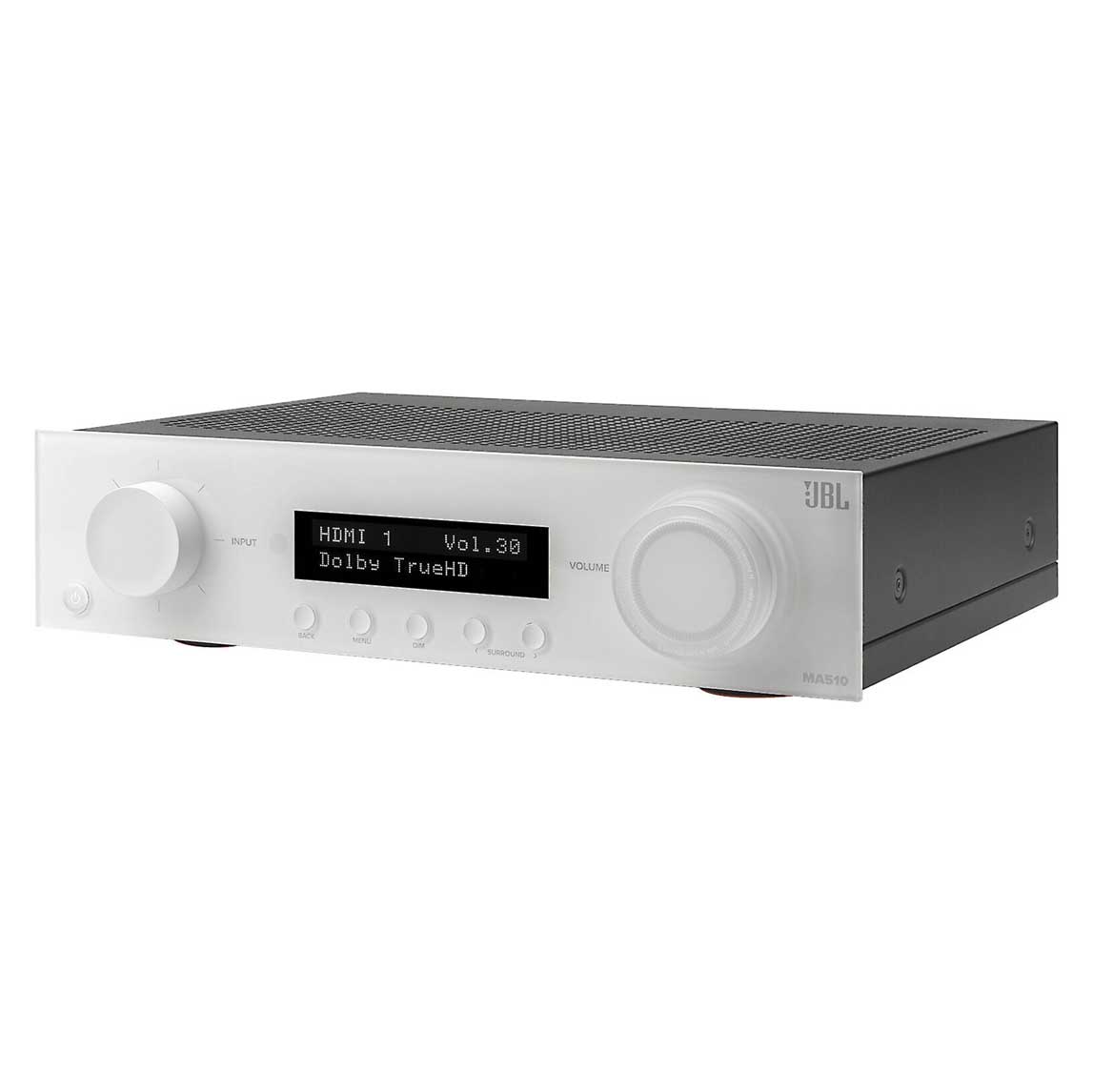

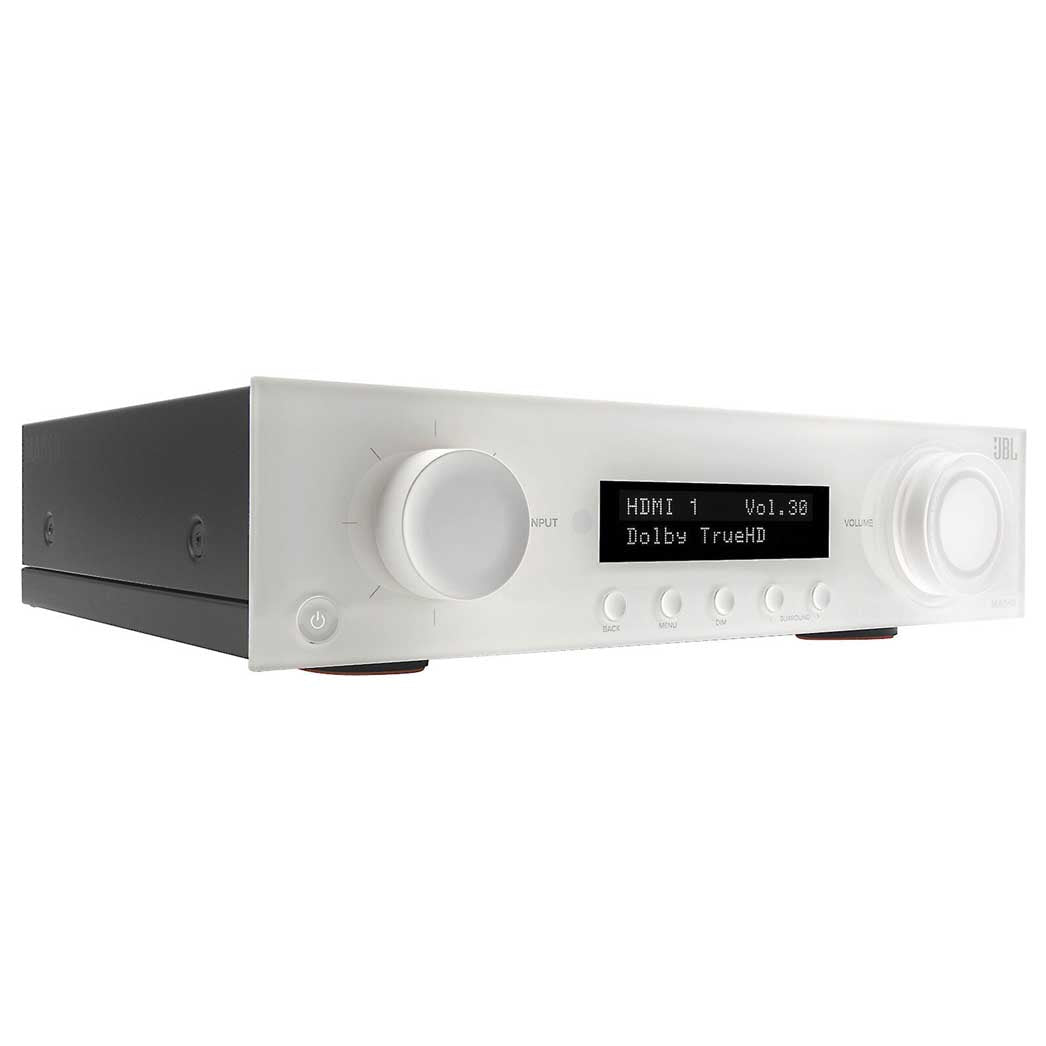

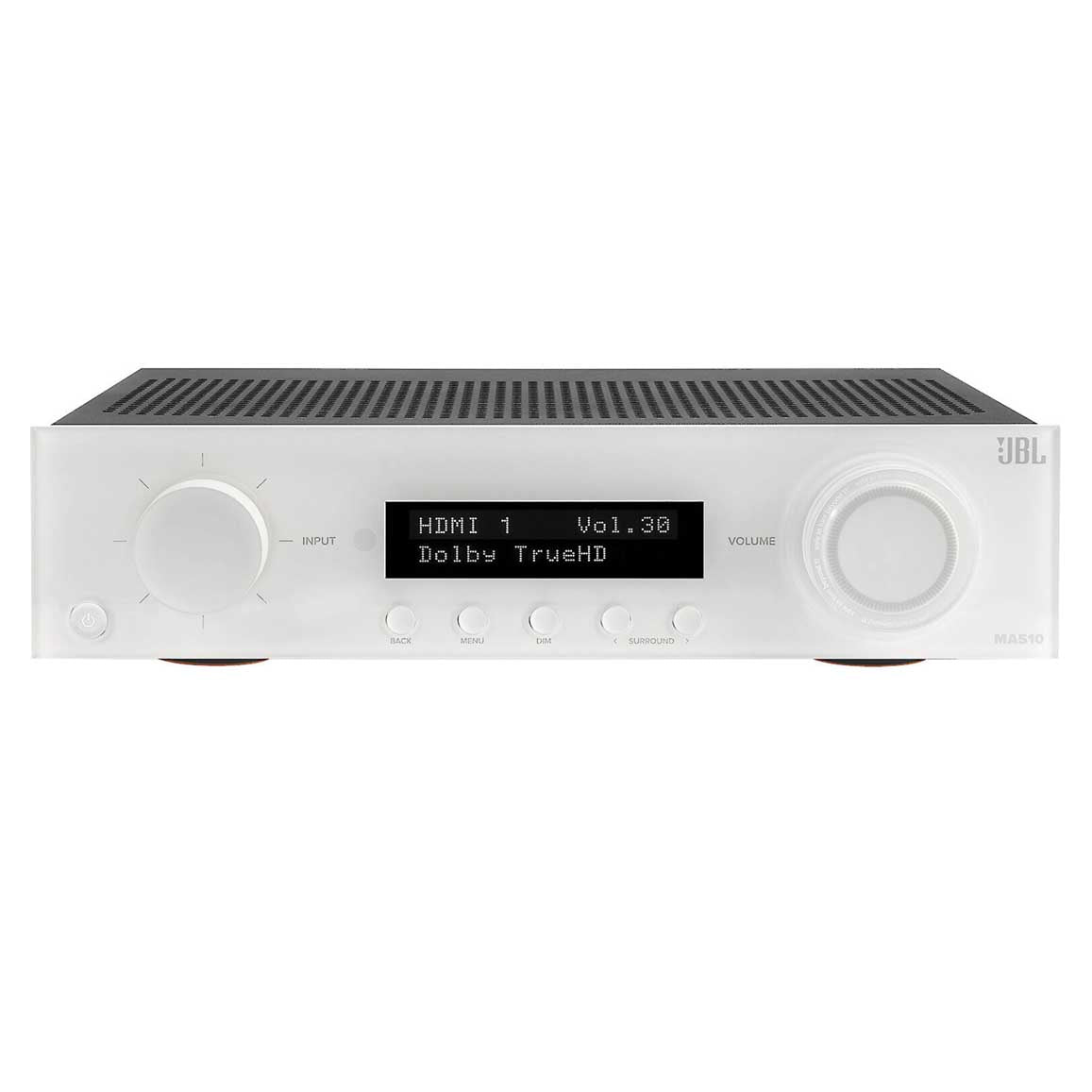

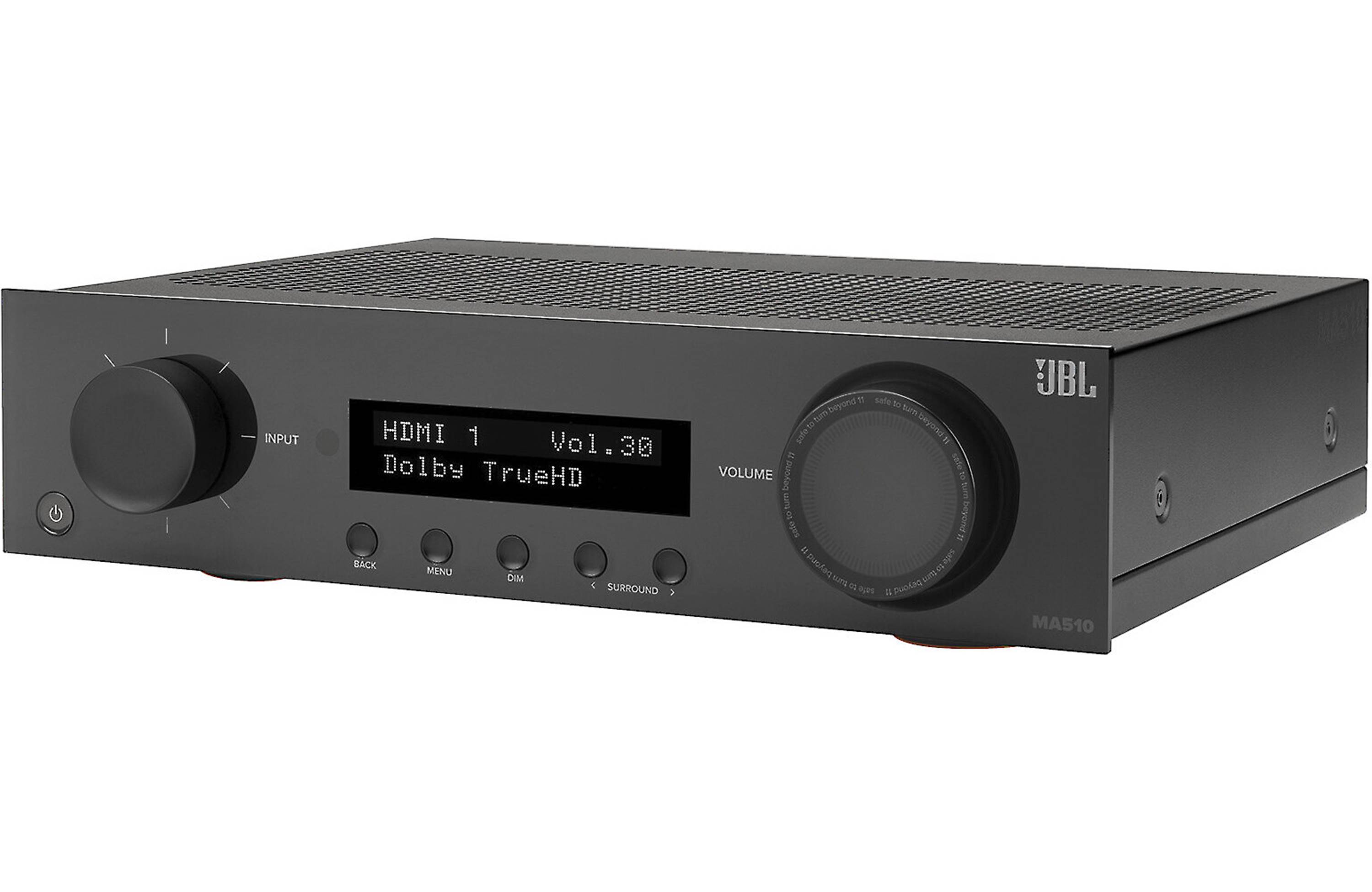

JBL MA510 Net AV Receiver

Product Overview

The JBL MA510 is an AV Receiver that delivers spectacular realism with 8K HDMI specifications for a supreme home cinema experience. Seamlessly integrate your smart TV or projector with 4 HDMI inputs and 1 output, plus eARC. With native 5-channel decoding of Dolby and DTS formats, the MA510 can deliver incredible cinema experiences. It is designed with a passion for music and movies, bringing both to life with true high fidelity. Additional music content can be accessed via Bluetooth and network streaming. The MA510 features five channels of low noise Class D amplification for real world power to all channels.

Specifications

Channels: 5.2

• Rated Power @ 8Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max): 75 W RMS
• Rated Power @ 4Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max): 100 W RMS

Video Features

• HDMI eARC: Yes
• HDMI Audio Return Channel: Yes
• 8K HDMI input connectors (HDMI 2.1, HDCP 2.3 up to 8K/60Hz, 4K/120Hz): 4
• HDMI 2.1 enhanced gaming features: Gaming-VRR, ALLM, QFT, HFR (4K@120Hz)
• HDR 10+, Dolby Vision: Yes , Yes EZ/Set EQ: Yes DA converter: 192kHz/24-bit

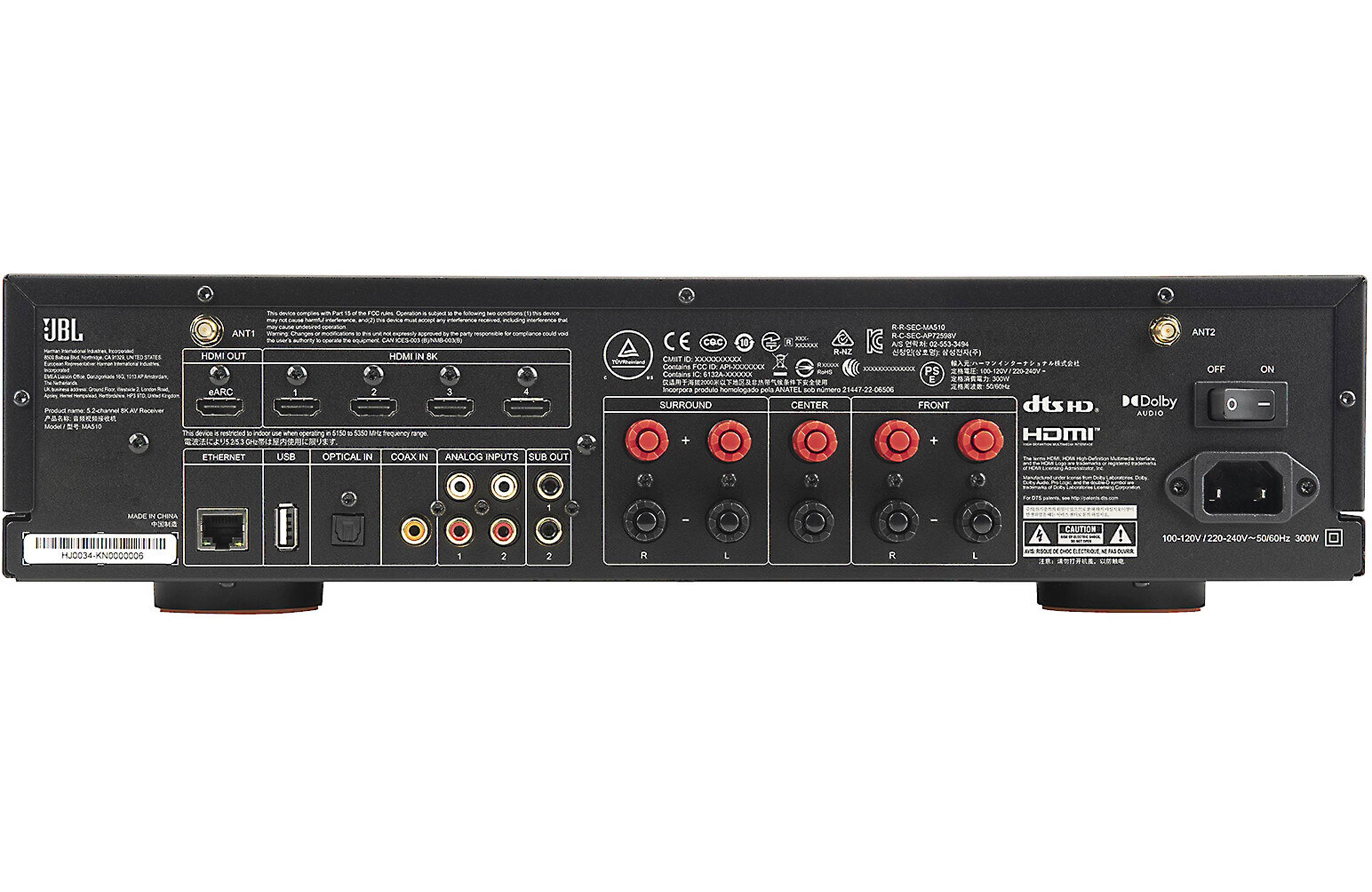

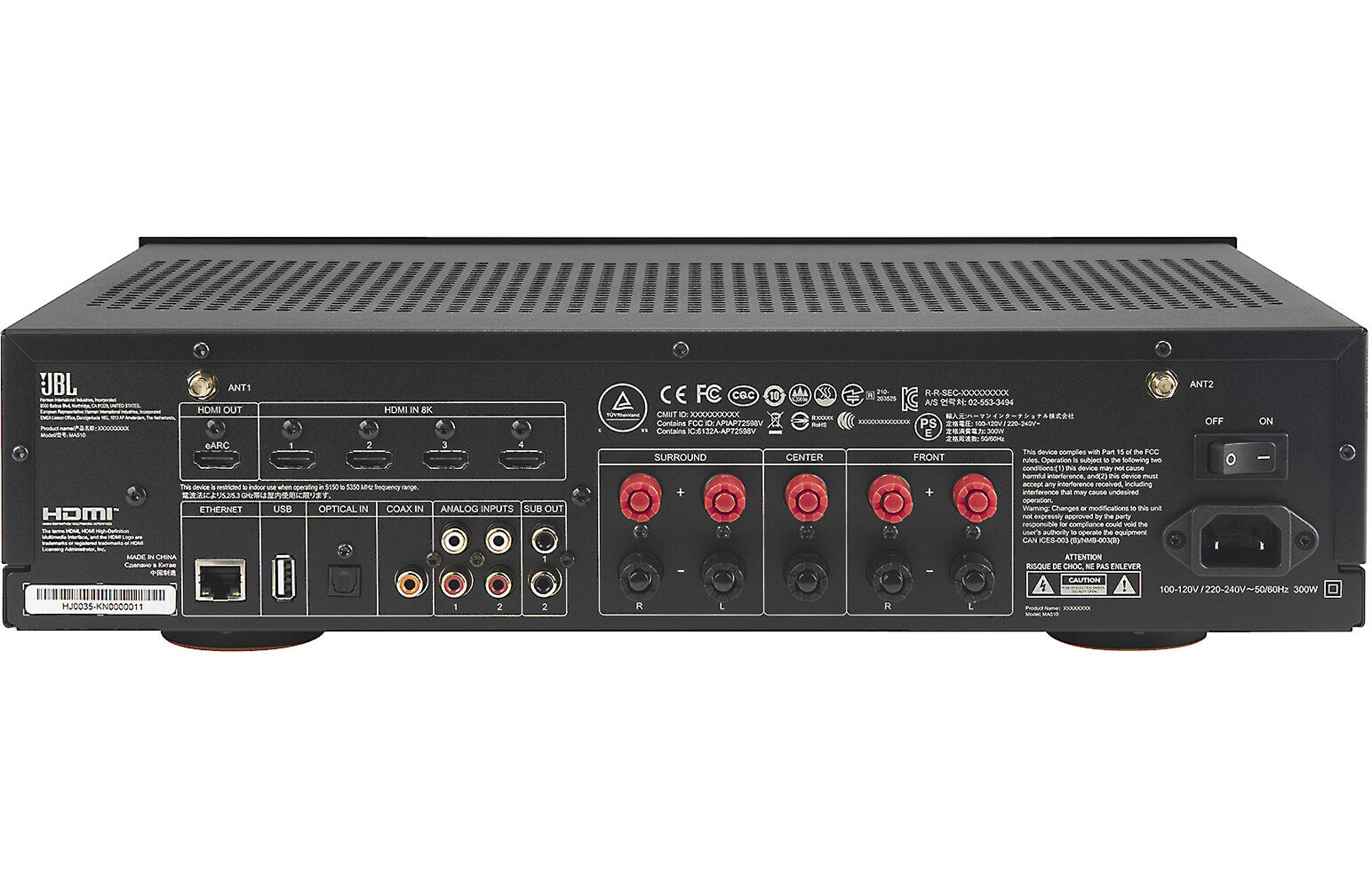

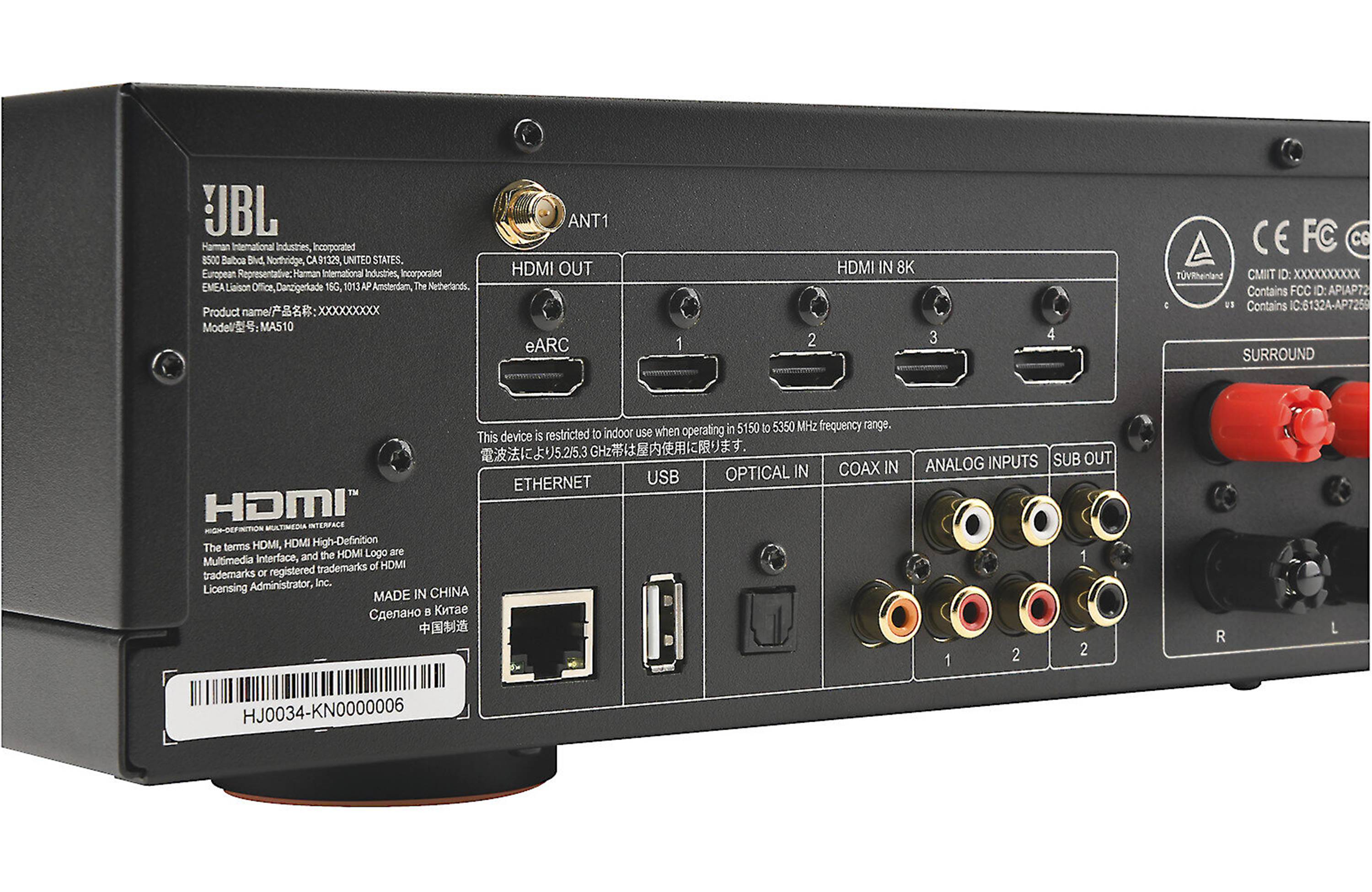

Connectivity

• HDMI Input/Output: 4 / 1
• Wi-Fi: Yes (2.4 / 5GHz)
• Bluetooth receive: Yes (v4.1, Low Energy)
• Digital Audio Input: 1 Coax, 1 Optical
• Stereo analog input: 2 single-ended RCA
• Pre-Out (single ended RCA): Subwoofer 1, Subwoofer 2

General

• Mains voltage: 240V, 50Hz
• Max. power consumption: 300W
• Standby power consumption: <0.5W
• Dimensions incl. feet and speaker terminals (H x W x D): 109.9mm x 432.0mm x 347.6mm
• Weight: 5.4kg
