JBL STUDIO 620
5.25-INCH 2-WAY BOOKSHELF SPEAKER

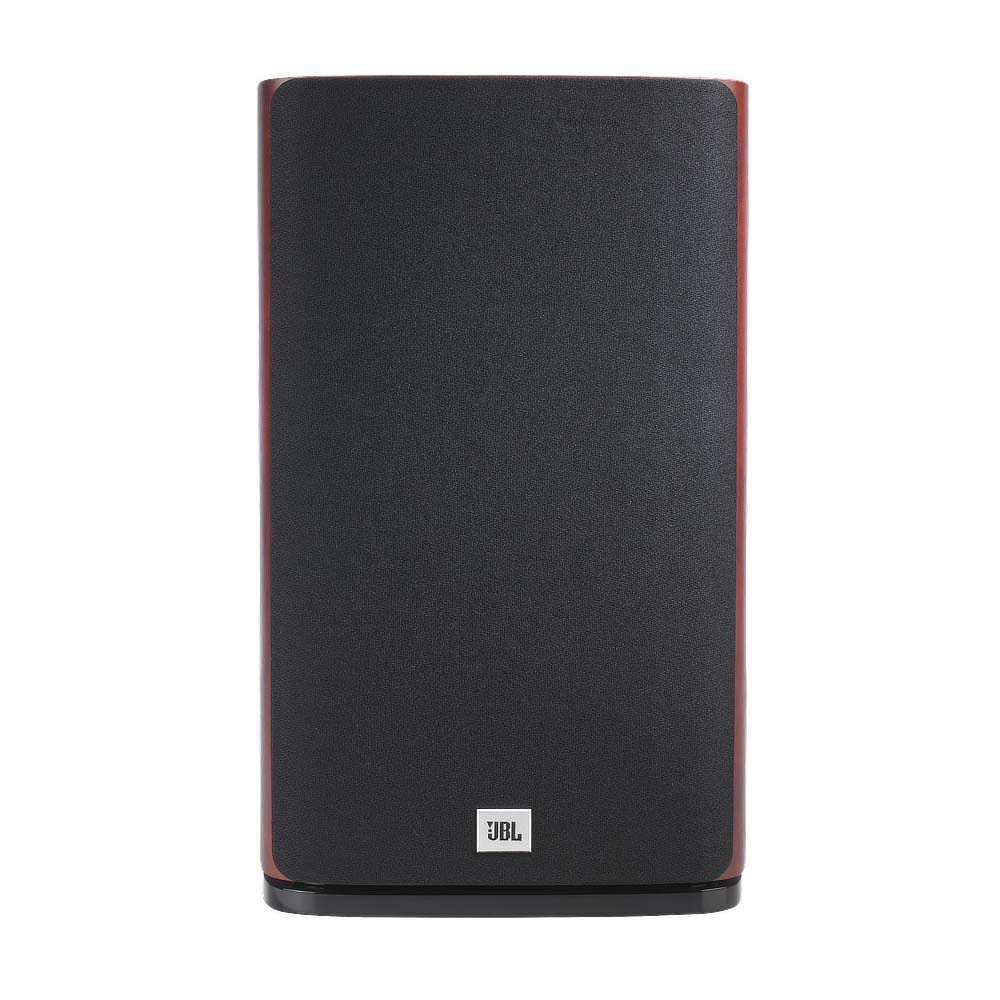

The JBL Studio 620 is a high-performance bookshelf loudspeaker utilizing JBL’s 2414H-1 1-inch compression driver mated to a High-Definition Imaging horn complemented by a 5.25-inch PolyPlas cone woofer. The elegant cabinet design includes a magnitically attached grille and brings an element of sophistication to any room. The Studio 6 Series delivers big dynamics, detailed sound, and powerful bass for true high-fidelity sound.
- Top-graded PolyPlass cones.
- High-quality sounding compression drivers.
- New, appealing form factor.
- High-definition imaging Waveguide with high-frequency compression driver.
SPECIFICATIONS
- Single 5.25″, 2-way compression driver bookshelf loudspeaker
- 5.25″ (133mm) PolyPlas Low-Frequency Woofer
- High Definition Imaging (HDI) Waveguide with 1” (25mm) High Frequency Compression Driver
- Recommended Amplifier Power Max 100W
- Frequency Response 50Hz – 40kHz
- Sensitivity 84dB @ 1M, 2.83V
- Nominal Impedance 6 Ohms
- Crossover Frequencies 2.3 kHz

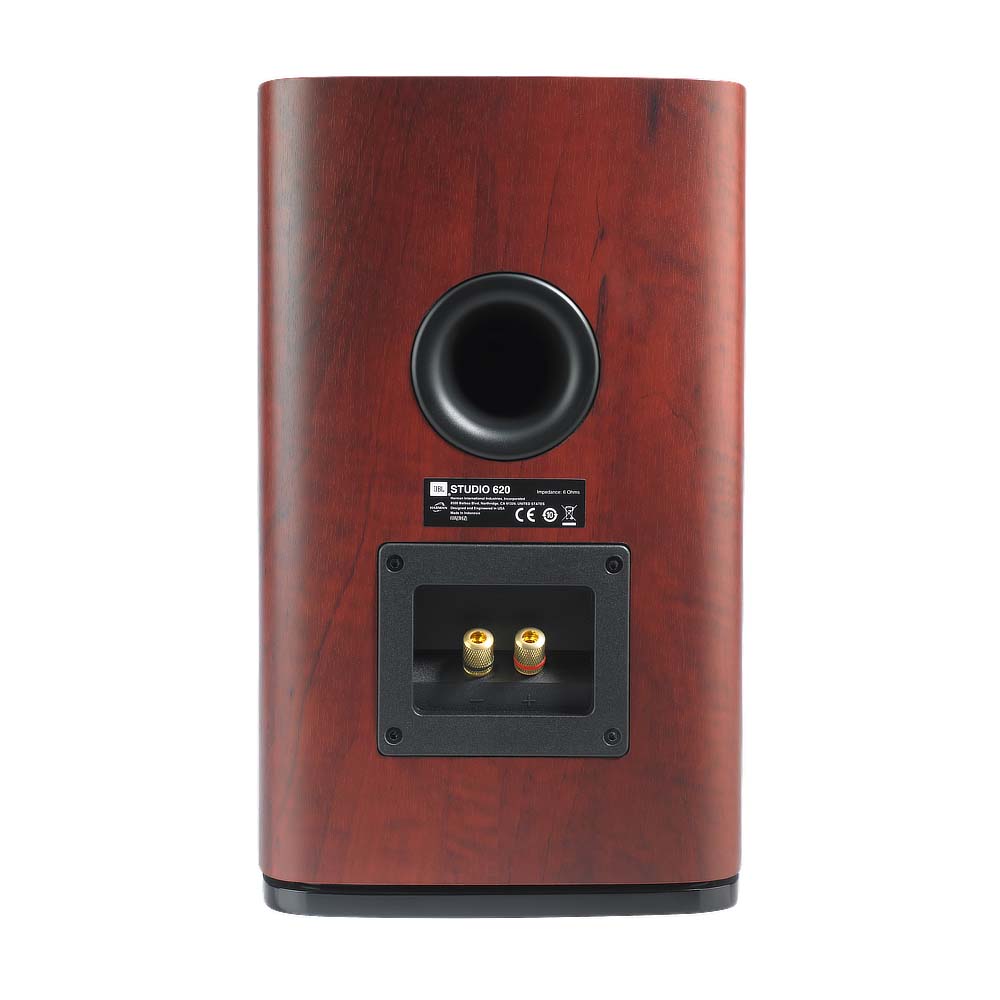

- Enclosure Type Bass-Reflex via Rear-Firing Tuned Port
- Dimensions (W x D x H) 190 x 240 x 312mm
