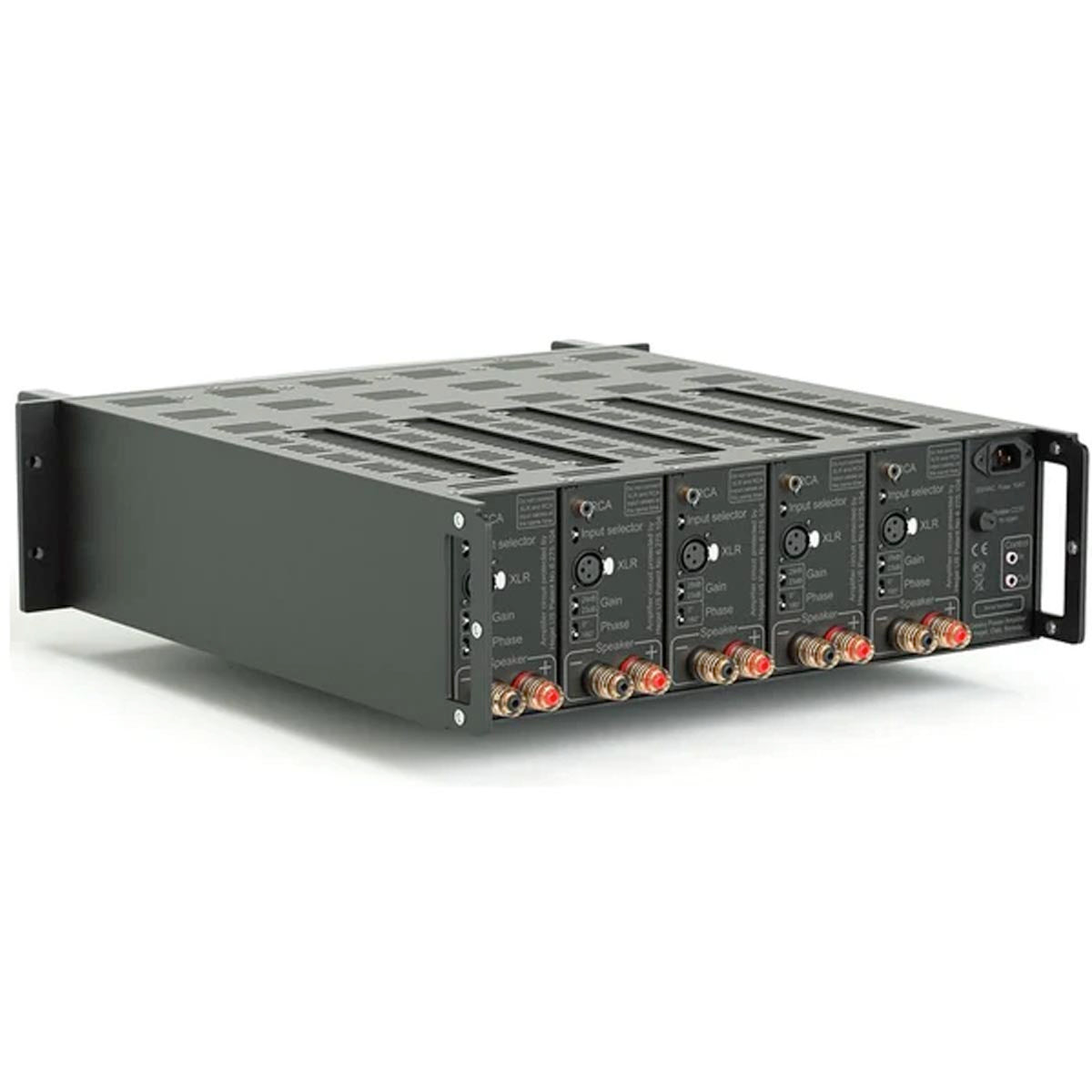

Hegel C54 4-channel power amplifier
-
150w into 8Ω
-
200w into 4Ω
-
600w into 2Ω
The Hegel SoundEngine technology will cancel high-frequency distortion components found in normal types of audio amplifiers. This technology is not using any kind of global negative feedback. It is using local and adaptive feedforward technology if there should ever be any need for cancellation of distortion within the audio amplifier stages.
The Hegel C5 series are the most versatile high-performance multi-channel amplifiers on the market. The C5 is available in 3 different versions, tailored to your needs. You can choose to have it as either a 3-channel (C53), 4-channel (C54) or 5-channel (C55) configuration.
Features
-
4 x 150 W/8 Ω
-
Gain Control
-
SoundEngine
-
RCA & XLR Inputs
-
Trigger In/Out
-
Modular Design
-
Rack Mount
Specifications
| Power output:
|
4 x 150/300/600 W into 8/4/2 ohms |
| Minimum load: |
2 ohms |
| Analog Inputs:
|
4x balanced (XLR), 4 x unbalanced (RCA) |
| Control Inputs:
|
1 x mini-jack 5-12 V trigger |
| Control Outputs: |
1 x mini-jack 11.9 V trigger out |
| Gain control:
|
Switchable between 23 dB or 29 dB (individual) |
| Phase control:
|
Switchable 1/180 (individual) |
| Frequency response:
|
5 Hz - 100 kHz |
| Signal-to-noise ratio: |
More than 100 dB |
| Crosstalk:
|
Less than -100 dB |
| Distortion: |
Less than 0.01% @ 100W 8 Ohms 1 kHz |
| Intermodulation:
|
Less than 0.01% (19 kHz + 20 kHz) |
| Damping factor:
|
More than 2000 (main power output stage) |
| Net Weight:
|
33 kg |
| Gross Weight: |
38.5 kg |
| Dimensions note:
|
For precise installation dimensions, refer to user manual |
| Dimensions: |
48.2 cm x 13.2 cm x 52 cm (BxHxD incl handles, ex feet) |
| Special features:
|
Balanced and unbalanced inputs, Trigger in/out, Modular design, Adjustable rear rack mount, Gain & Phase selectors |
