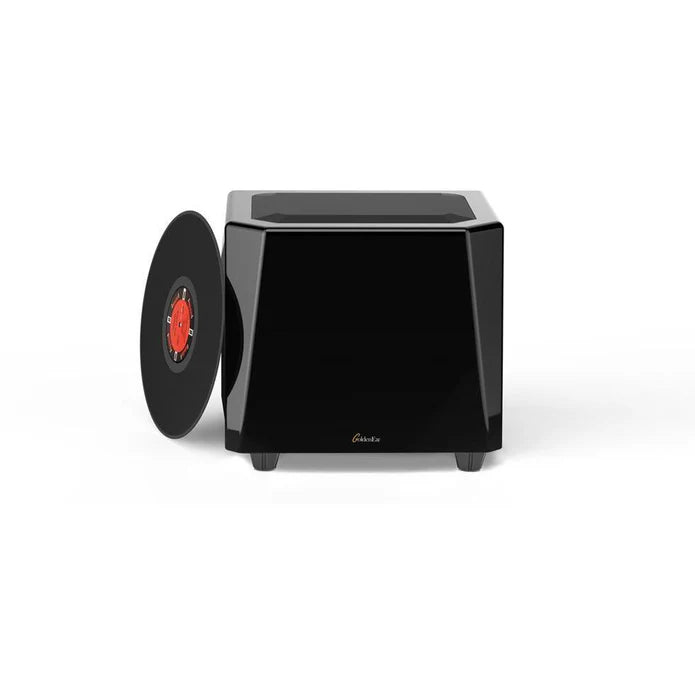

GoldenEar SuperSub X Subwoofer

GoldenEar SuperSub X Subwoofer

Ultra-Compact Powered Subwoofer with Dual 8-Inch Active Drivers, Dual Planar Radiators and 1400 Watt Class D Amplification

The GoldenEar SuperSub X is a compact high-performance powered subwoofer built for customers who want serious low-frequency output without giving up half the room to a giant box. It is an ultra-compact design just a little bigger than a 12.5-inch cube, built around a patented dual-plane inertially-balanced driver array with two horizontally-opposed 8-inch ultra-long-throw active drivers and two vertically-opposed 10.5 x 9.5-inch planar back-wave-driven radiators .

The SuperSub X is driven by a 1400 watt Class D digital amplifier , with pressure-coupled loading and DSP control intended to deliver very deep bass from a compact enclosure.

Ultra-Compact High-Output Design

Serious bass from a much smaller enclosure

The SuperSub X is designed to deliver substantial low-frequency output from a compact cabinet. It is only slightly larger than a 12.5-inch cube, with dimensions of approximately 35.6cm W x 33.5cm D x 32.5cm H and a weight around 18.2kg.

• Premium lounge-room systems
• Home theatre rooms where space is limited
• Two-channel systems needing serious bass support
• Buyers who want more performance than a small lifestyle sub usually offers

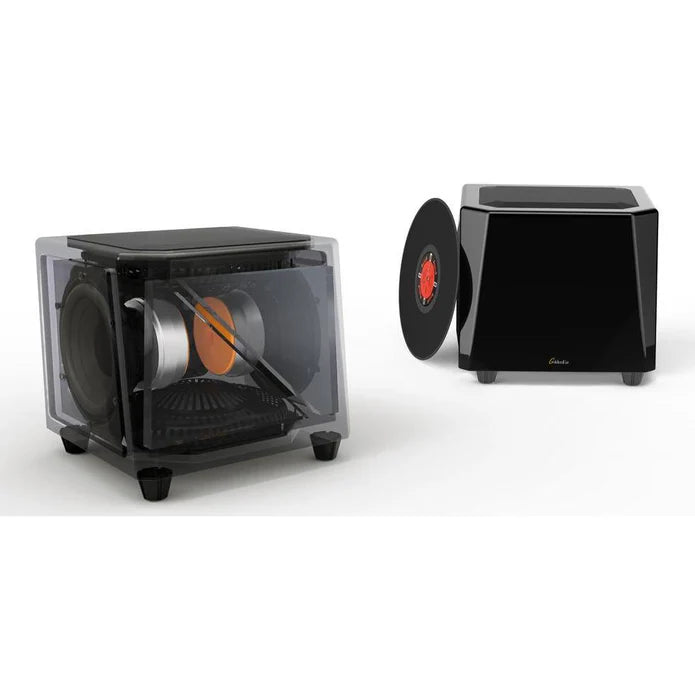

Dual 8-Inch Active Drivers

More displacement than the size suggests

The SuperSub X uses two horizontally-opposed 8-inch ultra-long-throw active drivers . The opposed layout is part of the brand’s inertially-balanced concept, intended to focus energy on moving air rather than shaking the enclosure.

• More output from a compact footprint
• Better cabinet control
• More serious transient performance
• Less sense of the box fighting the drivers

Dual Planar Infrasonic Radiators

Passive radiator loading with a lot of surface area

GoldenEar also fits the SuperSub X with two vertically-opposed 10.5 x 9.5-inch planar back-wave-driven radiators . This radiator arrangement is part of how the cabinet reaches deeper bass without needing a conventional large ported enclosure.

• Deeper extension from a compact cabinet
• Greater air movement
• Stronger low-end authority without a huge enclosure

1400 Watt Class D Digital Amplifier

Big amplifier power for a compact subwoofer

The SuperSub X uses a 1400W Class-D digital amplifier with DSP control, giving the compact driver array the power and control needed for demanding music and home theatre bass.

The amplifier and DSP platform are intended for systems that need substantial low-frequency output while retaining control in both music and home theatre use.

DSP Control and Flexible Inputs

Built for both stereo and home theatre use

Connection is straightforward: use the LFE input from an AV receiver or processor, or the stereo inputs in a two-channel system where the subwoofer low-pass controls are required.

• Dedicated LFE input
• Stereo left/right line-level inputs
• Variable low-pass crossover control
• Subwoofer level control
• Auto on/off

The LFE input is direct-coupled and unfiltered, while the stereo inputs work with the variable low-pass section. That gives the SuperSub X a clear path into both home theatre and stereo systems.

Deep Bass in a Compact Cabinet

Deep bass from a compact enclosure

The opposed active drivers and passive radiators are used to generate deep bass from a cabinet that is compact enough to place in rooms where a much larger subwoofer would be difficult to accommodate. Placement and setup still matter, particularly close to walls and corners.

Key Features

• Premium lounge-room systems
• Home theatre rooms where space is limited
• Two-channel systems needing serious bass support
• Buyers who want more performance than a small lifestyle sub usually offers
• More output from a compact footprint

Specifications

Detailed Technical Specifications

For those who like to drag out all the useful bits

The Audio Experts Take

The SuperSub X is aimed at rooms where you want serious bass output without giving a large cabinet too much floor space. Its compact enclosure makes placement easier, but subwoofer position and integration still determine how well it works in the room. Talk to The Audio Experts if you want help setting crossover, level and placement with your main speakers.

📦 Brand new 🛡 Full Australian warranty 📍 Available in store and online at The Audio Experts
