The new generation MM cartridge

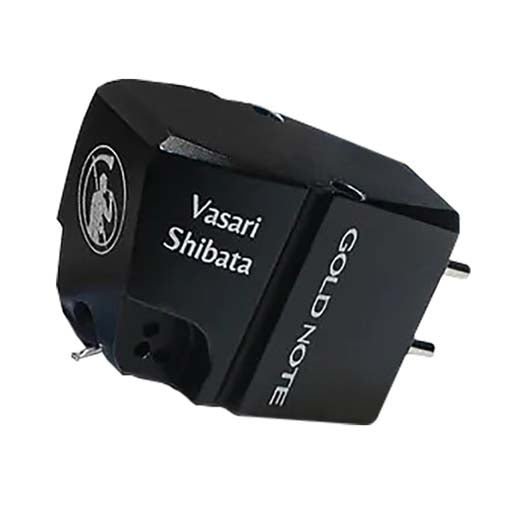

GOLD NOTE Vasari’s innovative design is the result of a long research and development phase to create a high-performance MM cartridge. The body is made from a single machined piece of solid aluminium 7000 alloy to ensure high damping power and assisted by an ultra-light aluminium cantilever – inserted directly into the body to minimise any unwanted vibration – so that Vasari can extract even the finest details from the vinyl groove.
Vasari is available in 3 models:
Shibata, featuring a
Shibata stylus
Gold, featuring an elliptical stylus
Red, featuring a conical stylus
The peculiar shape of the new Vasari Shibata stylus – an evolution of the elliptical shape with extra special facets to create an asymmetrical shape – allows for an incredible increase of the surface area contact whilst reducing significantly the pressure applied to the vinyl groove.
The result is a nearly perfect playback, with better dynamics and resolution, thanks to the deeper contact with the vinyl groove and, at the same time, low the wear of the record and the diamond.
SPECIFICATIONS
TYPE MM Phono Cartridge
OUTPUT LEVEL 4mV
FREQUENCY RESPONSE 10-30000Hz
IMPEDANCE 500Ω
INDUCTANCE 500mH
SUGGESTED LOAD 47Ω
COMPLIANCE 10×10-6cm/dyne
CHANNEL SEPARATION > 25dB
SUGGESTED TRACKING WEIGHT 2g
CANTILEVER Aluminium
DIAMOND Shibata
DIAMOND SIZE 3.5g x 20um
COIL WIRE Copper
MAGNET Alnico
MOUNTING HOLD DIAMOND DIST. 9mm
WEIGHT 9.5g
BODY Duralumin Alloy
