Description

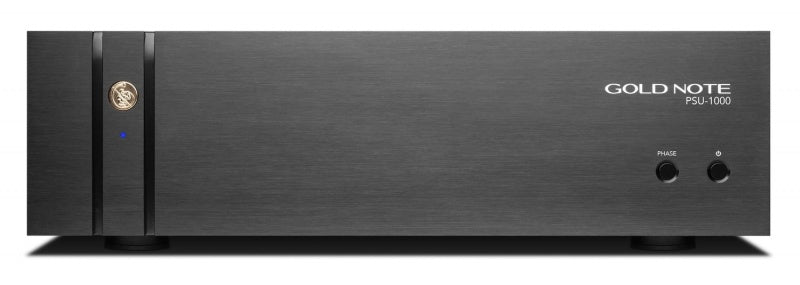

PSU-1000
The ideal companion for the 1000 series of Phono Stages and CD Player
The PSU-1000 Power supplies provide ultra-clean power and all the necessary power without generating Electro Magnetic Interference or Radio-Frequency Interference that could affect the audio signal. All this translates into greater dynamics, better resolution, precise details and maximum realism.
The PSU-1000 are the super inductive external power supplies dedicated to the 1000 Gold Note series, such as CD-1000 MkII, P-1000 MkII and PH-1000. The PSU-1000 are the result of a sophisticated design with an inductive filter on the analog stage and power supply via a double inductor for the positive and negative stage. PSU-1000 has a configuration of 5 low-noise voltage regulators.
TECHNICAL SPECIFICATIONS
Main Features
- 4 x rail audio grade power supply
- 5 Ultra-low noise voltage regulators
- Maximum variation output voltage 0.05 %
- Line noise rejection >80dB
- Common mode noise rejection >80dB
- Full power response time <2.5usec
Power
- Power Supply 100-120V / 220-240V with auto sense, 50/60Hz
- Power Consumption: 100W
- Dynamic power: >200W
- Stand by power: <1W
- Fuse: 3.15 A F
Dimensions & Weight
- 430mm L | 135mm H | 360mm D
- PSU Connection Cable 1m
- 20 Kg (net); 25 kg (boxed)

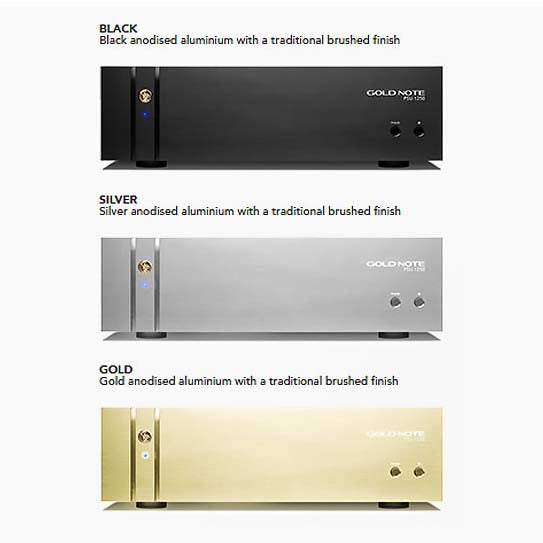

Finishes
- Black anodised aluminium with a traditional brushed finish
- Gold anodised aluminium with a traditional brushed finish
- Silver anodised aluminium with a traditional brushed finish
