Description

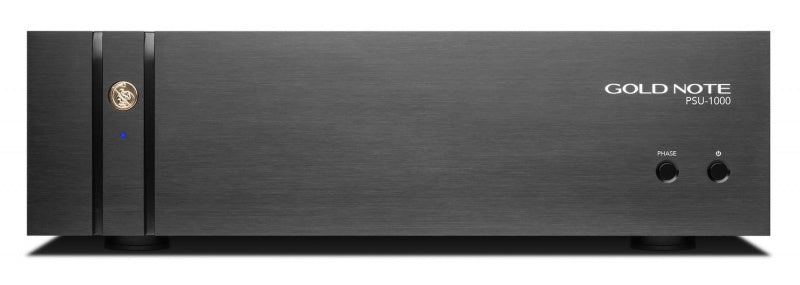

PSU-1000
The ideal companion for the 1000 series of Phono Stages and CD Player
The PSU-1000 Power supplies provide ultra-clean power and all the necessary power without generating Electro Magnetic Interference or Radio-Frequency Interference that could affect the audio signal. All this translates into greater dynamics, better resolution, precise details and maximum realism.

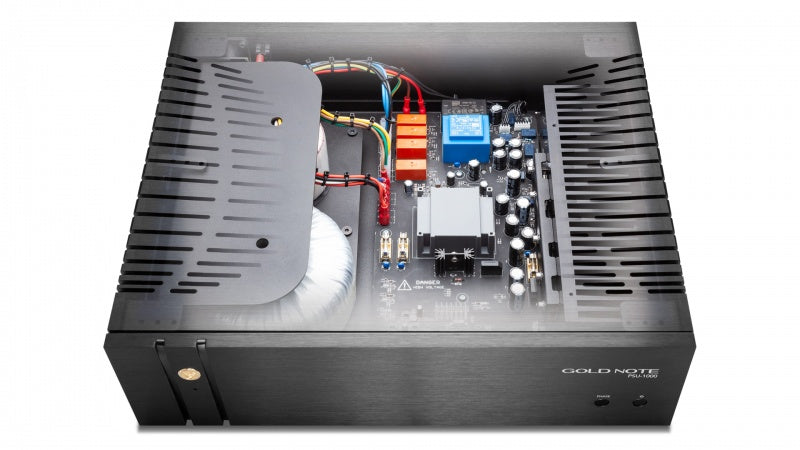

The PSU-1000 are the super inductive external power supplies dedicated to the 1000 Gold Note series, such as CD-1000 MkII, P-1000 MkII and PH-1000. The PSU-1000 are the result of a sophisticated design with an inductive filter on the analog stage and power supply via a double inductor for the positive and negative stage. PSU-1000 has a configuration of 5 transformers, of which 4 are dedicated exclusively to the power stage, with a transformer for the galvanic isolation of the audio stage and 3 to the Dual Choke inductive filter.
PSU-1000 are powered by a 5 transformer configuration, 4 for power and galvanic isolation and one for the Dual Choke inductive filter. These external power supplies perfectly filter the electrical signal eliminating possible interference and disturbances so as to allow our electronics to express the sonic characteristics at their best. PSU-1000 provide ultra-clean power and all the necessary power without generating Electro Magnetic Interference or Radio-Frequency Interference that could affect the audio signal. All this translates into greater dynamics, better resolution, precise details and maximum realism.
PSU-1000 can match: CD-1000, DS-1000, P-1000 & PH-1000
TECHNICAL SPECIFICATIONS
Main Features
- 4 x rail audio grade power supply
- 5 low noise voltage regulators
- Maximum variation output voltage 0.05 %
- Line noise rejection >80dB
- Common mode noise rejection >80dB
- Full power response time <2.5usec
- Absolute Phase Control selected from front panel
Power
- Power Supply 200-240V with auto sense, 50/60Hz
- Total Power Reserve: 1000W
- Power Absorption: 100W
- Dynamic power: 200W
- Stand by power: <1W
Dimensions & Weight
- 425mm L | 110mm H | 360mm D
- PSU Connection Cable 1m
- 20 Kg (net) 25 kg (boxed)

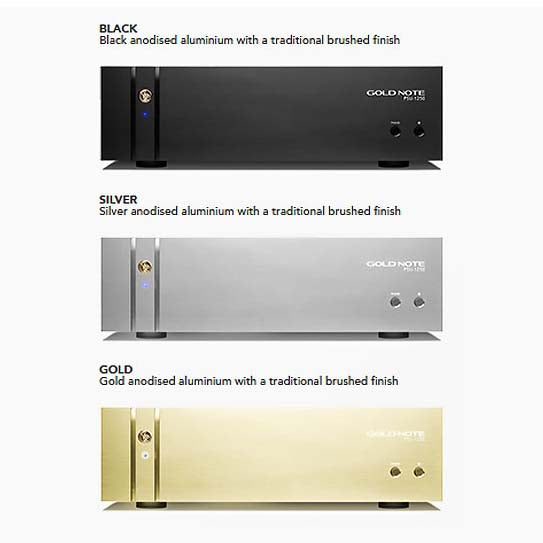

Finishes
- Black anodised aluminium with a traditional brushed finish
- Gold anodised aluminium with a traditional brushed finish
- Silver anodised aluminium with a traditional brushed finish
