Description
Compatibility for every cartridge and maximum versatility: the phono stage without limits

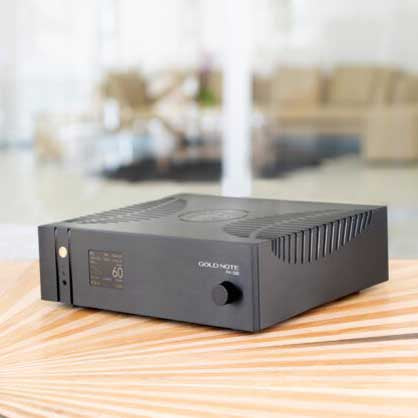

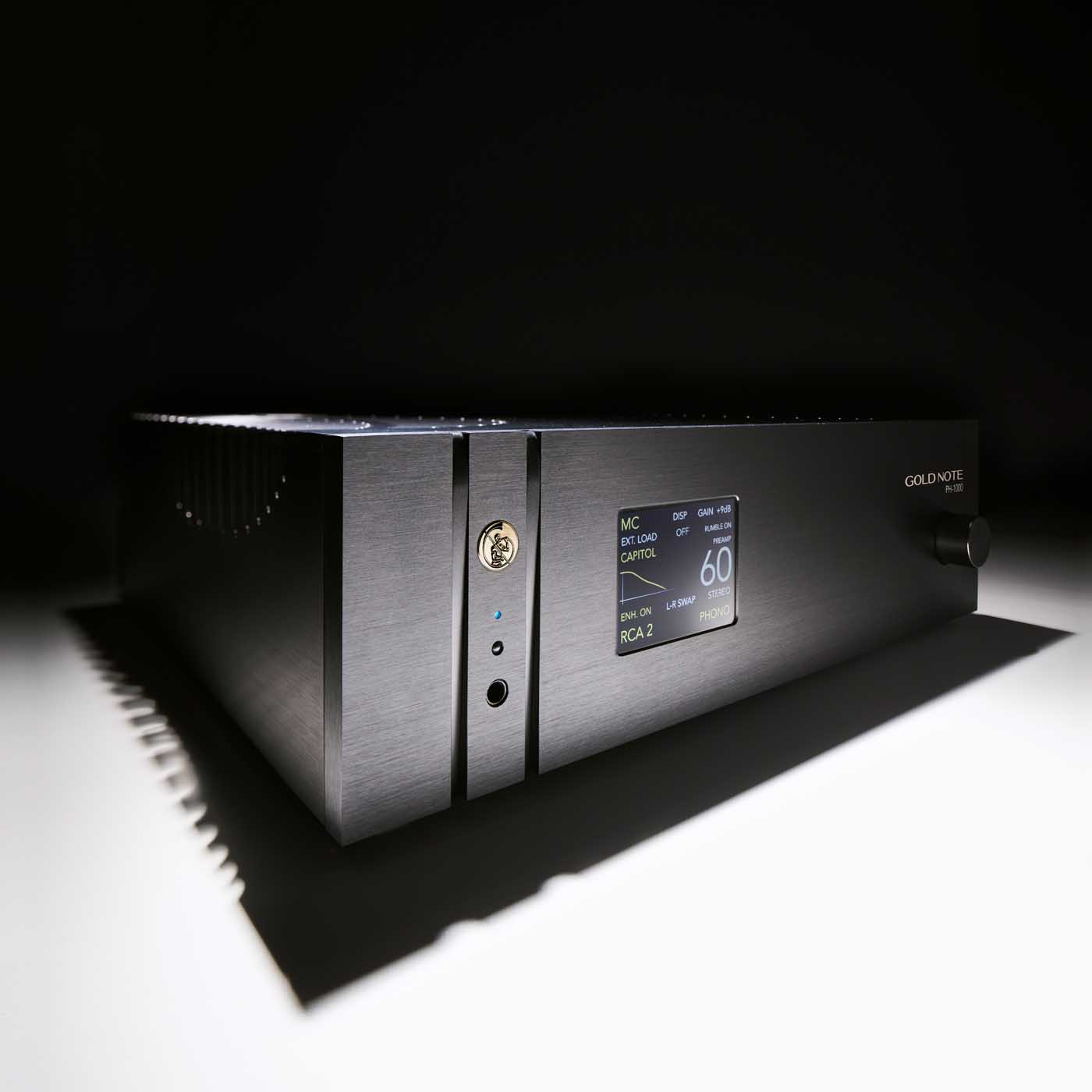

The Gold Note PH-1000 is simply the best phono stage ever created by Gold Note: a unique piece of audio engineering, innovative in every aspect and completely made in Italy.
The GOLD NOTE PH-1000 features exclusive Class A components such as a headphone output, infinite EQ curves including 4 customisable presets, plus 36 EQ curves and a Class A line preamplifier (optional). For the first time, it will be possible to play any vinyl exactly as it should be heard, thanks to the infinite EQ curves available. That’s why the PH-1000 changes the rules of the game, opening the door to a new era of vinyl reproduction.
With 14 gain levels, 12 load levels and 7 capacity options for MM cartridges, it is the ideal phono preamplifier for a high-performance analogue system, capable of reproducing even the most exotic cartridges with perfect synergy, the PH-1000 is a perfect professional tool for high-end recording studios. It also allows users to change settings and make ultra-precise adjustments, e.g. on EQ curves, via the SKC knob and display, even during playback. Its innovative technology simplifies the user experience without affecting audio quality, as everything is done in the analogue domain: the PH-1000’s digital interface is completely independent of the audio path, which remains totally analogue. The result is an ultra-low noise, high-gain phono stage with no audio filters. All functions are handled through discrete audio components, minimising the audio signal path to give extreme audio quality and extract the smallest detail from every vinyl. Powered by our firmware, the PH-1000 can be easily updated from your computer when needed.
MAIN FEATURES
FREQUENCY RESPONSE 20Hz – 20kHz
EQ CURVES 18 EQ curves all with Enhanced option (+/- 0.3dB);
Infinite EQ curves with 4 manually adjustable (only on PH-1000 PH-1000 LINE)
THD <0.01% max.
SIGNAL TO NOISE RATIO 100dB
DYNAMIC RANGE 110dB
INFRASONIC FILTER 10Hz/36dB octave (ON/ OFF)
MONO/STEREO Stereo, Stereo 180°, Mono, Mono 180°, Mono L
CHANNEL SWAPPING R/L, L/R
IR RECEIVER For multifunctional remote control
INPUTS AND OUTPUTS
AUDIO INPUTS
2x unbalanced RCA (0.1mV MC up to 8.0mV MM)1x balanced XLR (0.1mV up to 1.0mV MC)
LOAD
12 options for RCA [100kΩ, 75kΩ, 47kΩ, 33kΩ, 22kΩ, 1kΩ, 470Ω, 220Ω, 100Ω, 47Ω, 22Ω,10Ω]
8 options for XLR [4k7Ω, 1kΩ, 470Ω, 220Ω, 100Ω, 47Ω, 22Ω,10Ω]
External Load supports RCA and XLR plugs (only on PH-1000 / PH-1000 LINE)
CAPACITANCE
EOFF, 100pF, 150pF, 220pF, 330pF, 470pF, 1000pF
GAIN PH-1000
40dB MM to 65dB MC with 7 options [0dB, ± 3dB, ± 6dB, ± 9dB]
GAIN PH-1000 / PH-1000 LINE
40dB MM to 65dB MC with 7 options [0dB, ± 3dB, ± 6dB, ± 9dB]
GAIN PH-1000 LITE
40dB MM to 60dB MC with 7 options [0dB, ± 3dB, ± 6dB, ± 9dB]
LINE INPUT LEVEL
2Vrms (standard) up to 2,5Vrms (max)
AUDIO OUTPUTS
1x unbalanced RCA (up to 2,5Vrms max)
1x balanced XLR (up to 2,5Vrms max)
1x Output Stereo for Tube (balanced GN) for optional TUBE-1012 & TUBE-1006
OUTPUT IMPEDANCE
Unbalanced 100Ω
Balanced 300Ω
POWER
430mm W | 135mm H | 375mm D | 12kgs
630mm W | 350mm H | 600mm D – boxed | 17kgs
FINISHES
Black
