Description
Compatibility for every cartridge and maximum versatility: the phono stage without limits

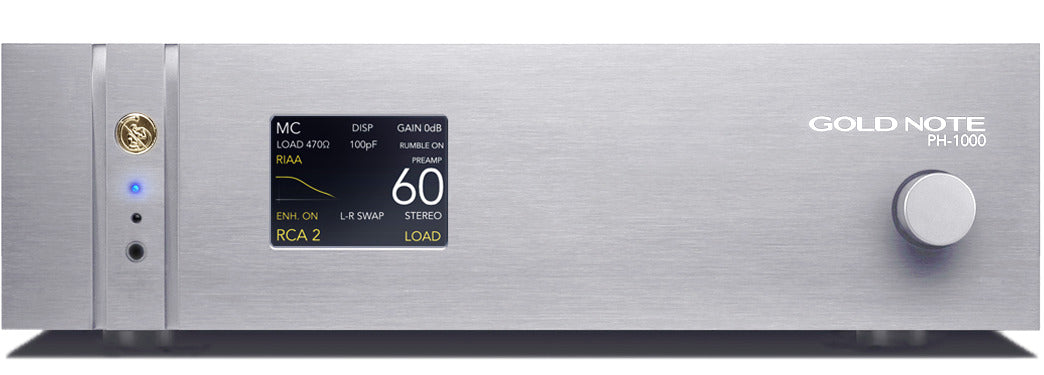

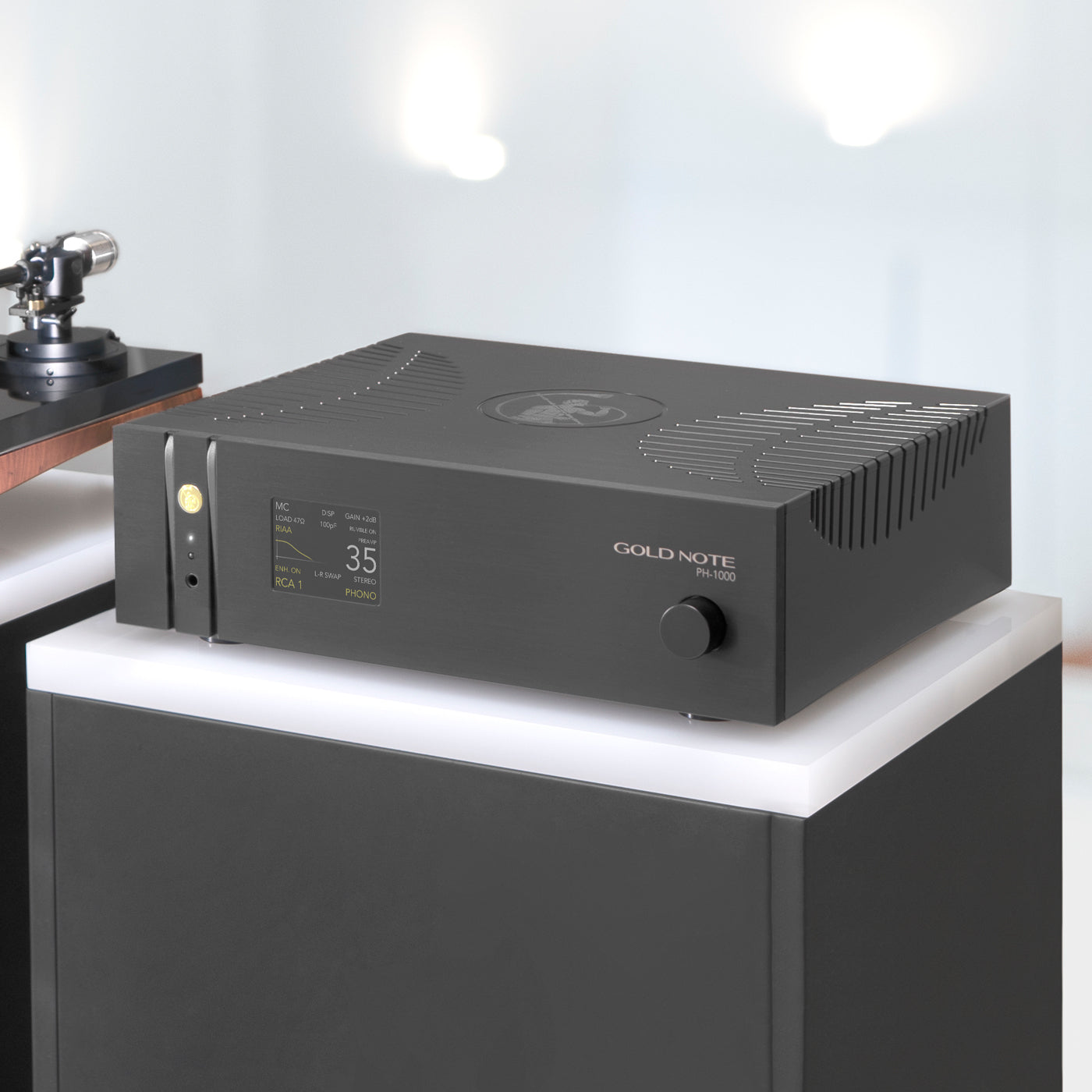

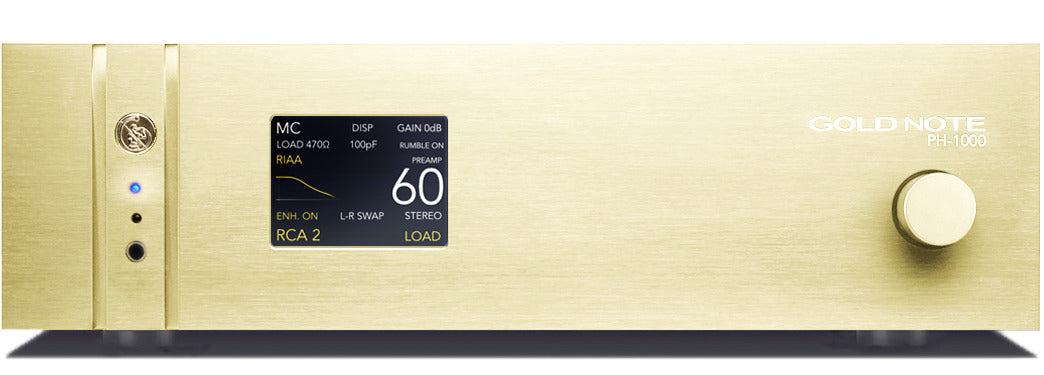

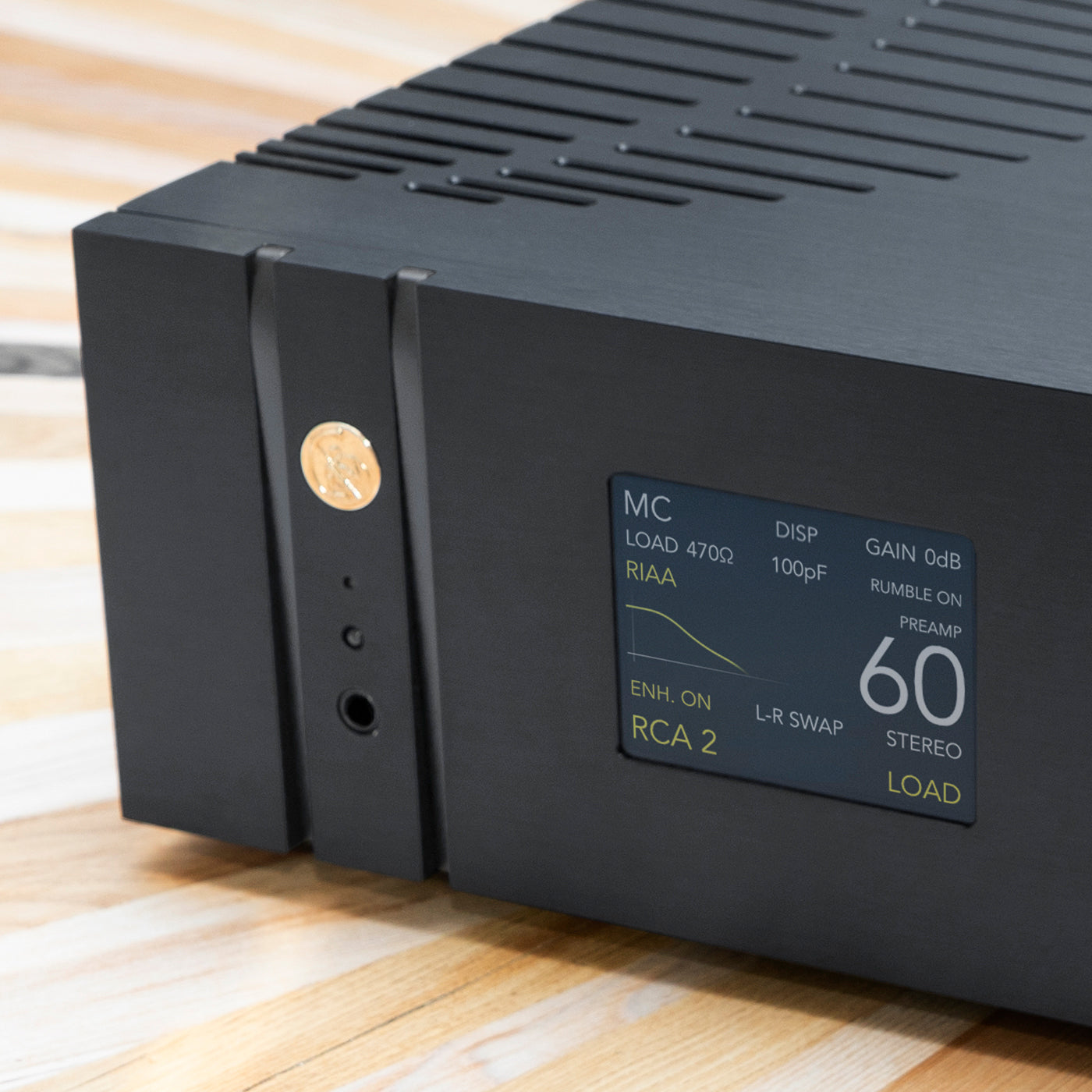

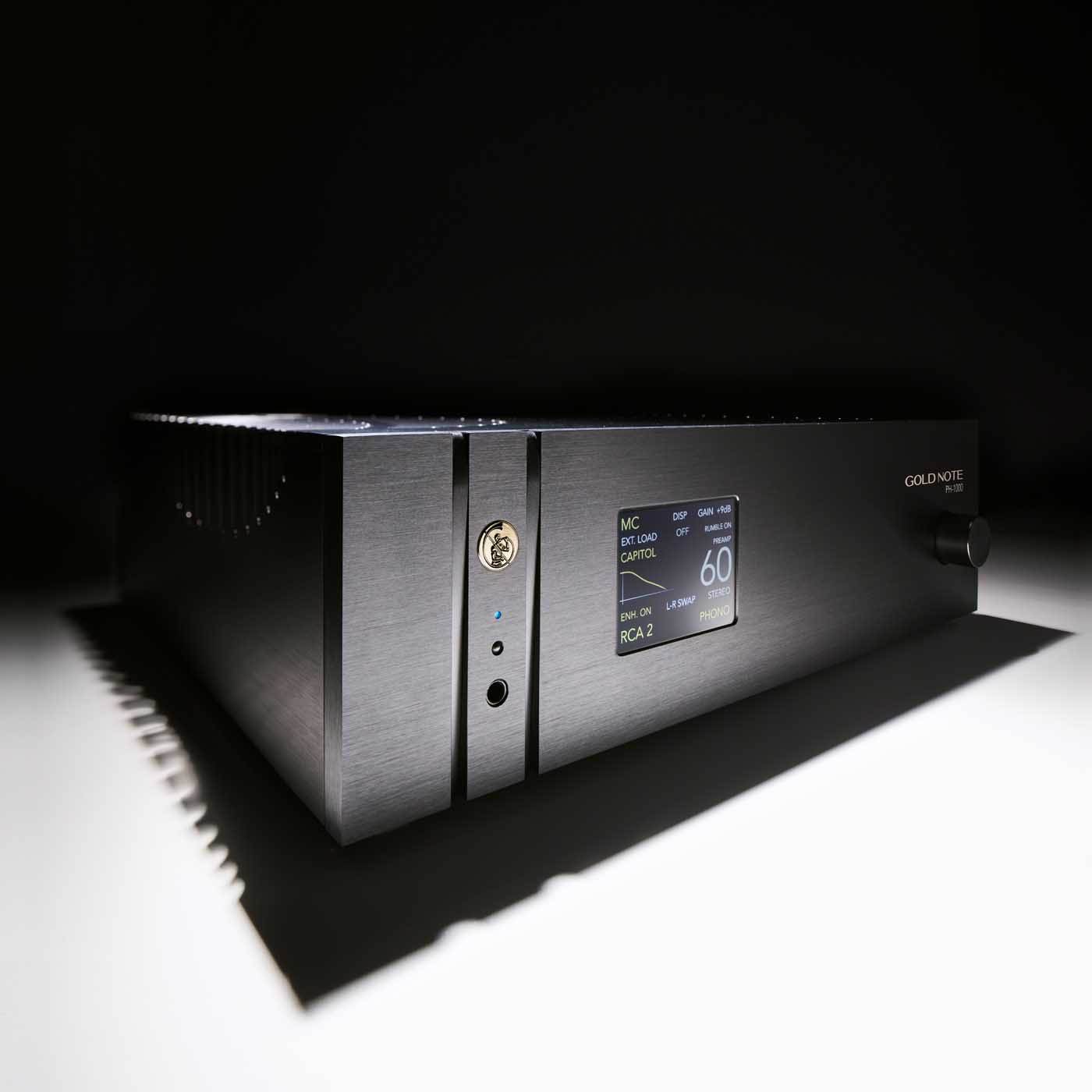

The Gold Note PH-1000 range is simply the best phono stage ever created by Gold Note: a unique piece of audio engineering, innovative in every aspect and completely made in Italy.
The Gold Note PH-1000 LITE is designed for those looking for the highest quality thanks to 3 independent inputs (2 unbalanced RCA, 1 balanced XLR), the possibility to select EQ curves, and the ability to play your own vinyl in Stereo and Mono versions.
The level of quality meets the highest standards throughout production: from the precision-machined aluminium chassis to the electronic components and circuits that undergo stringent computer-controlled QC tests.
The headphone output allows the audio signal to be carried directly from the vinyl to the headphones, taking the shortest possible route: the record, the turntable, the PH-1000 and the headphones.
The modular design offers discerning audiophiles the possibility of equipping the PH-1000 with the Gold Note PSU-1250 or PSU-1000 external power supply, and the TUBE-1012 or TUBE-1006 valve stages, to achieve the highest level of musical realism in terms of dynamics, detail and imaging.
REAR PANEL - PH-1000 LITE
- Infrasonic filter
- Mono/Stereo control
- 2 RCA and 1 XLR phono inputs
- RCA and XLR outputs (class A)
- Headphone output
- Capacitance, and Load fine adjustments
- Gain 40dB (MM) to 60dB (MC) with fine adjustments
- 18 EQ curves with Enhanced option
MAIN FEATURES
FREQUENCY RESPONSE 20Hz – 20kHz
EQ CURVES 18 EQ curves all with Enhanced option (+/- 0.3dB);
Infinite EQ curves with 4 manually adjustable (only on PH-1000 PH-1000 LINE)
THD <0.01% max.
SIGNAL TO NOISE RATIO 100dB
DYNAMIC RANGE 110dB
INFRASONIC FILTER 10Hz/36dB octave (ON/ OFF)
MONO/STEREO Stereo, Stereo 180°, Mono, Mono 180°, Mono L
CHANNEL SWAPPING R/L, L/R
IR RECEIVER For multifunctional remote control
AUDIO INPUTS AND OUTPUTS
INPUTS
- Infrasonic filter
- Mono/Stereo control
- 2 RCA and 1 XLR phono inputs
- RCA and XLR outputs (class A)
- Headphone output
- Capacitance, and Load fine adjustments
- Gain 40dB (MM) to 60dB (MC) with fine adjustments
OUTPUTS
- 1x unbalanced RCA
- 1x balanced XLR
- 1x Output Stereo for Tube (balanced GN) for optional TUBE-1012 & TUBE-1006
- Unbalanced 100Ω; Balanced 300 Impedance
POWER
430mm W | 135mm H | 375mm D | 12kgs
630mm W | 350mm H | 600mm D – boxed | 17kgs
FINISHES
Black, Gold, Silver
