Description
Compatibility for every cartridge and maximum versatility: the phono stage without limits

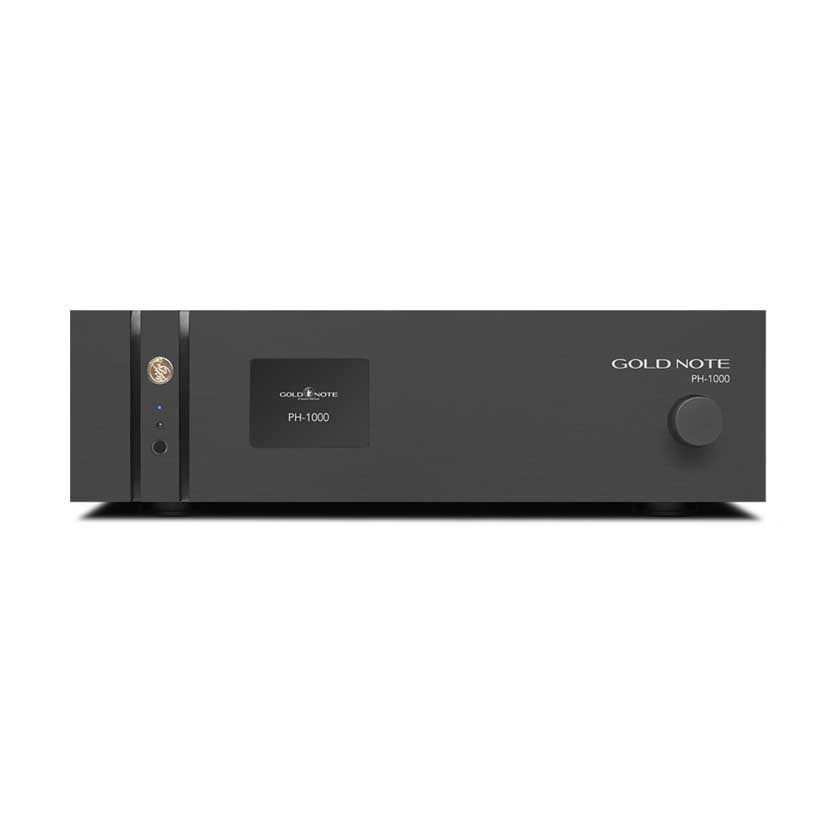

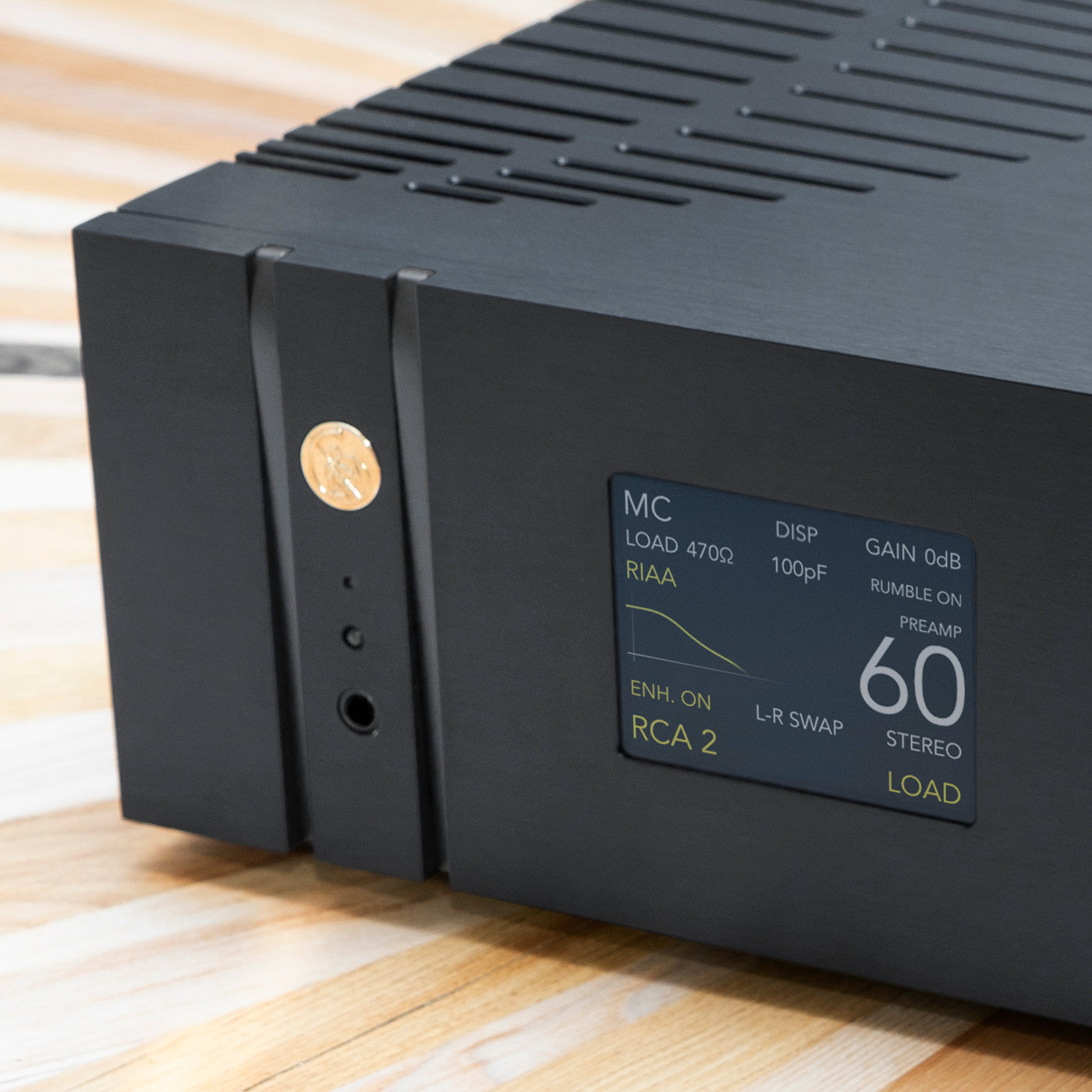

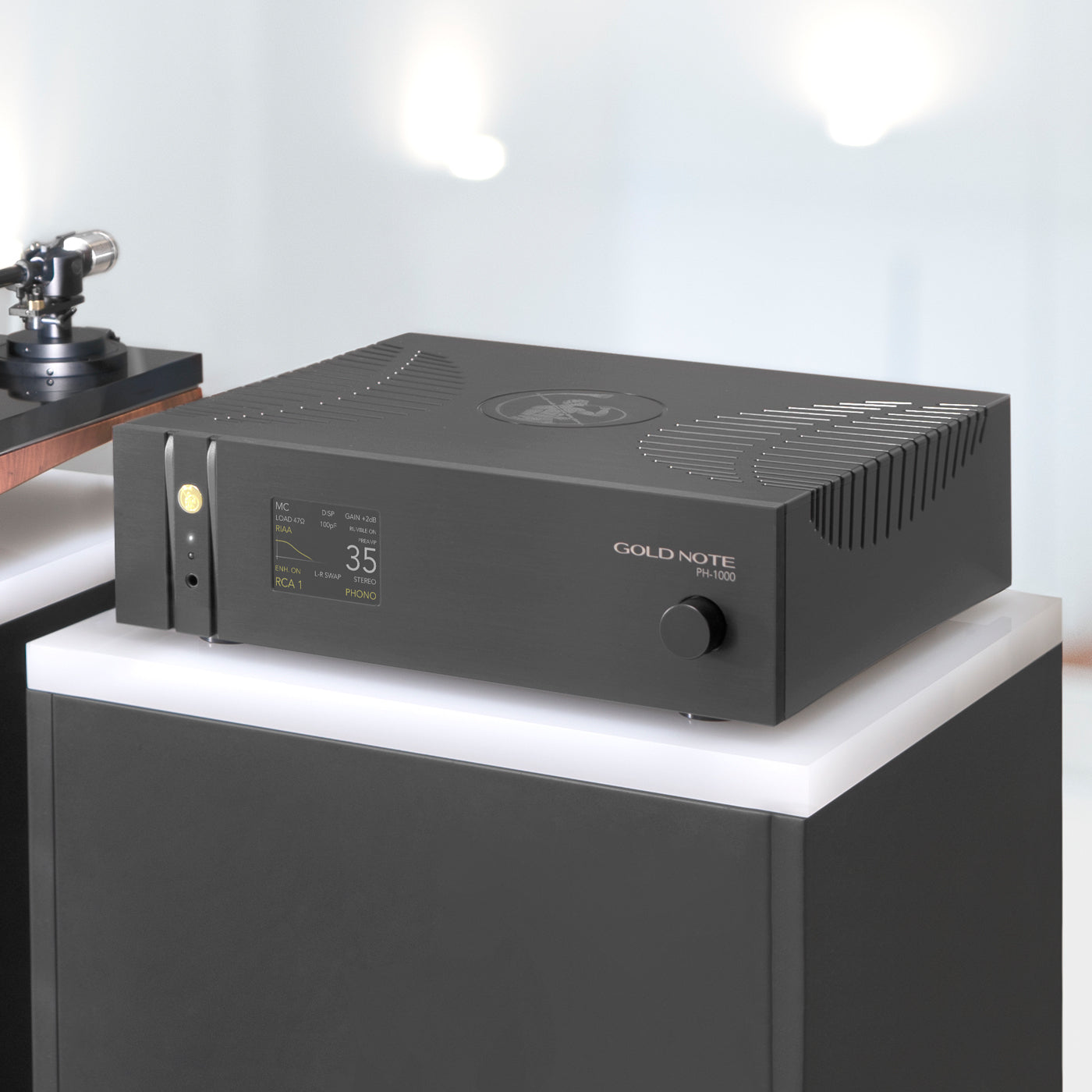

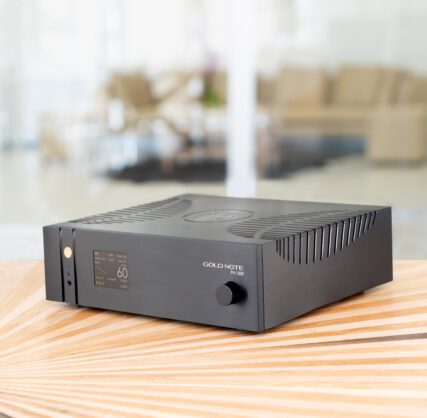

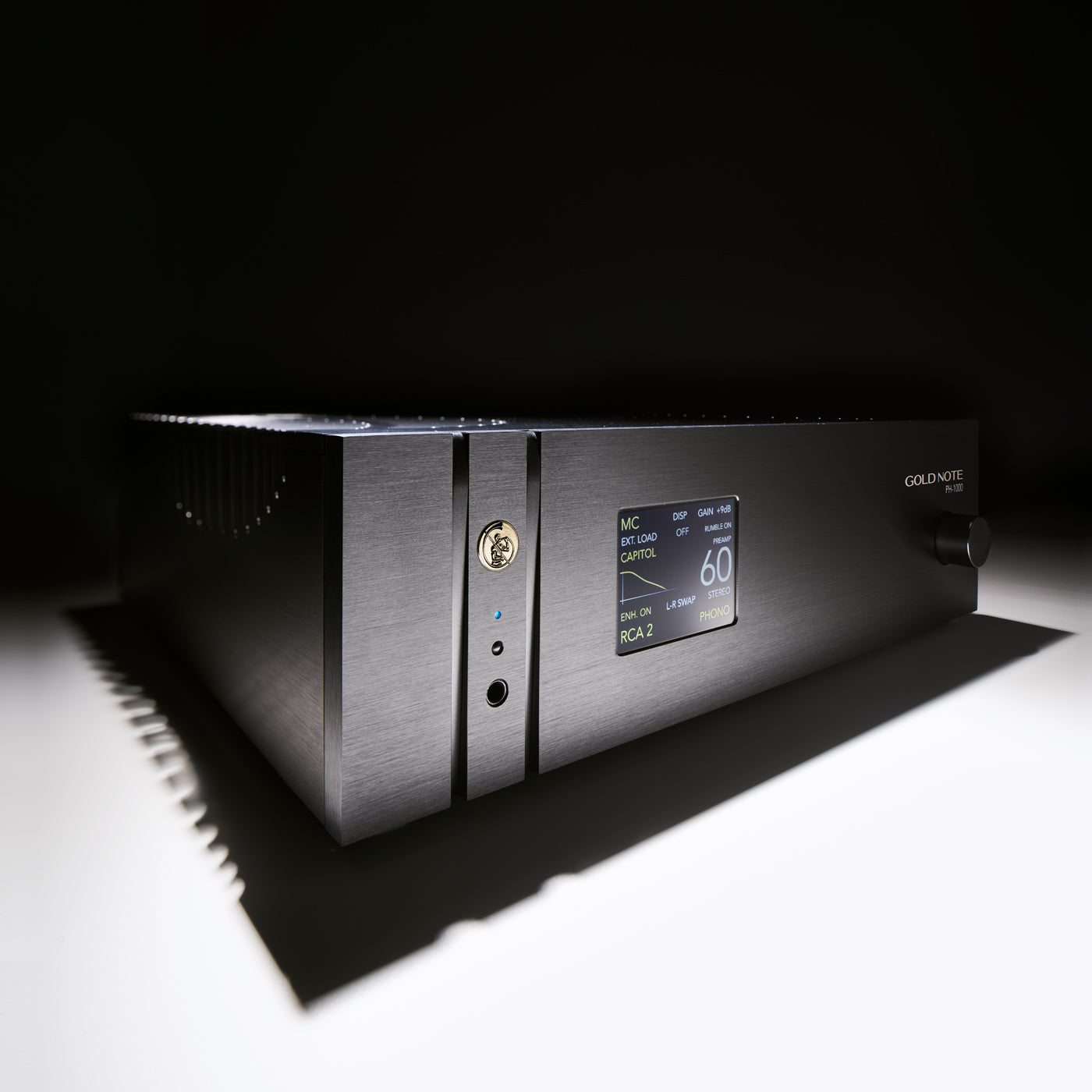

The Gold Note PH-1000 LINE is simply the best phono stage ever created by Gold Note: a unique piece of audio engineering, innovative in every aspect and completely made in Italy.
Features
- exclusive Class A components such as
- A headphone output
- Infinite EQ curves including 4 customisable presets, plus 36 EQ curves
- A Class A line preamplifier.
- 14 gain levels, 12 load levels and 7 capacity options for MM cartridges
- Ideal phono preamplifier for a high-performance analogue system
- Perfect professional tool for high-end recording studios
- Allow setting changes for ultra-precise adjustments on EQ curves
- Ultra-low noise, high gain phono stage, high-gain phono stage with no audio filters
- High-gain phono stage with no audio filters.
For the first time, it will be possible to play any vinyl exactly as it should be heard, with infinite EQ curves available. That’s why the PH-1000 changes the rules of the game, opening the door to a new era of vinyl reproduction.
The PH-1000’s digital interface is completely independent of the audio path, which remains totally analogue. The result is an ultra-low noise, All functions are handled through discrete audio components, minimising the audio signal path to give extreme audio quality and extract the smallest detail from every vinyl. Powered by our firmware, the PH-1000 can be easily updated from your computer when needed.
The modular design offers discerning audiophiles the possibility of equipping the PH-1000 with the Gold Note PSU-1250 or PSU-1000 external power supply, and the TUBE-1012 or TUBE-1006 valve stages, to achieve the highest level of musical realism in terms of dynamics, detail and imaging.
Other features such as headphone output, Mono/Stereo control with phase inversion, L/R channel switching and Subsonic Rumble Filter can also be added as an option. The Gold Note PH-1000 is the most advanced phono stage preamplifier on the market.
PH-1000 Vs PH-1000 LINE :
PH-1000 Line has two additional inputs, one RCA and one XLR, which can be used either for external load, for more control or as line inputs on the PH-1000 LINE.
REAR PANEL - PH-1000 LINE
MAIN FEATURES
FREQUENCY RESPONSE 20Hz – 20kHz
EQ CURVES 18 EQ curves all with Enhanced option (+/- 0.3dB);
Infinite EQ curves with 4 manually adjustable (only on PH-1000 PH-1000 LINE)
THD <0.01% max.
SIGNAL TO NOISE RATIO 100dB
DYNAMIC RANGE 110dB
INFRASONIC FILTER 10Hz/36dB octave (ON/ OFF)
MONO/STEREO Stereo, Stereo 180°, Mono, Mono 180°, Mono L
CHANNEL SWAPPING R/L, L/R
IR RECEIVER For multifunctional remote control
AUDIO INPUTS AND OUTPUTS
INPUTS
- Infrasonic filter
- Mono/Stereo control
- 3 RCA and 2 XLR phono inputs
- RCA and XLR outputs (class A)
- Headphone output
- Capacitance, and Load fine adjustments
- Gain 40dB (MM) to 65dB (MC) with 7 options [0dB, ± 3dB, ± 6dB, ± 9dB]
OUTPUTS
- 1x unbalanced RCA
- 1x balanced XLR
- 1x Output Stereo for Tube (balanced GN) for optional TUBE-1012 & TUBE-1006
- Headphone output, Mono/Stereo control with phase inversion, L/R channel switching and subsonic RumbLE Filter can be added as an option
- Unbalanced 100Ω; Balanced 300 Ω Impedance
POWER
430mm W | 135mm H | 375mm D | 12kgs
630mm W | 350mm H | 600mm D – boxed | 17kgs
FINISHES
Black, Gold, Silver
