Description
The extraordinary phono stage

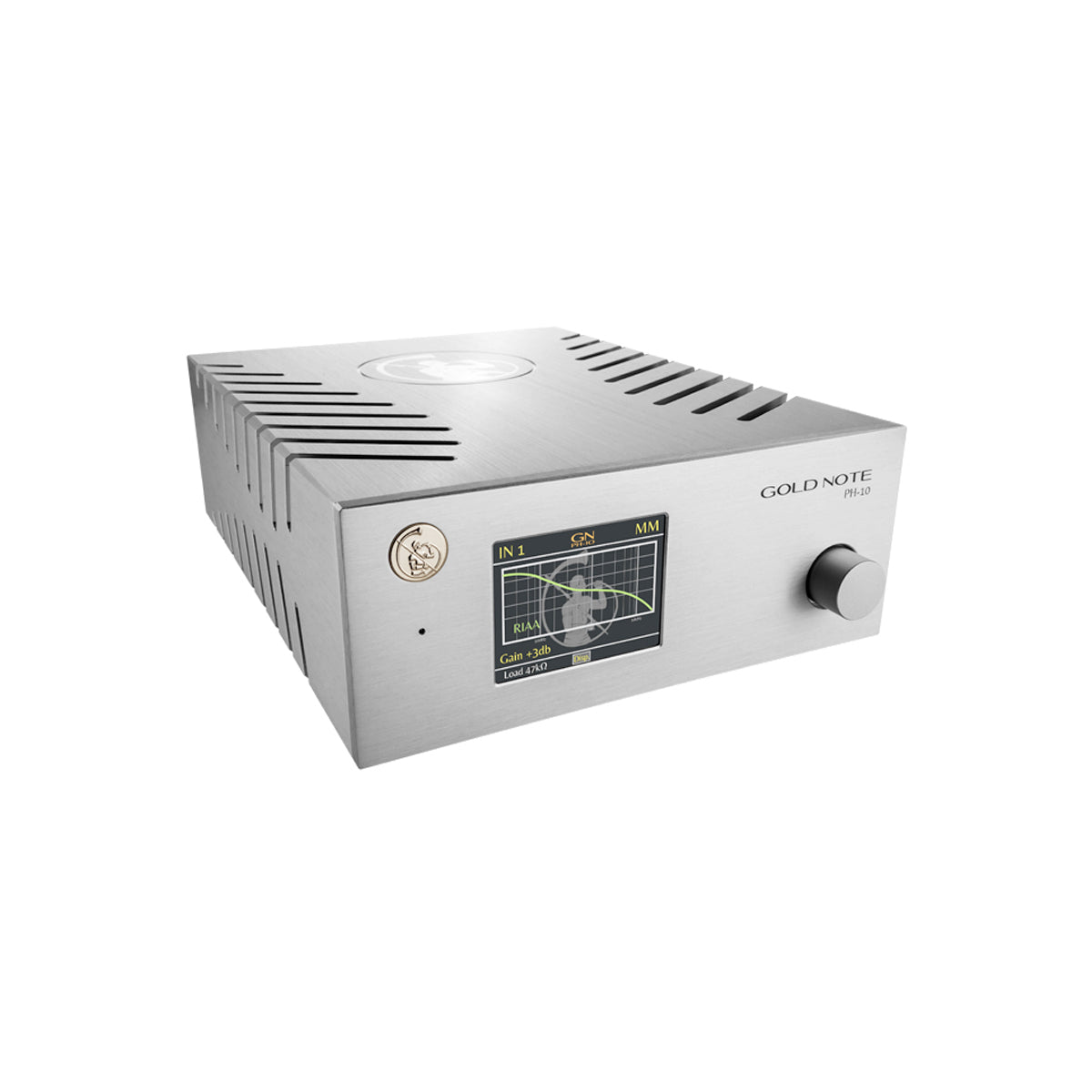

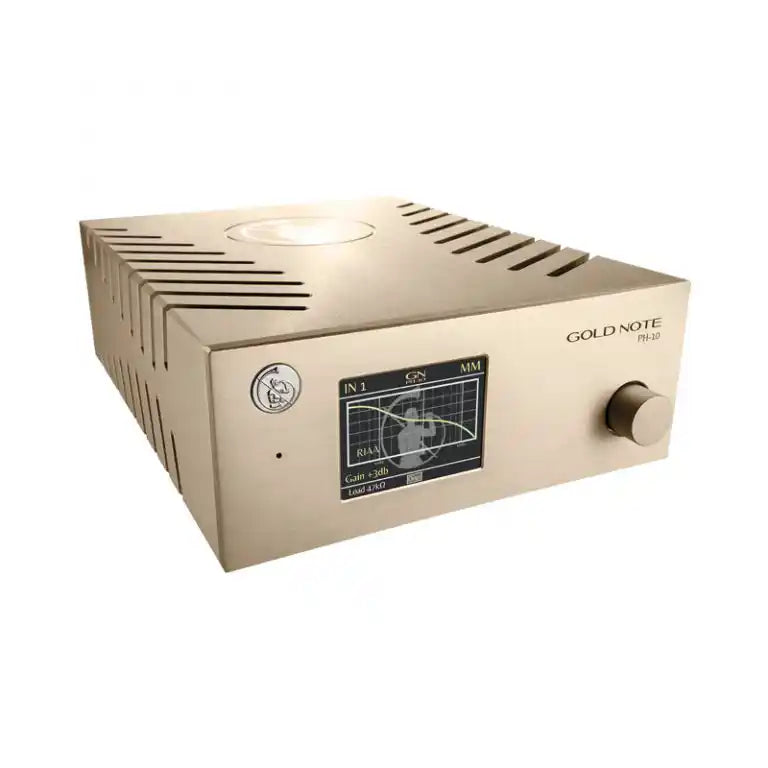

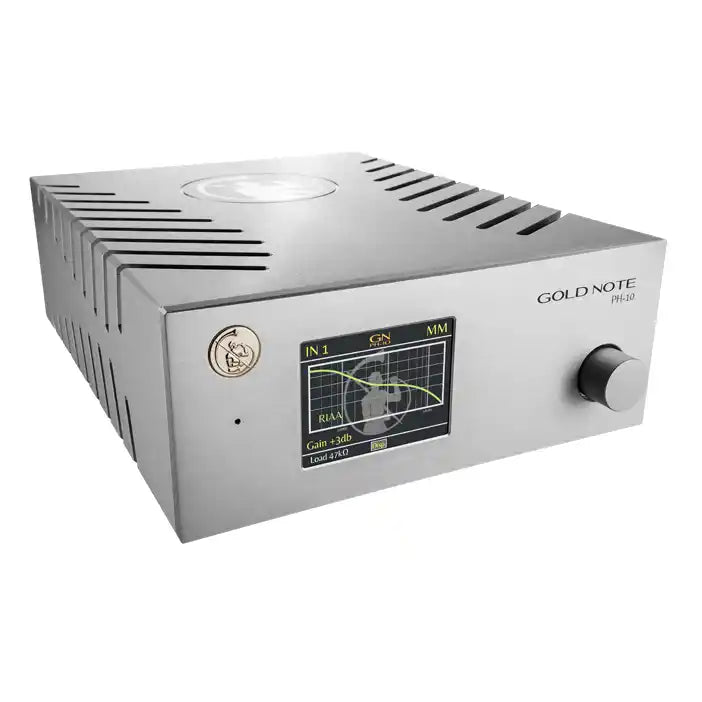

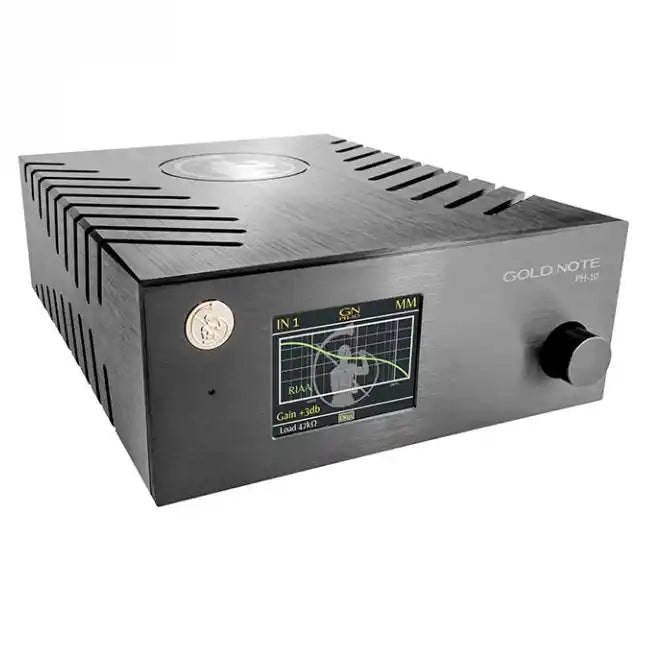

The Gold Note PH-10 is a fully analogue design crafted with the best components to recreate the musical event in the most natural way possible. An ultra-versatile phono preamplifier with unique features, including EQ curve, load and gain adjustment.
To control, PH-10 Gold Note has developed the intuitive Single Knob Control (SKC) which, in combination with the color display, allows to quickly adjust any function without interrupting the audio playback. The Gold Note PH-10 allows selecting the most appropriate equalization curve for each record: RIAA, DECCA LONDON or AMERICAN COLUMBIA, through the menu present on the display. Thanks to our proprietary technology, inspired by the Neumann Cutting Lathe, each curve can be further enhanced with the “enhanced” function.
Nine different loading options [10Ω, 22Ω, 47Ω, 100Ω, 220Ω, 470Ω, 1000Ω, 22KΩ, 47KΩ] and four different gain options selectable [0dB, ± 3dB, +6dB] allow you to accurately adjust the preamplifier and get the best sound experience with any type of MM and MC cartridge. Through the two separate RCA inputs, it is possible to connect two different arms to PH-10, each with independently adjustable settings that can be saved in memory even when the unit is off, ensuring extreme flexibility and intuitiveness. To maximize the performance of PH-10 Gold Note has developed PSU-10, an external super inductive power supply that allows the phono stage to fully express its potential, restoring with extreme realism, three-dimensionality and precision the sound of vinyl.
FEATURES
9 different LOAD options [10Ω, 22Ω, 47Ω, 100Ω, 220Ω, 470Ω, 1000Ω, 22KΩ, 47KΩ ]
4 different selectable GAIN levels [-3dB, 0dB, +3dB, +6dB]

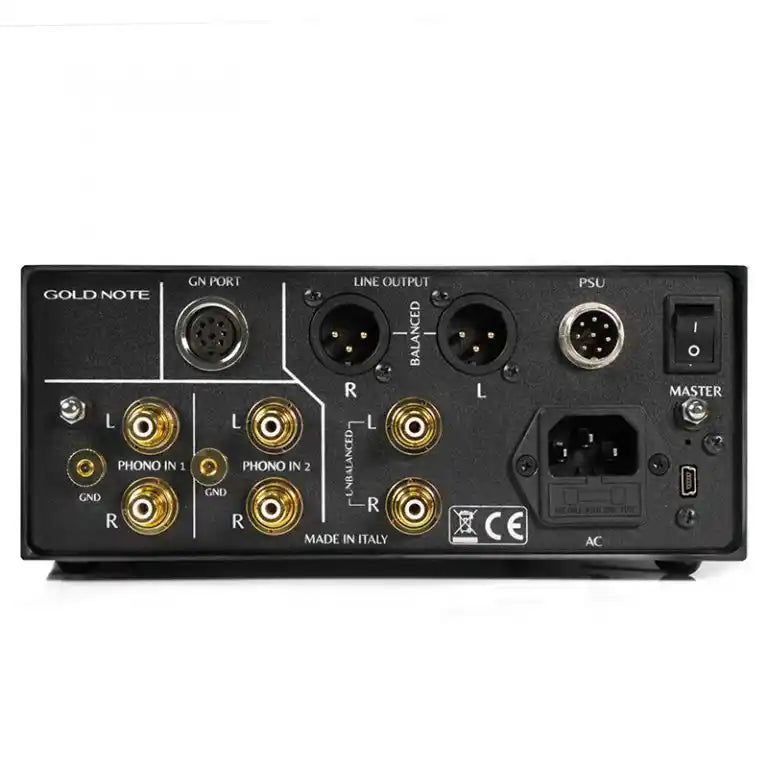

2 independent stereo RCA
Connecting up to two cartridges simultaneously setting them up individually, MM as well as MC.
6 EQ Curves
Choice of three standard EQ curves (RIAA, DECCA-LONDON e AMERICAN COLUMBIA), all with optional “Enhanced” function.
TFT Display
The color monitor always displays all options due to its real time graphic management.
Single Knob Control
The rotary knob enables total control of the preamplifier in an easy and intuitive way.
EXTERNAL POWER SUPPLY
The PSU-10 is the dedicated external power supply for PH-10, a linear power supply with inductive dual-choke filter. It’s the best way to elevate the performance of your PH-10.
MAIN FEATURES
EQUALISATION CURVE CONTROL
3 EQ curves (RIAA, Decca London, American Columbia) all with Enhanced option
INFRASONIC FILTER
10Hz/36dB octave
FREQUENCY RESPONSE
20Hz /20kHz[Enhanced 20Hz-50kHz] @ +/-0.3dB
THD (Total Harmonic Distortion)
<0.05% @1kHz
SIGNAL TO NOISE RATIO
89dB
DYNAMIC RESPONSE
105dB
INPUTS AND OUTPUTS
45dB MM to 65dB MC with 4 options [0dB, ± 3dB, + 6dB]
50Ω
POWER
DIMENSIONS AND WEIGHT
FINISHES
- Black
- Silver
- Gold
