Description
State-of-the-art technology for the Class A preamplifier dedicated to true music lovers

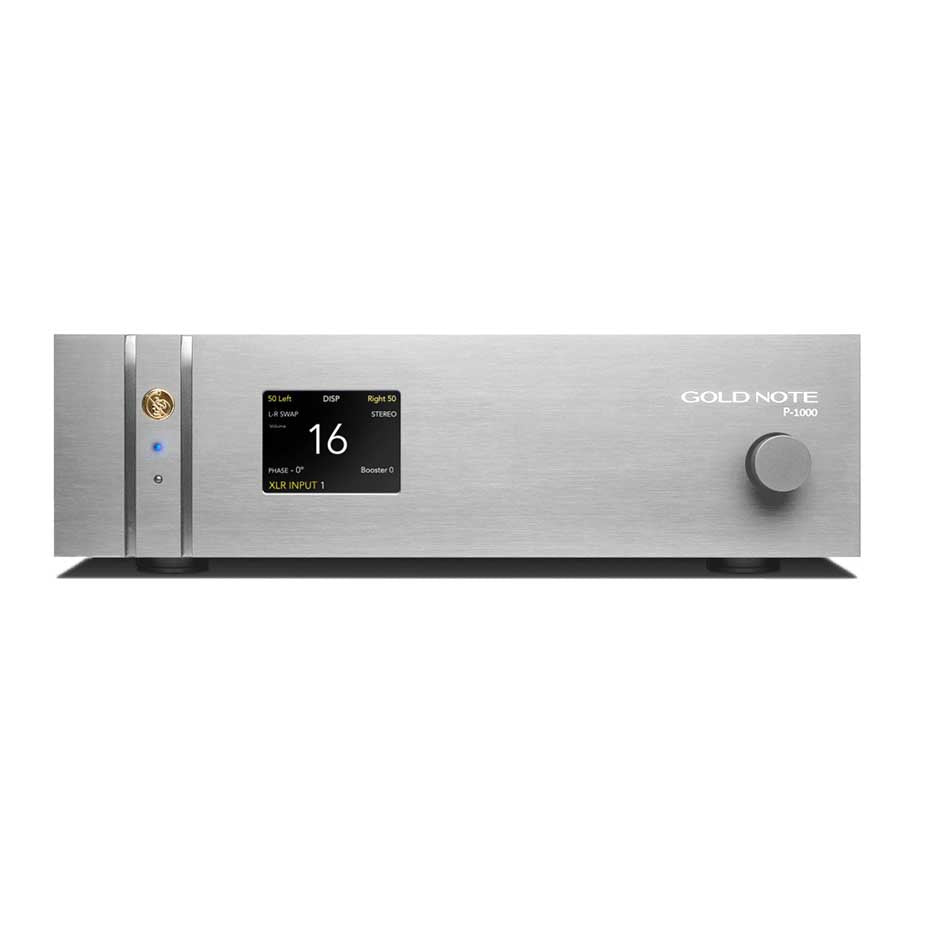

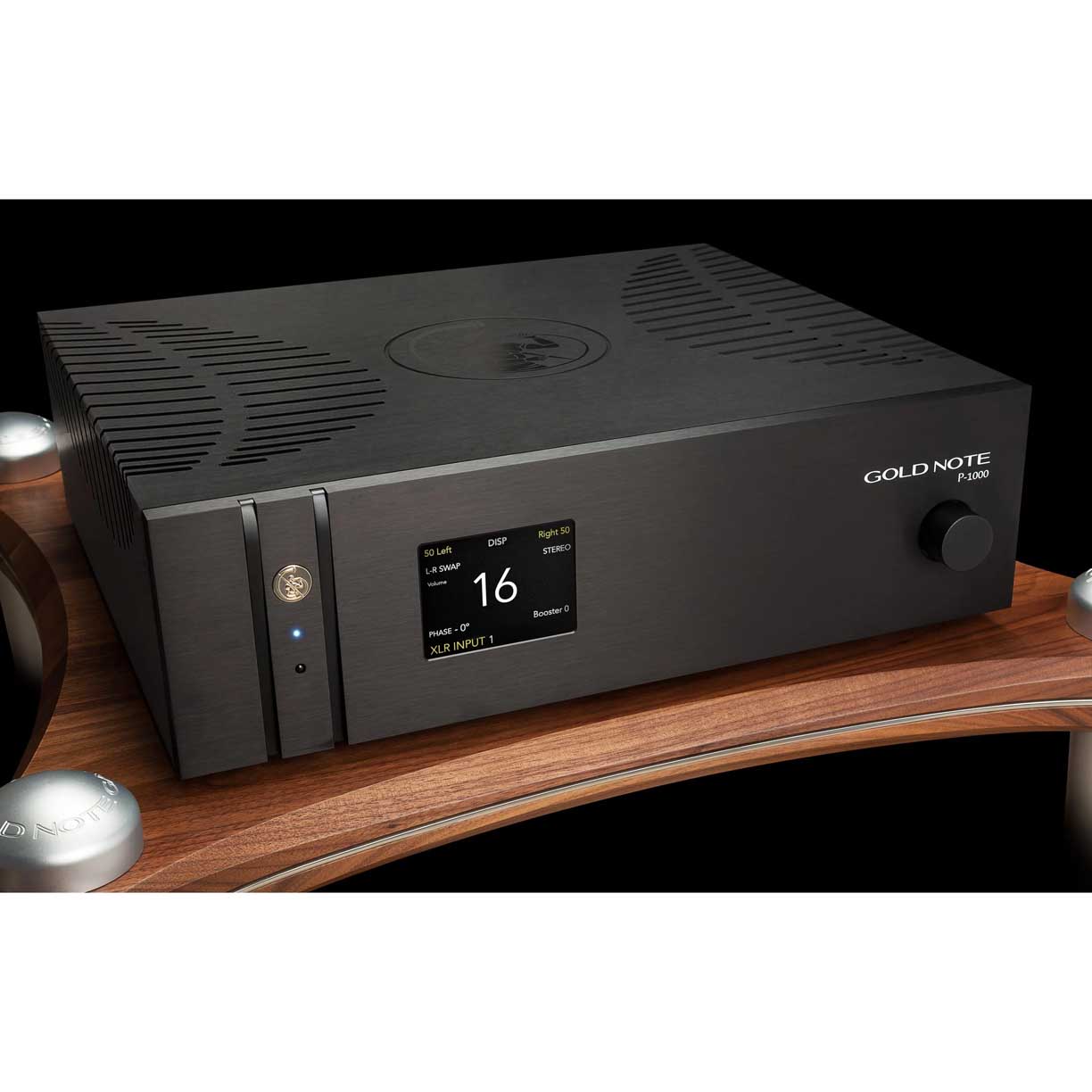

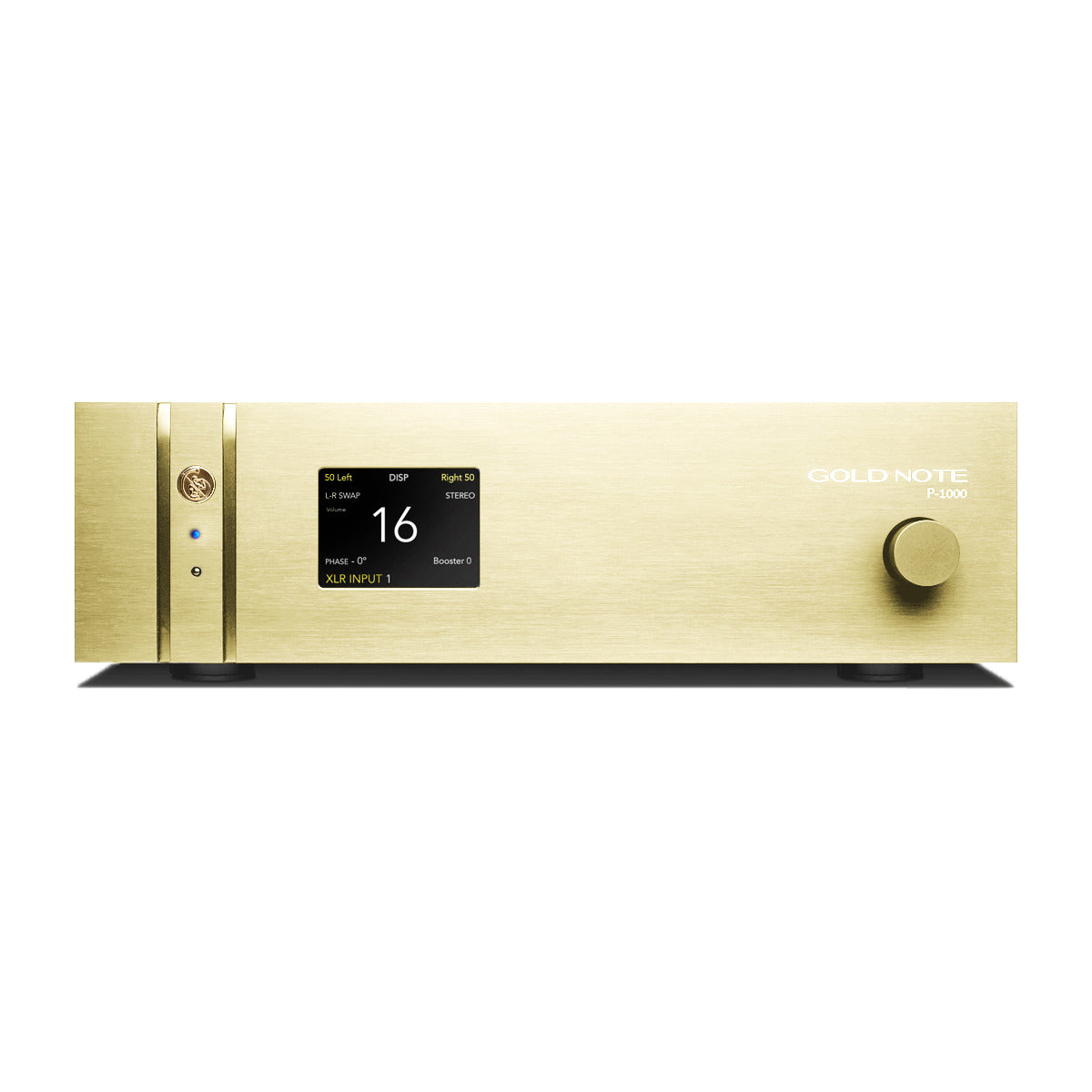

Designed for High-End audio systems, the Gold Note P-1000 MkII is an innovative Class A preamplifier developed with a new proprietary six-stage ultra-balanced design with relays and ALPS optical encoder volume control.
The P-1000 MkII features a design with three independent linear power supplies and 8 stereo inputs: 4 fully balanced XLR and 4 RCA. It also offers numerous advanced functions: Mono/Stereo selection, left/right channel swap, absolute phase swap, Booster technology and excellent left/right balance.
The Deluxe version of the P-1000 MkII is equipped with noise-canceling coils and capacitors on the six output stages, derived from military technologies, secured in place with custom copper clips.
To perfectly reproduce even the oldest recordings, the preamplifier can be set in both Mono and Stereo mode. It also allows for playback of inverted recordings. Absolute phase shift (0°/180°) can be useful when integrating the preamplifier into your system.
The Booster technology of the P-1000 MkII allows you to get the best out of speakers that require additional power, increasing the emission of energy in a very specific range of low frequencies.
The function is completely bypassed in OFF mode.
Easy to use thanks to the color display that clearly and intuitively shows all the functions and allows precise and fast adjustments both through the use of the knob on the front panel and the remote control.
To further improve its performance, the P-1000 MkII can be paired with the external super inductive PSU-1250/1000 power supply and the TUBE-1012/1006 valve stage.
The P-1000 MkII Deluxe can be equipped with dedicated external units to further improve performance: the Tube 1012 and Tube-1006 – Class A valve stages – and the PSU-1250 and PSU-1000 – external power supplies.
MAIN FEATURES
FREQUENCY RESPONSE 2Hz – 200kHz @ ± 3dB
THD (TOTAL HARMONIC DISTORTION) < 0.001% @ 1kHz
GAIN +19dB
SIGNAL TO NOISE RATIO 110dB
CHANNEL SEPARATION > 118dB
CHANNEL LEFT/RIGHT Selectable swap
MONO/STEREO Yes
ABSOLUTE PHASE 0°/180°
BOOSTER 3 adjustable levels (by-passable/off)VOLUME 100 steps
REMOTE CONTROL Included – IR receiver on front and back
INPUTS AND OUTPUTS
ANALOGUE INPUTS 4x RCA unbalanced; 4x XLR balanced
INPUT LEVEL RCA – nominal 2Vrms, max up to 5Vrms
XLR – nominal 2Vrms, max up to 10Vrms
INPUT IMPEDANCE 100kΩ XLR & RCA
AUDIO OUTPUTS. 2x RCA unbalanced; 2x XLR balanced; 1x TUBE-1012
OUTPUT LEVEL Max up to 20Vrms on XLR & 10Vrms on RCA
OUTPUT IMPEDANCE. < 50Ω XLR & RCA
POWER
POWER SUPPLY 100-120V or 220-240V, 50/60Hz; Ultra Linear power supply with 3 transformers
POWER CONSUMPTION max 30W
PSU INPUT 1 Input for external inductive power supply PSU-1250/1000
FUSE (220/240V) 1A F
DIMENSIONS AND WEIGHT
(W*H*D mm *Weights)
430*135*375
11 Kgs Net
16 kgs Boxed
FINISHES
Black
Gold
Silver
