Description
Beauty and technical perfection combined for musical pleasure
Inspired by our Italian heritage, the Mediterraneo turntable combines beauty and technical perfection into a unique instrument for musical pleasure. It is our own ode to musical passion and dedication to vinyl.
The 60mm thick curved plinth design is based on the Catenary curve, a highly efficient concept developed by the Renaissance pillars, Michelangelo Buonarroti and Galileo Galilei.
Made of Italian walnut hardwood, the chassis benefits from the quality of such noble material: exceptional elasticity, strength, and high density.
The triple plinth structure is reinforced by a compelling 20mm board in polished acrylic and a 3mm thick stainless steel board to improve its exceptional damping quality and stability.
The wooden base sits on three elegantly shaped and adjustable spikes made of anodised aluminium.
The 45mm thick high-precision platter, made of high-density POM, is belt-driven and powered by a proprietary control system developed on a Quadral-Core microcontroller enhanced by an audio converter. The power control rebuilds the AC wave to perfectly drive the 12V synchronous motor, removing vibrations while improving its torque to deliver the greatest dynamic and the finest detail.
The Power Supply Unit electronically controls the 33⅓rpm and 45rpm modes as well as the fine speed adjustment, storing all settings in memory. The Mediterraneo features an 80mm long bearing/spindle design, made of the hardest rectified carbon steel to achieve perfect working fluidity. The bearing system is made of bronze guaranteeing the smoothest platter rotation.
MAIN FEATURES
- WOW & FLUTTER 0.1%
- RUMBLE -80dB
- SPEED 33⅓rpm and 45rpm ±0,1%
- SPEED CHANGING Electronic with fine pitch control
- TRANSMISSION 70 shores rectified EPDM belt
- MOTOR High torque 12V synchronous
- PLATTER 45mm high-density POM
- PLATTER SPINDLE Split-Spindle™ clamping design
- PLATTER BEARING Tungsten 5mm ball bearing
- TONEARM Gold-Note B-7 Ceramic
- DUST COVER Transparent acrylic with hinges
POWER
- POWER SUPPLY PST-1 18V DC 100-240V / 50-60Hz
- POWER CONSUMPTION Max 27W
DIMENSIONS AND WEIGHT - (W*H*D)mm / Kgs
- Net 470*210*360 /20 kgs
- Boxed 590*510*510 /26 kgs
UPGRADES
EXTERNAL POWER SUPPLY PST-10 external inductive power supply for turntables
FINISH

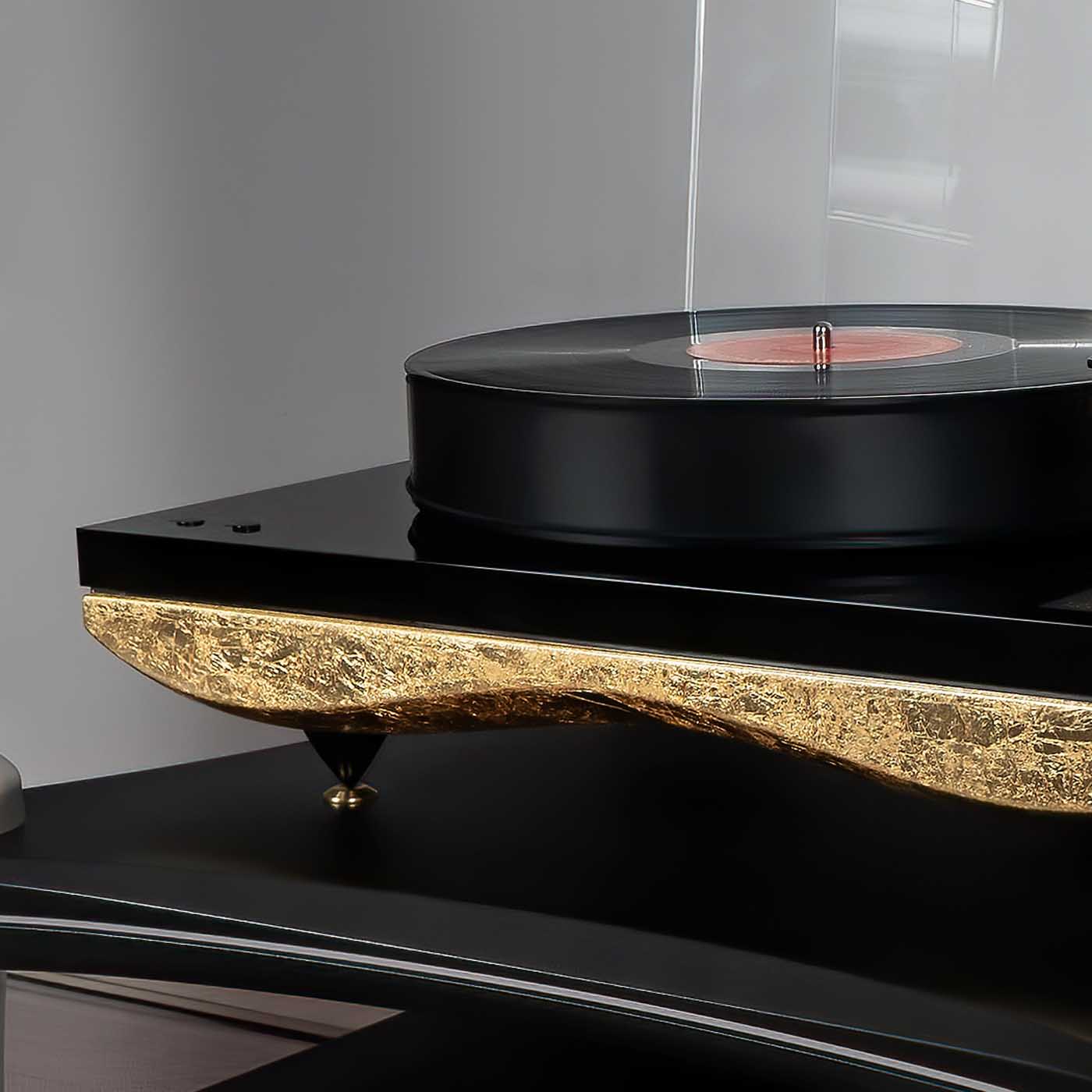

GOLD LEAF HARDWOOD
With matt black varnished aluminium upper plinth, black anodized aluminium platter and Black Platter.
ITALIAN WALNUT HARDWOOD
With black polished acrylic upper plinth, black anodized aluminium platter and metal parts.
