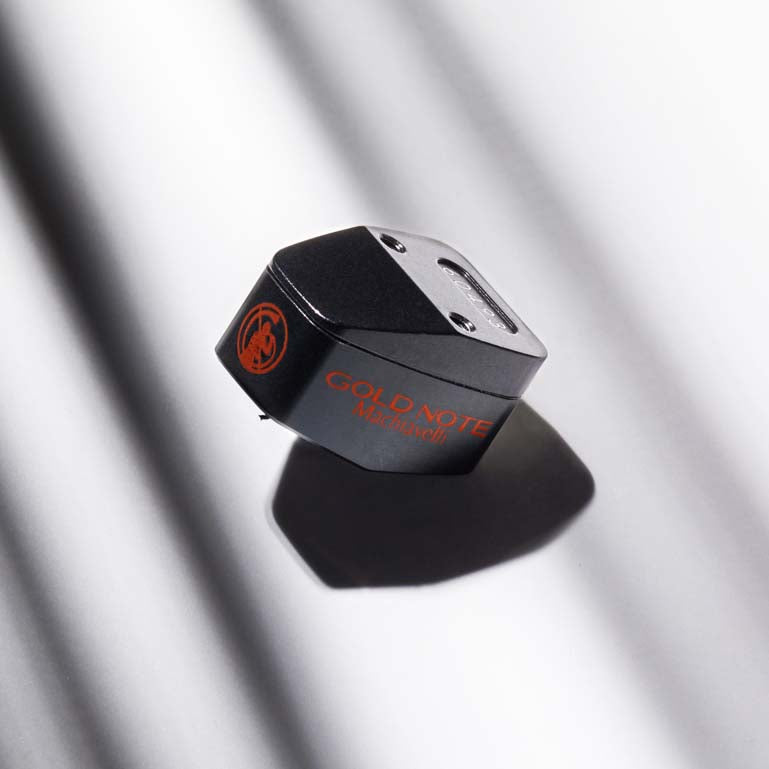

Gold Note Machiavelli Red MKII MC cartridge -
Gold Note Machiavelli Red Cartridge's extra rigid cantilever handles a high precision Line Contact diamond in the Gold model and a Micro Elliptical diamond in the Red model, both developed in collaboration with Adamant-Namiki, the world's most famous professional Diamond manufacturer.
the diamond tip is mechanically inserted and blocked into the new cantilever that is consequently handled by a special pipe to increase the structure rigidity.
the cantilever suspension is take advantage of an elastic and non-deformable harmonic steel spring, rigidly blocked to eliminate vibrations thus enhancing the tracking capability.
The thin and long gold-plated pin connectors are designed to connect perfectly with arm cinches, reducing energy dispersion and improving grounding for an ideal music background necessary to enjoy even the smaller detail in your music.
GOLD NOTE MACHIAVELLI RED SPECIFICATIONS
- Cantilever: Aluminum
- Diamond: Micro Elliptical
- Diamond size: 7.5x15.5µm
- Coil Wire: Copper
- Magnet: Samarium-Cobalt
- Mounting hole diamond distance: 9mm
- Typology: MC High Output Phono Cartridge
- Output level: 2.0mV
- Frequency response: 10-40000Hz
- Impedance: 130Ω
- Suggested load: 47KΩ
- Compliance: 10x10-6cm/dyne
- Channel separation: > 28dB
- Suggested tracking weight: 1.8 to 2.1gWeight | 10g
