Gold Note DS-1000 EVO Streaming DAC
The DS-1000 EVO is the most advanced streaming DAC we have ever designed, combining advanced technology solutions applied to the digital-to-analogue domain with our unique know-how in delivering compelling sound quality, or, as we call it, the Italian Sound.
The core of the DS-1000 EVO is the Dual-Mono D/A converter design, powered by two AKM AK4493 converters to ensure the highest fidelity is always preserved during the conversion stage, with virtually zero crosstalk.
Streaming is as easy as pressing play on Tidal thanks to Tidal Connect, or simply connecting your computer with a USB cable – no audio file will be a problem, supporting MQA, PCM (up to 32bit/384kHz) and DSD (up to DSD512).
Completing the design, the output stage in Class A features audio-grade discrete components selected to deliver our unique Italian sound.
STREAMING IN ULTRA-HIGH RESOLUTION
With the DS-1000 EVO, you can stream through Roon, Airplay, Tidal, MQA, Qobuz, vTuner, and Deezer. With Tidal Connect and Spotify Connect, streaming is even easier directly from within their apps. To access your collection of digital music, stored locally on a NAS or computer, you can use any UPnP/DLNA software from your smartphone or tablet. Or simply download our app GN Control (free for iOS and Android) to control all the features and functions of the DS-1000 EVO, as well as managing your music and streaming services.
Key Features:
-
Dual-Mono D/A Converter: Two AKM AK4493 converters ensure superior sound quality with virtually zero crosstalk.
-
Ultra-High Resolution Streaming: Supports MQA, PCM (up to 32bit/384kHz), and DSD (up to DSD512).
-
Class A Output Stage: Features audio-grade discrete components for the unique Italian sound signature.
-
Headphones Amp and Line Preamplifier: Professional 6.3mm headphones output with two sensitivity levels and a Class A preamp stage.
-
Roon Ready: Offers an incredible user interface and the highest levels of audio performance without compromise.
-
Tidal Connect: Stream music directly from the Tidal app with ease.
Full Specifications:
-
D/A Converter Chip: 2x AKM AK4493 (Dual-Mono design)
-
Frequency Response: 20Hz-20kHz +/-0.1dB
-
THD (Total Harmonic Distortion): 0.001% max
-
Signal to Noise Ratio: 125dB
-
Dynamic Range: 120dB
-
Output Impedance: RCA 50Ω, XLR 100Ω
-
Network Connectivity: LAN/WLAN (WiFi) 802.11a/b/g/n/ac Dual Band, Bluetooth High Definition 5.0

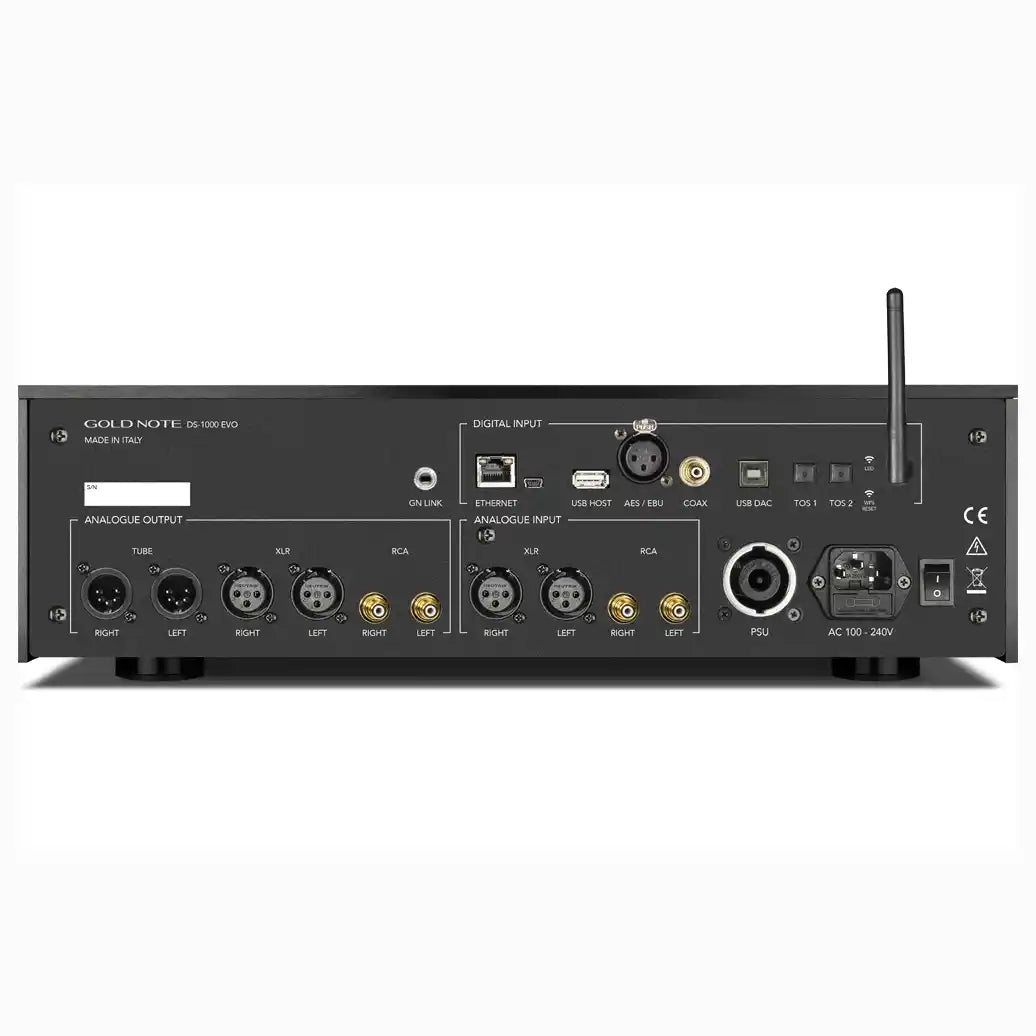

Audio Inputs and Outputs:
-
Digital Inputs:
- 1x RCA coaxial PCM (up to 24bit/192kHz)
- 1x AES/EBU balanced PCM (up to 24bit/192kHz)
- 2x TOS-Link PCM (up to 24bit/192kHz)
- 1x USB-B asynchronous (up to DSD512 and PCM 32bit/384kHz)
- 1x USB-A port (DSD256 and PCM up to 32bit/384kHz, FAT32/NTFS formatted, 32Gb max for pen drives)
-
Analogue Inputs (DS 1000 EVO Line):
- 1x RCA unbalanced
- 1x XLR balanced
The DS-1000 EVO | EVO LINE is not just a DAC; it’s a statement of luxury and performance, crafted with meticulous attention to detail that is synonymous with Gold Note’s Italian heritage.
