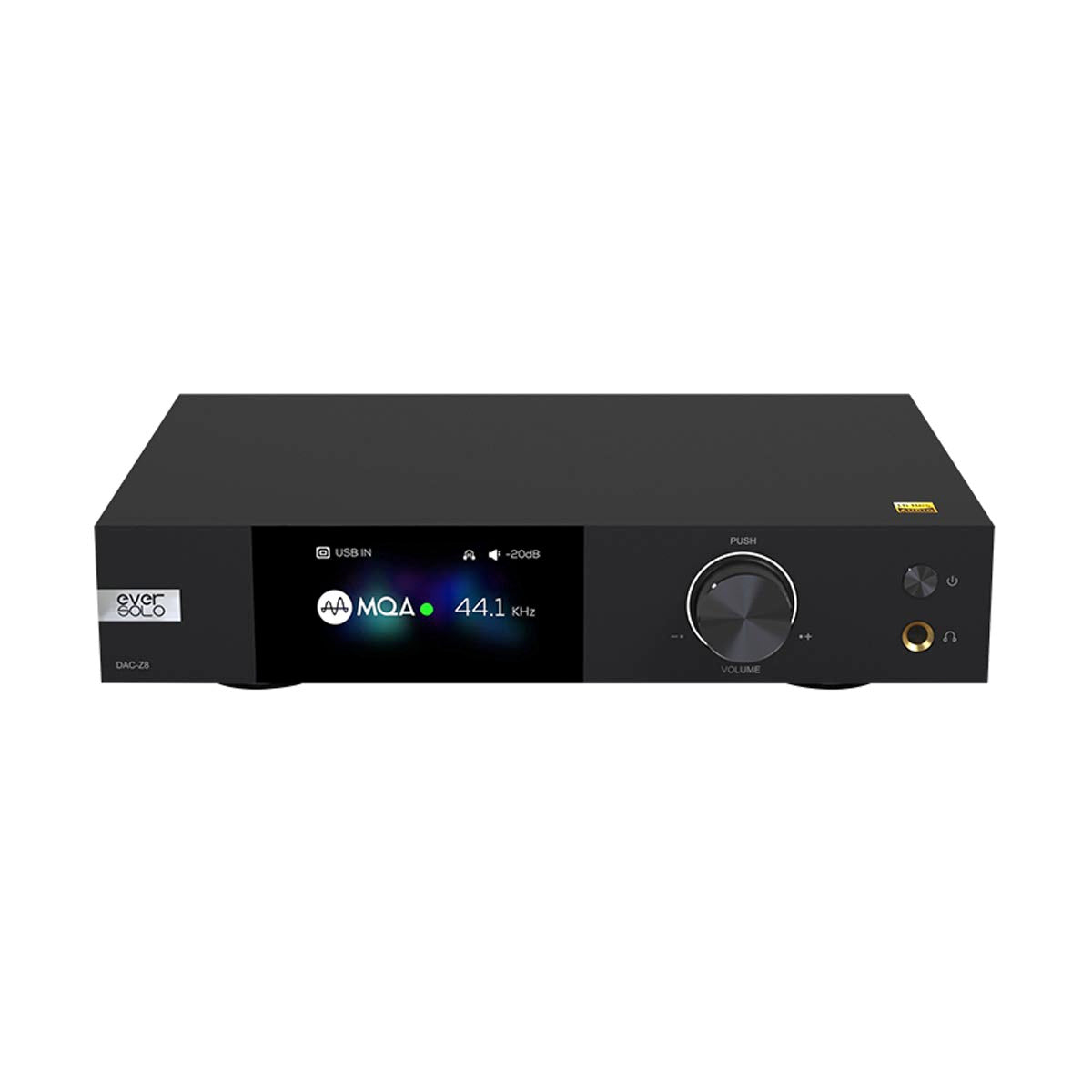

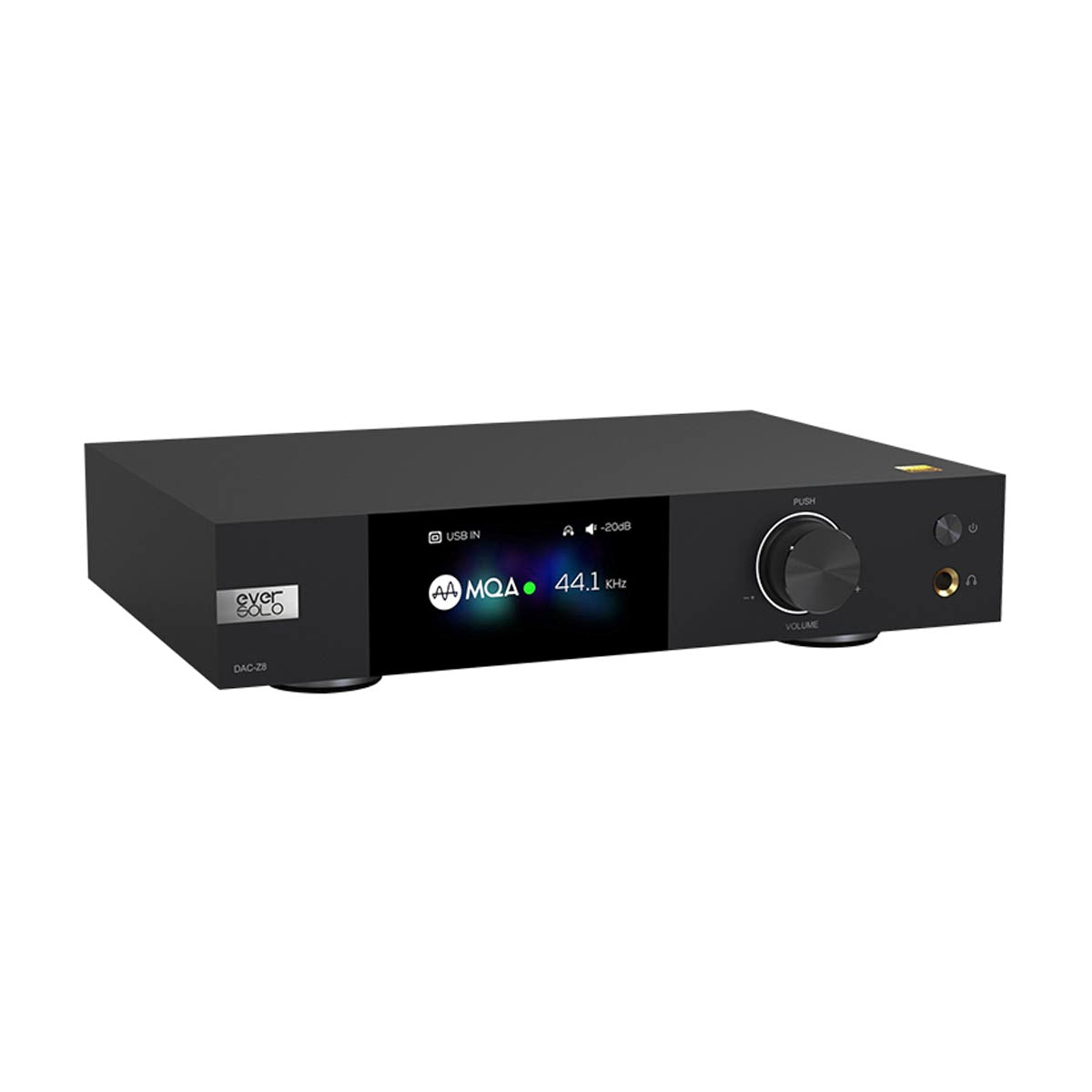

EverSolo DAC-Z8 DA Convertor
DAC-Z8 is a compact audio decoder with excellent workmanship and high per-
formance. With the integration of XMOS 316 and double ES9068 DAC chips, the
decoding formats support up to DSD512, PCM 768Khz@32Bit and MQA full de,
coding. It has exceptional sound quality, good preamp performance and strong
headphone driving force. Rich inputs make the device a good partner 1
end headphones and stereo speakers.

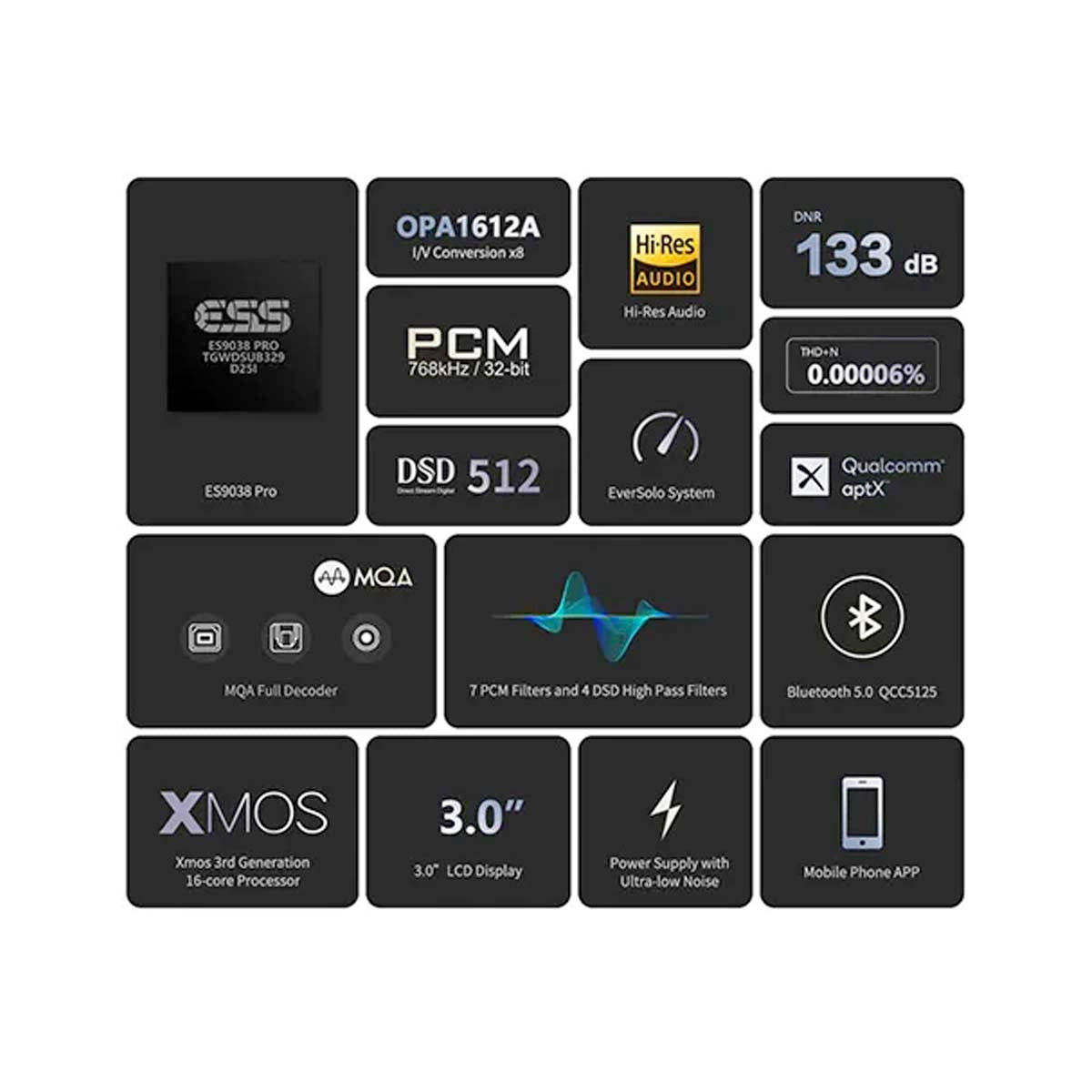

Functional Overview
-
Dual ES9068 D\A converter chip, independent decoding for dual channel.
-
The 3rd generation XMOS XU316 with higher performance and faster speed.
-
High precision, low jitter dual clock oscillators synchronous processing.
-
Up to DSD512 Native, PCM768Hz@32Bit decoding.
-
Optical, Coaxial and USB support MQA full decoding and rendering.
-

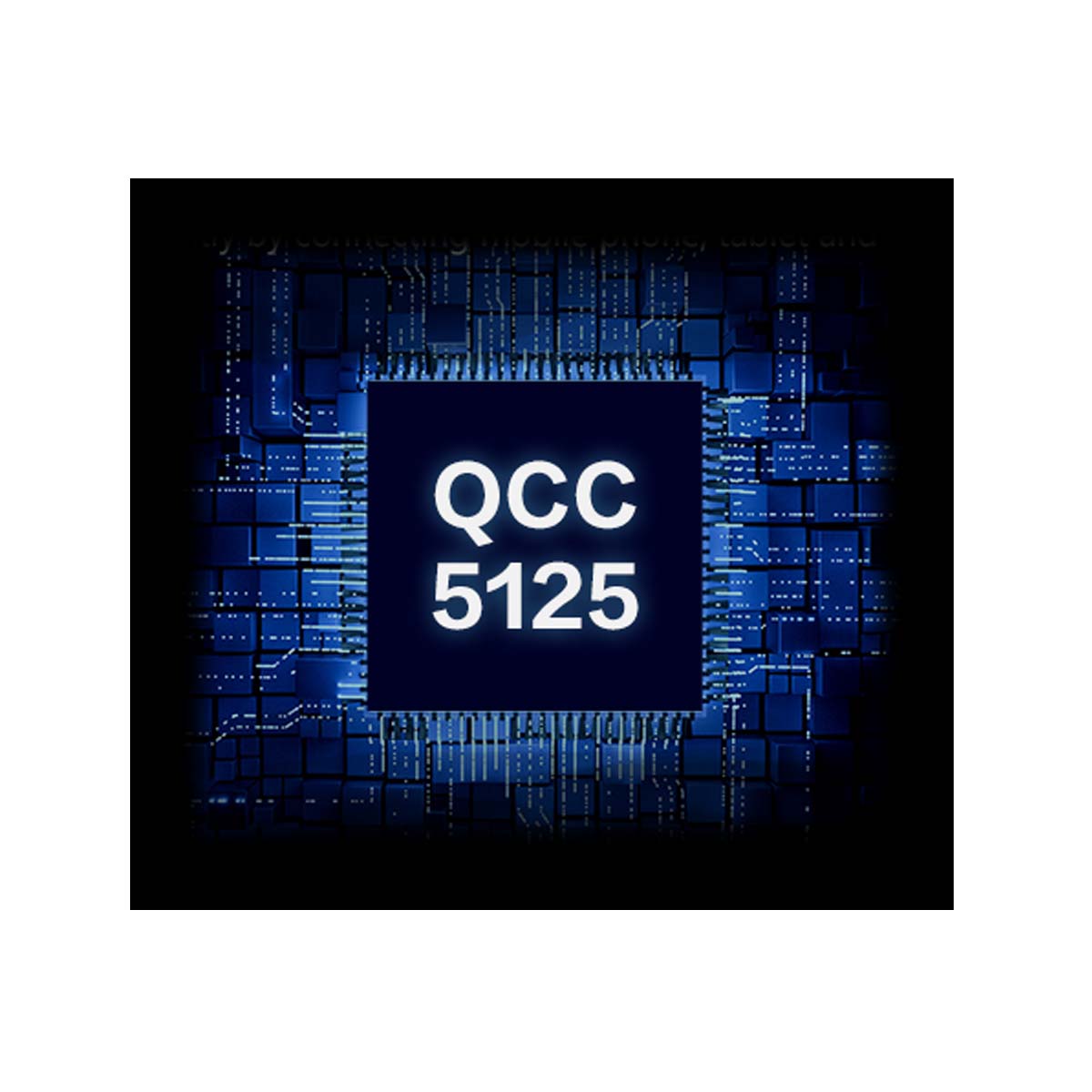

Qualcomm QCC5125 Bluetooth 5.0 module, APTX HD/LDAC protocol.
-
Fully balanced audio architecture, differential amplifier circuit and professional calibration.
-
High-performance headphone amp output, 16-300 ohm headphone driver.
-

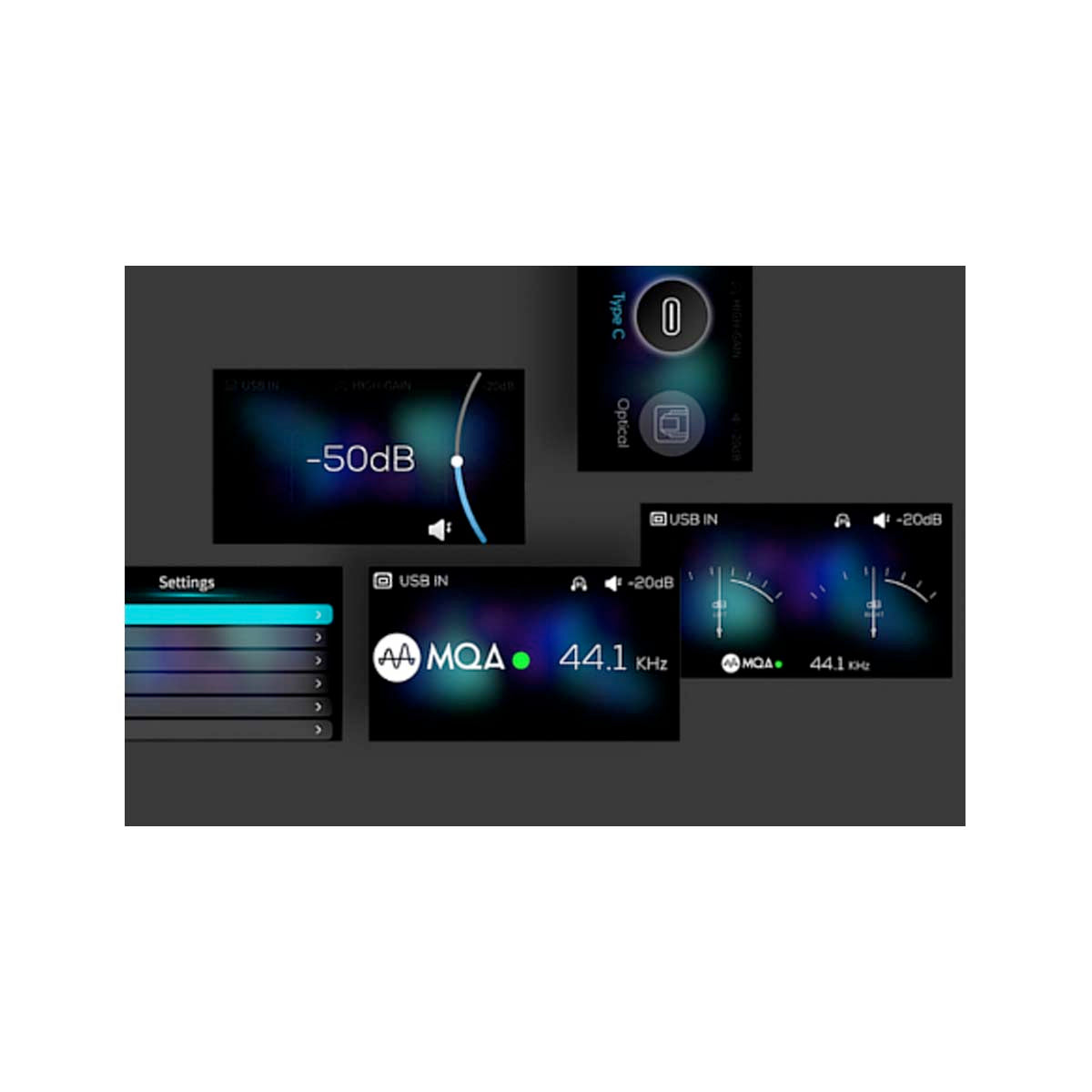

3-inch LCD screen, with diverse VU meter modes.
-
Low ripple power supply to ensure a purer power source.
-

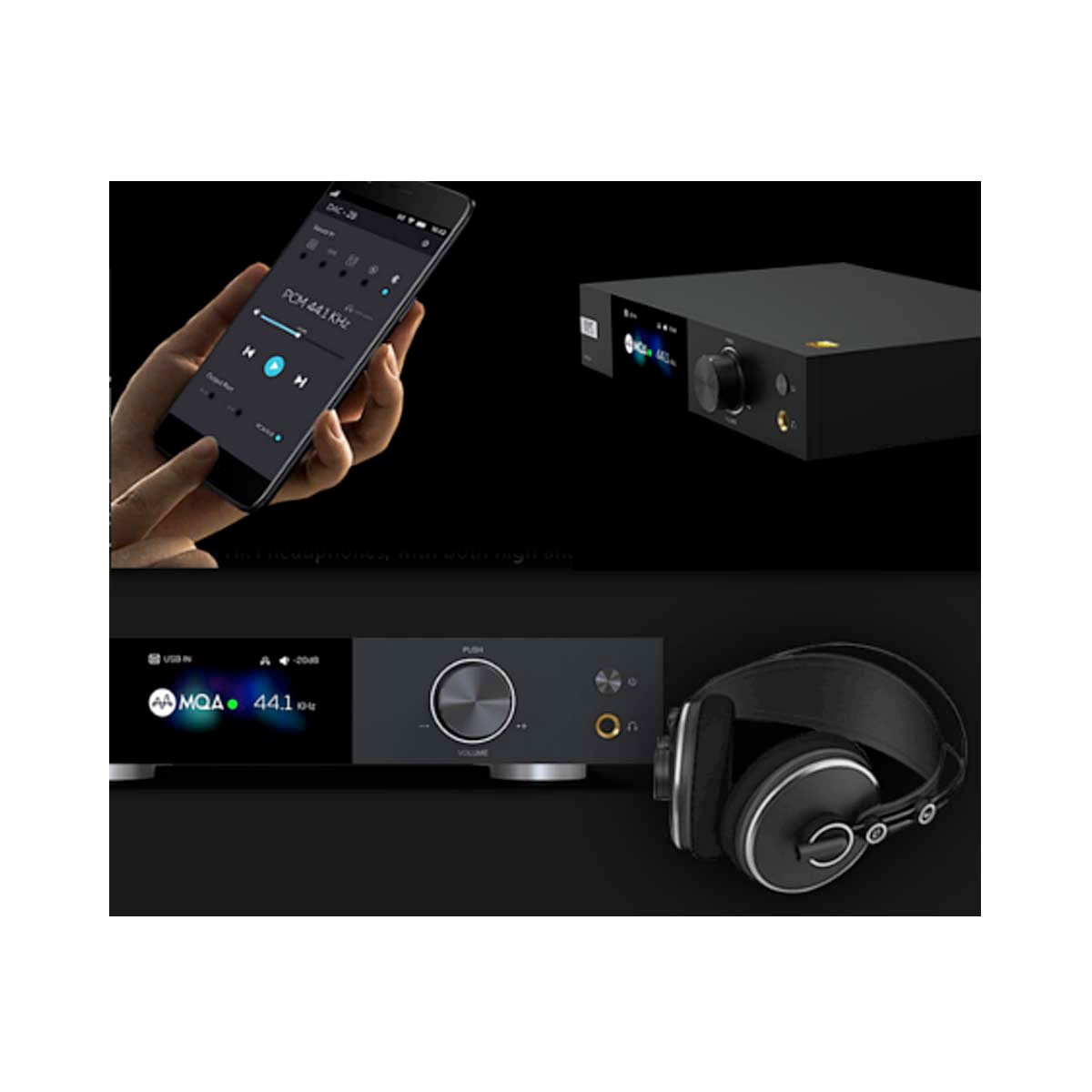

Exclusive mobile phone controller APP for global control.
