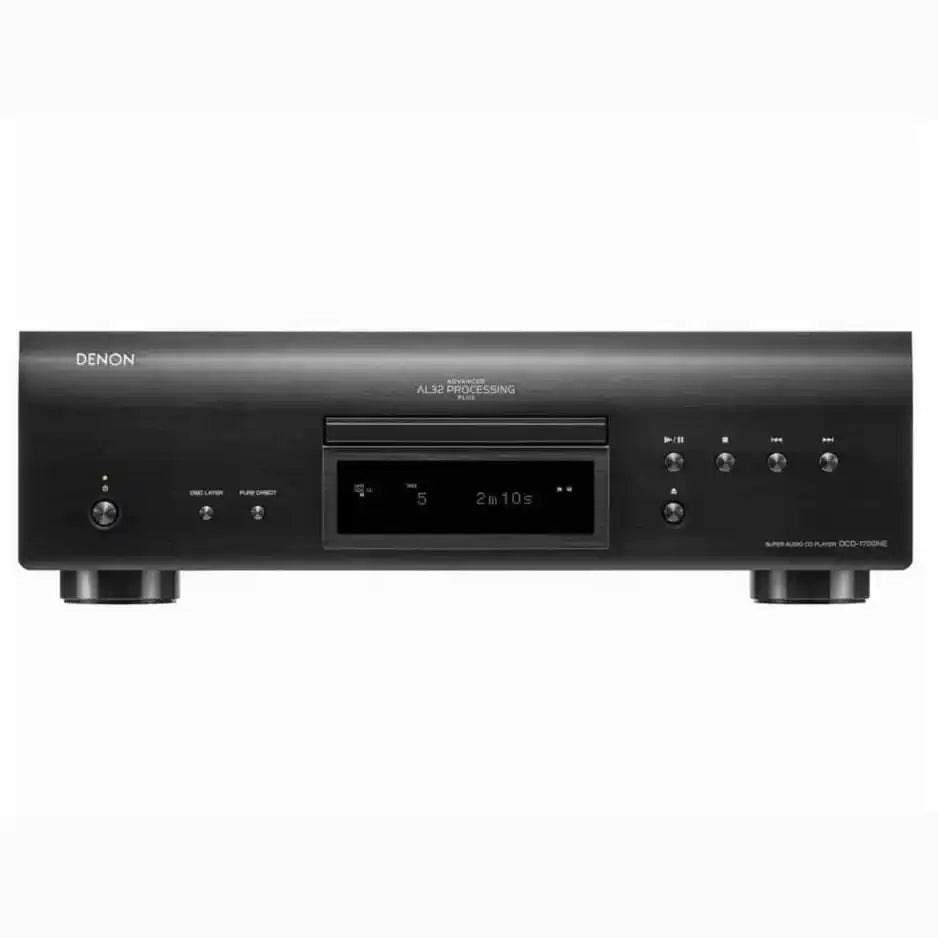

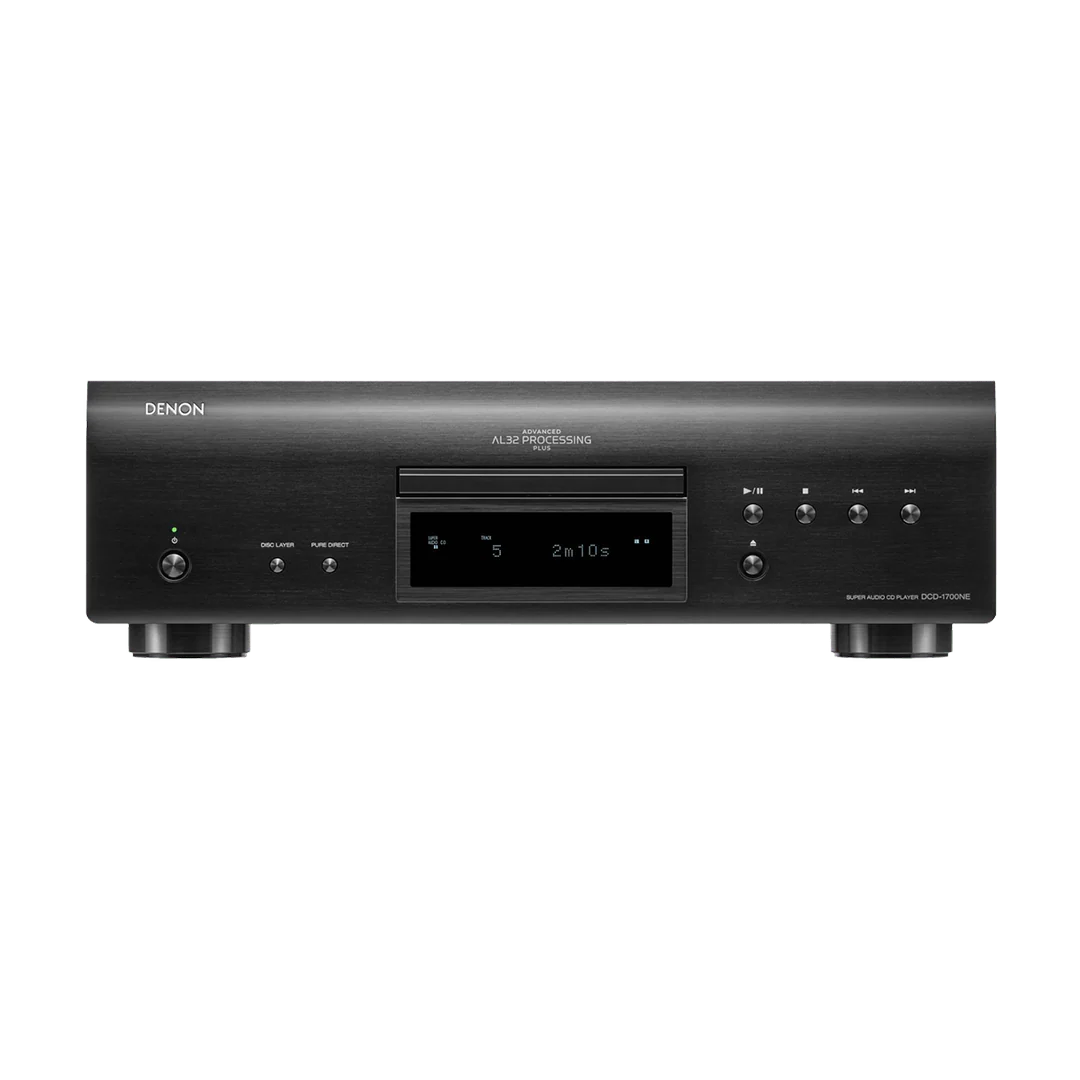

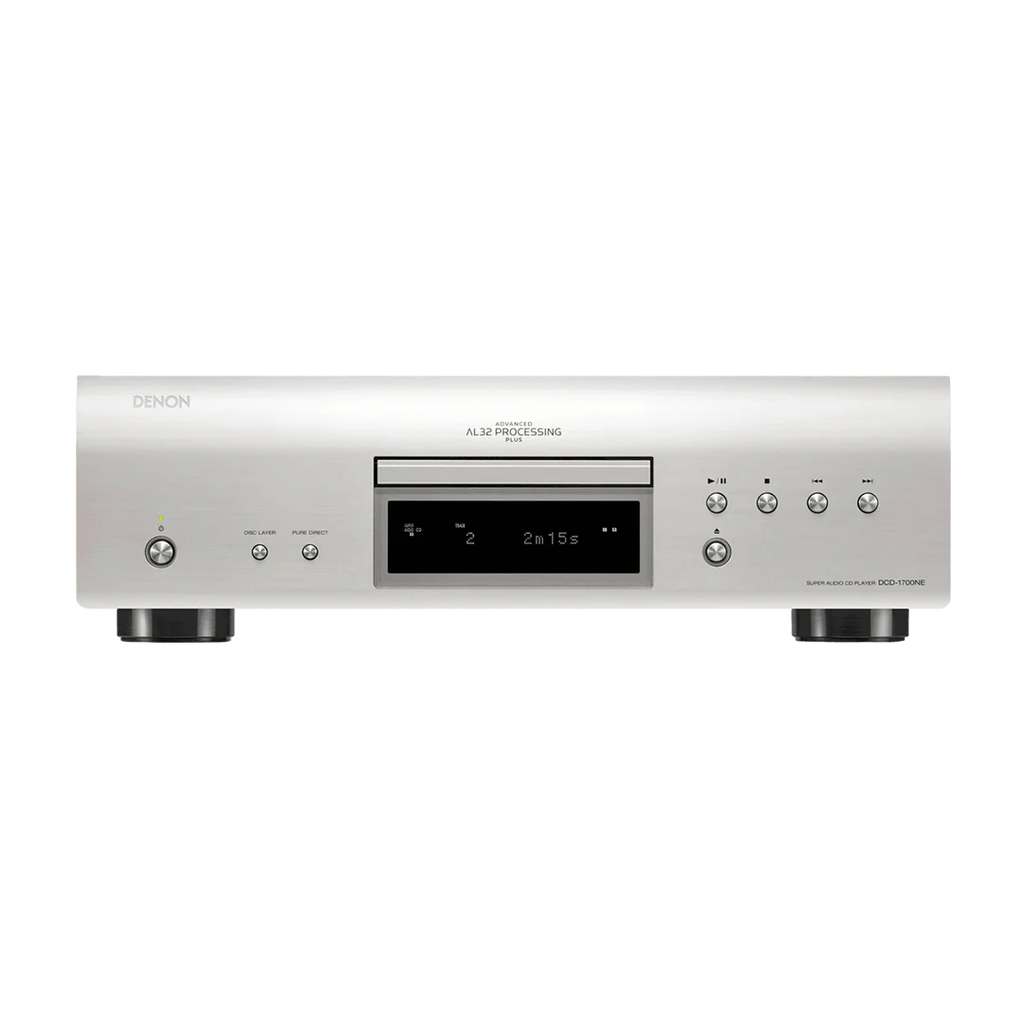

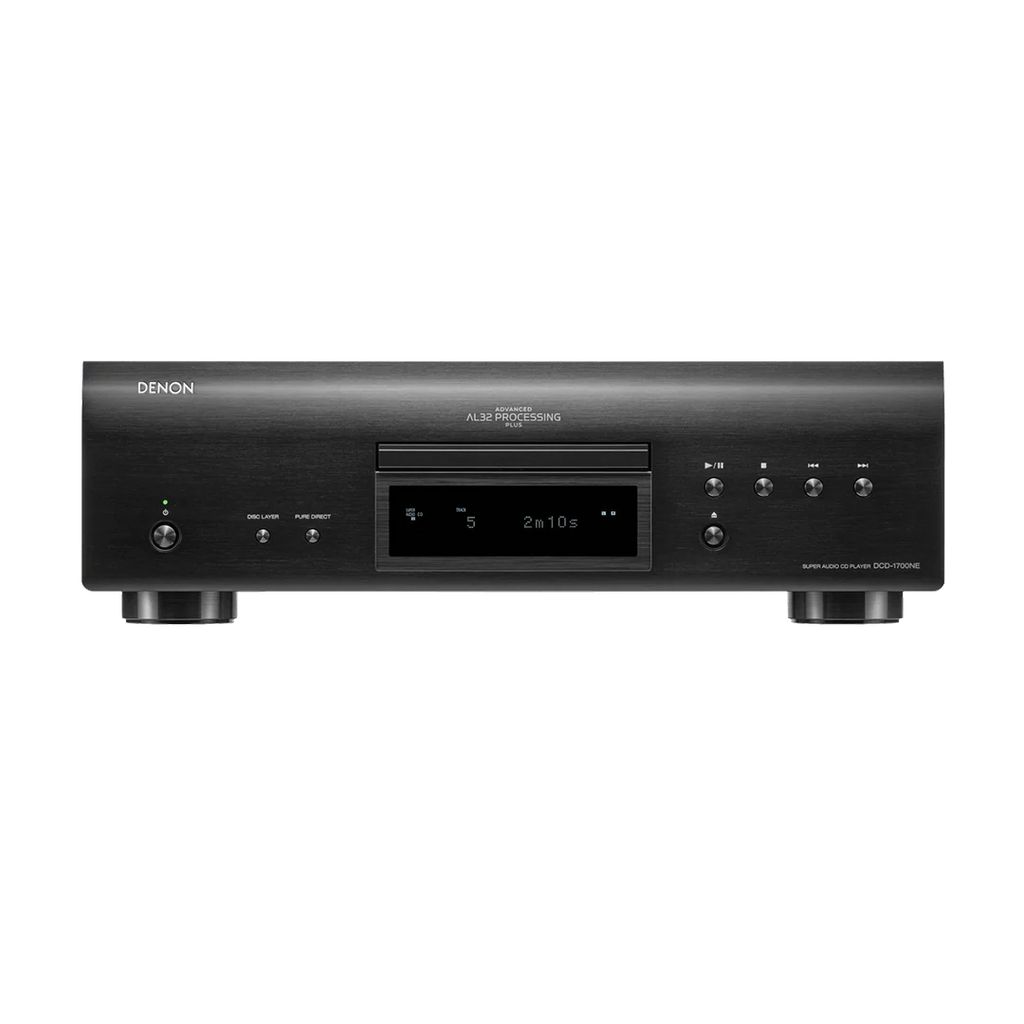

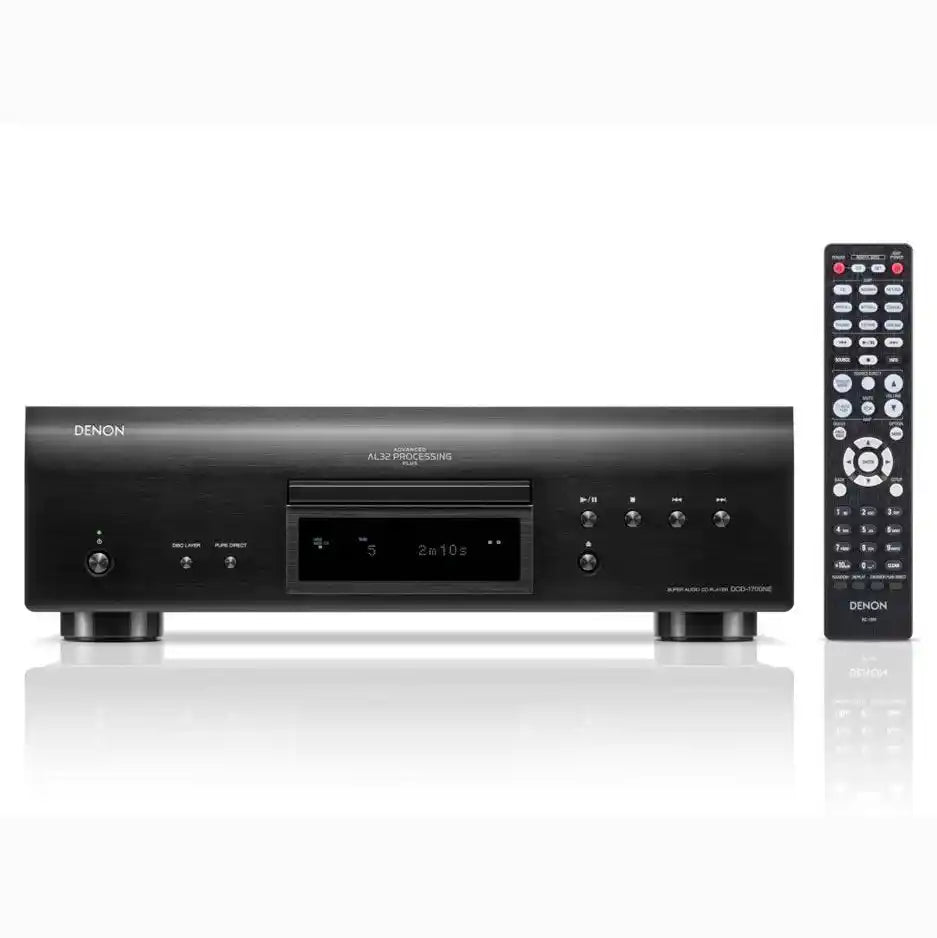

Experience detail-oriented sound at its finest with the Denon DCD-1700NE CD/SACD Player. Featuring Denon's Advanced AL32 Processing Plus and an ultra-precision D/A Converter, this player brings out the true nuances of your audio. The Denon original drive mechanism with S.V.H gives you optimal sound quality from CDs, SACDs, and even your own compilations on DVD R/RW.
Features
Advanced AL32 Processing Plus
Experience audio beautifully faithful to the original sound. Advanced AL32 Processing Plus algorithms restore information that was lost during the digital recording.
Extended disc format support
Enjoy extended disc support for your high-resolution audio collection, including CD's, Super Audio CDs, as well as DSD and high-res files up to 192 kHz/24 bits recorded on DVD-R/RW and DVD+R/RW discs.

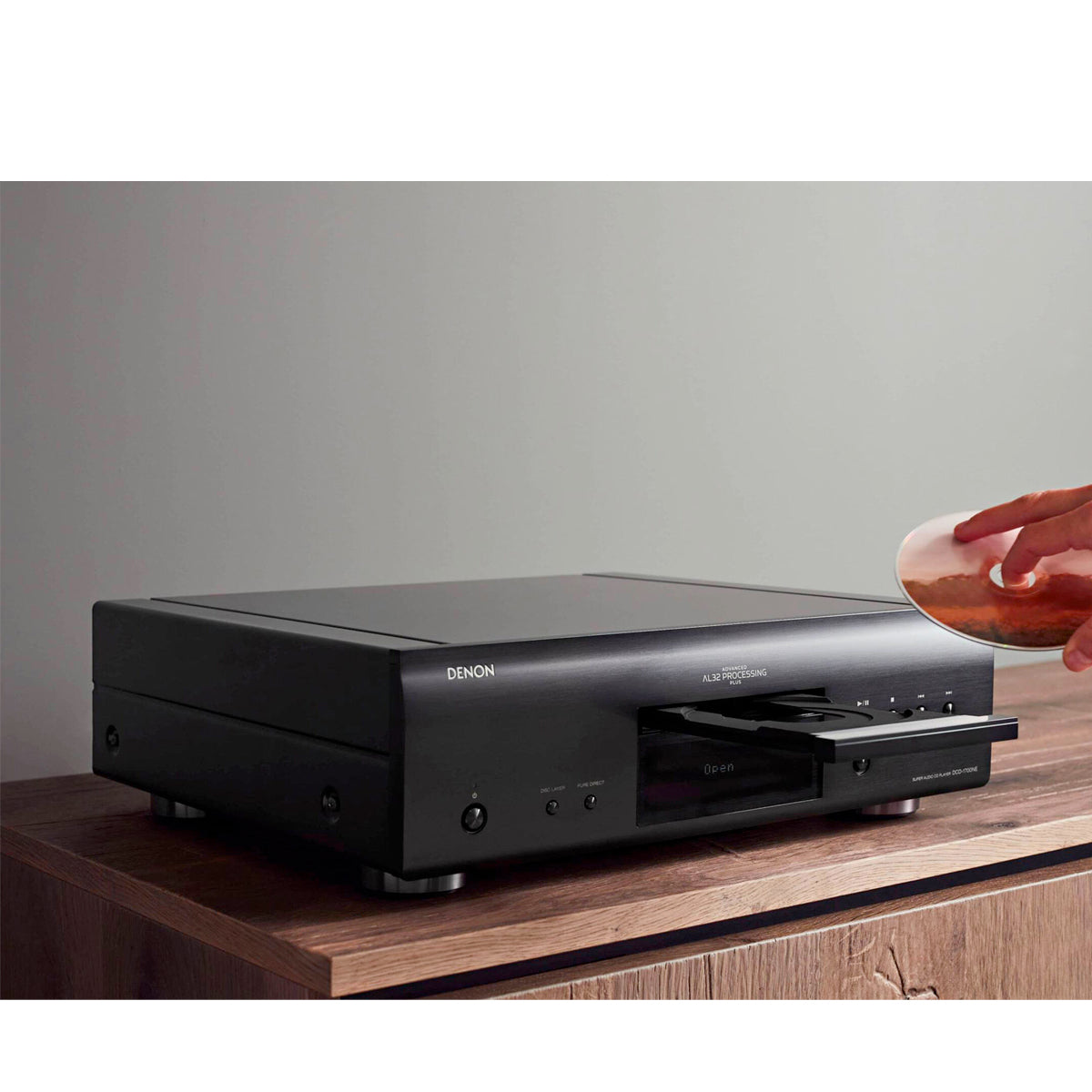

Proprietary disc drive
The Denon original disc drive is built with a high-class S.V.H (Suppress Vibration Hybrid) mechanism. All elements of the design are focused on delivering optimal accuracy.
Sound Master tuned
Carefully tuned with selected audio components and evaluated by the Denon Sound Master to meet Denon’s high standards and distinctive sound for an amazing experience.
Specifications
General
-
Unit (W x H x D) 434 x 135 x 384mm
-
Cabinet Size 434 x 135 x 374
-
Net weight 9.0kg (19.84 lbs)
-
Packaging Dimensions (W x H x D mm) 543 x 250 x 515
-
Packaging gross weight 11.7kg (25.79 lbs)
-
Power Consumption 24W
-
at Standby 0.1W
-
Front (Center) Panel Aluminum
-
Function button Aluminium
-
Open / Close button Aluminium
-
Power button Aluminium
Specifications
-
Frequency Response SACD:2Hz - 50kHz (-3dB)
CD:2Hz - 20kHz (-0.5dB)
-
Harmonic distortion SACD: 0.0010%
CD: 0.0016%
-
Signal-to-Noise Ratio SACD: 119dB
CD: 117dB
-
Dynamic Range SACD: 112dB
CD: 101dB
-
Line Output Level 2.0 Vrms (10kohm)
Digital Audio
-
DAC Circuit TI Advanced Current Segment
PCM1795(192k/32bit) ×1
-
Digital Filter Fixed
-
Digital Processing Advanced AL32 Processing Plus
-
DAC Master Clock Design (Not Support Network Playback) Yes
Disc
-
Mechanism TD-505 FOR DM
-
Disc Type SACD/CD/CD-R/CD-RW
DVD-R/+R/-RW/+RW
-
SACD Yes (Stereo Layer/Multi-D/M)
-
Super Audio CD Text Yes
-
Playability of files recorded on CD-R/RW :
-
MP3 / WMA / AAC Yes / Yes / Yes
-
WAV Yes (~48kHz/24bit)
-
FLAC Yes (~48kHz/24bit)
-
ALAC Yes (~48kHz/24bit)
-
AIFF Yes (~48kHz/24bit)
-
Playability of files recorded on DVD R/RW :
-
MP3 / WMA / AAC Yes / Yes / Yes
-
WAV Yes (~192kHz/24bit)
-
FLAC Yes (~192kHz/24bit)
-
ALAC Yes (~96kHz/24bit)
-
AIFF Yes (~196kHz/24bit)
-
DSD (DIFF / DSF Yes (~5.6MHz)
-
Firmware Update Yes (FE/BE, MCU)

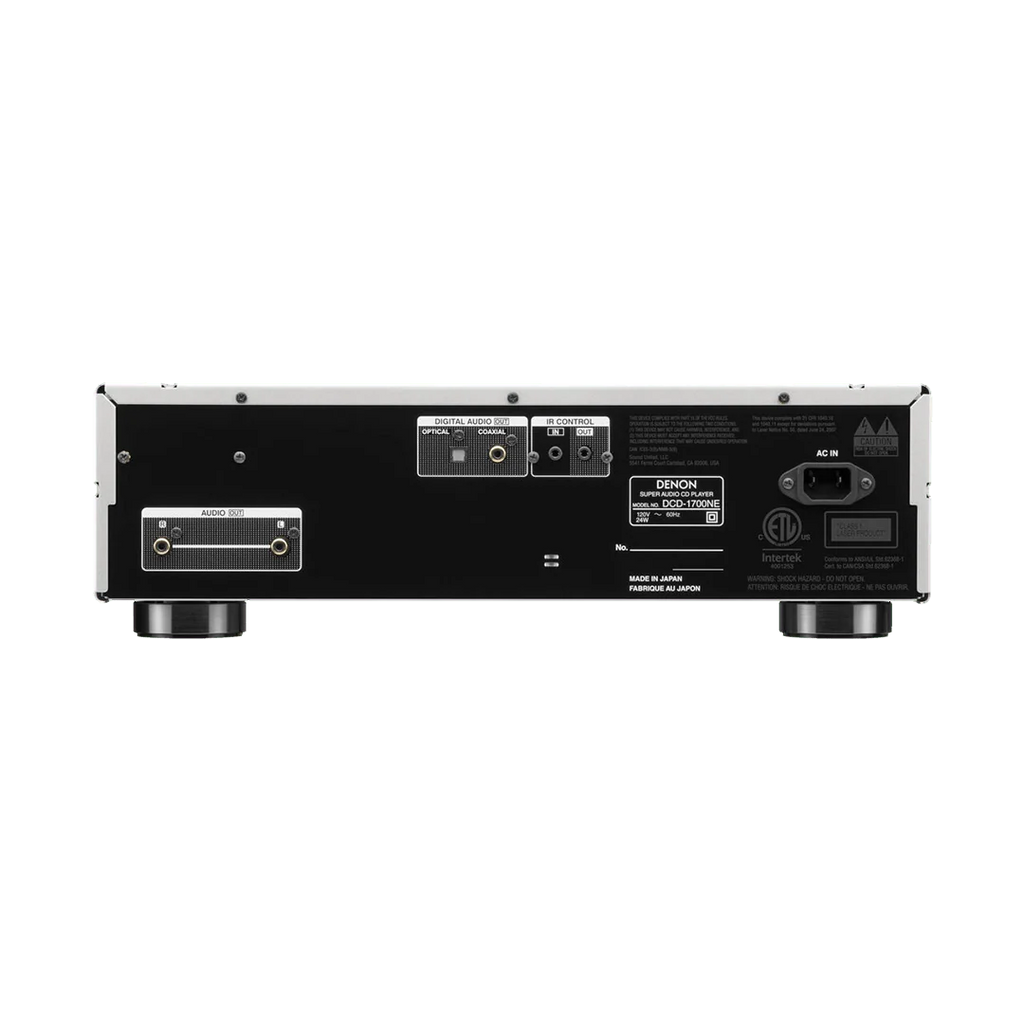

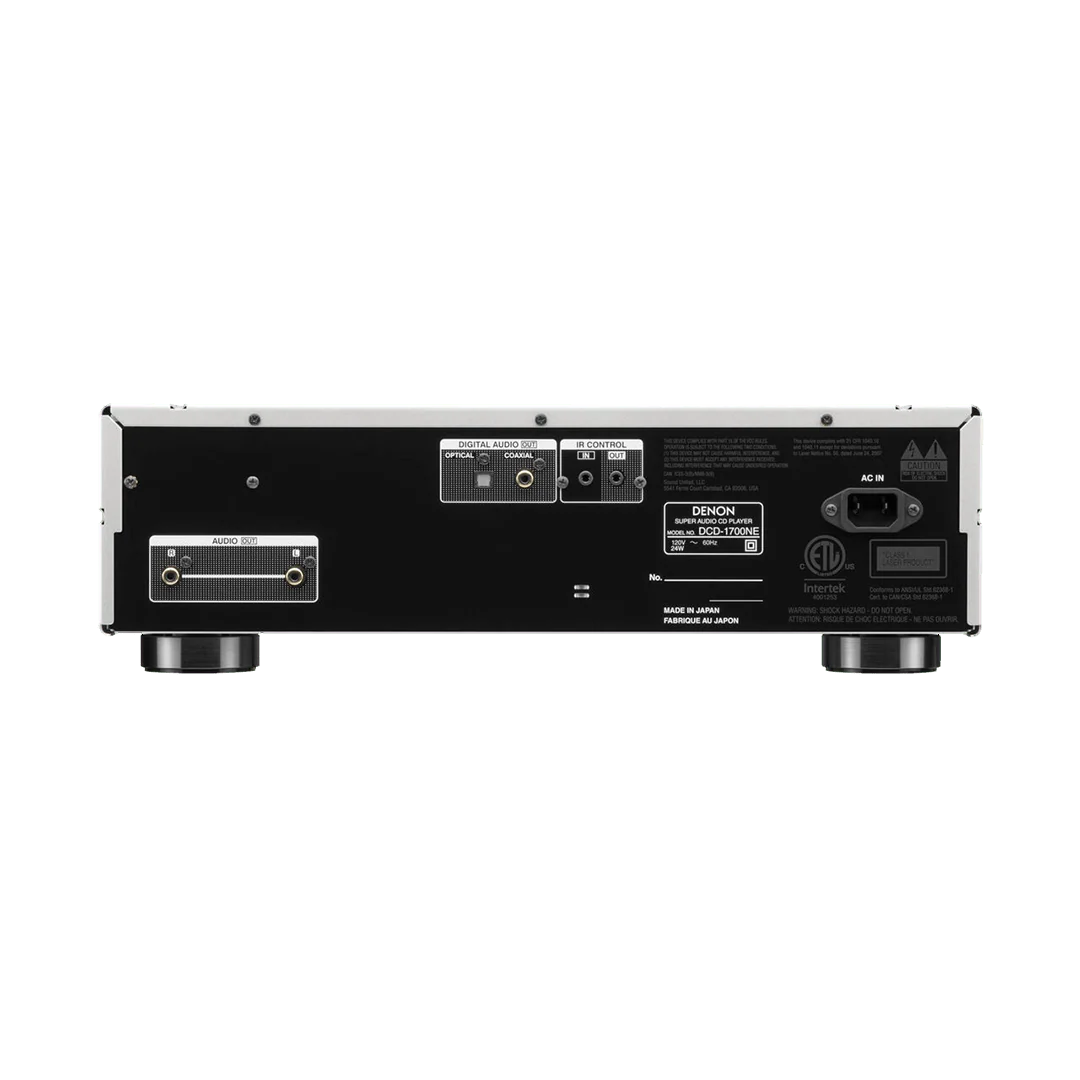

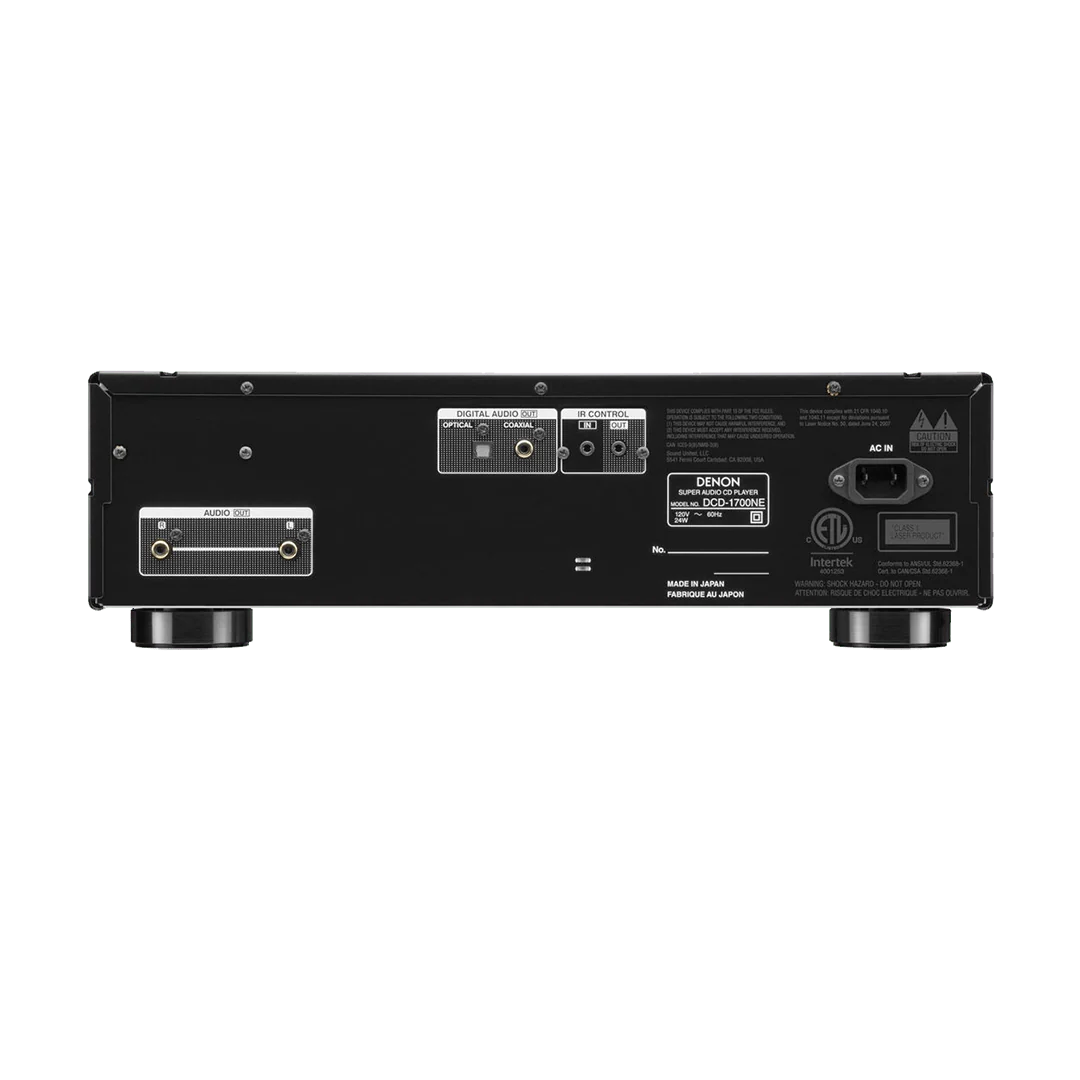

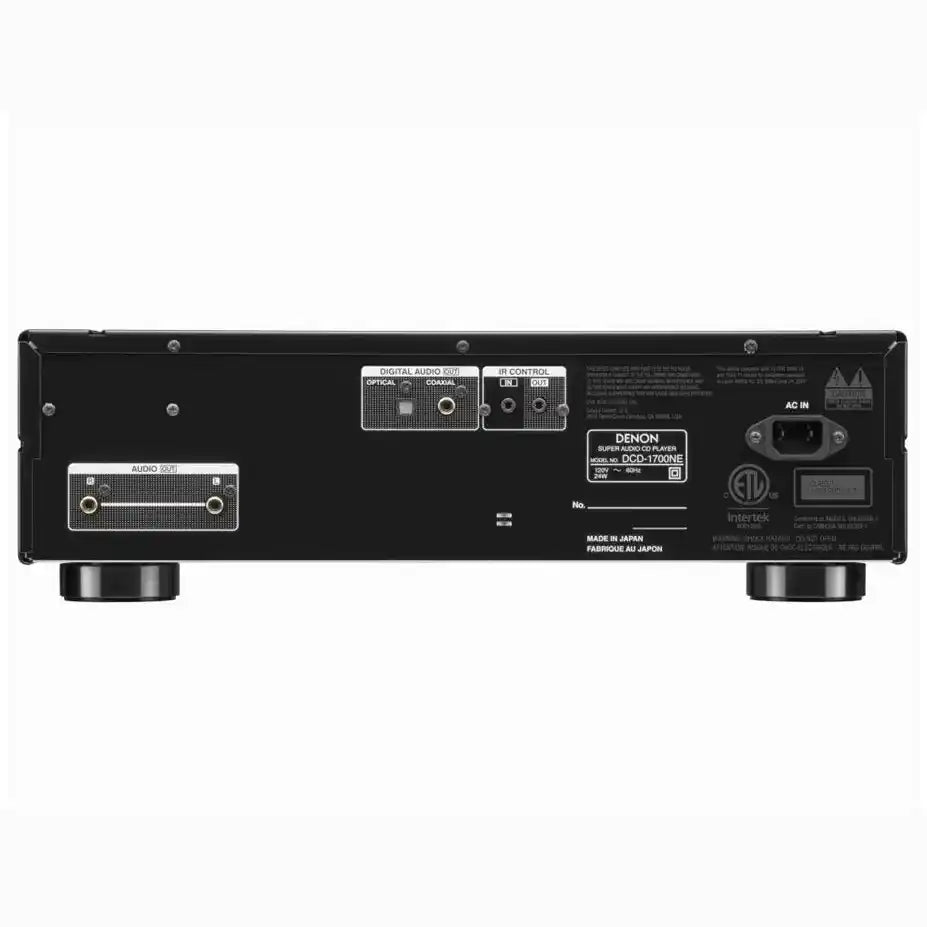

Inputs Outputs
-
Fixed Analog Output (RCA) Cinch x 1 (Gold Plated)
-
Optical input / output (Maximum Support) 0 / 1
-
Coaxial input / output (Maximum Support) 0 / 1
Controls
-
Remote Controller System Remote
(Amp and CD Player Control)
-
On-Product Buttons
- Power
- Disc Layer
- Pure Direct
- Play/Pause
- Stop
- Fwd/Rev
- Open/Close
-
LEDPOWER: 1 Green
-
Front Panel Display Single Line
-
Dimmer for Front Display Bright / Dim / Dark / Off
-
Control with App via Network Player (Use Remote Control Bus) Yes
Other
-
Pure Direct Mode Yes
-
Last Function Memory Yes
-
Remote Control Bus Terminal Yes
-
Remote Control Yes
(controllable PMA-1700NE)
-
Battery Yes (AAA x2)
-
Power Cord Yes
-
Other Stereo RCA Cable x1
-
Timer Play (Need external audio timer) Yes
- Auto Standby Mode
