Description
Cayin SOUL 170I Integrated Amplifier
Soul 170I is designed on basis of Tungsol KT170 Power Tube. It outputs 130 watts Power in Ultralinear Mode or 75 wats power in Triode Mode per channel.
Designed in Class AB Push-Pull Soul 170I takes two pieces of powerful KT170 tube per channel.
All tube Integrated with 22DE4 Tube Rectifier for Power supply, ECC83S voltage amplification stage, 6SN7 driver stage and KT170 output tubes.
Following the design concept of Cayin, Soul 170I offers two operation modes: Triode and Ultralinear.
As you can see from above for these two different modes the output power are different.
By changing the output mode you will get a different sound signature instantly.
Triode Mode is Tendering, Rich in Harmony, Smooth and Soft. Ideal for Vocal and Instrumental Music.
Ultralinear Mode has power and extension. Clean with energy. Ideal for music has punch and dynamic and at such mode it offers excellent control ability.
Specifications
- 4 x KT170, 2 x ECC83S, 2 x 6SN7, 1 x 22DE4. 130w Ultra, 75w Triode.
- First production Amplifier to use KT170’s and designed in conjunction with Tung-sol.
- All handmade point to point silver wiring.
- Custom in-house high current Output-Power transformers, Premium parts throughout. On-board Bias meter for easy adjustments.

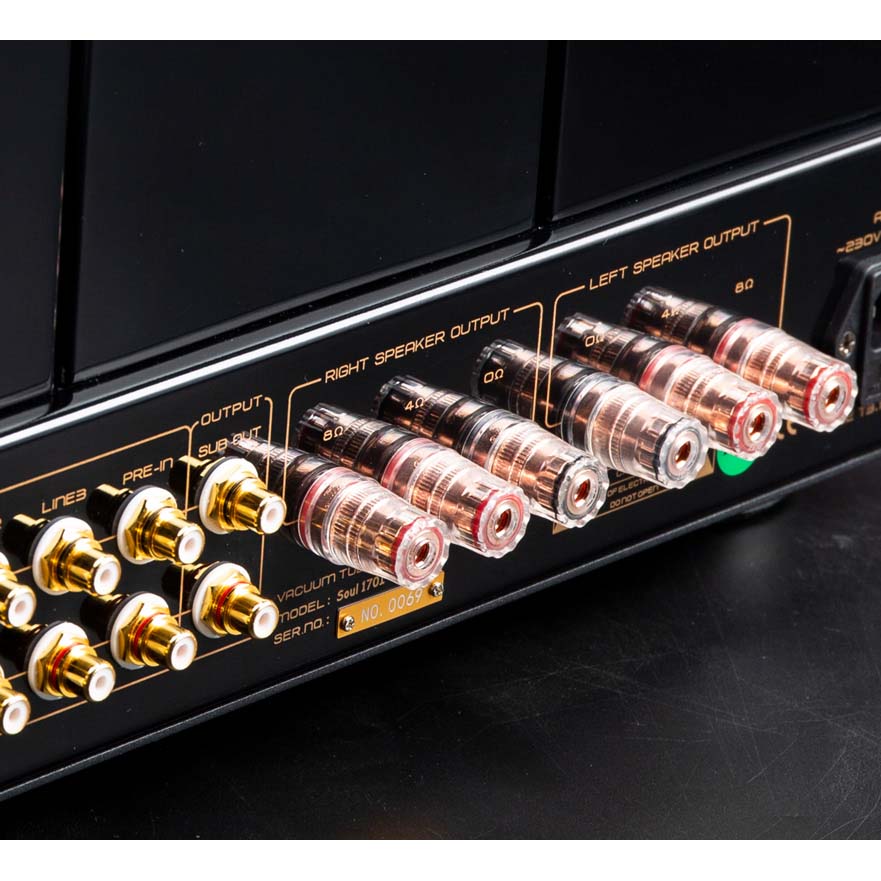

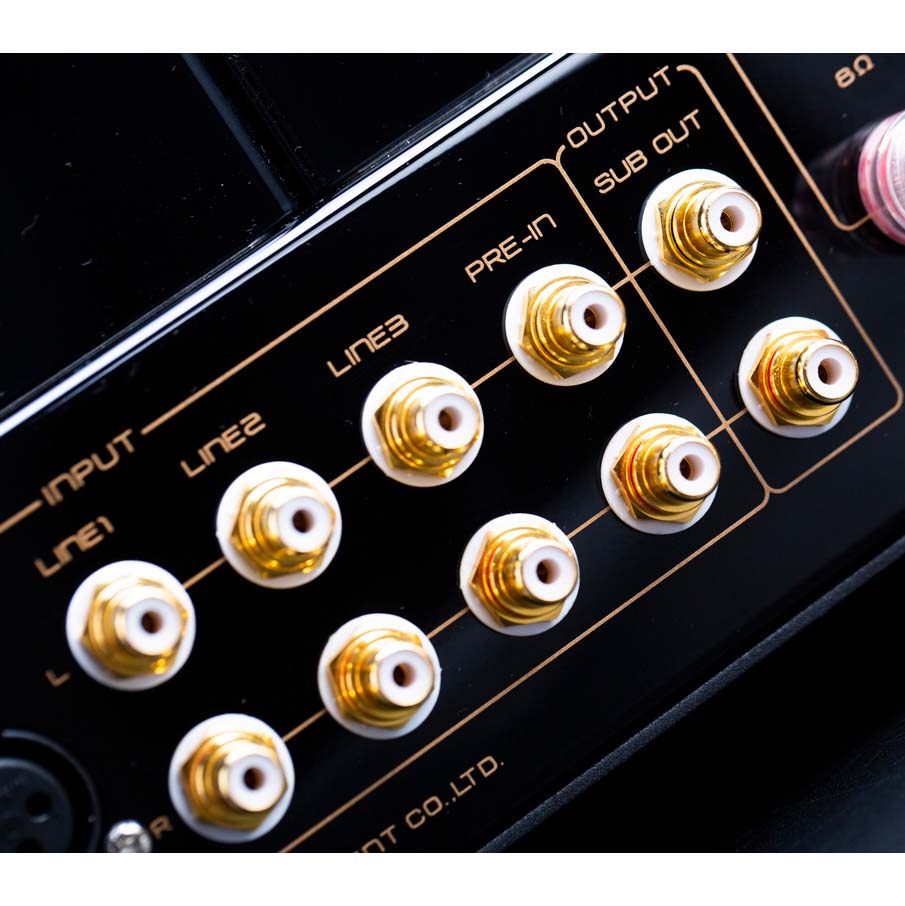

- XLR x 1, RCA x 3, SUB x 2, Pre-in x 1.
- Thick Aluminium faceplate.
- Remote control.
- 430 x 448 x 238.
- 39Kg
- DESIGNED AND TUNED IN GERMANY
