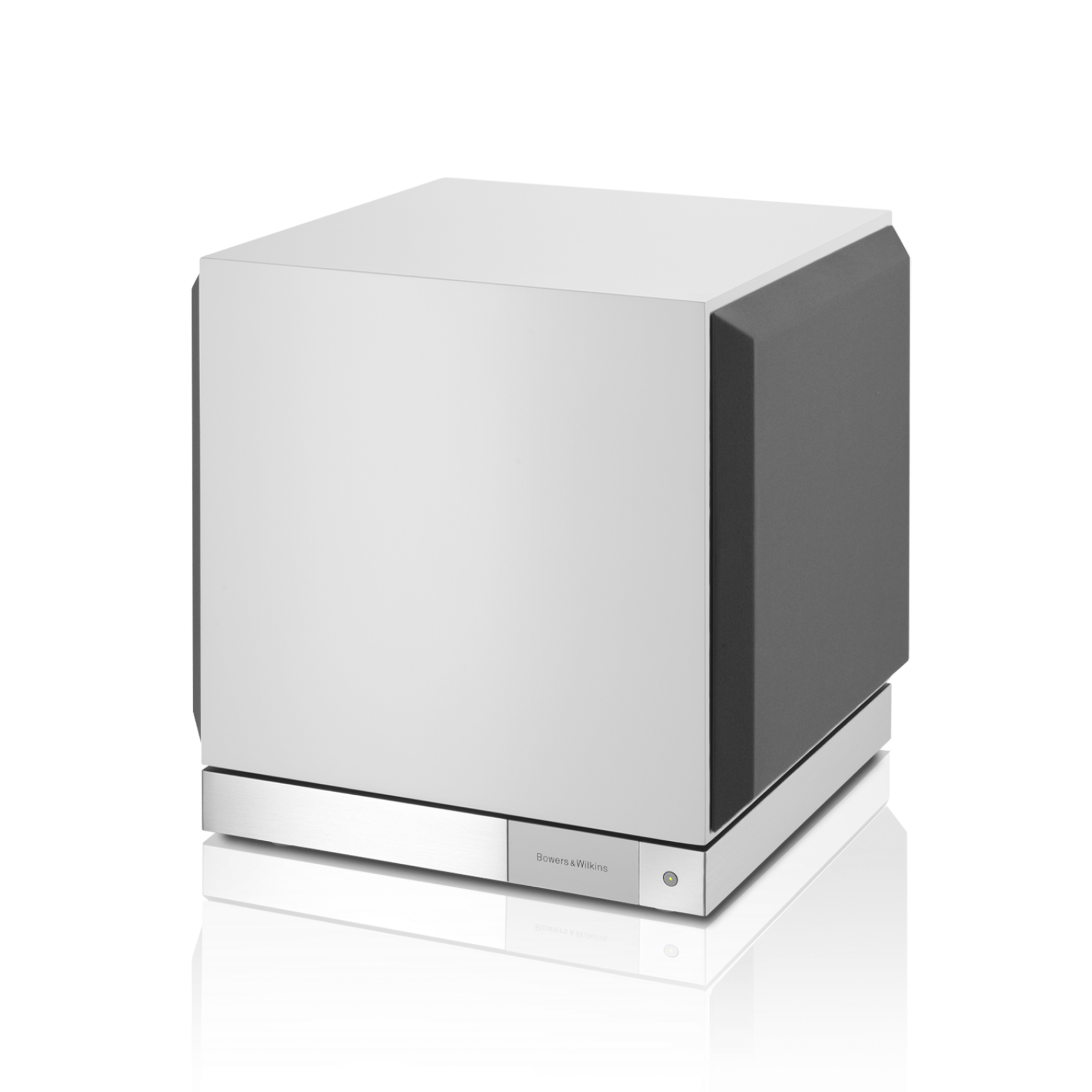

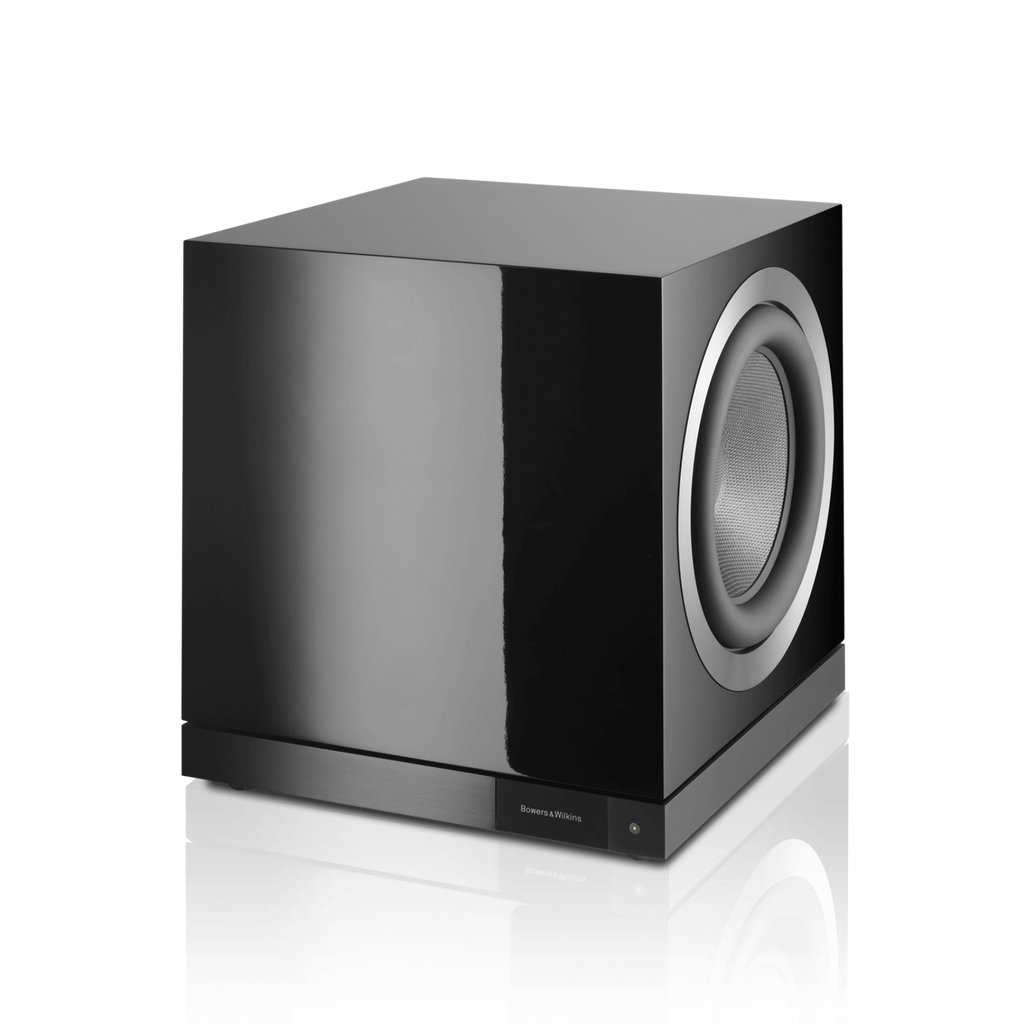

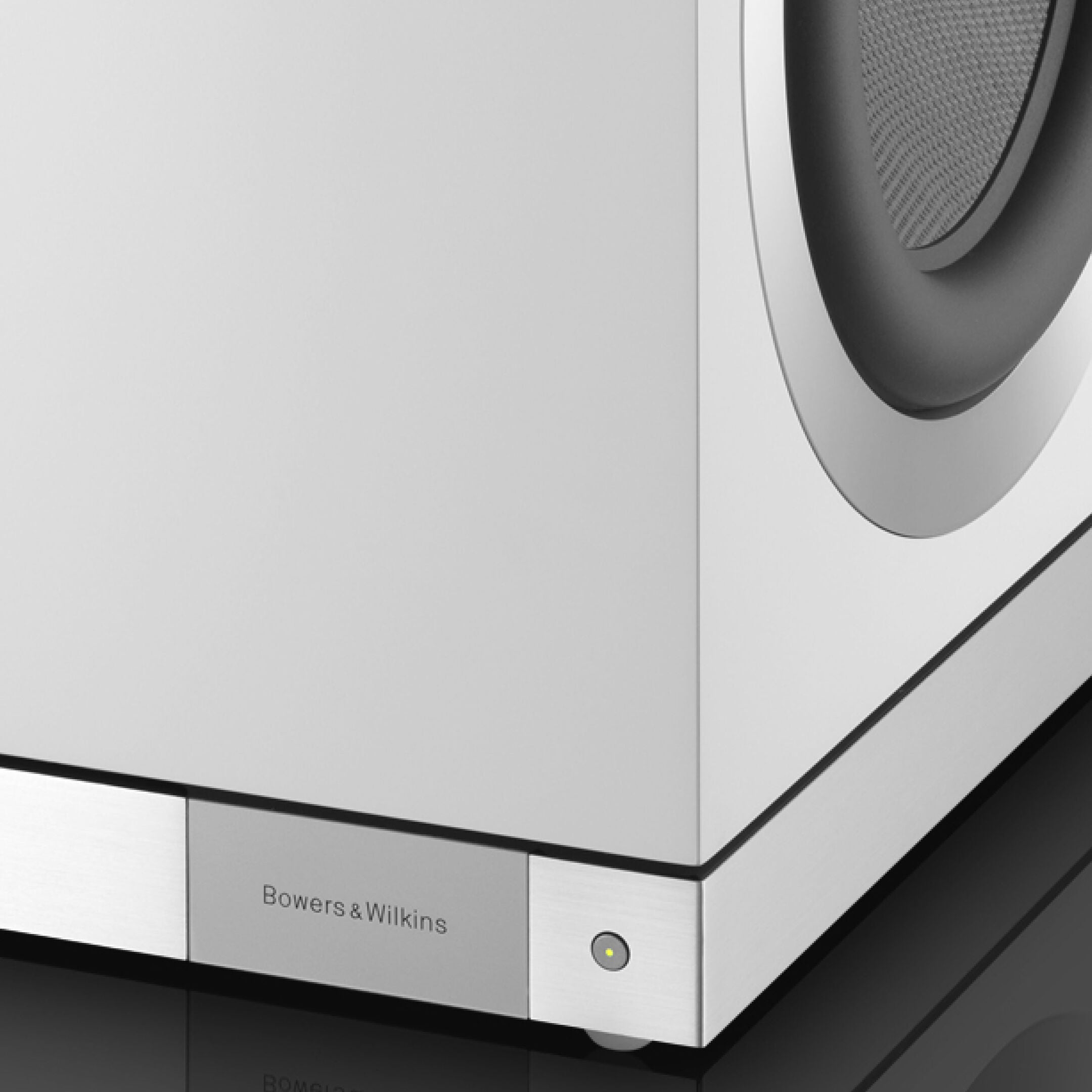

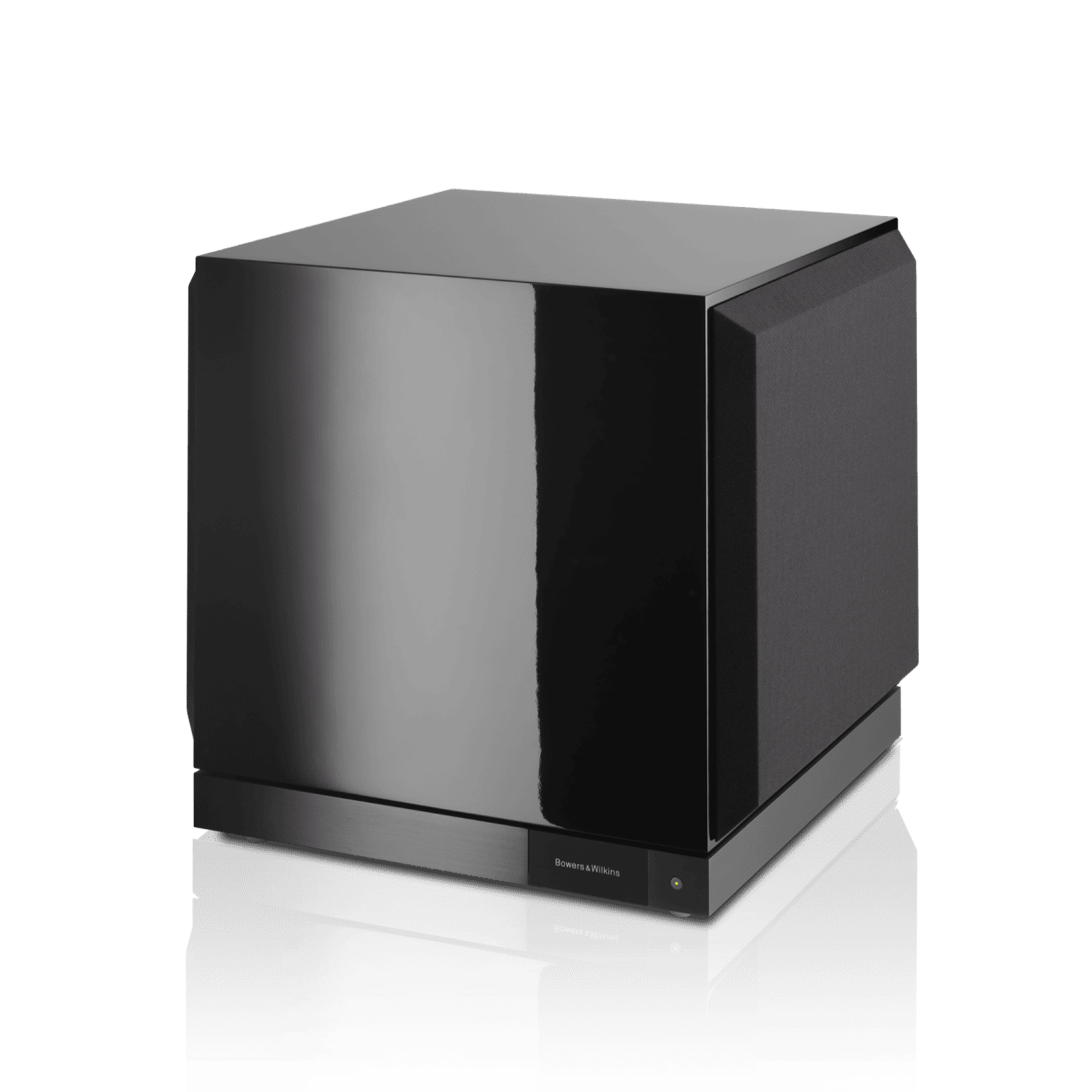

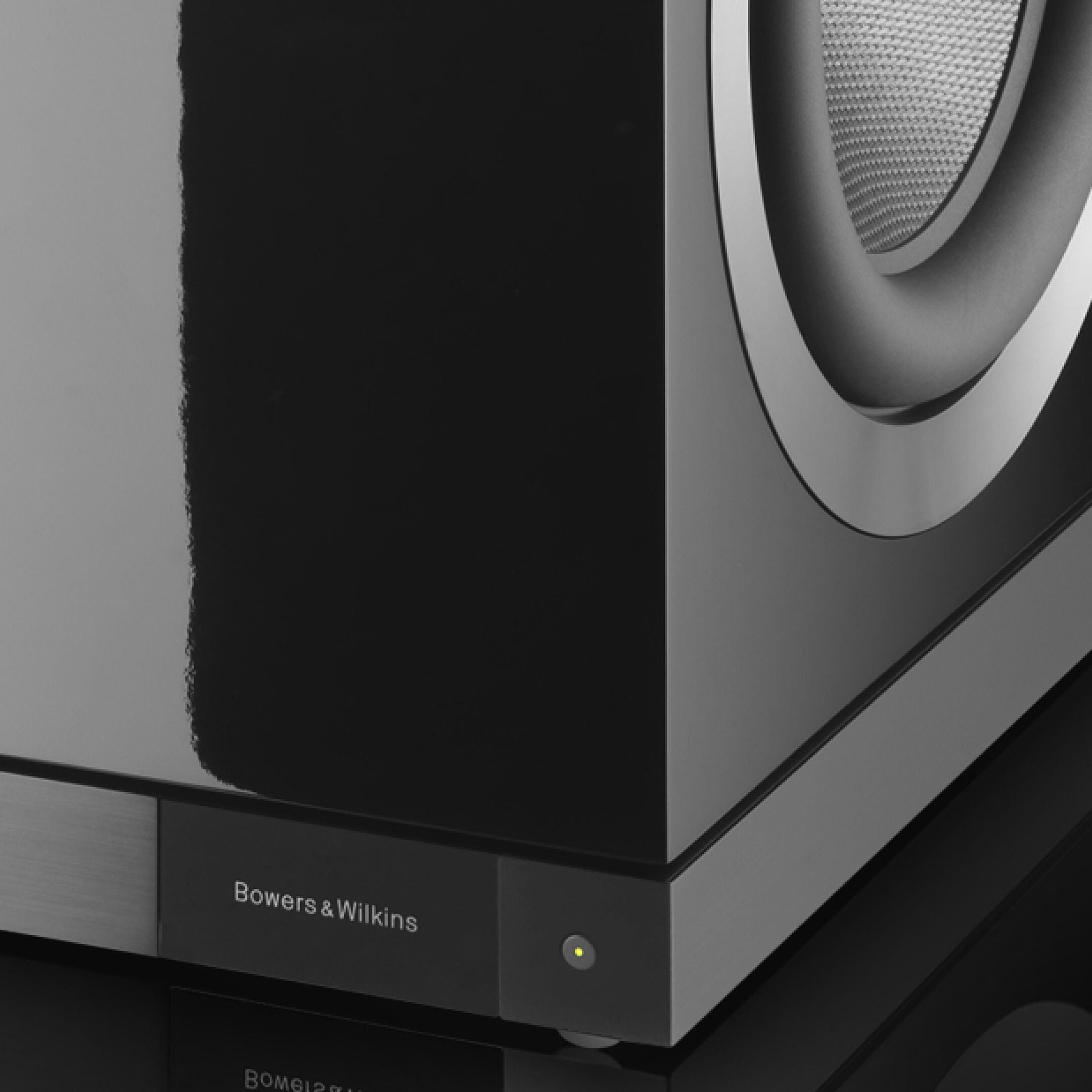

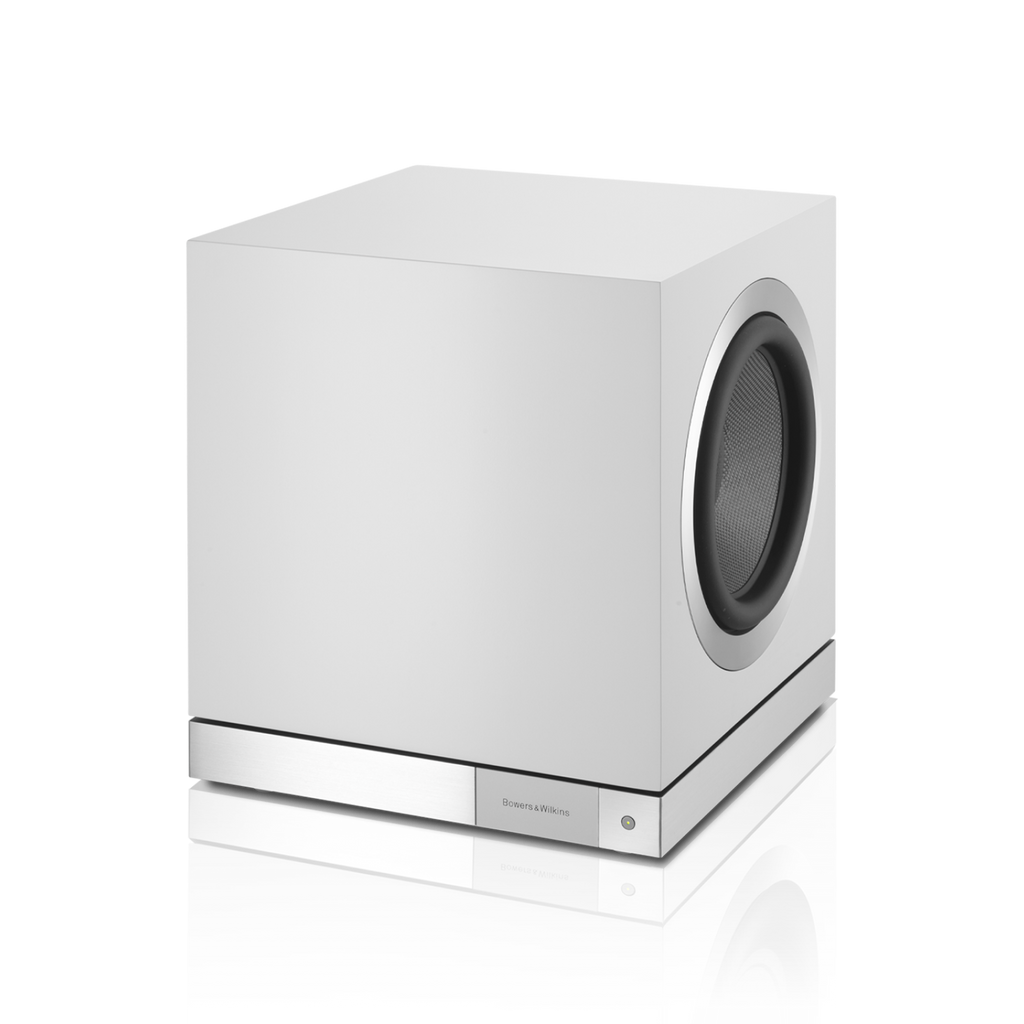

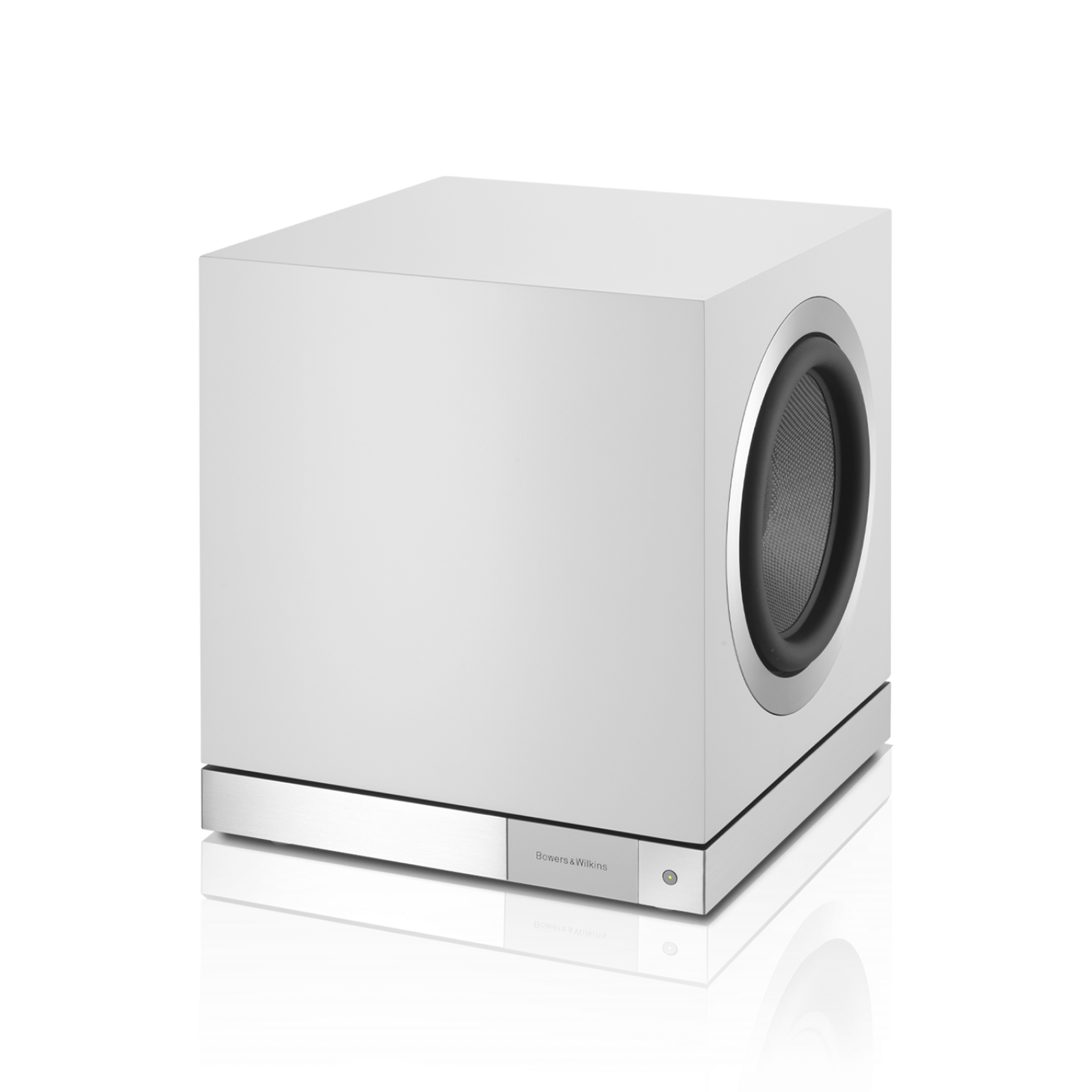

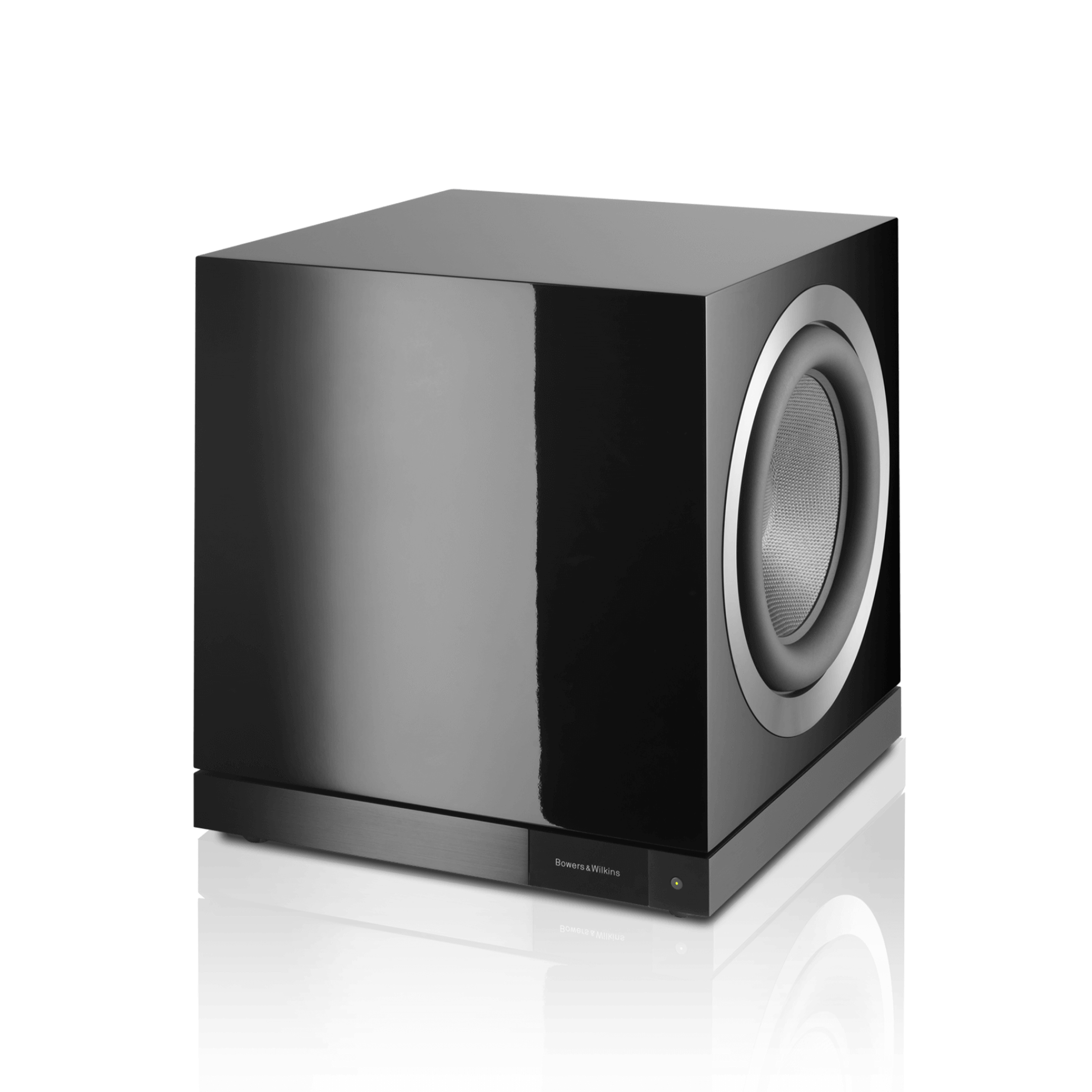

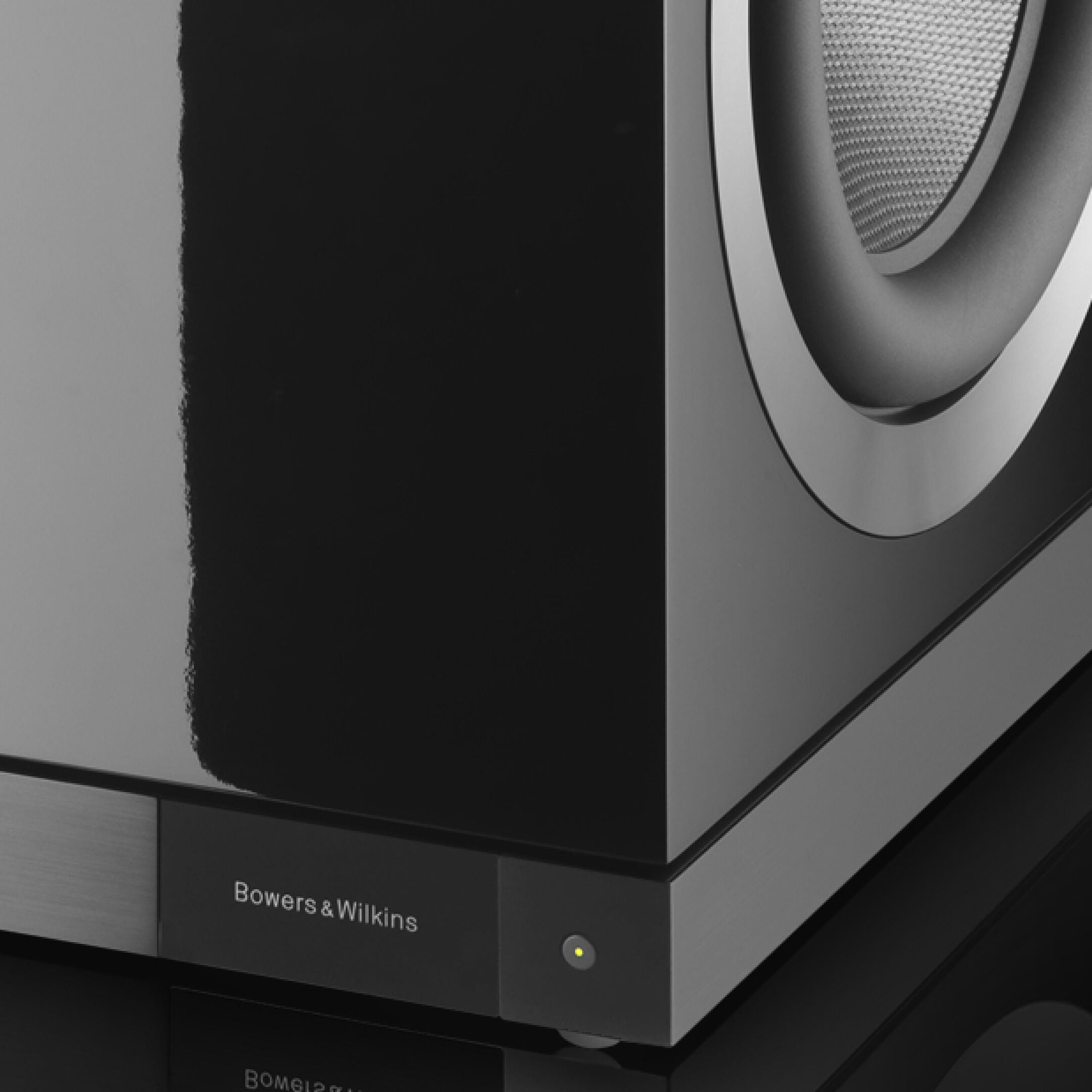

Bowers & Wilkins DB2D Active Subwoofer
A high-performance active subwoofer using opposed Aerofoil drivers, powerful Class D amplification and app-based setup for music and home theatre systems.
DB2D uses 2 x 250mm (10in) Aerofoil cone drivers in a balanced opposed configuration. The layout reduces cabinet reaction while the digital preamplifier, Dynamic EQ and app-based control provide the tools needed to integrate serious low-frequency output into a room.
The DB Series is best treated as part of the complete system. Placement, crossover settings, room behaviour and the main speakers all affect the final result, so setup matters as much as the headline power figure.
Balanced driver layout
Opposed bass drivers reduce cabinet vibration.
More of the amplifier energy is directed into moving air rather than shaking the enclosure, which helps the subwoofer remain controlled at useful output levels.
App-based integration
Setup and room EQ from the Bowers & Wilkins subwoofer app.
This gives the installer or owner practical control over level, filtering and room interaction without relying on front-panel guesswork.
Key Features
- 2 x 250mm (10in) Aerofoil cone drivers
- 1000W Class D Hypex
- Digital preamplifier with Dynamic EQ
- App-based setup and BT-LE control
- XLR and RCA inputs
- 12V trigger and RS-232 control
Specifications
| Specification | Details |
|---|---|
| Product type | Active subwoofer |
| Model | DB2D |
| Frequency response | 10Hz-350Hz (-3dB, centred at 100Hz) |
| Amplifier | 1000W Class D Hypex |
| Sold as | Each |
Detailed Technical Specifications
For those who like to drag out all the useful bits
View full technical specifications
- Frequency range: 8.5Hz-500Hz (-6dB)
- Drive units: 2 x 250mm (10in) Aerofoil cone drivers
- Inputs: 2 x XLR, 2 x RCA, 2 x 3.5mm 12V trigger, RS-232
- Dimensions: 430 x 377 x 360mm
- Net weight: 36kg
Important Notes
- Subwoofer performance depends strongly on room placement and calibration. Contact us for integration advice, particularly for multi-subwoofer systems.
The Audio Experts Take
DB2D should be chosen by room size, placement freedom and the output demanded from the rest of the system. The DB platform gives plenty of integration control, but the best result comes from treating crossover, phase and room behaviour as part of the setup.
Brand new. Manufacturer warranty. Available to order through The Audio Experts.
