Description

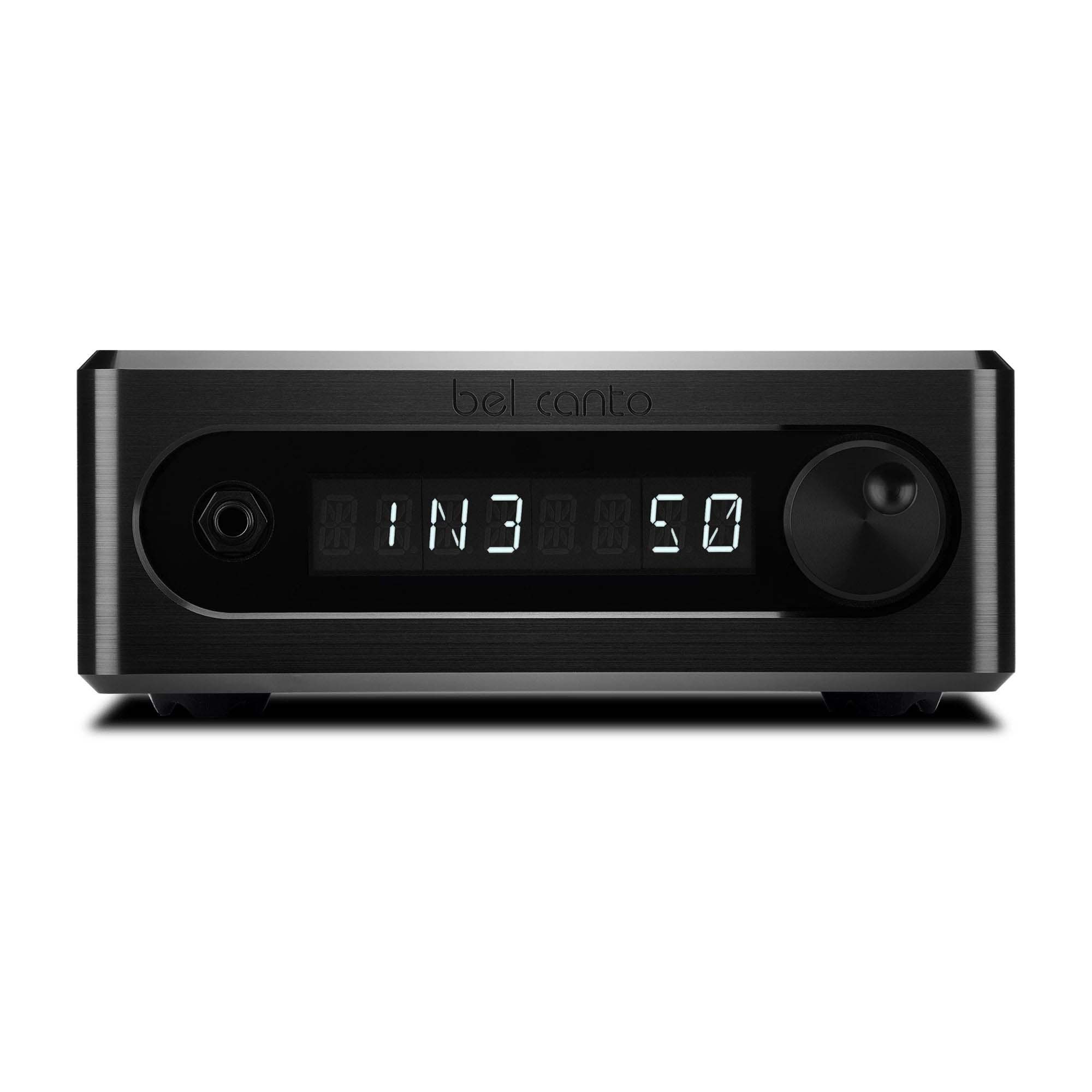

Pre5 Balanced Analogue Control Preamplifier
The e.One Pre5 is a highly dynamic fully balanced analog preamplifier. The precise circuitry and compact balanced architecture deliver a pure signal to your amplifier revealing the detail and natural tone of the finest recordings.
- Fully Balanced Internal Architecture for Lowest Noise and Distortion
- XLR and 4 High Quality RCA Inputs
- Independently Buffered XLR and RCA Outputs
- Remote Control
- Available in Silver or Black Faceplat
Pre5 Preamplifier Features
The Pre5 sophisticated circuit architecture and component choices raises the bar of traditional analog control preamp. The Ultra-low distortion and noise performance is the result of a fully balanced internal architecture and discrete high current output buffers that provide a compelling combination of dynamic resolution, impact, and musical presence.
- 125dB Dynamic Range preserves all recorded information
- Distortion below 0.001% for pure sound
- High current discrete custom output buffers
Pre5 Preamplifier Specifications
|
|
|
Analog Inputs: |
|
| Balanced Input Impedance: | 10k Ohms |
| Single-ended Line Input Impedance: | 50k Ohms |
| Maximum Input Level Balanced: | 5Vrms |
| Maximum Input Level Single Ended: | 2.5Vrms |
| Maximum Output Level, RCA and XLR | 5Vrms |
| Distortion at 1Vrms Output: | <0.002% 1KHz |
| Dynamic Range: | 125dB A-Weighted re: 5Vrms |
| Single-ended Line Out Impedance: | 50 Ohms |
| Balanced Output Impedance: | 100 Ohms |
General: |
|
| Output Connections: | XLR and RCA Outputs |
| Power Usage On: | 4W |
| Power Usage Off: | 0.0W |
| Power Input: | 100-120VAC, 220-240VAC 50/60 Hz |
| Fuse | Littlefuse 214 Series, 3 ampere, time-lag, 250VAC, 5x20mm ceramic body fuse |
| Dimensions: | 8.5" W x 12" D x 3.5" H (216 mm x 305 mm x 88 mm) |
| Weight: | 13lbs. (6.5 kg) |
Features and specifications are subject to improvements and changes without prior notice.
