The C6i Integrated Amplifier is steeped in audiophile performance. Designed in a compact aluminum chassis with 6 high quality inputs and 120W power. Precision circuitry and dedicated signal paths provide the highest detail and resolution for both analog and digital sources.
- USB 2.0 24/192 and DSD 128(DOP)
- 24/192 High-Dynamic Range DAC
- 125-Watt power amplifier
- Analog RIAA MM Phono Stage
- Quality Headphone Output
- Remote Control
C6i Integrated Amplifier Features
HDR Core is the result of 20+ years of engineering that refines the digital to analog process using precision components: Ultra Low Noise Master Clocks, Advanced Asynchronous Interfaces, and Dual Mode Low-Noise High Efficiency Power Supplies. HDR Core technology is fundamental to every e.One DAC and Integrated product, creating the most realistic, open, and defined musical experience possible.
Built In Headphone Output
The dedicated low-impedance, high-output headphone is designed to drive your headphones with clarity and detail. You'll be amazed at the musical depth they bring to your headset.
Simple, Elegant Interface
The dual-functioning single knob interface provides easy navigation of the menu, selecting inputs and controlling volume, plus it comes with a 36-button infrared remote that controls all functions from 30 feet away. Combined with the large LED display that makes it easy to access and control all functions.
C6i Integrated Amplifier Specifications
|
|
Amplifier Section:
|
| Power Output 1% THD: |
125W per channel |
| Minimum Load: |
2 ohms per channel |
| Peak Output Current: |
12.5 amperes |
| Frequency Response: |
+/-3 dB 1.5Hz-90KHz |
| THD+N: |
0.003% 1W, 1KHz, 4 ohms |
| IMD (CCIF): |
0.0003%, 1W, 14:15KHz, 4 ohms |
| Output Noise: |
<30uVRMS A-weighted 10Hz-20KHz |
| Damping factor: |
>400 |
| Output Impedance at 100Hz: |
<20 milliohms |
| Dynamic Range: |
120dB |
Digital Inputs:
|
| Maximum Data Input Rate |
|
| 24bit Data at 192KS/s: |
SPDIF RCA x2, TOSLINK x2, USB |
Analog Inputs:
|
| Line in impedance: |
47 Kohms, 2Vrms max |
| Phono in impedance: |
47 Kohms//150pF |
| Phono accuracy: |
+/-0.25dB, 50Hz-15kHz |
General:
|

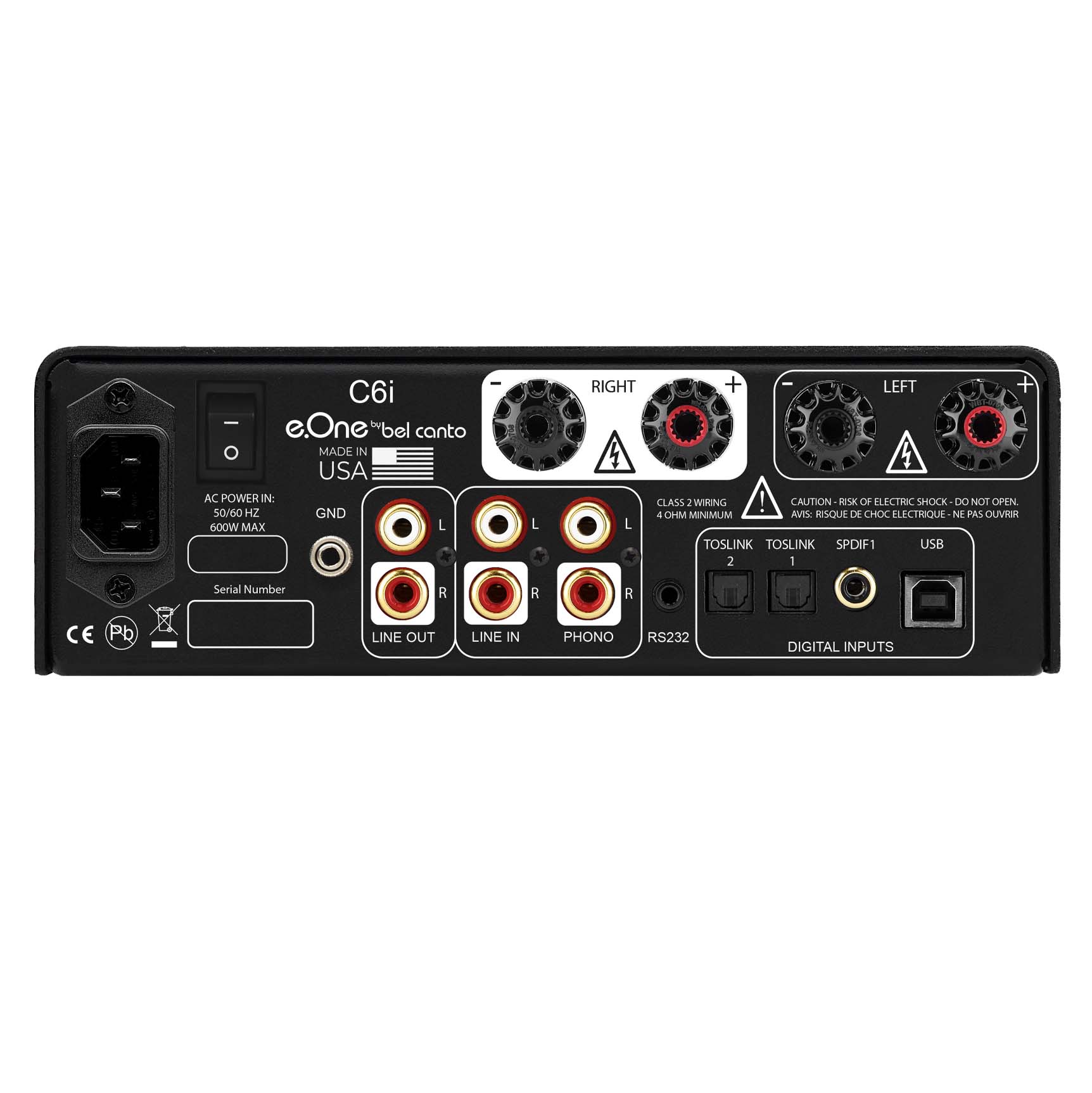

| Output connections: |
2-sets of WBT NextGen Binding Posts, RCA Line Out, Headphone Output |
| Headphone Output Current and Voltage Level: |
100mA peak |
| Line Out Impedance: |
500 ohms |
| Power On usage: |
14W |
| Power Off usage: |
0.0W |
| Internally Set Operating Voltages: |
100-120VAC or 230-240VAC 50/60 Hz |
| Size: |
216 x 88 x 305mm (W x H x D) |
| Weight: |
6.5Kg |
Features and specifications are subject to improvements and changes without prior notice.
