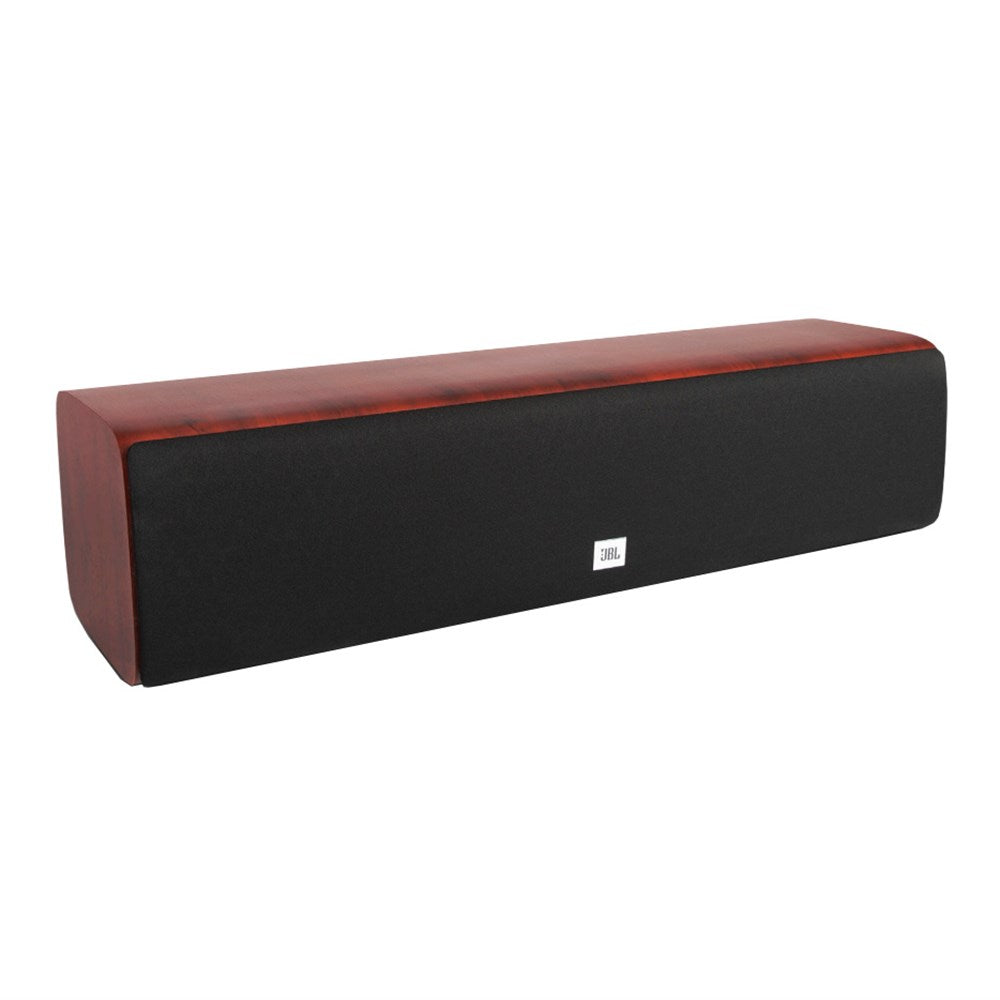

JBL STUDIO 665C
QUAD 5.25-INCH 2.5-WAY CENTER CHANNEL SPEAKER
The JBL Studio 665C is a high-performance center channel loudspeaker utilizing JBL’s 2414H-1 1-inch compression driver mated to a High-Definition Imaging horn complemented by quad 5.25-inch PolyPlas cone woofers. The elegant cabinet design includes a magnitically attached grille and brings an element of sophistication to any room. The Studio 6 Series delivers big dynamics, detailed sound, and powerful bass for true high-fidelity sound.
FEATURES
-
Top-graded PolyPlass cones.
- High-quality sounding compression drivers.
- New, appealing form factor.
- High-definition imaging Waveguide with high-frequency compression driver.
SPECIFICATIONS
- Quad 5.25″, 2.5-way compression driver center loudspeaker
- Quad 5.25″ (133mm) PolyPlas Low-Frequency Woofer
- High Definition Imaging (HDI) Waveguide with 1” (25mm) High Frequency Compression Driver
- Recommended Amplifier Power Max 200W
- Frequency Response 58Hz – 40kHz
- Sensitivity 90 dB @ 1M, 2.83V
- Nominal Impedance 6 Ohms
- Crossover Frequencies 600 Hz, 2.2 kHz
- Enclosure Type Bass-Reflex via Rear-Firing Tuned Port
- Dimensions (W x D x H) 760 x 230 x 190mm
