Description

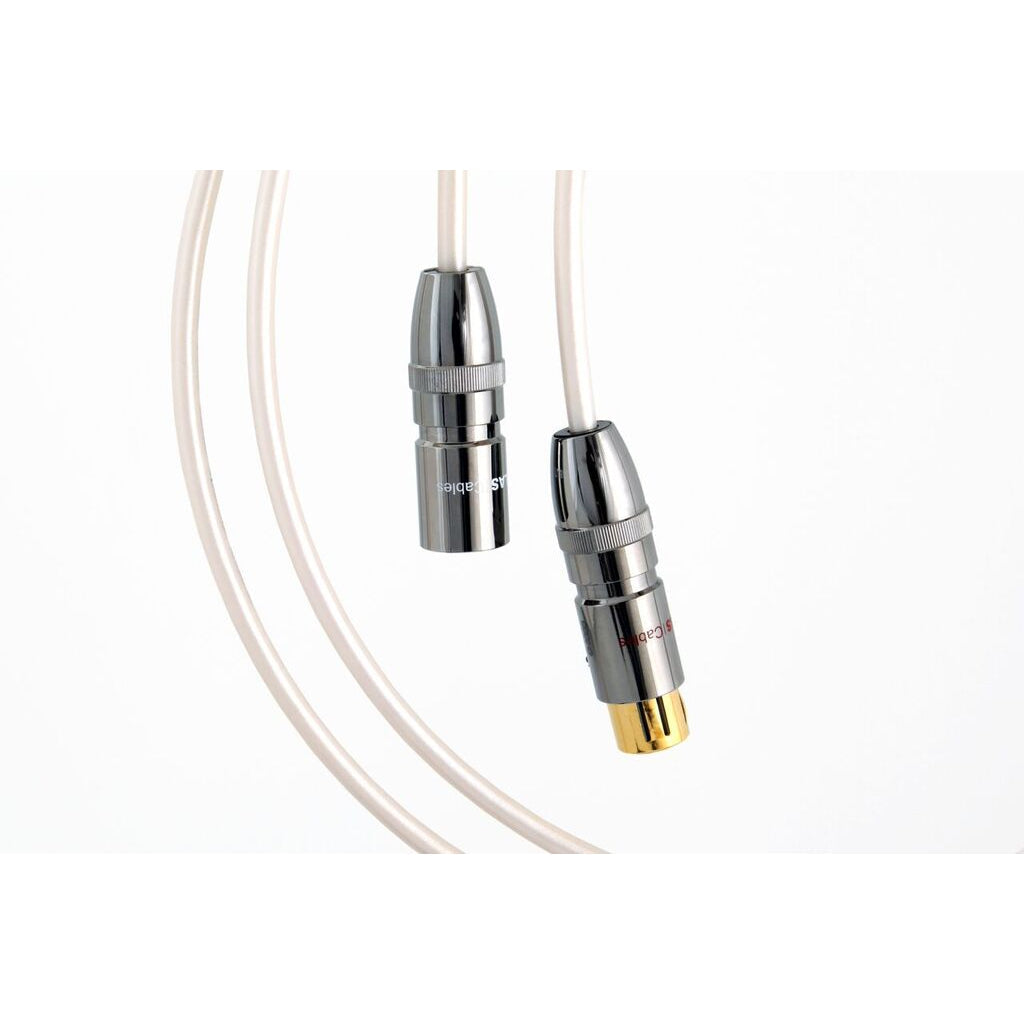

Atlas Element XLR Balanced Interconnect Cable
Based on the Atlas multi-award winning Element Achromatic interconnect, the Element OFC XLR utilises a shielded four-core construction providing excellent immunity to interference and noise, making it ideally suited to longer cable runs.
Element XLR utilises a shielded four-core construction providing excellent immunity to interference and noise, making it ideally suited to longer cable runs.
Atlas use cold-weld terminations wherever possible, including their current generation ‘dark Chrome’ XLR connectors. By reducing the number of materials and break points in the signal path, Atlas' objective is to minimise discontinuity and loss in the signal path, resulting in more consistent construction and improved audio performance.
Atlas XLR plugs are wired as follows by default: Pin 1 = Ground; Pin 2 = Hot, Pin 3 = Cold
If you require a different configuration/lengths, please contact us. Always check with your equipment manufacturer’s instructions before ordering.
Technology Specifications
| Construction | 4 core plus screen |
| Material | OFC |
| Dielectric | PEF |
| Screen | Braid OFC, 85% |
| Capacitance | 83.34 pF/m |
| Inductance | 0.512 µH/m |
| Resistance | 0. 0810 Ohms/m |
| Outside Diameter | 7.0mm |
