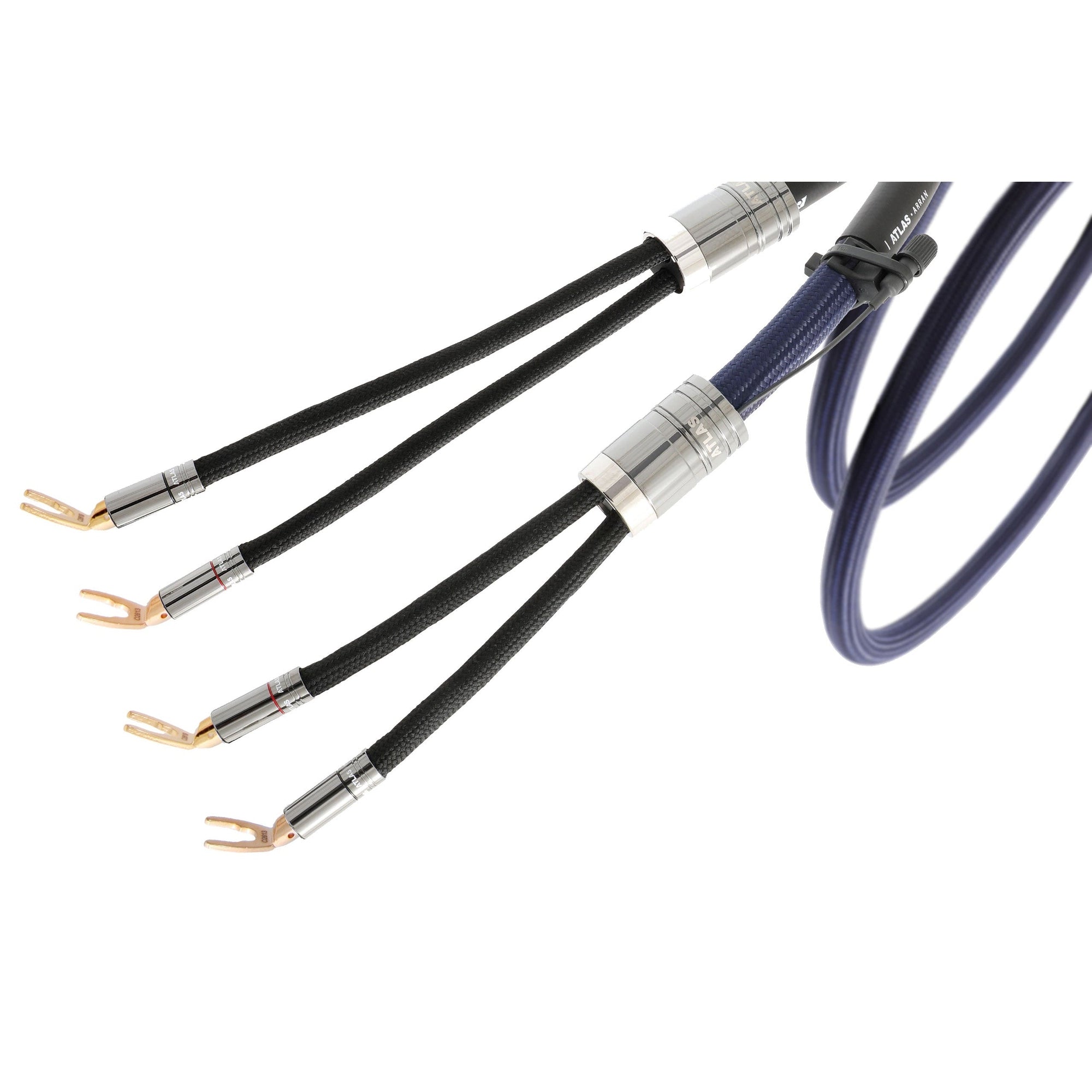

Atlas Arran Transpose Grun Speaker Cable
The Arran Speaker Grun is an advanced wide-bandwidth OCC loudspeaker cable which represents the pinnacle of Atlas design & manufacturing expertise.
Includes Grun Coherent Earthing System.
The Arran Speaker Grun features high purity ‘6N’ (99.99997% purity) elongated crystal copper manufactured using the OCC (Ohno Continuous Casting) process. Six solid OCC copper conductors are meticulously encased within a graduated dielectric formed by air voids, cotton spiral and tension controlled wrapped PTFE is further enhanced by the SSG (super stabilised geometry) layer which maintains the cable symmetry constant over its length.
In a cold-weld (solder-free) connection, the metal of the connector plug and the wire are squeezed together under a calibrated pressure to form a robust, consistent, air-tight metal to metal contact with no deformation of the cable dielectric. The result is a smooth, uninterrupted signal path which behaves as one continuous entity.

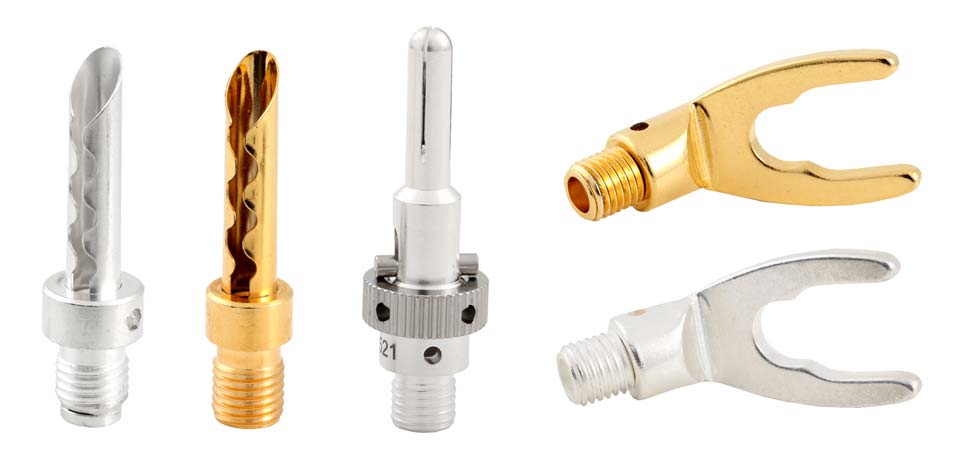

- Connector Type: Transpose deep silver plated plugs (see Transpose options)*
*Please contact us if you require a different Plug/Transpose option
Technology Specifications
| Construction |
Multi-core |
| Material |
OCC |
| Dielectric |
Microporous PTFE |
| Screen |
N/A |
| Capacitance |
42.08 pF/m |
| Inductance |
0.707 µH/m |
| Resistance |
0.0059 Ohms/m |
| Outside Diameter |
17.5 mm |
