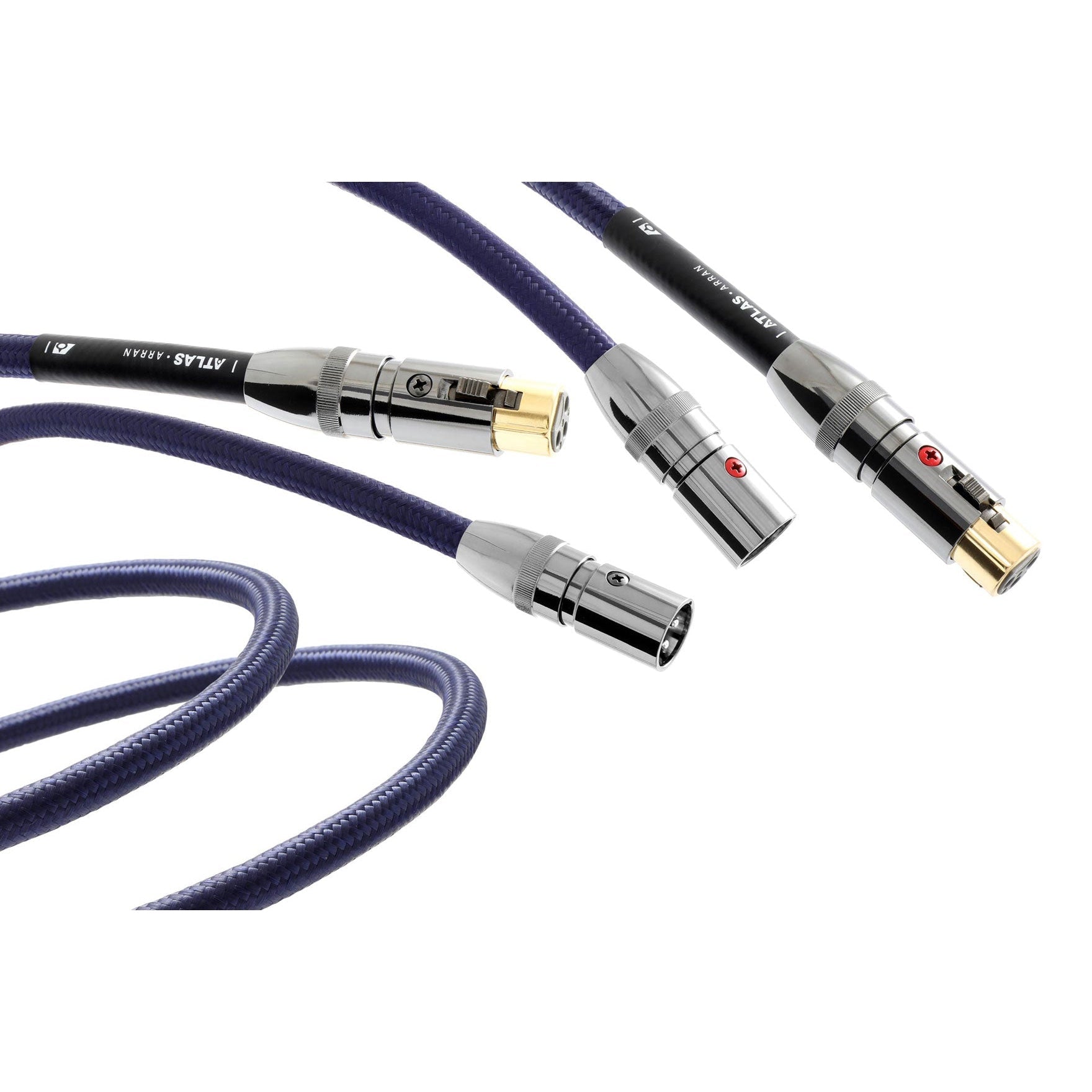

Arran OCC XLR (3pin) Copper Interconnect Cable
Arran OCC XLR is a high-resolution OCC copper interconnect cable building on ideas initially developed for our acclaimed Mavros & Asimi ranges.
A technically and sonically superior wide-bandwidth interconnect designed to maximise the performance of the very finest audio systems which offer the increasingly popular option of XLR connection. Arran OCC XLR incorporates our precision dd (dual-drain) system.
The Atlas Arran OCC XLR features the highest quality ‘6N’ (99.99997% purity) elongated crystal copper manufactured using the OCC (Ohno Continuous Casting) process.
The cable utilises a pair of conductors, each made up of six solid OCC strands surrounding a seventh central wire, tension wrapped in a multi-layer microporous Teflon dielectric. A sophisticated ‘dd’ (dual-drain) screen configuration with a copper shielding braid ensures minimal RF interference and noise susceptibility.
Termination is with our cold-weld aluminium alloy ‘dark Chrome’ XLR connectors, here with silver-plated OCC copper pins. In a cold-weld (solder-free) connection, the metal of the connector plug and the wire are squeezed together under a calibrated pressure to form a robust, consistent, air-tight metal to metal contact with no deformation of the cable dielectric. The result is a smooth, uninterrupted signal path which behaves as one continuous entity.
Specifications
- Connector Type: Atlas dark chrome XLR
- Conductor Material: OCC Copper
- Dielectric Material: PTFE (microporous Teflon)
- Construction: 4-core + screen dual-drain.
- Screen: Braid + Mylar™, 100%
- Capacitance: 133.98 pF/m
- Inductance: 0.332 μH/m
- Resistance: 0.0197 Ohms/m
- Outside Diameter: 9.8mm
