Atlas Arran 2:4/2:2 Grun Speaker Cable
Bi-wire version of the Arran speaker cable, in a 2-4 or 2-2 configuration to allow bi-wiring (or bi-amping).
The Arran Speaker Grun is an advanced wide-bandwidth OCC loudspeaker cable which represents the pinnacle of our design & manufacturing expertise.
The Arran Speaker Grun features high purity ‘6N’ (99.99997% purity) elongated crystal copper manufactured using the OCC (Ohno Continuous Casting) process. Six solid OCC copper conductors are meticulously encased within a graduated dielectric formed by air voids, cotton spiral and tension controlled wrapped PTFE is further enhanced by the SSG (super stabilised geometry) layer which maintains the cable symmetry constant over its length.
Termination is with Atlas cold-weld Transpose Modular Termination System.
In a cold-weld (solder-free) connection, the metal of the connector plug and the wire are squeezed together under a calibrated pressure to form a robust, consistent, air-tight metal to metal contact with no deformation of the cable dielectric. The result is a smooth, uninterrupted signal path which behaves as one continuous entity.
Widely acclaimed by the world’s specialist audio press as a key element in achieving the highest possible level of system performance, results with our Arran cables are further enhanced by the configuration of our Grun cables and adapter options. (Basic adapter included).

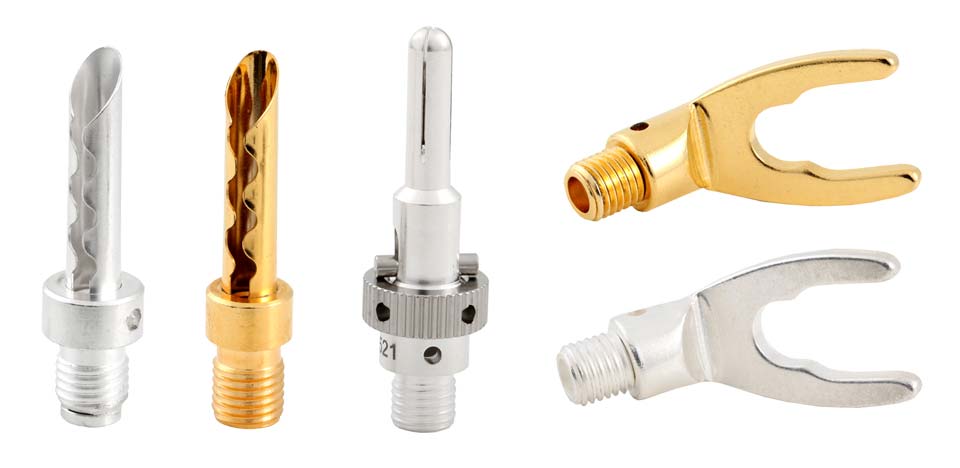

- Connector Type: Expanding 4mm banana plugs (see Transpose options)*
* please contact us if you require a different Plug/Transpose option
Technology & Specifications
Construction |
Multi-core |
Material |
OCC |
Dielectric |
Microporous PTFE |
Screen |
N/A |
Capacitance |
42.08 pF/m |
Inductance |
0.707 µH/m |
Resistance |
0.0059 Ohms/m |
Outside Diameter |
17.5 mm |
