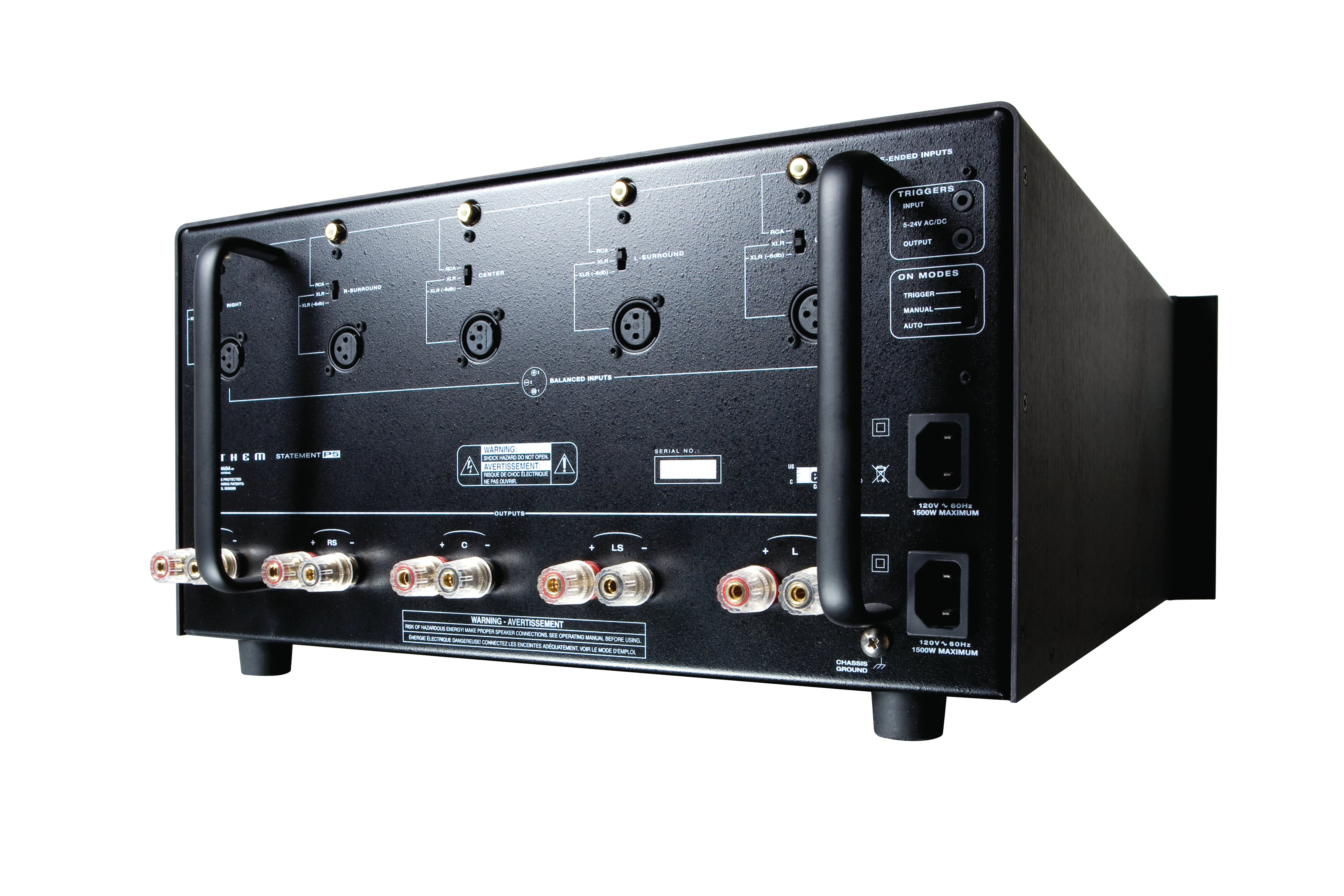

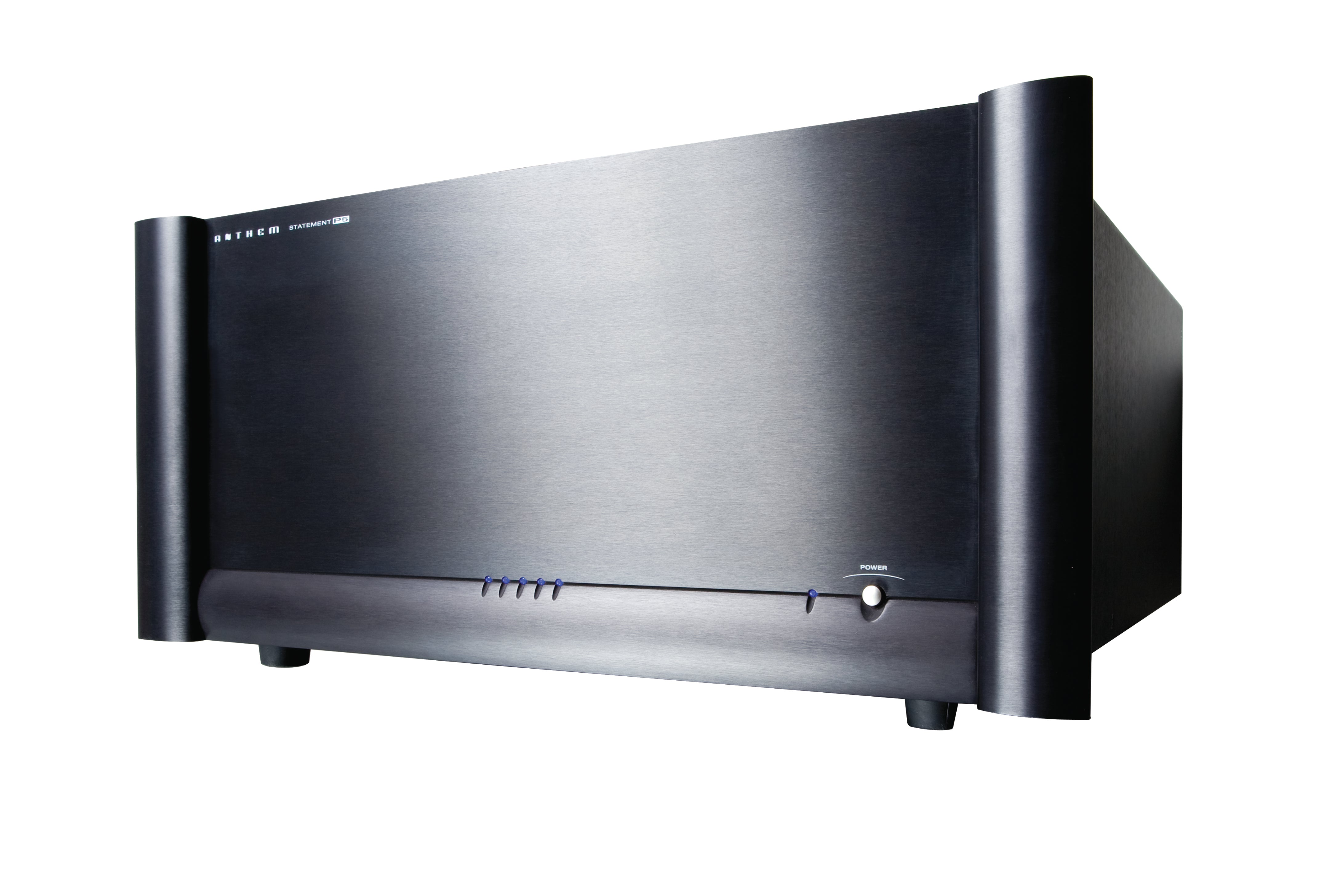

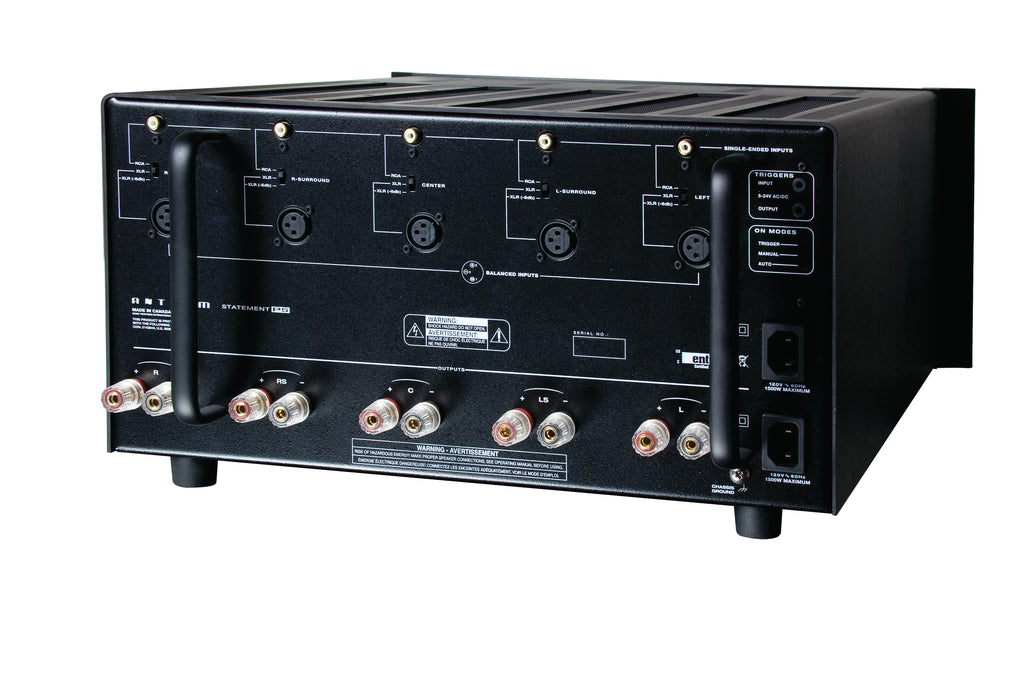

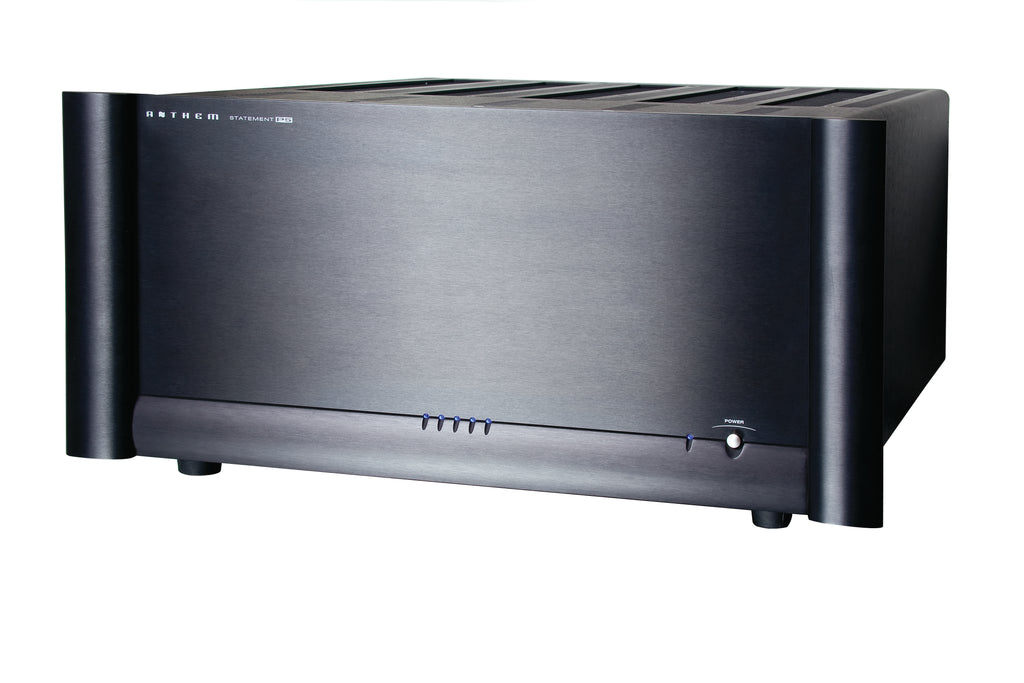

Anthem Statement P5
This 5-channel 325WPC power amplifier features the cleanest, quietest amplifiers in the industry. Each amplifier channel features two separate and autonomous power supplies fed from separate transformer windings. The amplifiers are thus able to deliver stable, continuous power at maximum output, regardless of the number of channels being driven.
By design, the Anthem P2 and P5 amplifiers are powerful independent "monoblock" amplifiers. Each channel is self-contained on its own glass-epoxy circuit board and heatsink and benefits from an independent power supply. Since there is no common audio path between channels there is a complete absence of crosstalk. Frequency-response channel matching is superb. The musical picture is seamless and exquisitely detailed with a multichannel soundstage that is astonishingly transparent, cohesive and three dimensional.
General
- Inputs 5 Single-Ended, 5 Balanced, 1 Relay Trigger (3.5 mm Mono Jack)
- Outputs 5 Pairs Speaker Binding Posts, 1 Relay Trigger (3.5 mm Mono Jack)
Switches
- Front Panel Power (On/Off)
- Rear Panel On/Off Modes (Trigger, Manual, Auto), Inputs (RCA, XLR, XLR -6dB)
Power Output
- Continuous RMS, 20 Hz - 20 kHz, <1.0% THD
- Impedance 8 Ohms: 1 = 325W, All = 325W (# of Channels Driven)
- Impedance 4 Ohms: 1 = 500W, All = 500W (# of Channels Driven)
- Impedance 2 Ohms: 1 = 675W, All = 675W (# of Channels Driven)
Specifications
- Power Bandwidth: 10 Hz to 150 kHz (+0 -3 dB, 325 W into 8ohms)
- Frequency Response: 20 Hz - 20 kHz (+0 -0.15 dB); 5 Hz - 100 kHz (+0 -2 dB)
- THD + N (225 W into 8ohms): 0.0007% at 1 kHz, 0.008% at 20 kHz
- IMD: 0.00019% (CCIF, 325 W into 8ohms)
- INPUT SENSITIVITY (RCA and XLR 0 dB inputs): 1 Vrms in for 28.3 Vrms out (100 W into 8ohms)
- Input Impedance: 18 k Ohms (RCA); 22 k Ohms (XLR)
- Damping Factor: >600 at 20 Hz, 400 at 1 kHz (ref. 8ohms)
- S/N Ratio: 125 dB, A-weighted (ref. 325 W)
- Crosstalk (between any two channels): -140 dB (20 Hz), -80 dB (20 kHz)
- Power Requirement: 105 to 130 V, 60 Hz ; 2 x 1800 W Power consumption
- Dimensions (H x W x D; heights include feet, depth including handles): 23.8 cm x 43.8 cm x 57.2 cm
