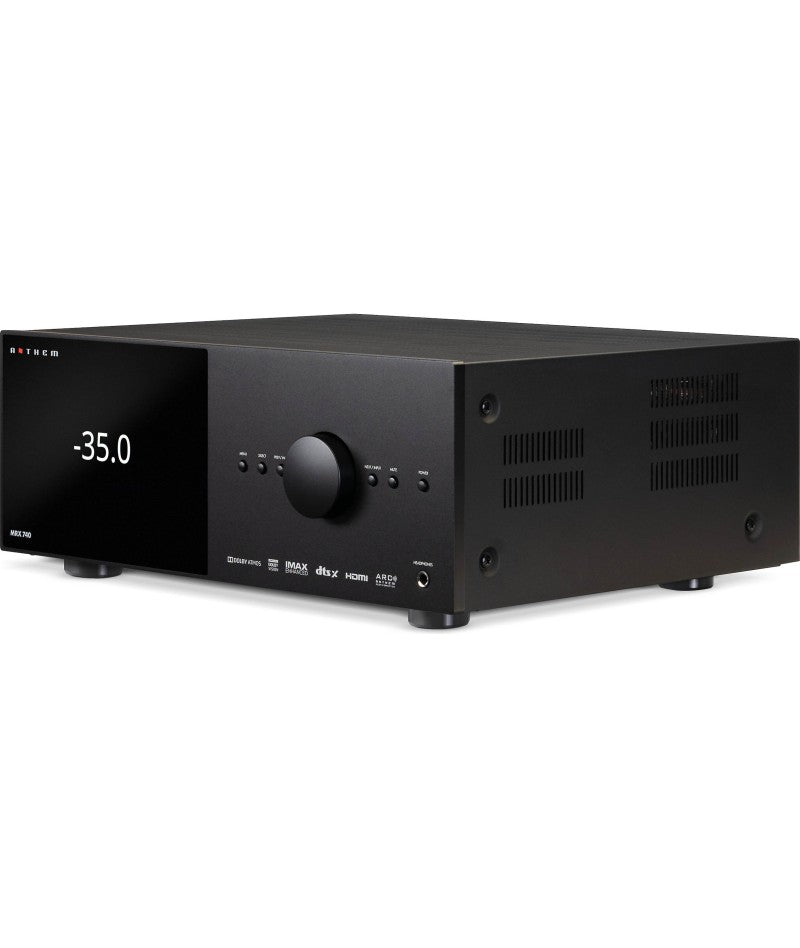

Product Overview
Anthem's MRX A/V Receivers are about maximising audio performance that previously has been unobtainable at their respective price points. Building on the feature set of our previous models, we've added the newest version of ARC Genesis, a redesigned and more accurate calibration microphone, Anthem's Web User Interface, integrated streaming support, object-oriented audio codecs with support for up to 15.2 channels and the clean power delivery Anthem is known for with up to 140 watts per channel. The MRX 540, 740 and 1140 are a great way to bring premium audio to any home theater or media room. Seamlessly integrate your smart TV or projector with 7 dedicated 8K HDMI inputs that support 8K/60Hz or 4K/120Hz pass-through and 3 dedicated outputs with eARC. With MRX, you can enjoy 8K quality video from all of your 8K source devices in amazing clarity.
Key Features
- 11.2 Pre-Amplifier / 7 Amplifier Channel A/V receiver
- ARC (Anthem Room Correction) Genesis
- HDMI 2.1, HDCP 2.3 supporting 8K/60Hz or 4K/120Hz
- 140-watts per channel continuous power into 8 ohms
- Dolby Atmos, DTS:X and IMAX Enhanced
-
32-Bit/768 kHz DAC
-
Wi-Fi / Ethernet Enabled
-
IP and Serial Control
-
Dolby Atmos
-
DTS:X, DTS Virtual:X
-
HDMI eARC
-
Apple AirPlay2
-
Google Chromecast (Audio) • Bluetooth v4.2
-
Spotify ConnectHDMI & VIDEO
-
Dolby Vision
- IMAX Enhanced
- 4:4:4 Subsampling @ 8K/60 Hz (18.2 Gbps)
-
High Dynamic Range (HDR10+)
-
Variable Refresh Rate (VRR)
-
Auto Low Latency Mode (ALLM)
-
Quick Frame Transport
-
Hybrid Log Gamma (HLG)
-
BT.2020 Color Gamut
-
8K/60 Hz / 4K/120 Hz Pass-Through
Highlight Features
-
New & Improved Electronics Platform, up to 15.2 channels, now with HDMI 2.1 & HDCP 2.3 (8K Ready)
-
Platform Agnostic Streaming with AirPlay2, Google Chromecast (Audio), Bluetooth v4.2, and Spotify Connect and Roon (coming soon!)
-
Reliable Networking Platform with web-based setup and over-the-air updates
-
Next-Generation DSP Platform featuring the award- winning Anthem Room Correction (ARC Genesis) software.
-
Modernized Design with high-resolution front panel
Pre-Amplifier
-
Maximum Output (<0.1% THD): 5.2 VRMS, 7.1VRMS
-
Frequency Response: 20Hz - 30KHz +/-0.2dB
-
Frequency Response, Analog-Direct: N/A
-
THD+N (2 Vrms output): -100 dB
-
S/N Ratio (2 Vrms output, IEC-A filter): 110 dB
-
Pre-Amplifier + Amplifier (1W Output)
-
SNR: 91 dB ch 1-5
Speaker Impedance
-
Compatible with 4 Ω or higher impedance
Maximum continuous Output (1% THD)
-
Channels 1-5, Two Driven into 8 Ω: 140 W
-
Channels 1-5, Two Driven into 6 Ω: 170 W
-
Remaining Channels, Two Driven into 8 Ω: 60w
-
Remaining Channels, Two Driven into 6 Ω: 75w
Power Consumption
-
Typical Load: 485 W
-
Standby: 0.3 W
-
Standby IP Control Enabled: 1.8 W
-
Standby HDMI Bypass Enabled: 4.9 W
Dimensions
-
Height (without feet): 15.24 cm
-
Height with Rackmount Kit: 4U
-
Width: 43.18 cm
-
Depth (including wifi ant not power cord): 36.4 cm
-
Weight: 12.8 kg
Power Requirement
-
220-240 V version: In countries where the line voltage is 220, 230, or 240 V, this product operates from a single phase AC power source that supplies between 198 V and 264 V at a frequency of 50 Hz.
