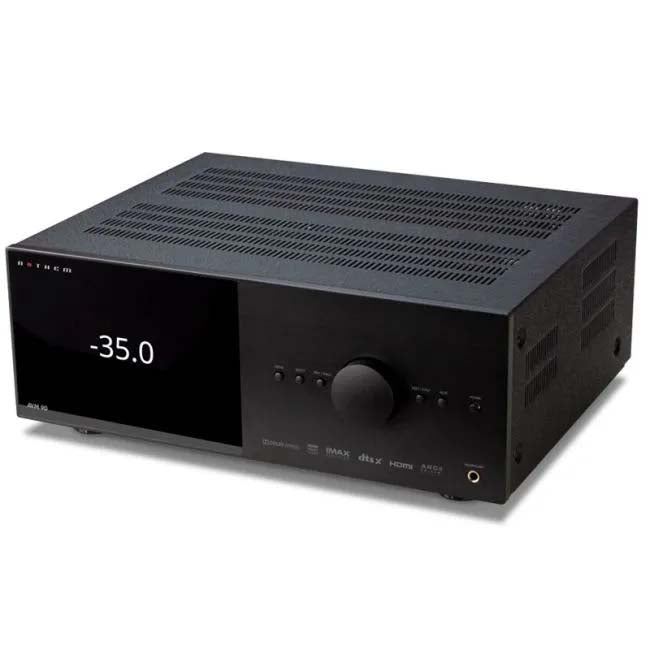

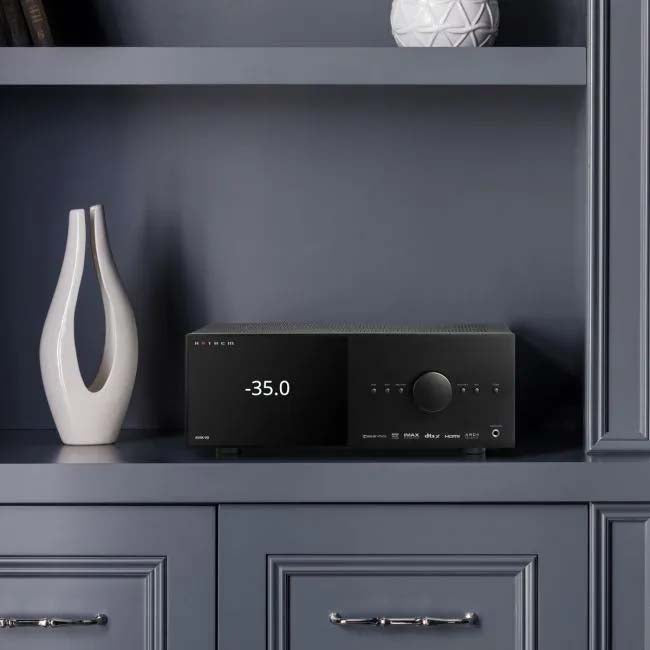

Anthem AVM-90V 15.4 AV PROCESSOR

Anthem AVM-90V 15.4 AV PROCESSOR - BLACK

Key Features

• 19-Channel AV Pre-amplifier/processor with Dolby Atoms, ETS:X and IMAX Enhanced.
• 8K Ready
• ARC Genesis Room Correction

Specfications

PREAMPLIFIER (MEASURED AT XLR OUTPUT)

• Maximum Output (<0.1% THD)
  • 0.7 VRMS, Subwoofer 11 VRMS
• Frequency Response
  • 20 Hz — 35 kHz (+/-0.2dB)
• Frequency Response, Analog-Direct
  • 20 Hz — 80 kHz (+0, -2 dB)
• THD+N (4 Vrms output)
  • -102 dB
• S/N Ratio (4 Vrms output, IEC-A filter)
  • 115 dB
• XLR Configuration
  • Pin 1: Ground, Pin 2: Positive, Pin 3: Negative

POWER CONSUMPTION

• Typical Load

  • 60 W

• Standby

  • 0.3 W

• Standby IP Control Enabled
  • 1.8 W

• Standby HDMI Bypass Enabled
  • 4.9 W

DIMENSIONS

• Height without feet : 15.24cm
• Height with Rackmount kit : 4U
• Width : 43.18cm
• Depth (including wifi and not power cord) : 36.4cm
• Weight : 10.1 kgs
